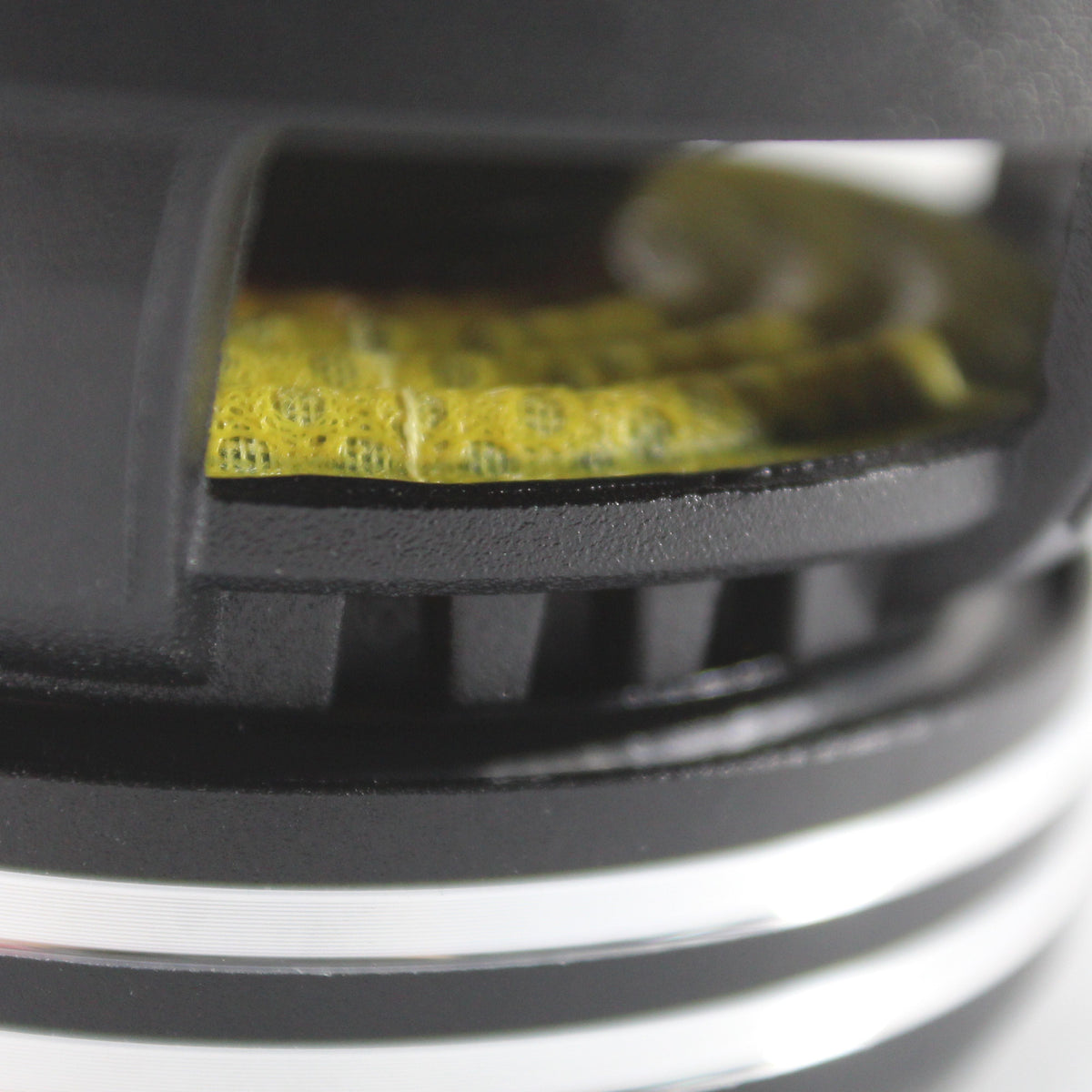

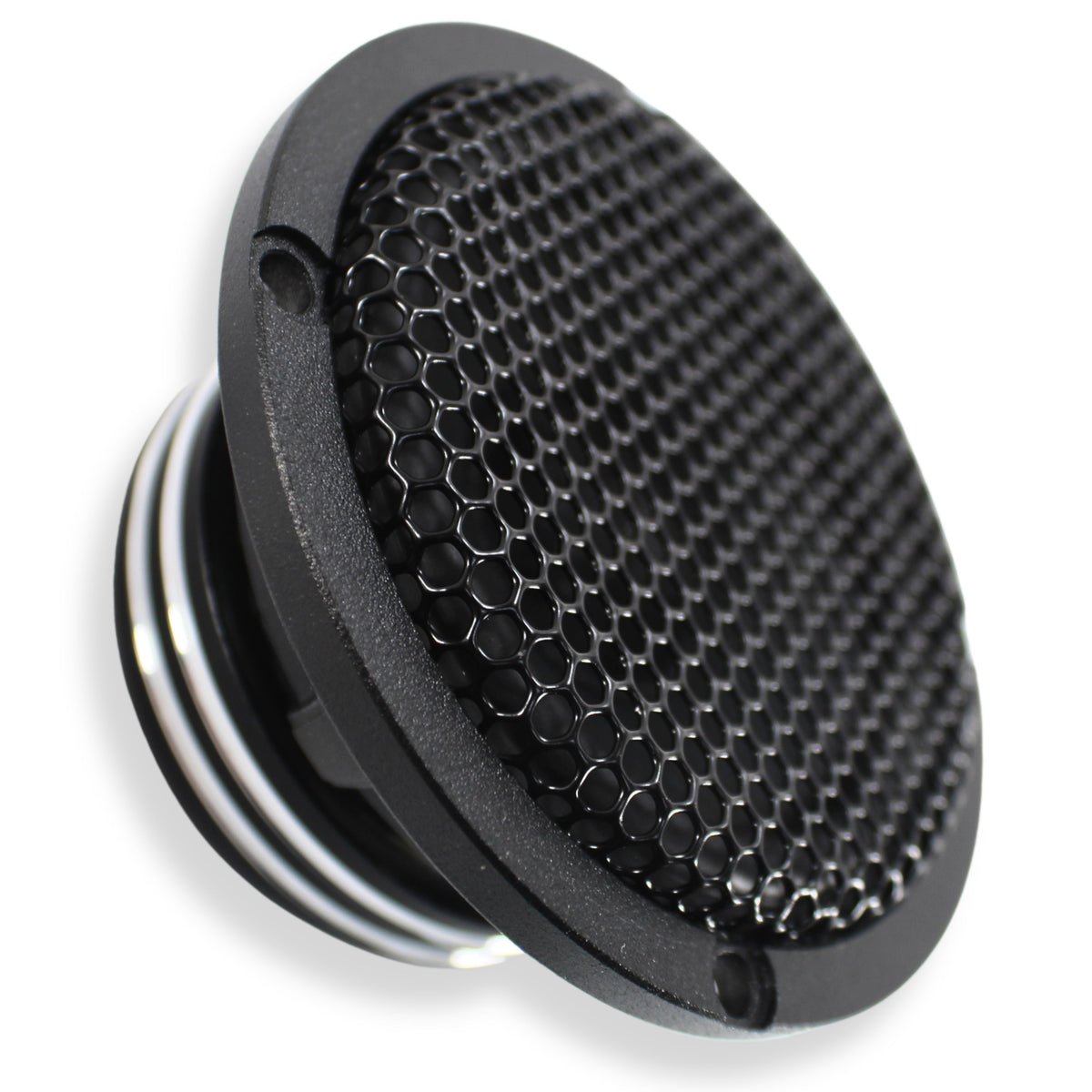

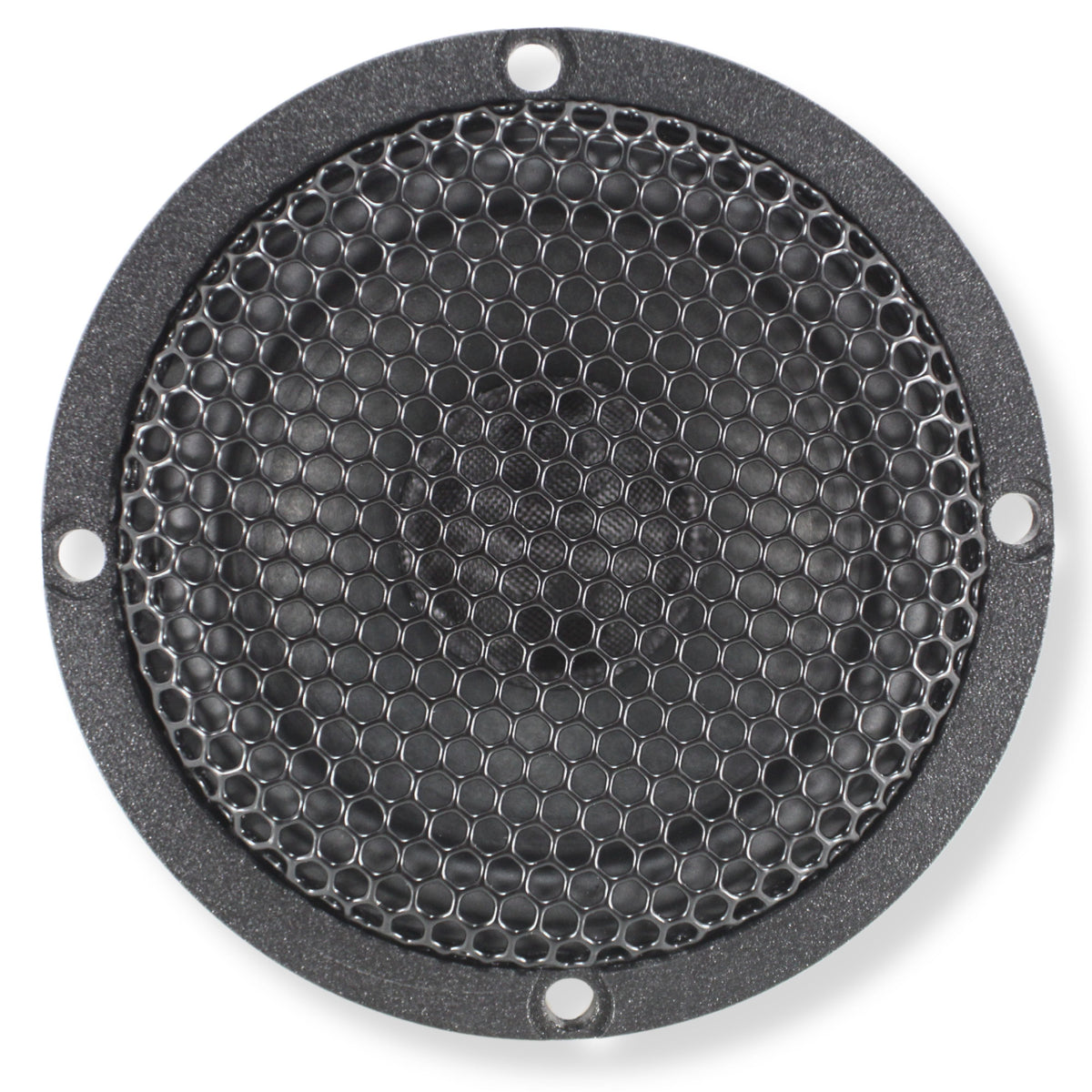

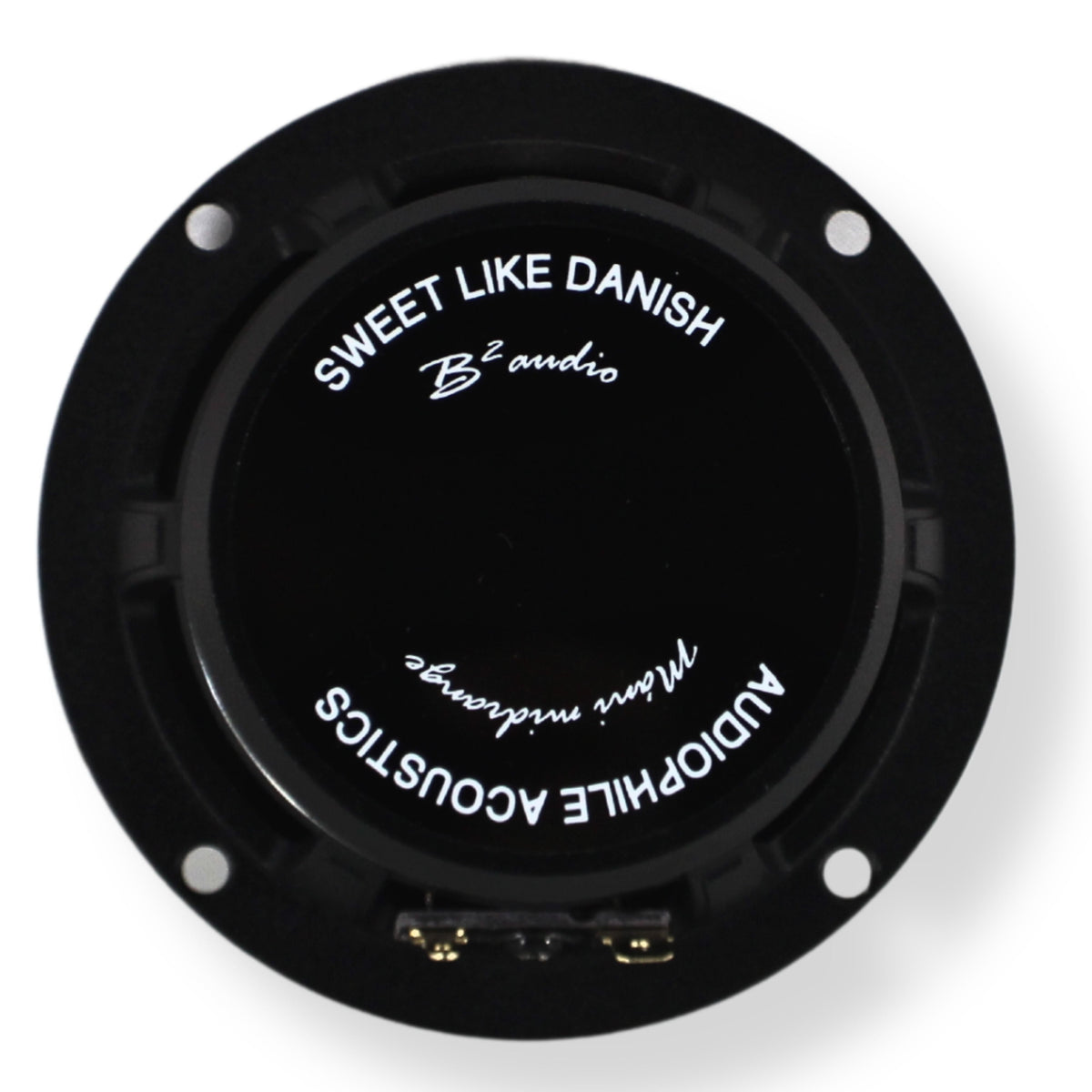

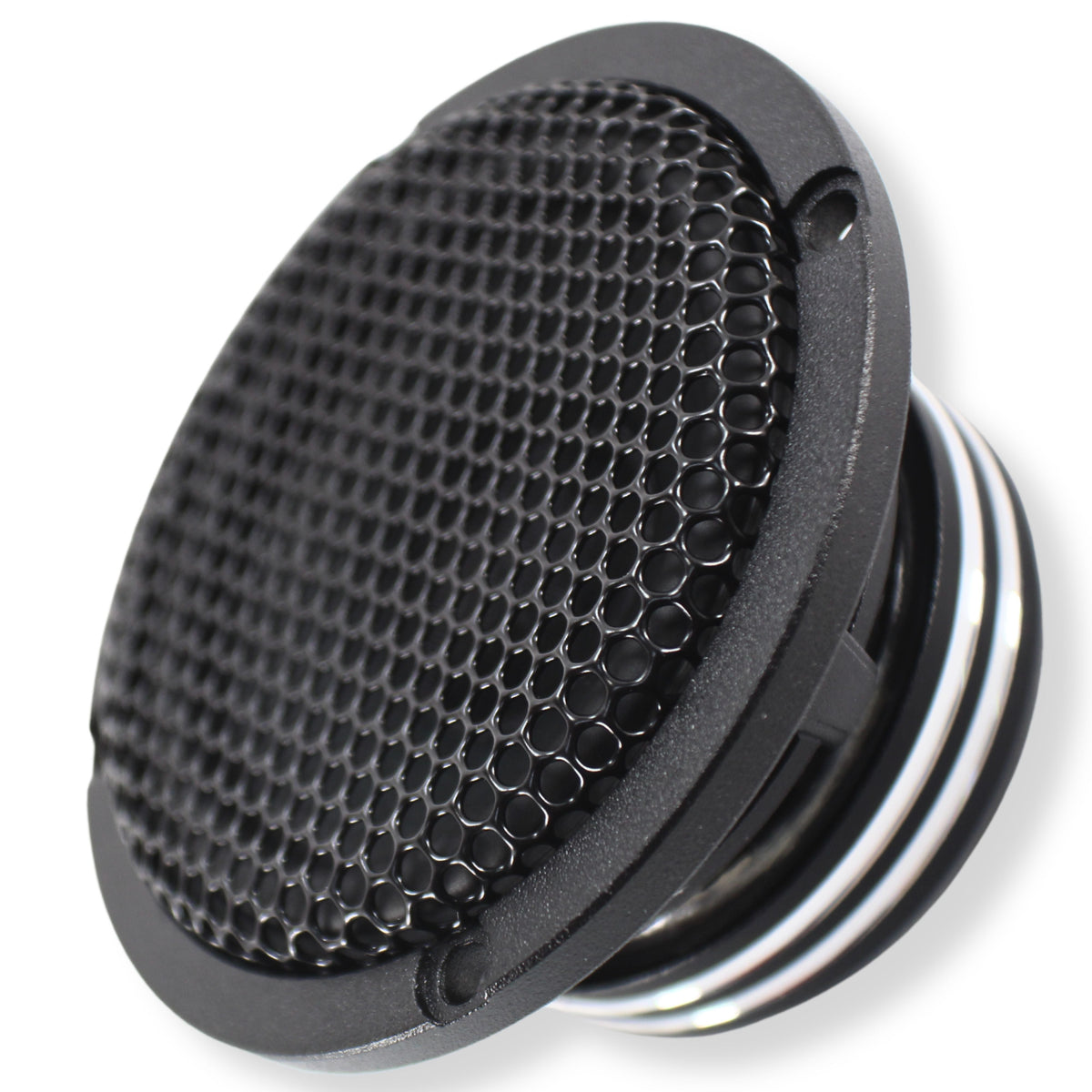

B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR

B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR

Sold by AudioSellerz.com

The B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR is a car audio midrange speaker product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Exceptional Midrange Performance: Experience rich and detailed midrange frequencies with these high-quality bamboo-infused speakers.
• Powerful RMS Handling: Each speaker boasts a RMS power handling of 50W, ensuring robust and clear audio reproduction.
• Premium Construction: Crafted with bamboo infusion for enhanced durability and superior sound quality.
• Wide Frequency Response: Enjoy a frequency response of 50 Hz to 25 KHz, capturing every nuance of your music.
• Easy Installation: Designed with precise measurements for straightforward mounting in your vehicle or audio setup.

B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR

*This one’s been discontinued, but we’ve got you covered. Check out the B2-REFSQ3.

This Listing Includes:

• (2) 3" 50 Watt Midrange Speakers

Fuel your audio revolution with the B2 Audio REF 3" Bamboo Infused Midrange Speakers. Engineered to obliterate mediocrity, these speakers unleash relentless midrange performance that'll leave you in awe. With a bone-shaking RMS power handling of 50W per speaker, they don't just reproduce sound; they command it with authority, delivering robust and crystal-clear audio output that dominates the competition. Crafted with bamboo infusion, these speakers aren't just durable; they're unstoppable, ensuring superior sound quality that stands the test of time. Boasting a wide frequency response of 50 Hz to 25 KHz, they faithfully reproduce every nuance of midrange frequencies, elevating your audio experience to new heights whether you're jamming to music or immersing yourself in movies.

Features

• 50 Watts RMS power handling per speaker


• 6 Ohm nominal impedance


• 1 Inch voice coil


• Bamboo-infused cone for rigidity and tonal accuracy


• Wide frequency response from 50 Hz to 25 kHz


• Compact design for dash, pillar, and custom installations


• Designed for sound quality-focused builds

Specifications:

• RMS Power Handling: 50W


• Nominal Impedance: 6 Ohms


• Voice Coil Diameter: 1"


• Frequency Response: 50 Hz ~ 25 KHz

Thiele & Small Parameters:

• Free Air Resonance (Fs): 159 Hz


• Resistance (Re):5.2 Ohms


• Mechanical Factor (Qms): 5.54


• Electrical Factor (Qes): 1.43


• Total Factor (Qts): 1.14


• Equivalent Volume (Vas): 0.5 L


• L Efficiency: 0.142%


• Compliance (Cms): 354 um/N


• BL Factor (BL): 3.2 TM


• Moving Mass (Mms): 2.8 g


• Sound Pressure Level (SPL): 83.6 dB

Dimensions:

• Overall Diameter: 3.59" / 91.4mm


• Mounting Diameter: 3.03" / 77mm


• Front Mount Baffle Cutout: 3.15" / 80mm


• Overall Depth: 1.91" / 48.6mm


• Mounting Depth: 1.53" / 38.9mm


• Sold as: (Pair)
