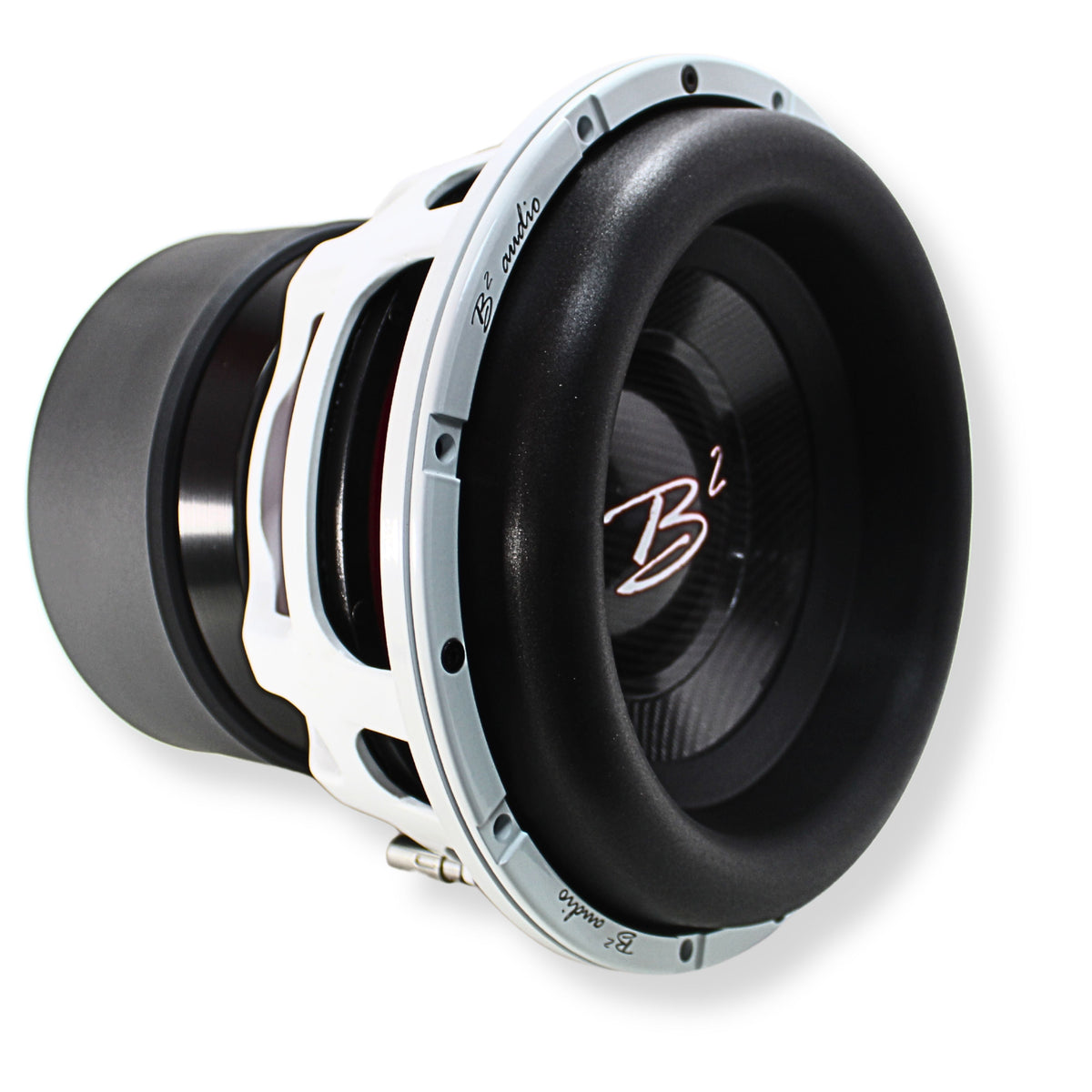

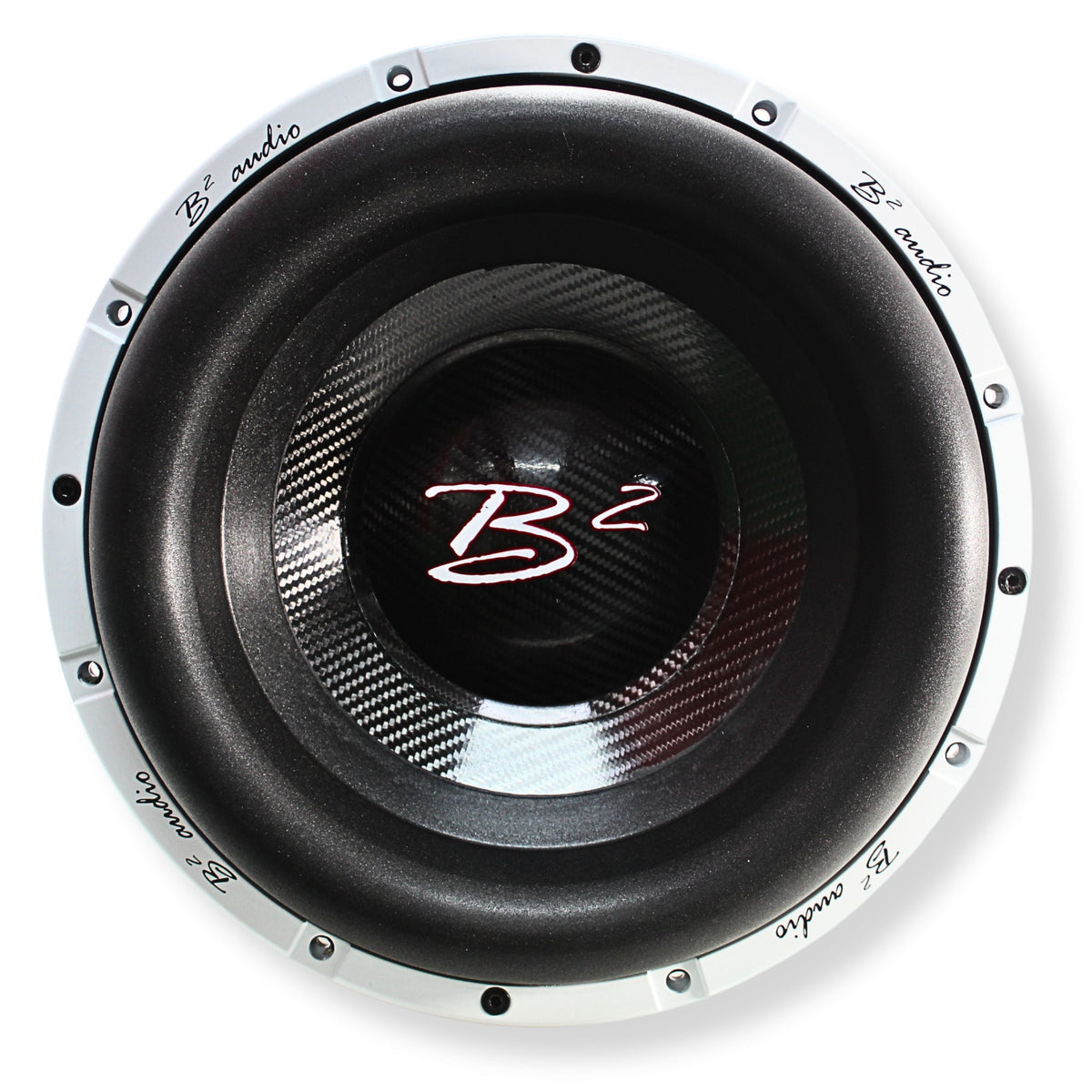

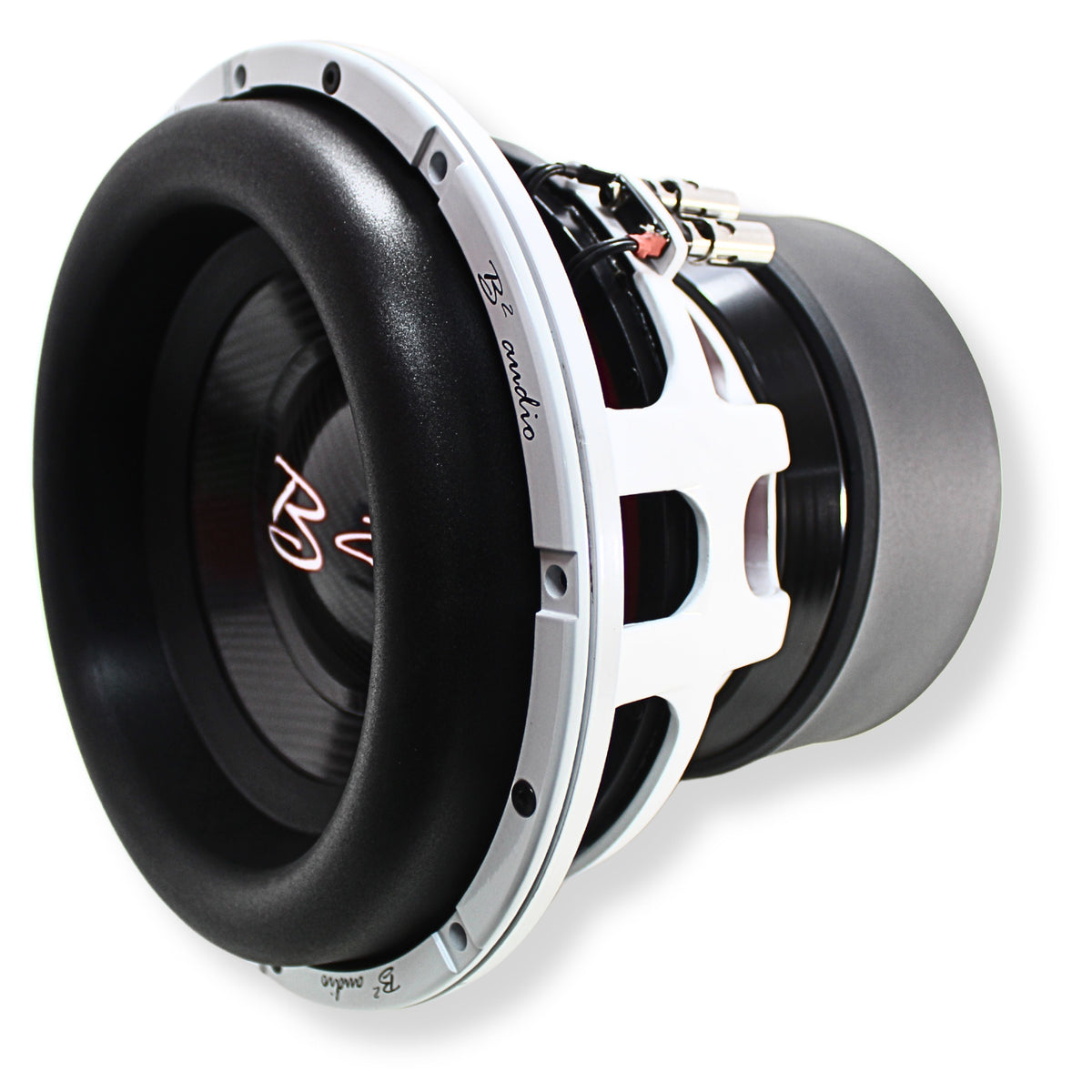

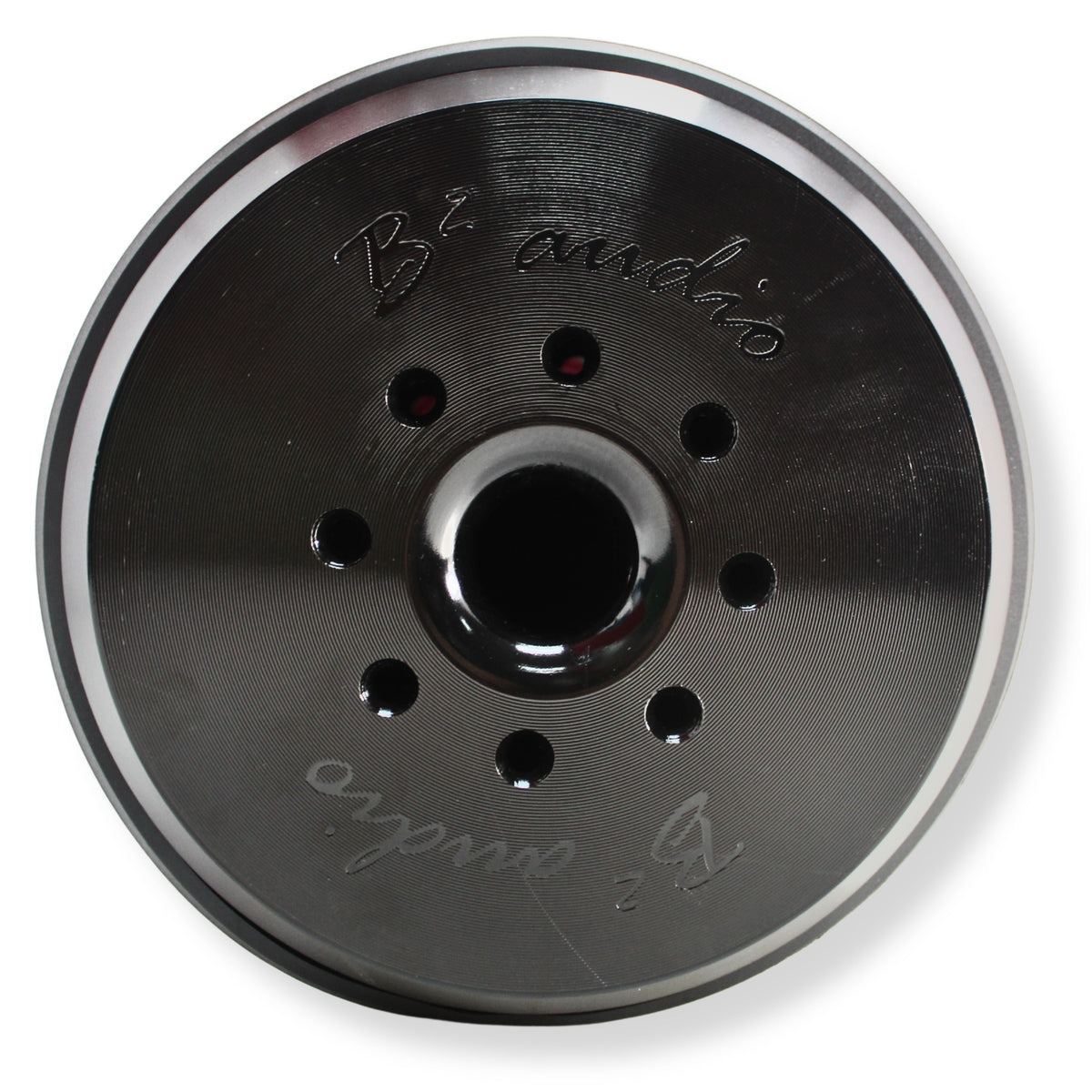

B2 Audio RAGEXL Series V2 12" 3500 Watt RMS Carbon Fiber Cone Dual 1-Ohm 3" Voice Coil Subwoofer

B2 Audio RAGEXL Series V2 12" 3500 Watt RMS Carbon Fiber Cone Dual 1-Ohm 3" Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGEXL Series V2 12" 3500 Watt RMS Carbon Fiber Cone Dual 1-Ohm 3" Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Apocalyptic Power: Brace yourself for an onslaught of 3500 Watts RMS, unleashing a cataclysmic wave of bass that shakes the very foundations of reality.
• Sonic Fury: Experience the relentless blast of sound with precision-engineered dual 1-ohm voice coils, delivering thunderous lows and spine-chilling clarity.
• Unleash the Beast: Dominate the audio landscape with unrivaled flexibility, thanks to dual 1-ohm voice coils that empower you to customize your setup for maximum impact.
• Built to Conquer: Crafted with uncompromising attention to detail, this subwoofer is a testament to durability and resilience, ready to withstand the most punishing environments.
• Elevate Your Experience: Prepare to be transported to the edge of sensory overload as the B2 Audio RAGE XL Series 12" Subwoofer pushes the boundaries of intensity, delivering an audio experience that transcends the ordinary.

B2 Audio 12" 3500 Watt RMS Dual 1-Ohm Voice Coil RAGEXL Series  Subwoofer

This Listing Includes:

• (1) B2 Audio RAGE XL 12" Subwoofer

Prepare to be consumed by the unbridled fury of sound unleashed by the B2 Audio RAGE XL Series 12" 3500 Watt RMS Dual 1-Ohm Voice Coil Subwoofer. This is not just another speaker; it's a relentless force of nature, engineered to dominate the audio landscape with its sheer power and precision.

Featuring an uncompromising 3500 Watt RMS power handling capability, this subwoofer delivers bone-rattling bass and spine-tingling lows that reverberate through your soul. Its dual 1-ohm voice coils provide unparalleled flexibility, allowing you to fine-tune your audio setup to perfection.

Crafted with meticulous attention to detail and built to withstand the most demanding conditions, the B2 Audio RAGE XL Series Subwoofer is a testament to innovation, performance, and uncompromising quality.

Get ready to unleash the beast and experience audio like never before with the B2 Audio RAGE XL Series 12" Subwoofer - where power meets passion, and intensity knows no bounds.

Specifications:

• RMS Power Handling: 3500 Watts


• Peak Dynamic Power: 10,000 Watts

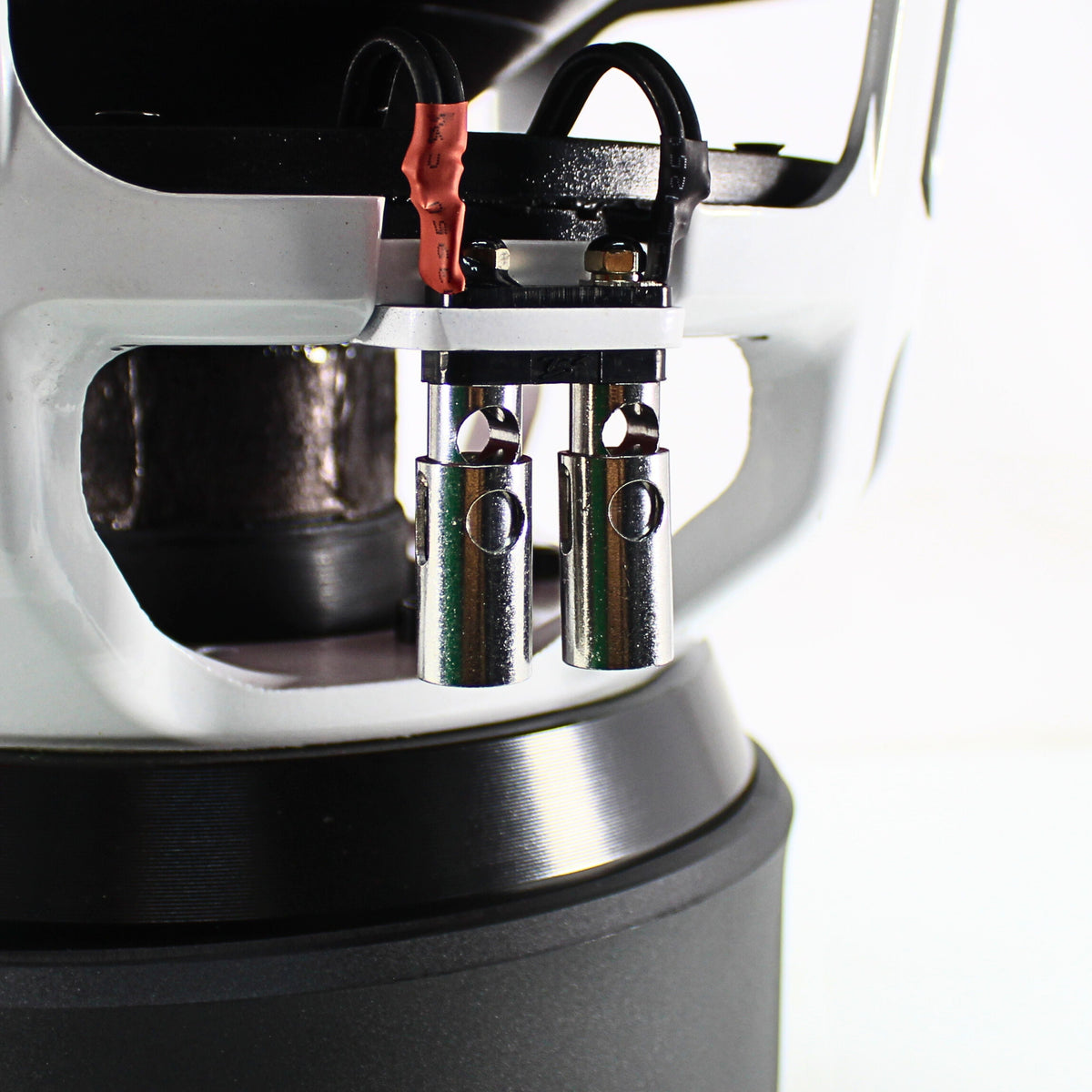

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 1 Ohm

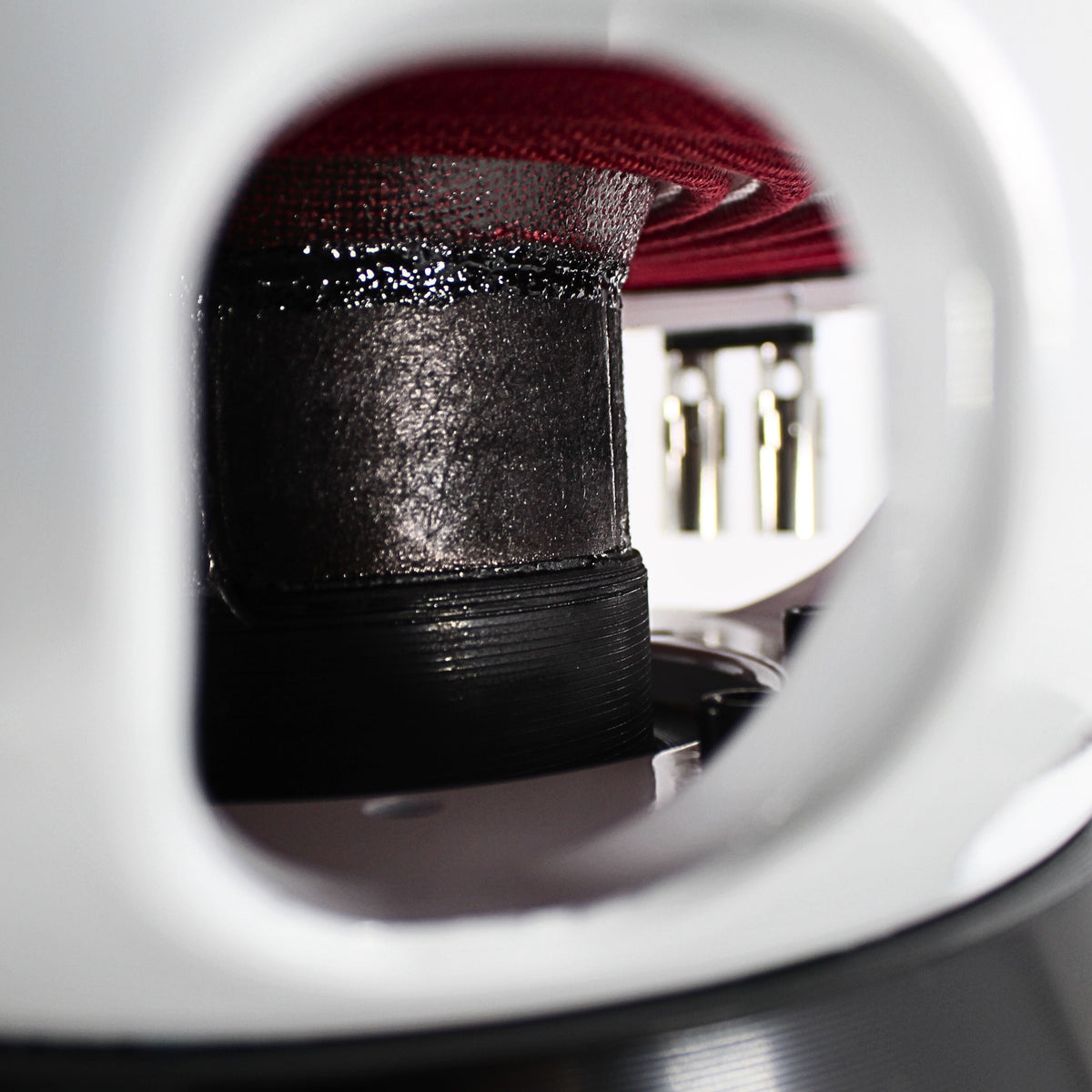

• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 88.6 dB


• Magnet Weight: 880 Oz


• Displacement Volume: 8.9 L / .314 cu ft

Thiele & Small Parameters

• Free Air Resonance (Fs): 28 Hz


• Resistance (Re): 2 Ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.49


• Equivalent Volume (Vas): 23.7 L


• Compliance (Cms): 80 um/N


• BL Factor (BL): 131.5 BL^2/RE


• Moving Mass (Mms): 403.9 g


• Excursion Max (Xmax): 23 mm

Measurements:

• Overall Diameter: 12.25" / 311 mm


• Mounting Diameter: 11.10 / 282 mm


• Bolt Pattern Diameter: 11.57" / 294 mm


• Overall Depth: 12.12" / 308 mm


• Mounting Depth: 10.12" / 257 mm

Enclosure Suggestions:

Sealed:

• 28 L / 1 cu.ft


• Qtc 0.523


• F3: 53 Hz

Ported Compact:

• 37 L / 1.32 cu.ft


• P.A.: 12.2 sq in


• Length : 15.2"


• FB: 38 Hz

Ported:

• 70 L / 2.47 cu.ft


• Port Area: 30.98 sq.in


• Length: 26.9"


• FB: 33 Hz
