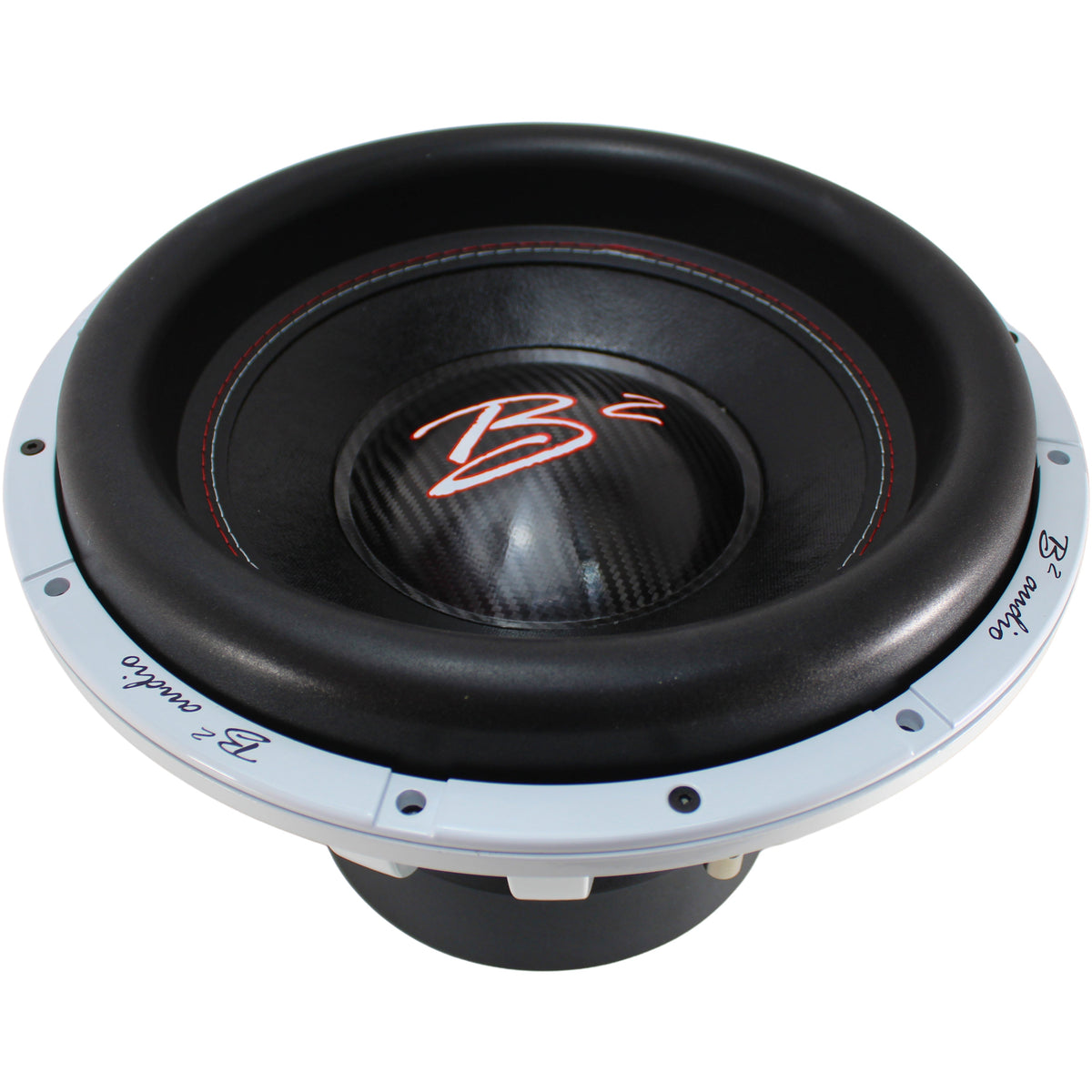

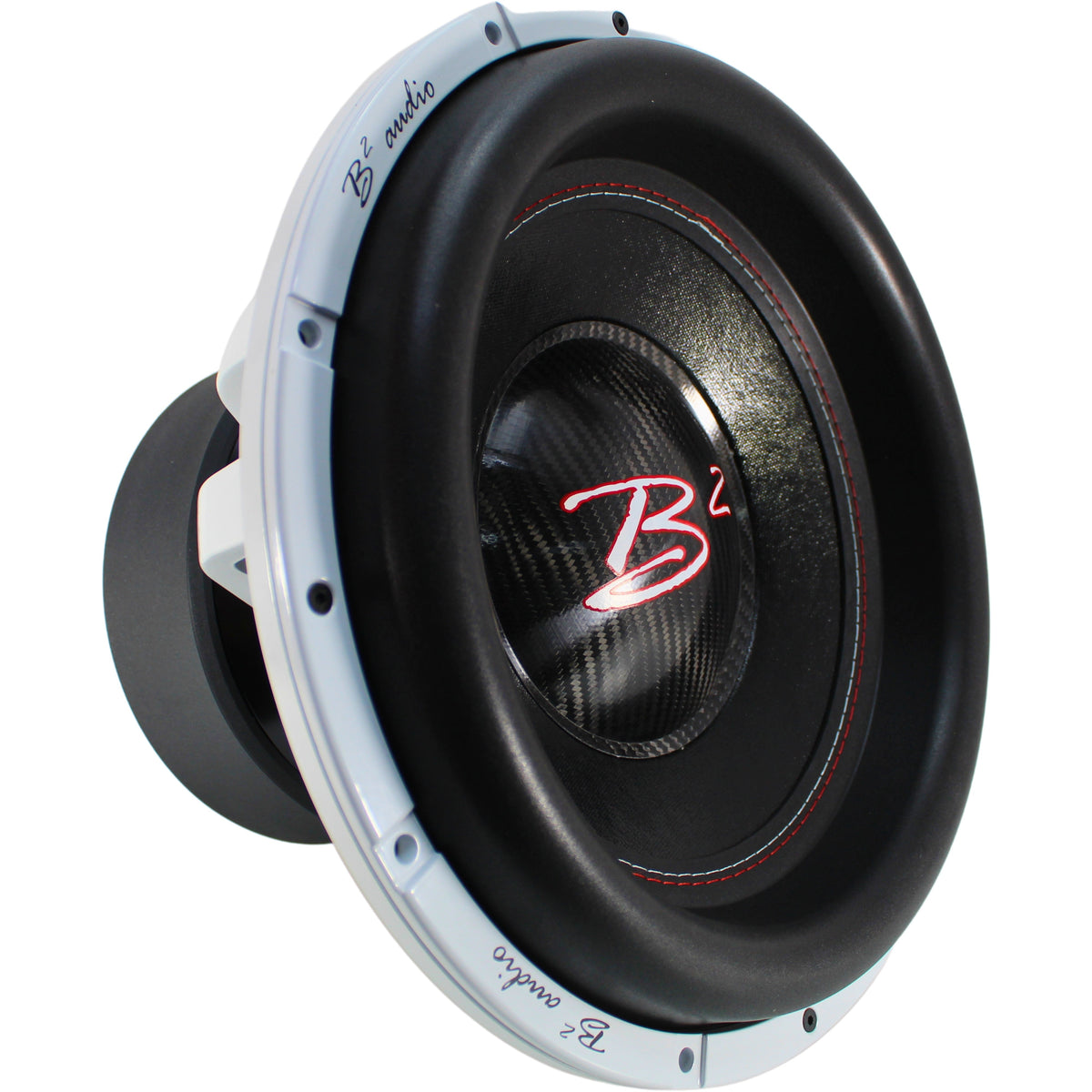

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Power-Packed Performance: Experience unparalleled bass performance with the B2 Audio RAGE15-D2-V3 subwoofer, featuring 2000 watts RMS power handling and a massive 600 oz magnet weight for thunderous sound reproduction.
• Dual Voice Coil Design: Equipped with a 3" voice coil and dual 2-ohm impedance, this subwoofer offers versatile wiring options and exceptional flexibility in audio configurations.
• High Sensitivity: With a sensitivity rating of 90.7 dB, the RAGE15-D2-V3 efficiently converts power into sound, delivering deep, impactful bass with clarity and precision.
• Precision Engineering: Engineered with precision Thiele & Small parameters and premium materials, this subwoofer ensures optimized performance and durability for long-lasting enjoyment.
• Versatile Enclosure Options: With enclosure suggestions for sealed, ported compact, and ported setups, the RAGE15-D2-V3 adapts to various audio environments, delivering optimal bass response.

B2 Audio RAGE Series v3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

This Listing includes:

• (1) 15" DVC 2-Ohm RAGE Subwoofer

Unleash pure pressure. The B2 Audio RAGE15 D2 V3 is a heavy-hitting 15" subwoofer engineered for violent low-frequency output, clean control, and uncompromising durability. With a 3" high-temp voice coil, dual 2-ohm configuration, and a monstrous 600 oz motor, this woofer delivers thunderous bass with the finesse of true high-end design.

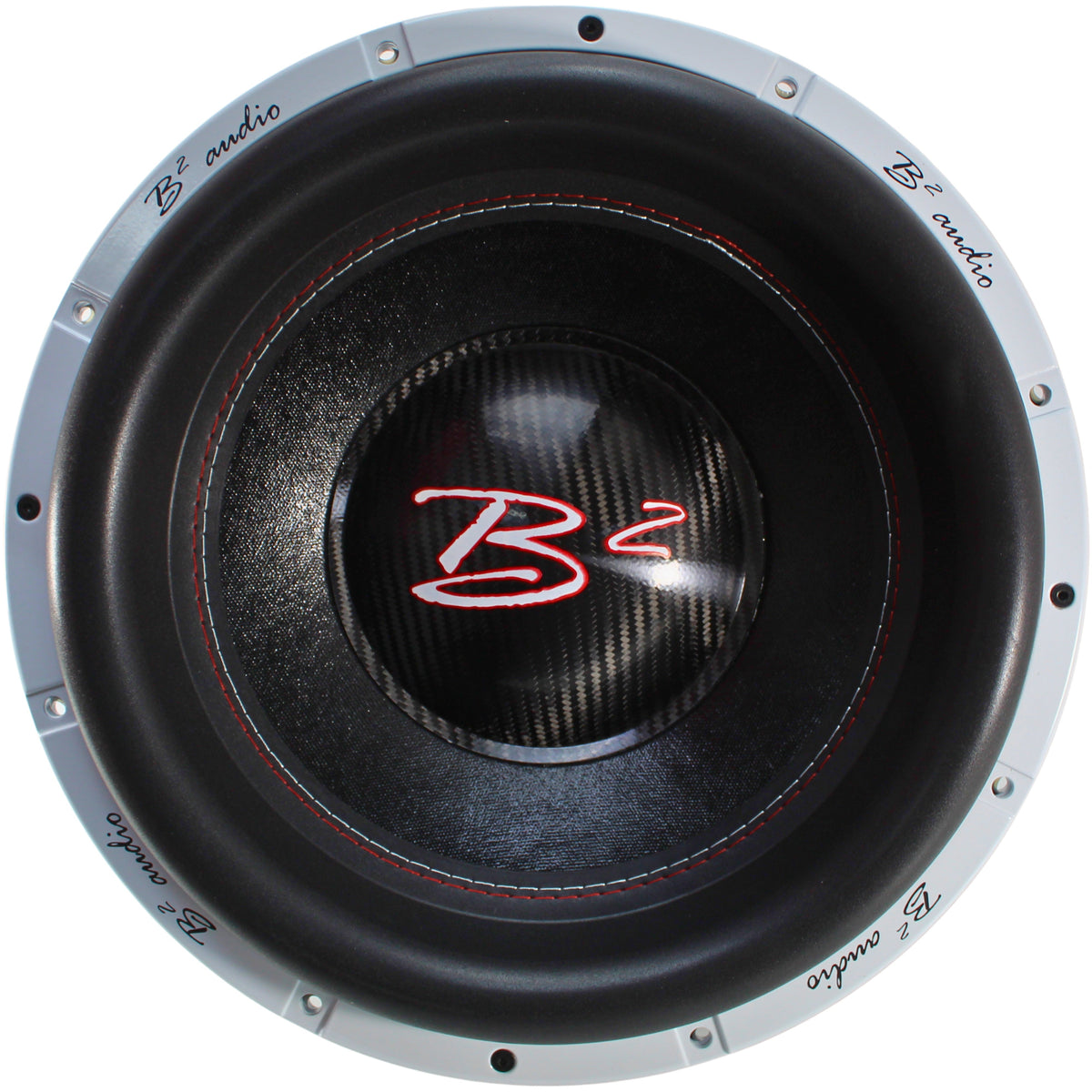

The updated V3 platform features a carbon fiber cone, integrated dust cap, and a taller surround for increased excursion and output. Drop it in sealed, ported, or full-sized SPL enclosures and experience the signature RAGE tone: deep, loud, and unapologetically aggressive.

Version 3 features a carbon fiber cone with a dust cap and a noticeably taller surround for enhanced performance.

Features

• 2000W RMS / 4000W Max output for extreme low-frequency performance


• 3" High-Temperature Voice Coil built for long-term, high-power abuse


• Dual 2-Ohm Configuration provides flexible wiring and amplifier matching


• Carbon Fiber Cone + Tall Surround increases rigidity, excursion, and accuracy

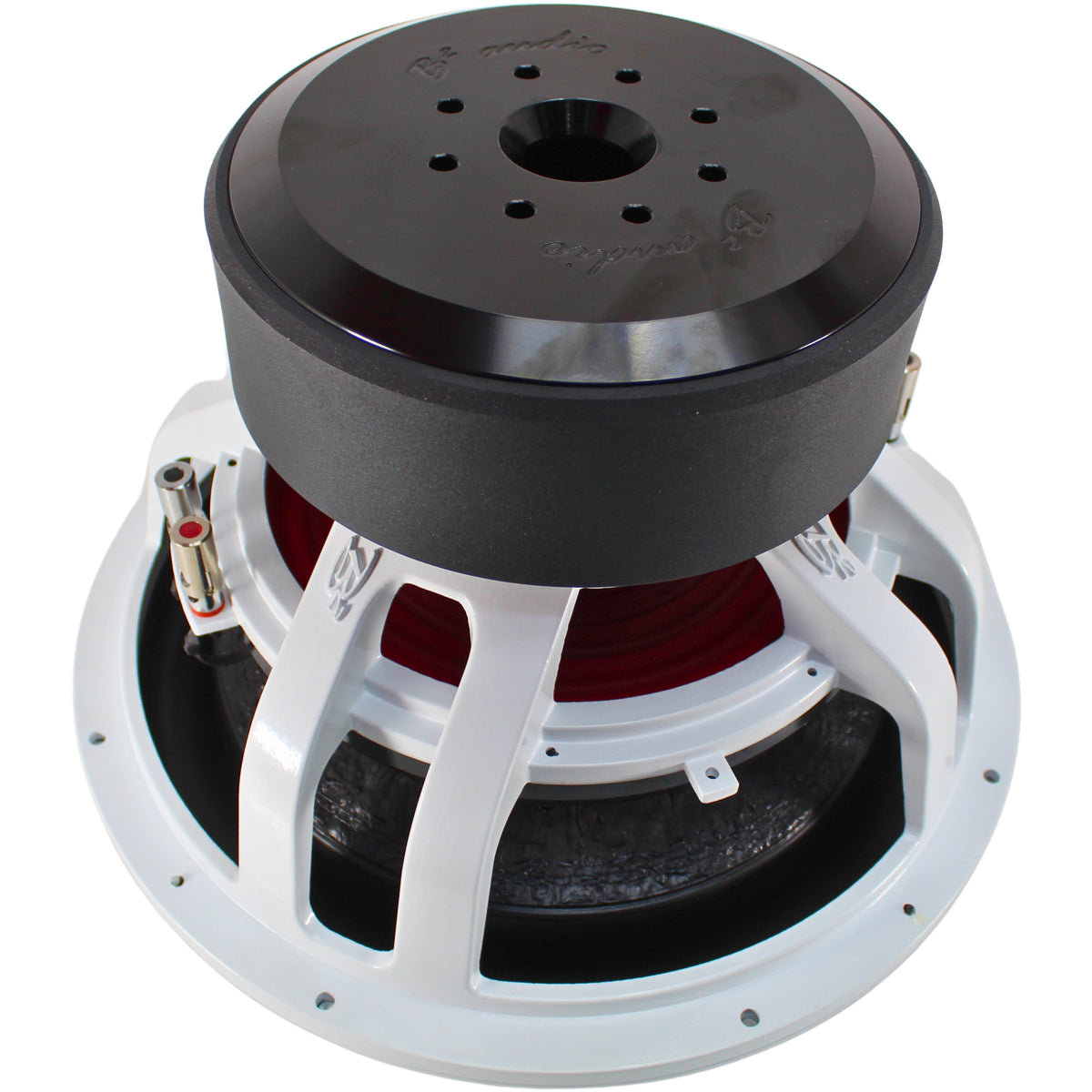

• Massive 600 oz Ferrite Motor delivers tight motor control and brutal authority


• 4 Gauge Push Terminals support serious power delivery.


• Optimized T/S Parameters tuned for sealed, ported compact, and high-output ported enclosures


• Built for daily drivers, demo builds, and SPL-heavy setups

Specifications:

Power Handling

• RMS: 2000W


• Max: 4000W

Impedance & Coil

• Dual 2 Ohm


• Voice Coil Diameter: 3"

Performance

• Frequency Response: 10-500 Hz


• Sensitivity: 90.6 dB


• Xmax: 20 mm

Motor & Structure

• Magnet Weight: 600 oz


• Displacement: 10.7 L / 0.37 cu ft


• Terminals: 4 Ga push terminal

Thiele & Small Parameters

• Fs: 25.5 Hz


• Re: 1.9 ohm


• Qms: 5.38


• Qes: 0.35


• Qts: 0.33


• Vas: 67 L


• Cms: 70 m/N


• BL: 262.3


• Mms: 524.2 g

Enclosure Suggestions

• Sealed: 50 L / 1.77 cu ft, Qtc: 0.41


• Ported Compact Volume: 100 L / 3.5 cu ft, Port: (2) 4", Length: 11.2" (28.5 cm), Tuning: 35 Hz


• Standard Ported: Volume: 142 L / 5 cu ft, Port Area: 43.4 sq in, Length: 22.2" (56 cm), Tuning: 30 Hz

Dimensions:

• Overall Diameter: 15.35 in (390 mm)


• Mounting Diameter: 13.77 in (350 mm)


• Bolt Pattern Diameter: 14.76 in (375 mm)


• Mounting Depth: 8.89 in (226 mm)


• Overall Depth: 10.24 in (270 mm)
