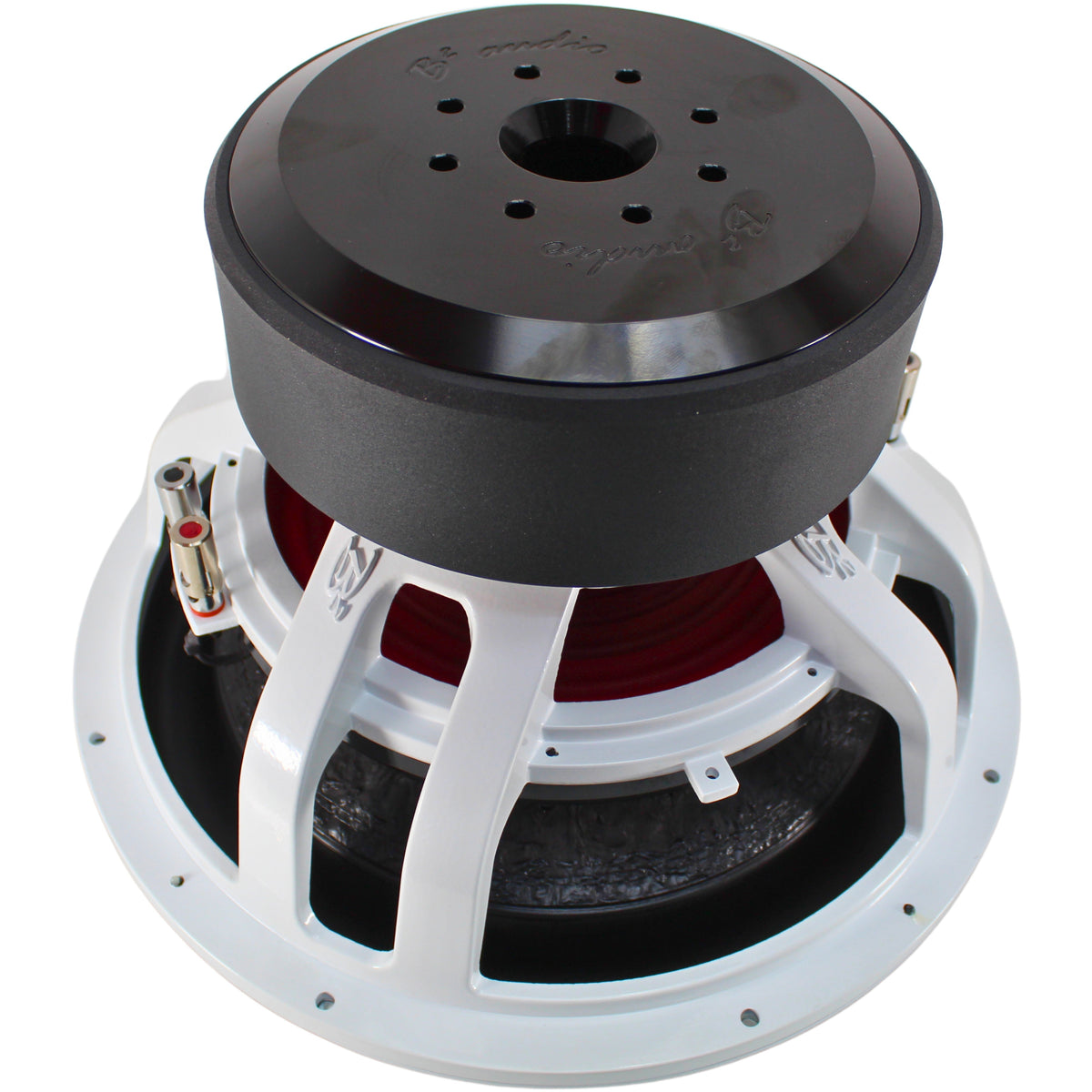

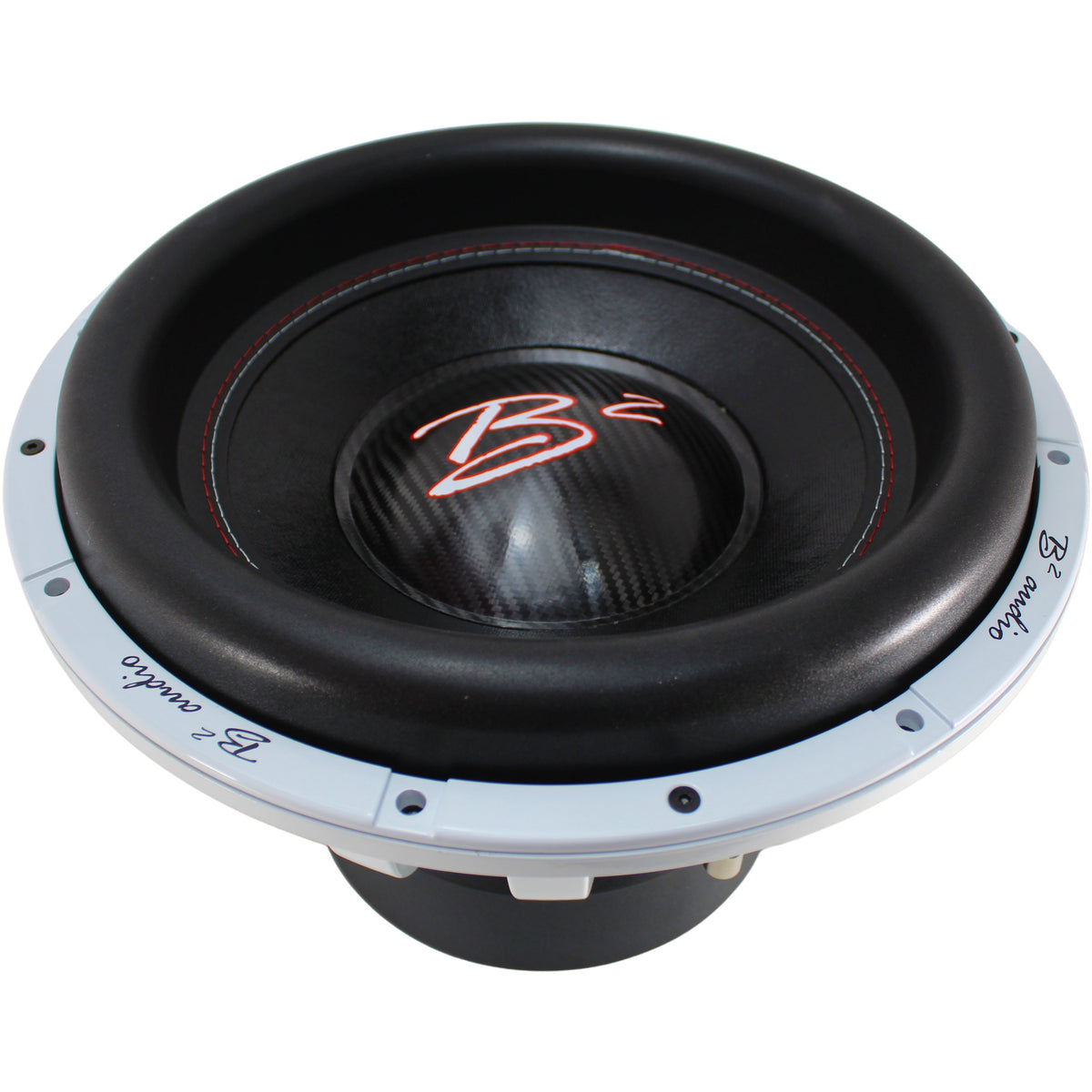

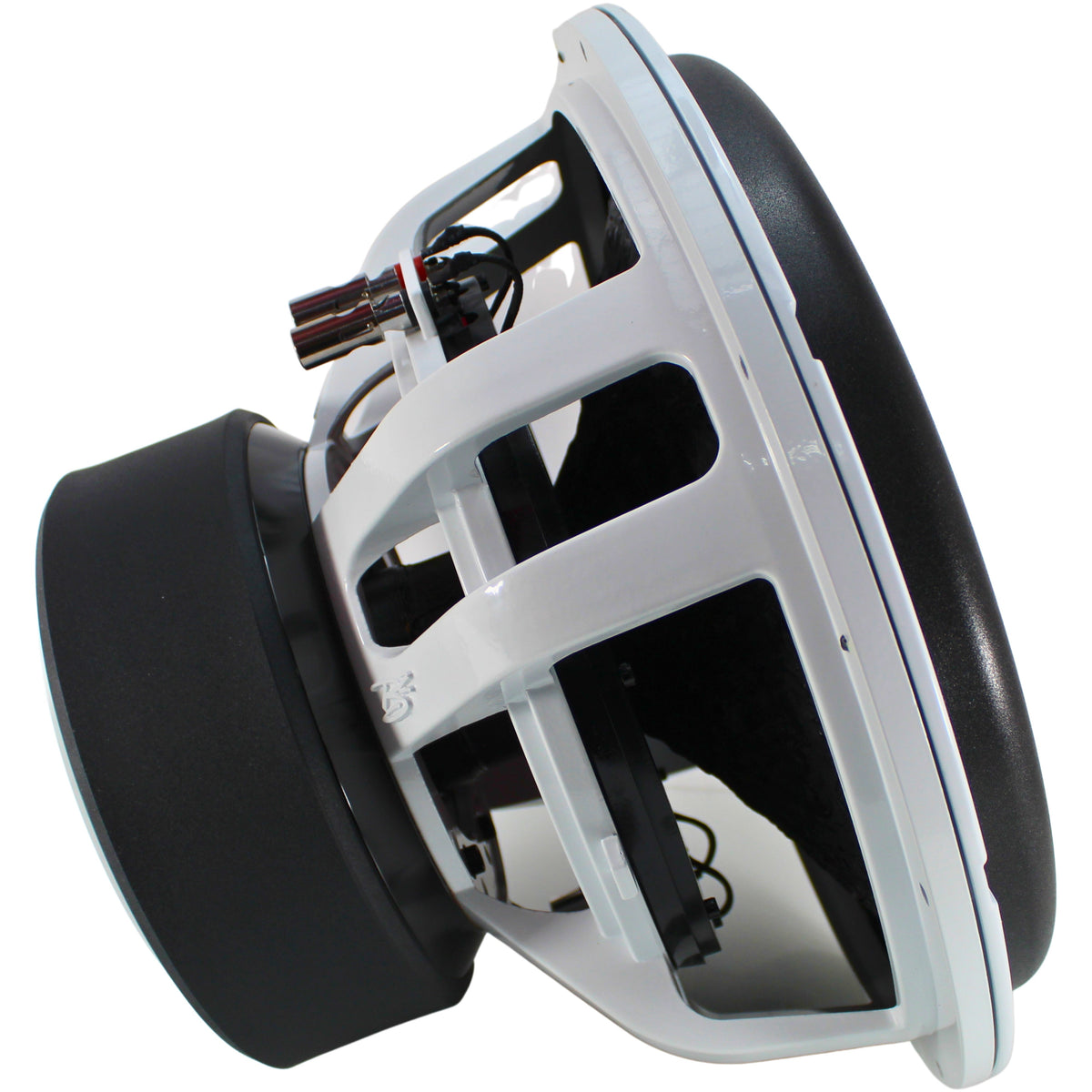

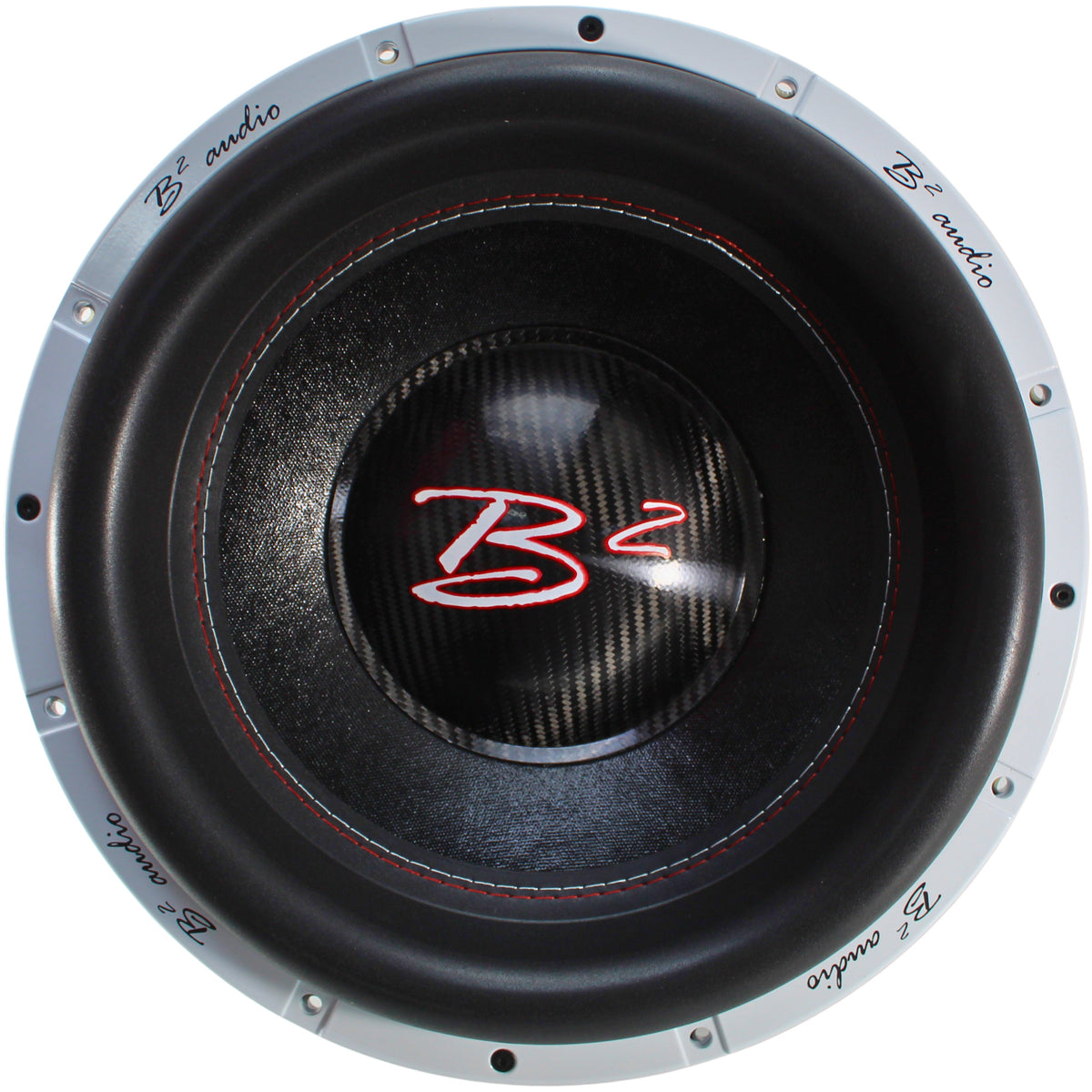

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• 2000W RMS / 4000W Max Power Handling: Built for high-output bass systems and sustained power delivery.
• Dual 1-Ohm Voice Coils: Flexible wiring options for matching high-power amplifiers.
• Carbon Fiber Cone with Tall Surround: Increased rigidity and excursion control for improved low-frequency performance.
• 600 oz Ferrite Motor & 20 mm Xmax: Strong motor force and long excursion for deep, controlled sub-bass output.

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm Subwoofer

This Listing Includes:

• (1) B2 Audio RAGE Dual 1 Ohm 15" Subwoofer

The B2 Audio RAGE Series V3 15" Subwoofer is engineered for high-output bass systems that demand strong low-frequency performance, durability, and consistent power handling. Rated at 2000W RMS, this subwoofer is designed for daily high-power builds, demo vehicles, and SPL-capable systems where control and output matter.

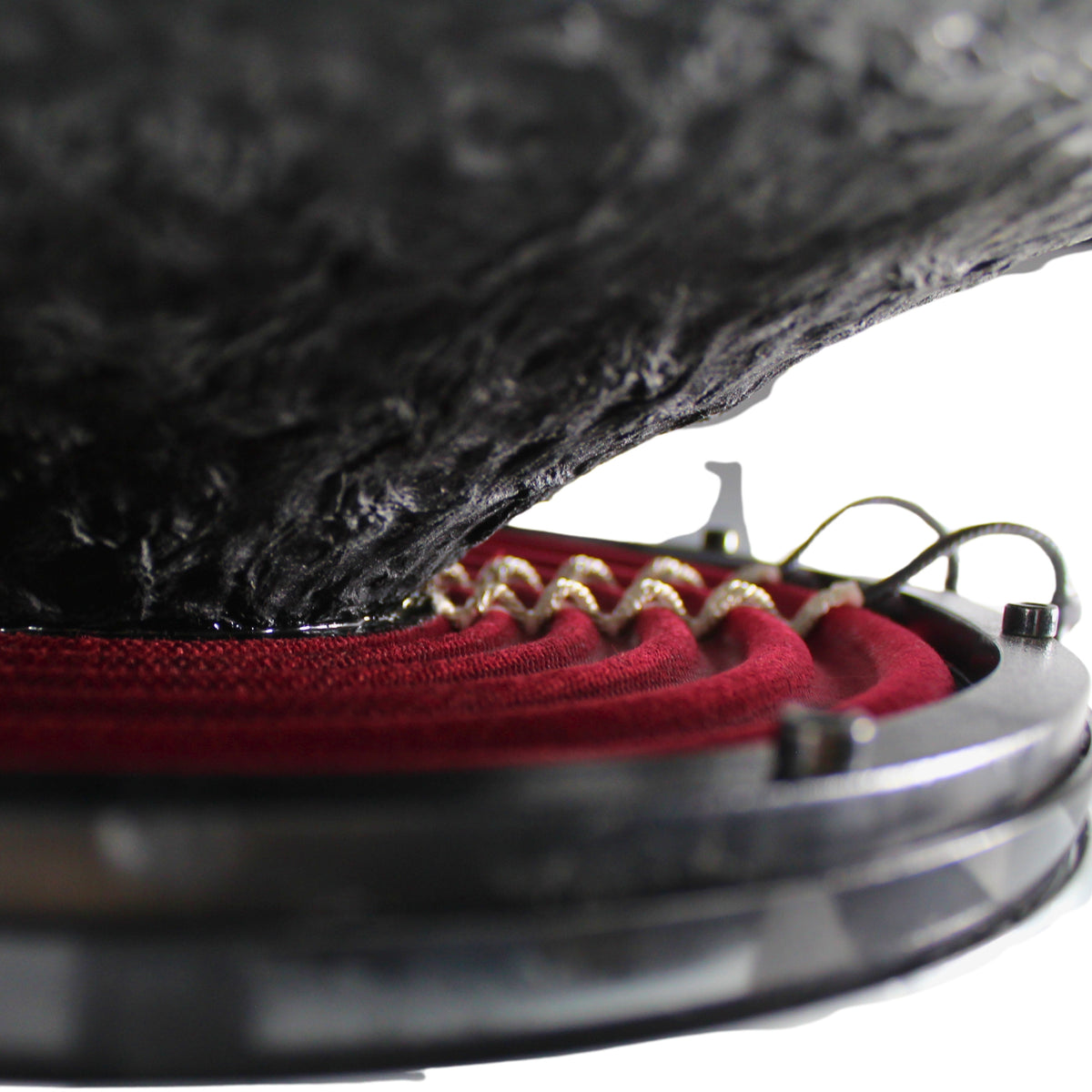

Version 3 features a carbon fiber cone with integrated dust cap and a taller surround, improving rigidity and excursion capability under high power. A large 3-inch high-temperature voice coil and massive 600 oz ferrite motor provide strong motor force, thermal stability, and reliable performance when driven hard.

With dual 1-ohm voice coils, the RAGE15-D1-V3 offers flexible wiring options for a wide range of amplifier configurations. Its broad 10 Hz – 500 Hz frequency response allows it to perform effectively in sealed, compact ported, and large ported enclosures depending on system goals.

Subwoofer Features

• High-temperature 3" copper voice coil for thermal stability under heavy load


• High-excursion suspension designed for sealed and ported enclosures


• 4 Ga push terminals for secure, high-current connections


• Engineered for daily high-power use, demo builds, and SPL-capable systems

Specifications

• Size: 15 inch


• RMS Power Handling: 2000 watts


• Max Power Handling: 4000 watts


• Nominal Impedance: Dual 1 ohm


• Voice Coil Diameter: 3 inch


• Frequency Response: 10 Hz – 500 Hz


• Sensitivity: 82.4 dB


• Magnet Weight: 600 oz


• Displacement Volume: 10.7 L / 0.37 ft


• Terminal Type: 4 Ga push terminals

Thiele & Small Parameters

• Fs: 26.8 Hz


• Re: 1 ohm


• Qms: 5.11


• Qes: 0.41


• Qts: 0.38


• Vas: 67.1 L


• Cms: 70 m/N


• BL/Re: 200


• Mms: 476.3 g


• Xmax (one way): 20 mm

Enclosure Suggestions:

Sealed:

• 50 L / 1.77 cu.ft


• Otc: 0.464

Ported Compact:

• 100 L / 3.5 cu.ft


• Port: 2 x 4"


• Length: 11.2" / 28.5 cm


• FB: 35 Hz

Ported:

• 142 L / 5 cu.ft


• Port Area: 43.4 sq.in


• Length: 22.2" / 56 cm


• FB: 30 Hz

Dimensions:

• Overall Diameter: 15.35 in (390 mm)


• Mounting Diameter: 13.77 in (350 mm)


• Bolt Pattern Diameter: 14.76 in (375 mm)


• Mounting Depth: 8.89 in (226 mm)


• Overall Depth: 10.24 in (270 mm)
