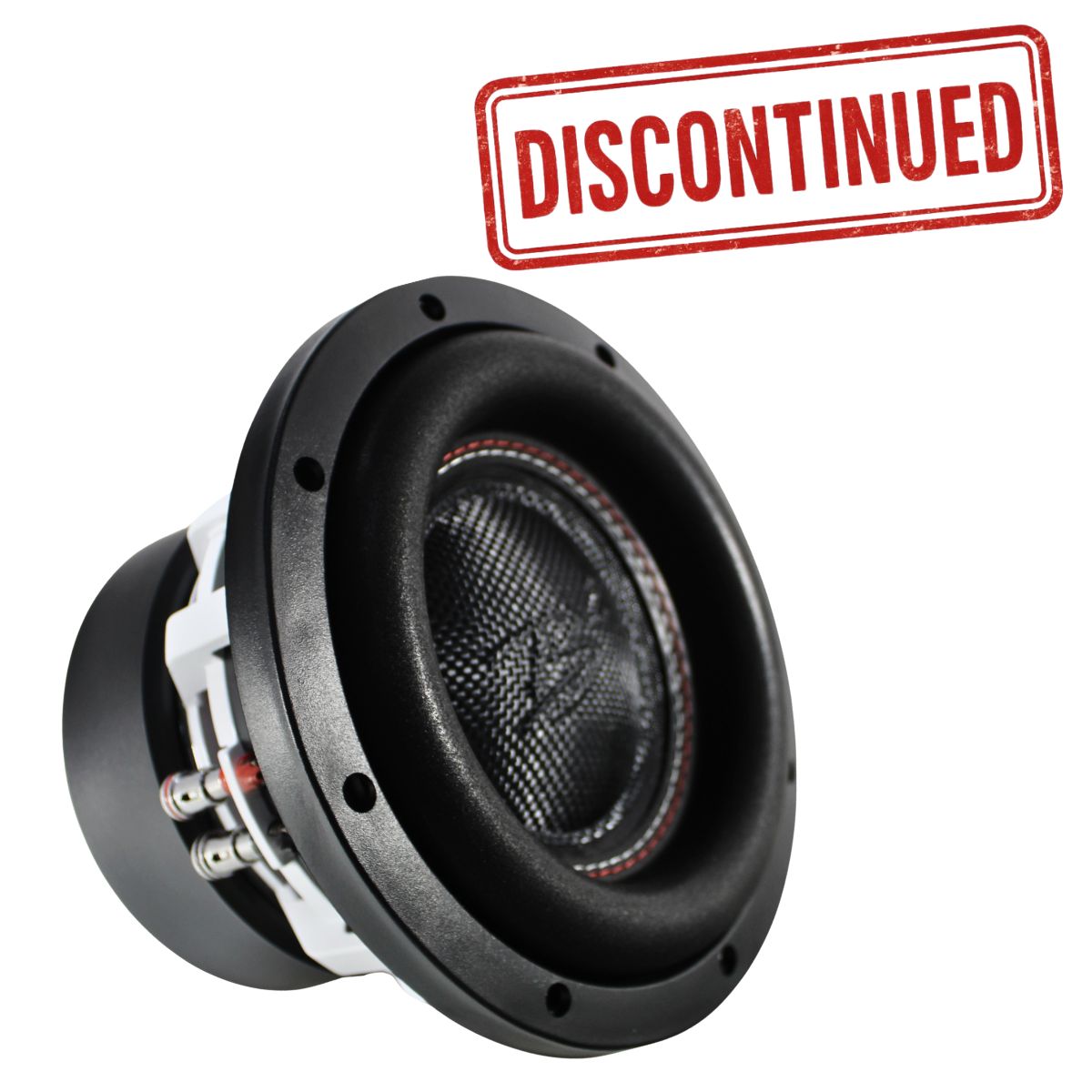

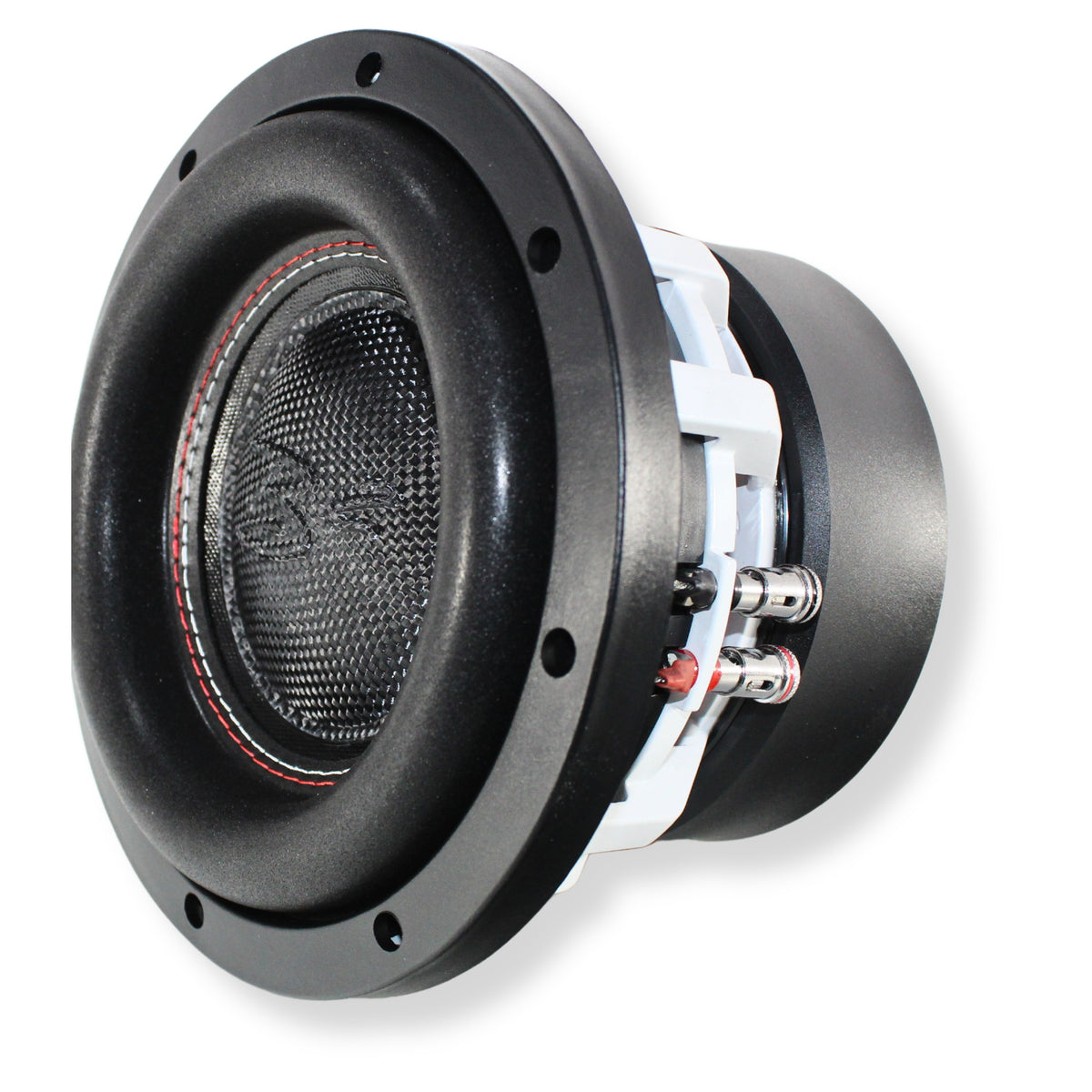

B2 Audio RAGE Series V2 8" 500 Watt RMS Dual 4-Ohm 2" Voice Coil High Excursion Subwoofer

B2 Audio RAGE Series V2 8" 500 Watt RMS Dual 4-Ohm 2" Voice Coil High Excursion Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGE Series V2 8" 500 Watt RMS Dual 4-Ohm 2" Voice Coil High Excursion Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Enhanced Subwoofer Performance: The RAGE8-D4-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 500 Watts RMS, this subwoofer delivers deep, impactful bass.
• Dual Voice Coil Configuration: Dual 4-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.

B2 Audio RAGE Series 8" Dual 2" Voice Coil 4-Ohm 500W RMS Subwoofer RAGE8-D4-V2

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAGE8-D4-V3.

This Listing Includes:

• (1) 8" DVC 4-ohm  RAGE Subwoofer

Get ready to experience pure sonic aggression with the B2 Audio RAGE8-D4-V2 8" Dual Voice Coil Subwoofer. With its redesigned spider configuration and six extra pole vents, this subwoofer packs a 25% power handling increase over its predecessors, delivering thunderous bass without compromise. Its custom composite fiber dustcap adds strength and attitude, while its dual 4-Ohm impedance offers wiring versatility for any amplifier setup. With a frequency response ranging from 10 Hz to 500 Hz and a power handling of 500 Watts RMS (1000 Watts peak), this subwoofer promises relentless performance. Built tough with premium materials and a 2" voice coil diameter, it's ready to dominate the audio landscape with bass that bites back.

Features

• 500W RMS / 1000W Max Power Handling – Increased power capacity with a 25% improvement over previous models for heavy-duty bass performance


• Dual 4-Ohm Voice Coil Configuration – Offers flexible wiring options for matching various amplifier setups

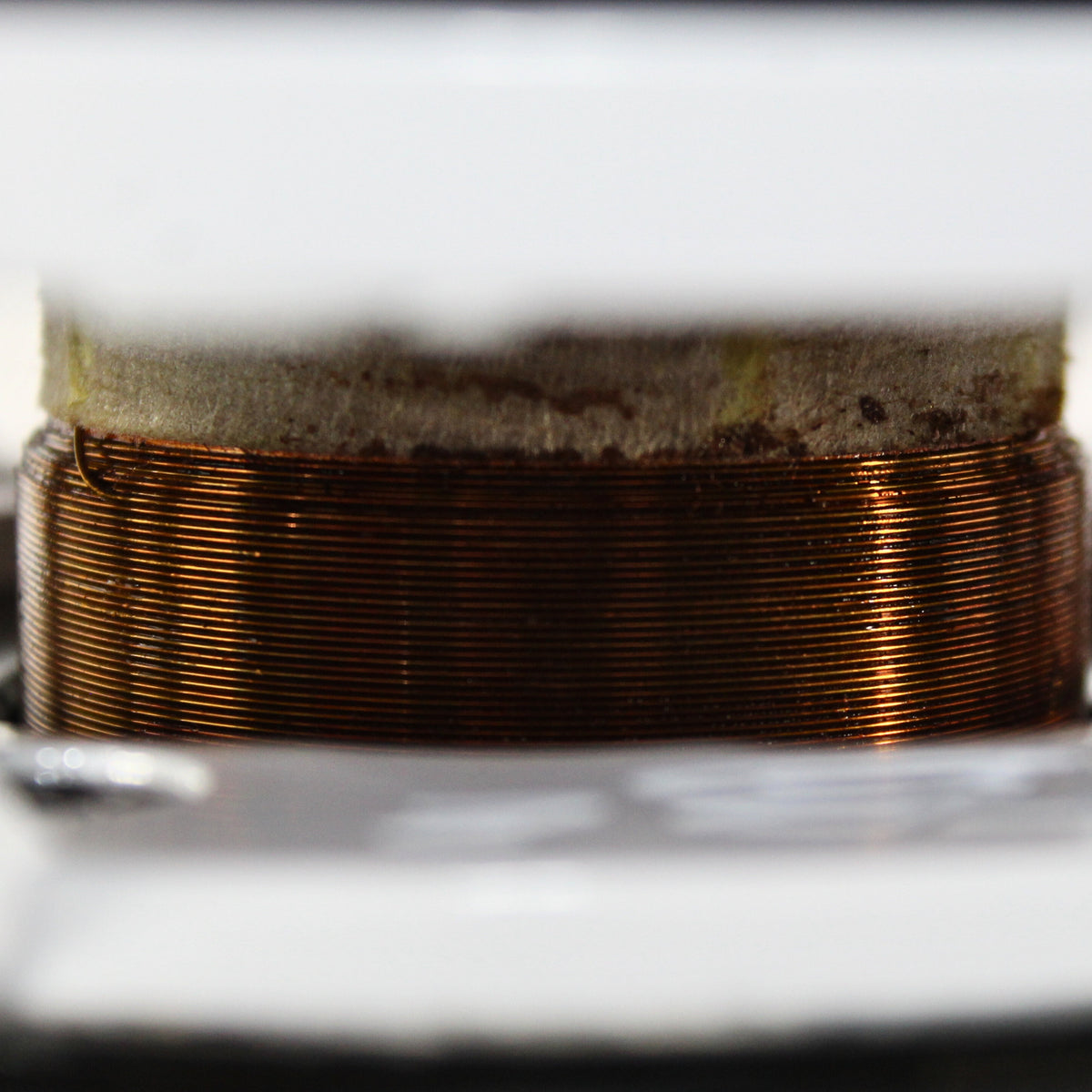

• 2" High-Temperature Voice Coil – Designed for durability and sustained high-output performance


• Redesigned Spider with Six Extra Pole Vents – Enhances heat dissipation and reliability during extended play

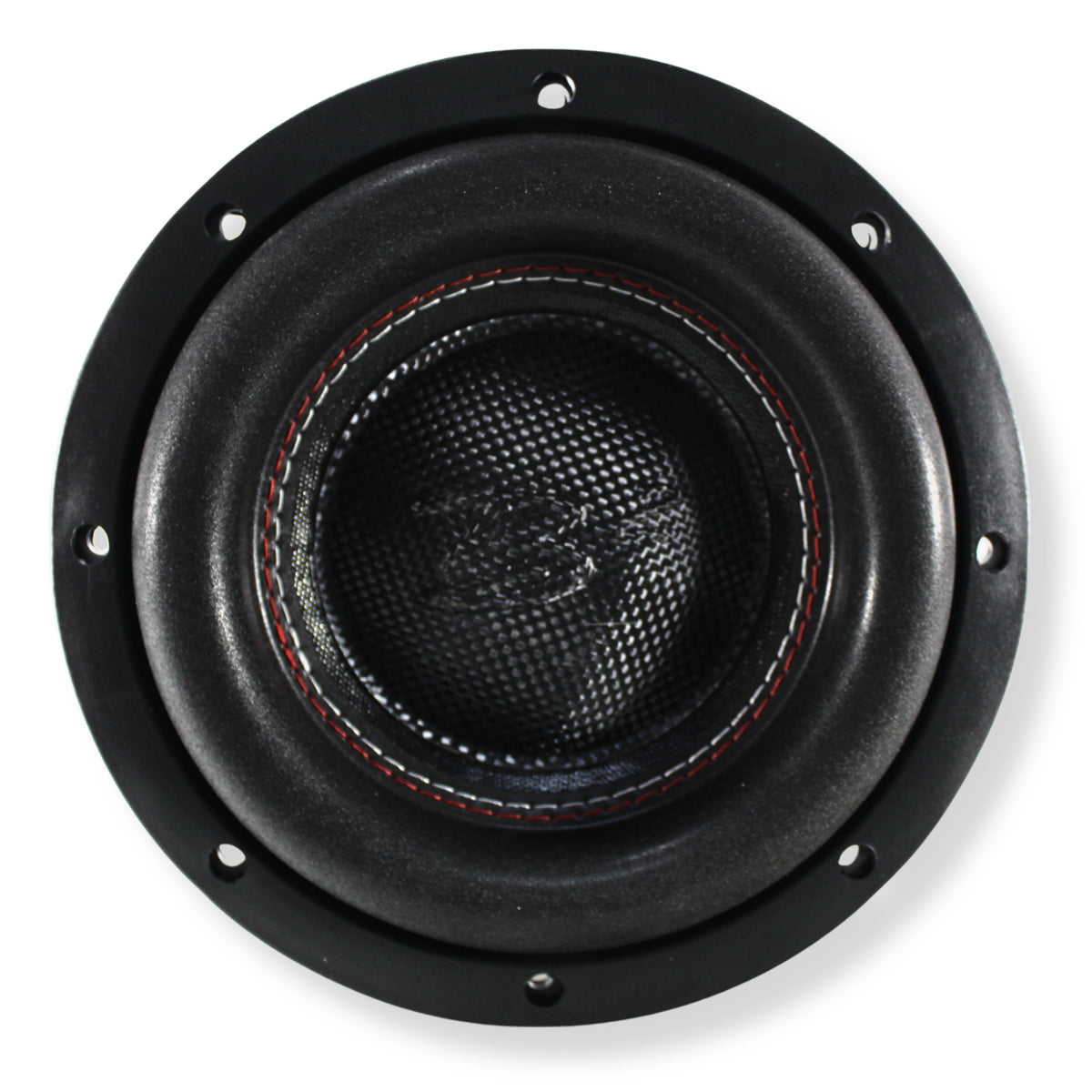

• Custom Composite Fiber Dustcap – Adds structural strength and aggressive styling to the subwoofer


• Frequency Response: 10Hz – 500Hz – Wide bass range to cover deep lows and punchy mid-bass tones


• Sensitivity: 82.4 dB – Efficient output for powerful sound without excessive power draw

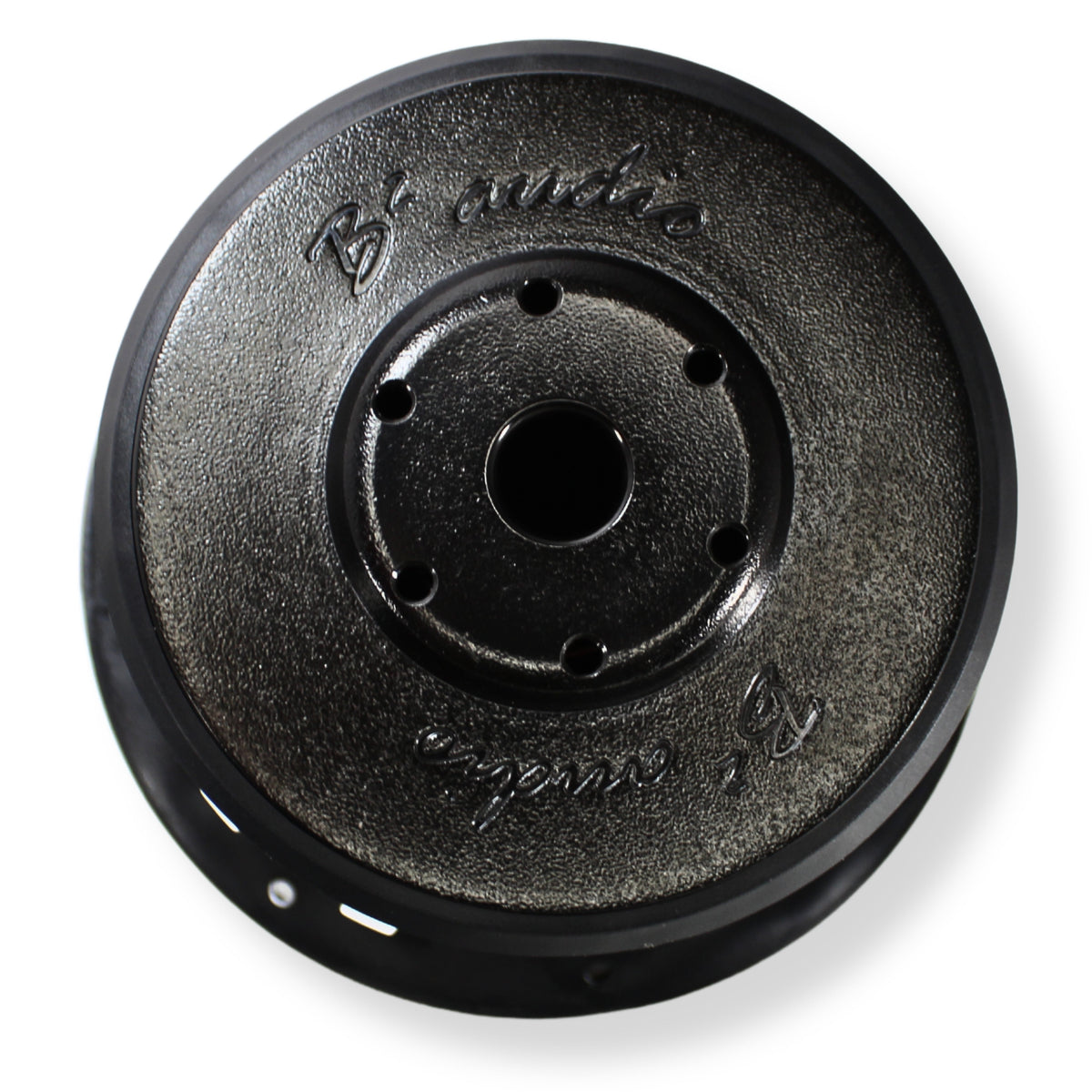

• Heavy-Duty 175 oz Magnet Structure – Supports strong magnetic force for accurate cone control and bass response


• Maximum Excursion (Xmax): 15mm (0.59") – Allows significant cone movement for deep, impactful bass

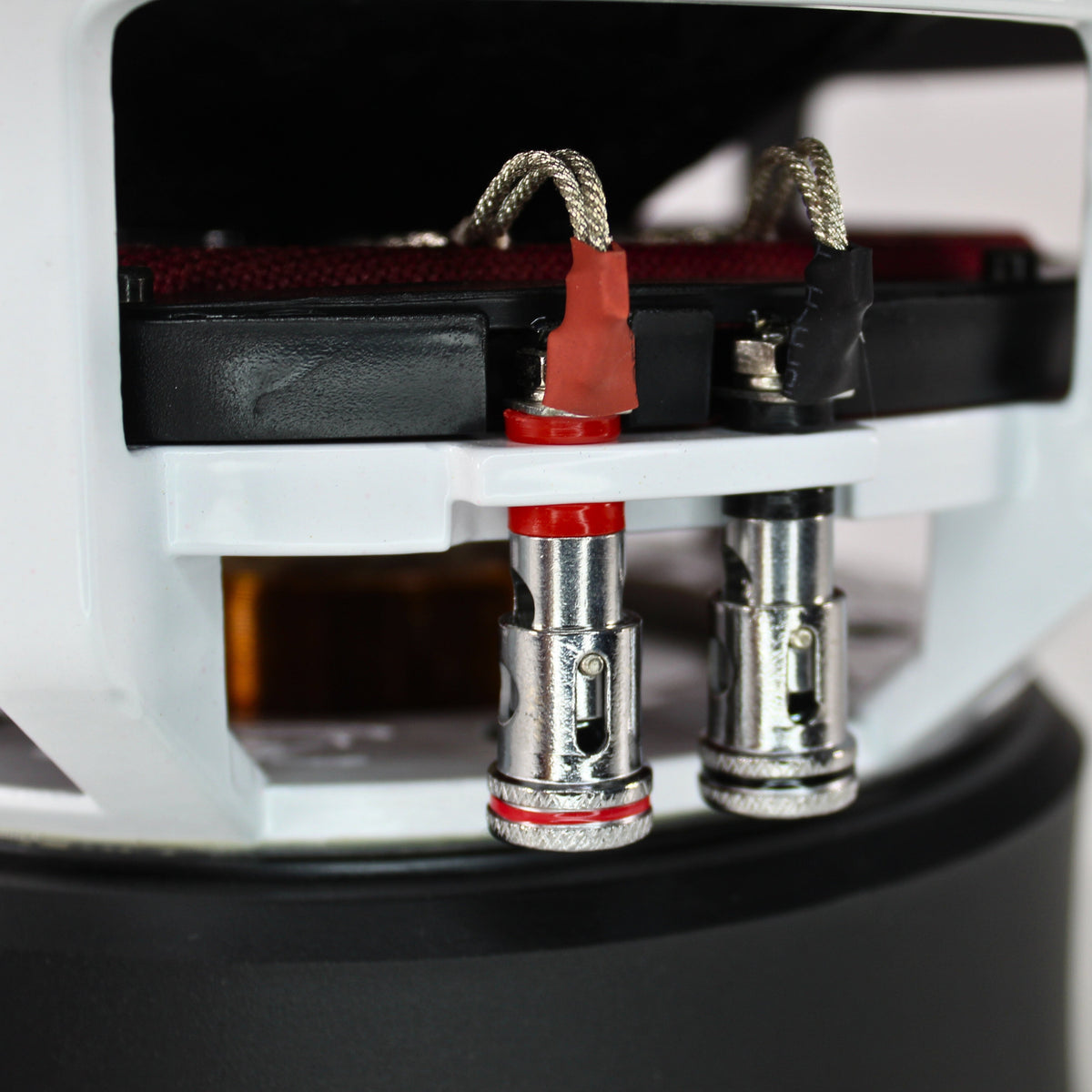

• 12 AWG Push Terminals – Provides secure and reliable speaker wire connections


• Optimized for Various Enclosure Types – Sealed, ported, and 4th order bandpass enclosure compatible with recommended volumes and tuning

Specifications:

• RMS Power Handling: 500W


• Max Power handling: 1000W


• Nominal Impedance: Dual 4 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 82.4 dB


• Magnet Weight: 175 Oz


• Displacement: 2.5 L / 0.088 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 40.9 Hz


• Resistance (Re): 3.2 Ohm


• Mechanical Factor (Qms): 5.64


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.47


• Equivalent Volume (Vas): 5.9 L


• Compliance (Cms): 110 um/N


• Moving Mass (Mms): 129.7 g


• BL Factor (BL): 69.5 TM


• Excursion Max (Xmax): 0.59" / 15 mm

Dimensions:

• Overall Diameter: 8.66" / 220mm


• Mounting Diameter: 7.83" / 199mm


• Front Mount Baffle Cutout: 7.28" / 185mm


• Overall Depth: 6.57" / 167mm


• Mounting Depth: 5.31" / 135mm

Enclosure Suggestions:

Sealed:

• 7.6L / 0.269 cu.ft


• Qtc 0.513

Ported Compact:

• 15L / 0.53 cu.ft


• Port: 2"


• Length : 7.16" / 18.2 cm


• FB: 42 Hz

Ported:

• 28L / 0.636 cu.ft


• Port Area: 7.75 sq.in


• Length: 3.34" / 33.9 cm


• FB: 38 Hz

4th Order Bandpass: 3:1 Ratio
