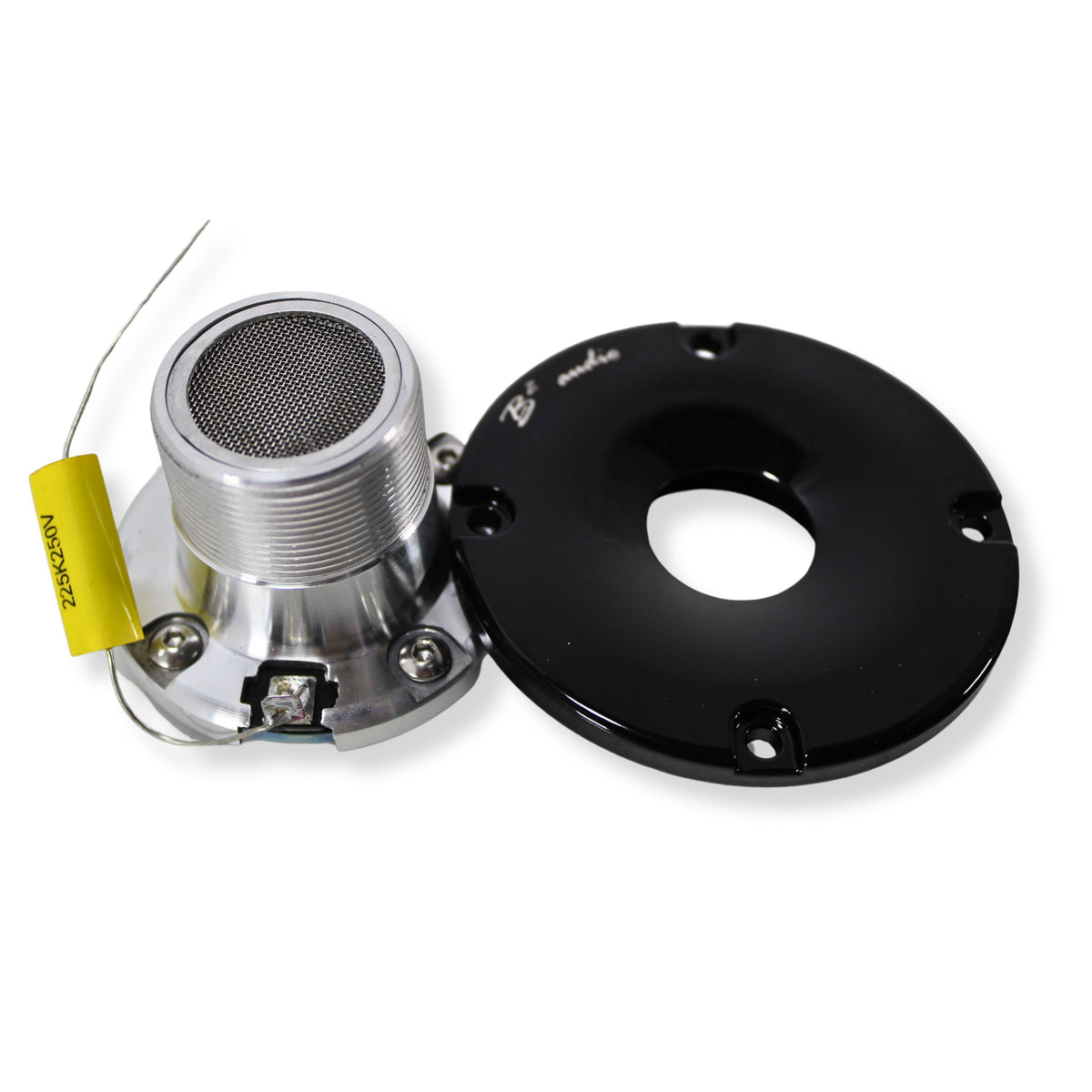

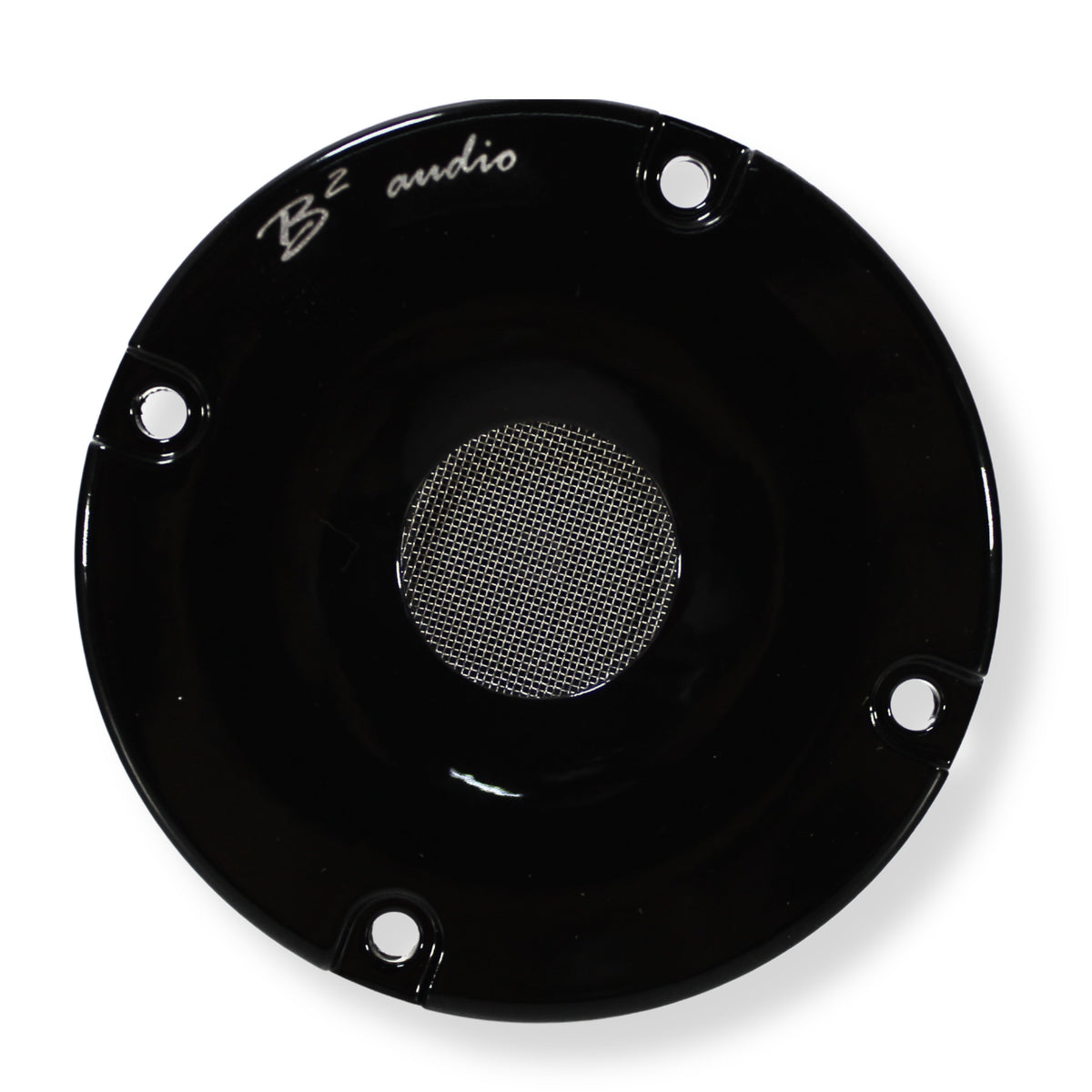

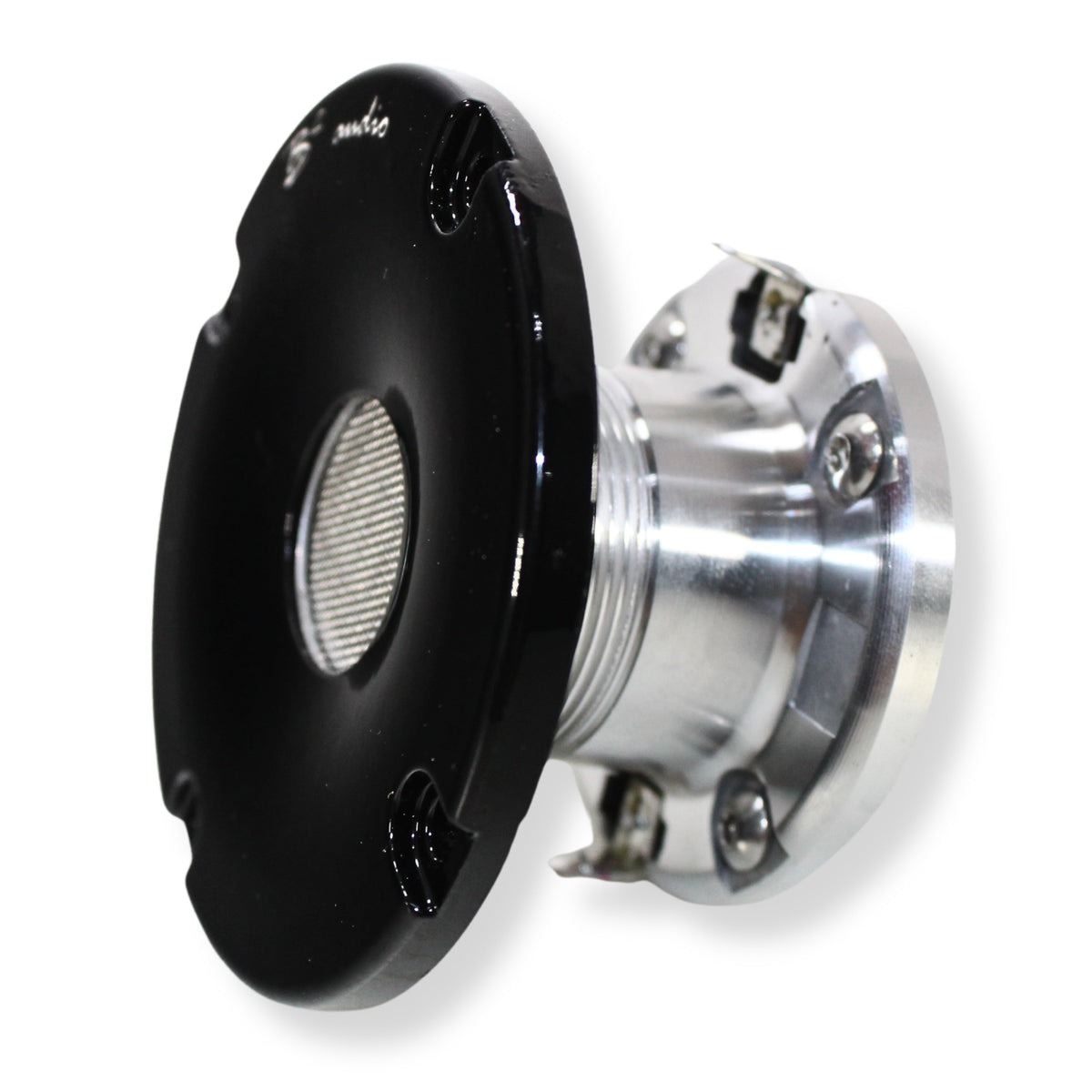

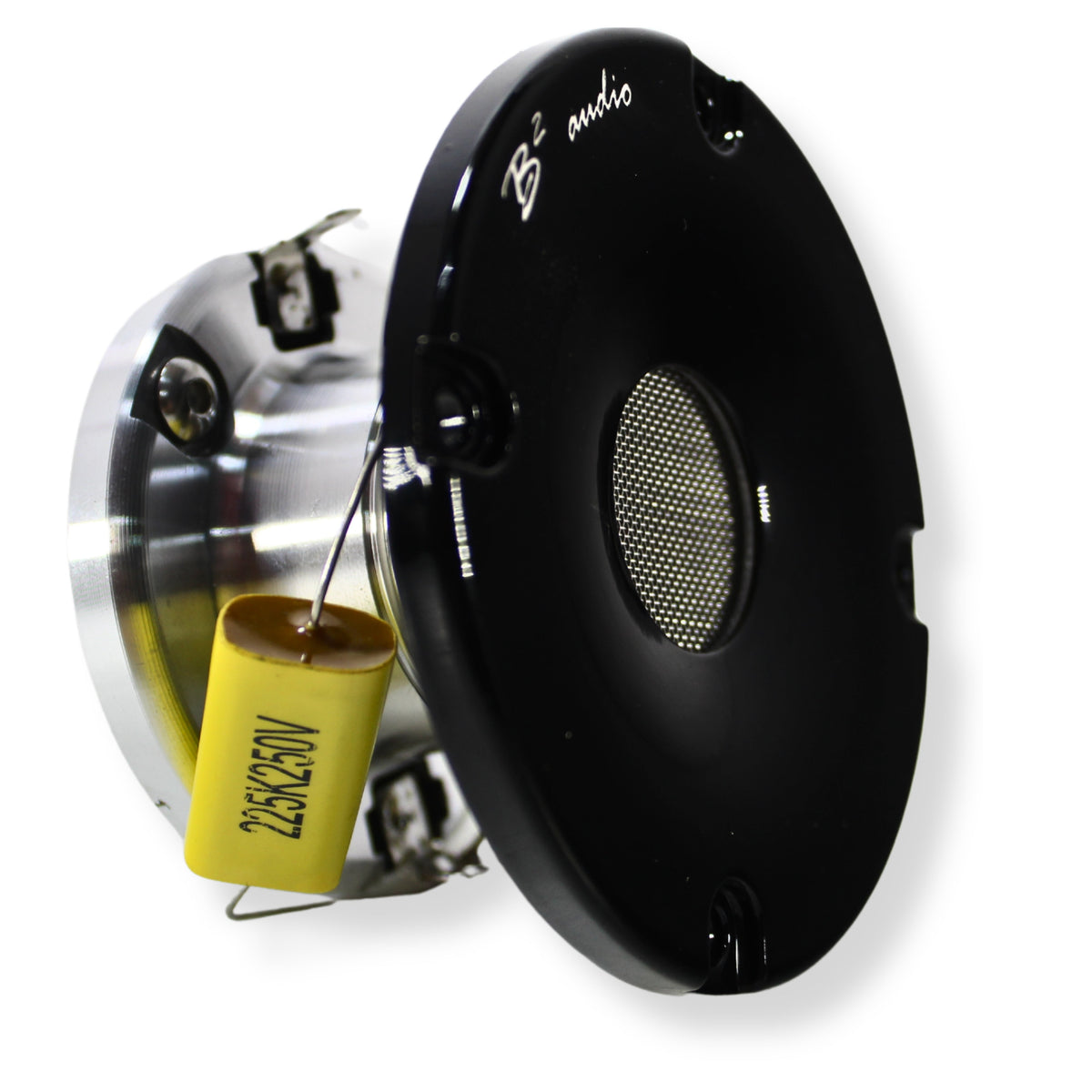

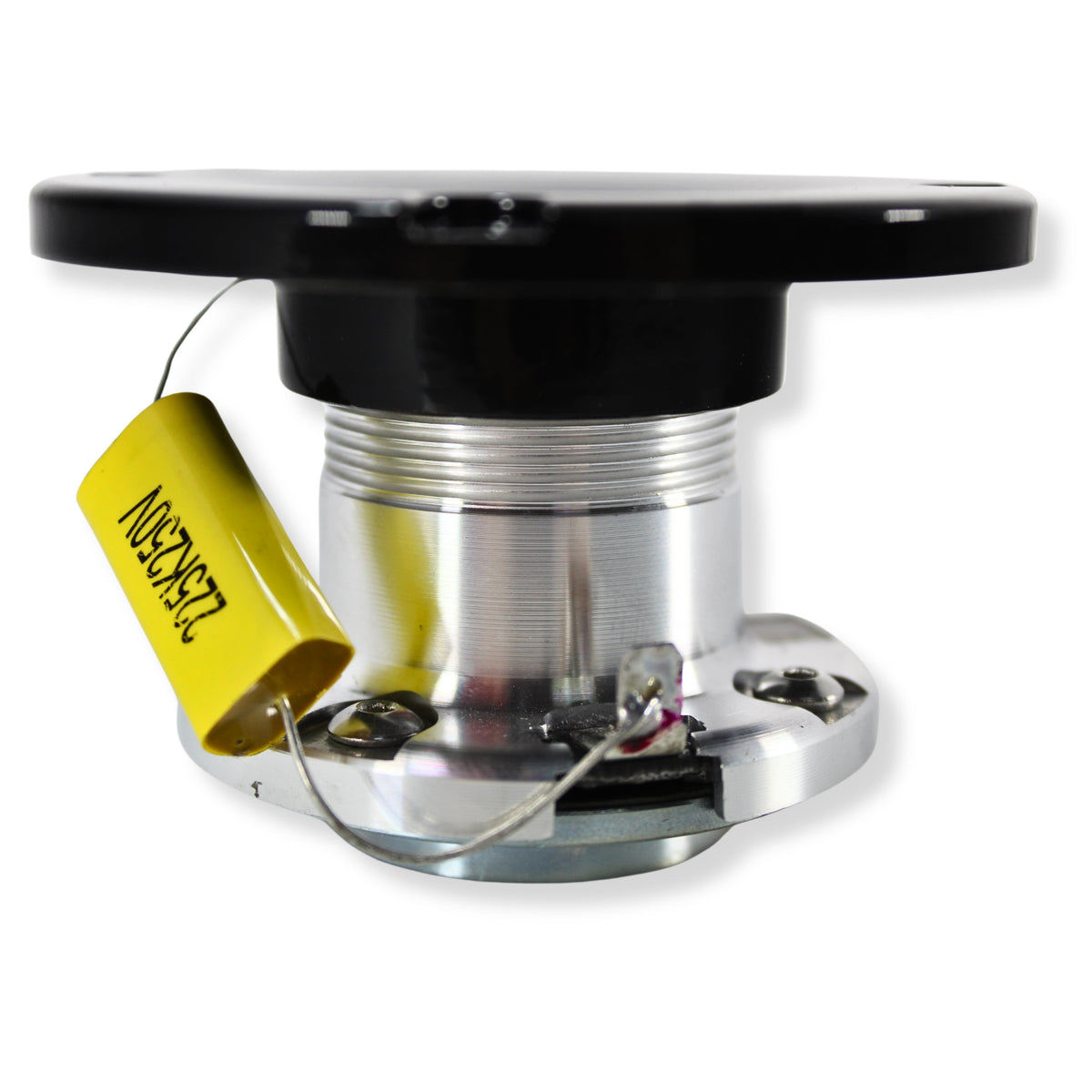

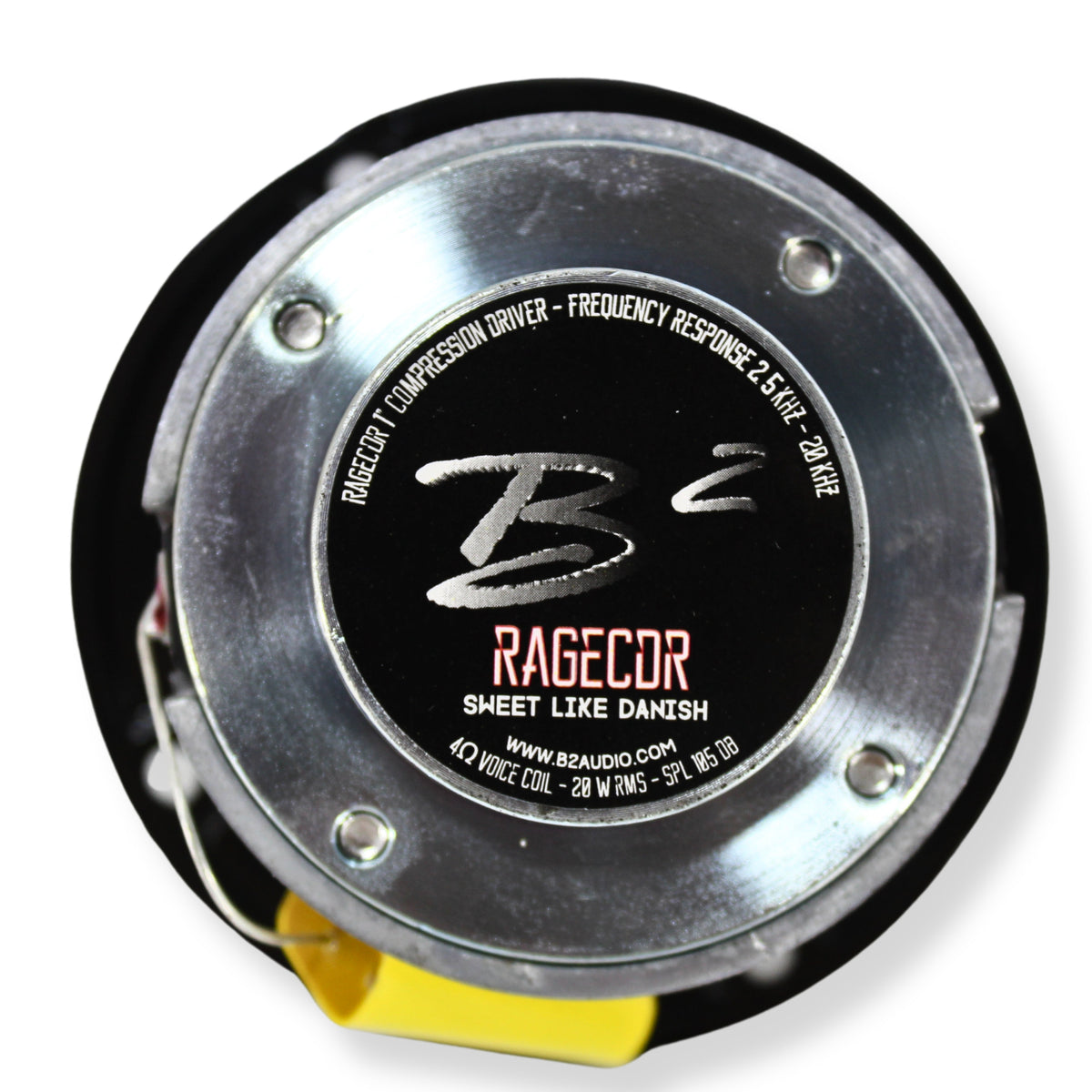

B2 Audio RAGE Series Pair of 1" 4-Ohm 20 Watt RMS Shallow Mount Compression Drivers, OD 3.15" w/ Horn RAGE CDR

B2 Audio RAGE Series Pair of 1" 4-Ohm 20 Watt RMS Shallow Mount Compression Drivers, OD 3.15" w/ Horn RAGE CDR

Sold by AudioSellerz.com

The B2 Audio RAGE Series Pair of 1" 4-Ohm 20 Watt RMS Shallow Mount Compression Drivers, OD 3.15" w/ Horn RAGE CDR is a high-frequency car audio component from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Compact Efficiency: The RAGECDR Compression Driver with Flat Horn offers a compact solution with increased efficiency, delivering more output with less power compared to traditional tweeters.
• Wide Frequency Range: With a wider frequency range of 2.5KHz - 20KHz extending into higher midrange frequencies, this compression driver ensures clear and detailed audio reproduction across the audible upper scale.
• Powerful Sensitivity: Elevate your audio experience with the RAGECDR Compression Driver boasting an impressive 105 dB sensitivity rating. Enjoy crystal-clear sound with every detail captured at high volumes, ensuring an immersive listening journey.
• Space-Saving Design: Featuring a shallow mount design coupled with a flat horn, this compression driver is more compact than mid-sized bullet tweeters, making it ideal for installations with limited space.
• Unrivaled Efficiency: Engineered with precision, the RAGECDR Compression Driver boasts high sensitivity and low impedance, maximizing power utilization for a truly immersive audio experience.

B2 Audio RAGE CDR Pair of 20 Watt RMS 4-Ohm Shallow Compression Drivers w/ Horn

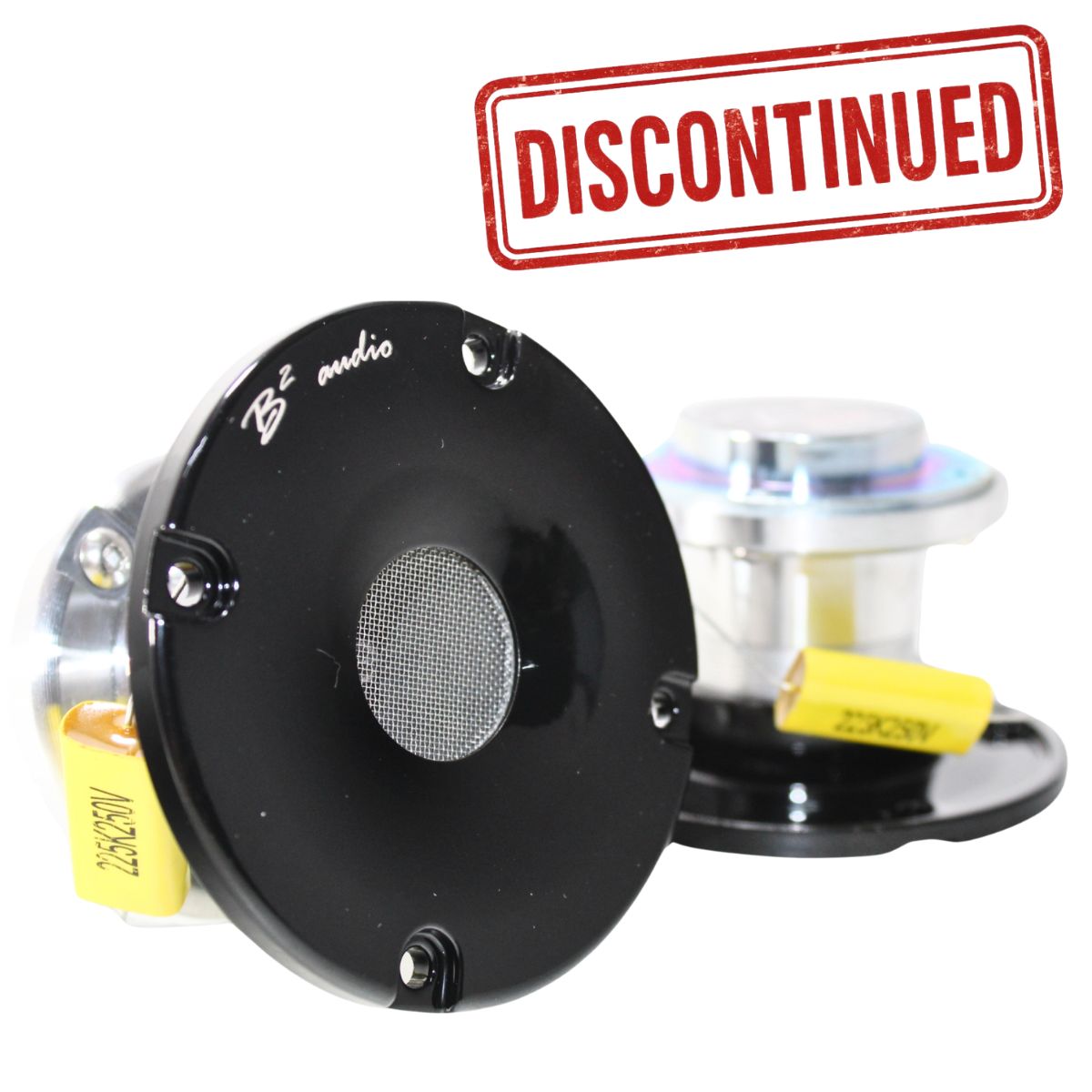

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAGECDR-V2.

This Listing Includes:

• (2) Compression Drivers With Horn

Item Description

Upgrade your audio system with the RAGECDR Shallow Mount Compression Driver with Flat Horn. Designed for efficiency and performance, this compression driver offers a compact solution with increased output using minimal power. The flat horn design coupled with a wider frequency range ensures clear and detailed audio reproduction across the audible upper scale, delivering superior sound quality. With high sensitivity and low impedance, this compression driver is capable of handling power efficiently, making it an ideal choice for audio enthusiasts looking for enhanced performance without the need for excessive power consumption. Whether you're looking to save space or maximize efficiency, the RAGECDR Compression Driver provides a tempting option for achieving high-quality sound reproduction in your audio system.

Features

• Shallow Mount Design – Slim profile compression driver ideal for tight installs without sacrificing output.


• Flat Horn Architecture – Enhances directional sound projection and maintains clarity across wide frequencies.


• Wide Frequency Range – Reproduces clean highs from 2.5 KHz to 20 KHz for vibrant, dynamic sound.


• 1" Voice Coil – Offers precision performance and consistent tonal accuracy.


• Low Impedance (4 Ohm) – Pairs easily with aftermarket amplifiers for maximum flexibility.


• Built for Detail – Designed to capture the upper scale of music with smooth, defined output.


• Optimized for Crossover Use – Recommended 2.5 KHz / 12 dB crossover point ensures protection and performance.

Specifications:

• RMS Power Handling: 20 Watts


• Max Power Handling: 40 Watts


• Nominal Impedance: 4 Ohms


• Frequency Response: 2.5 KHz - 20 KHz


• Sensitivity: 105 dB


• Voice Coil Diameter: 1"


• DC Resistance (RE): 3.6 Ohm


• Recommended Cutoff: 2.5 KHz / 12 dB min

Dimensions:

• Mounting Depth: 1.97"


• Overall Depth: 2.16"


• Overall Diameter: 2.37"


• Motor Diameter/Cutout: 2.36"
