B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2

B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2

Sold by AudioSellerz.com

The B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2 is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Enhanced Subwoofer Performance: The RAGE8-D2-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.

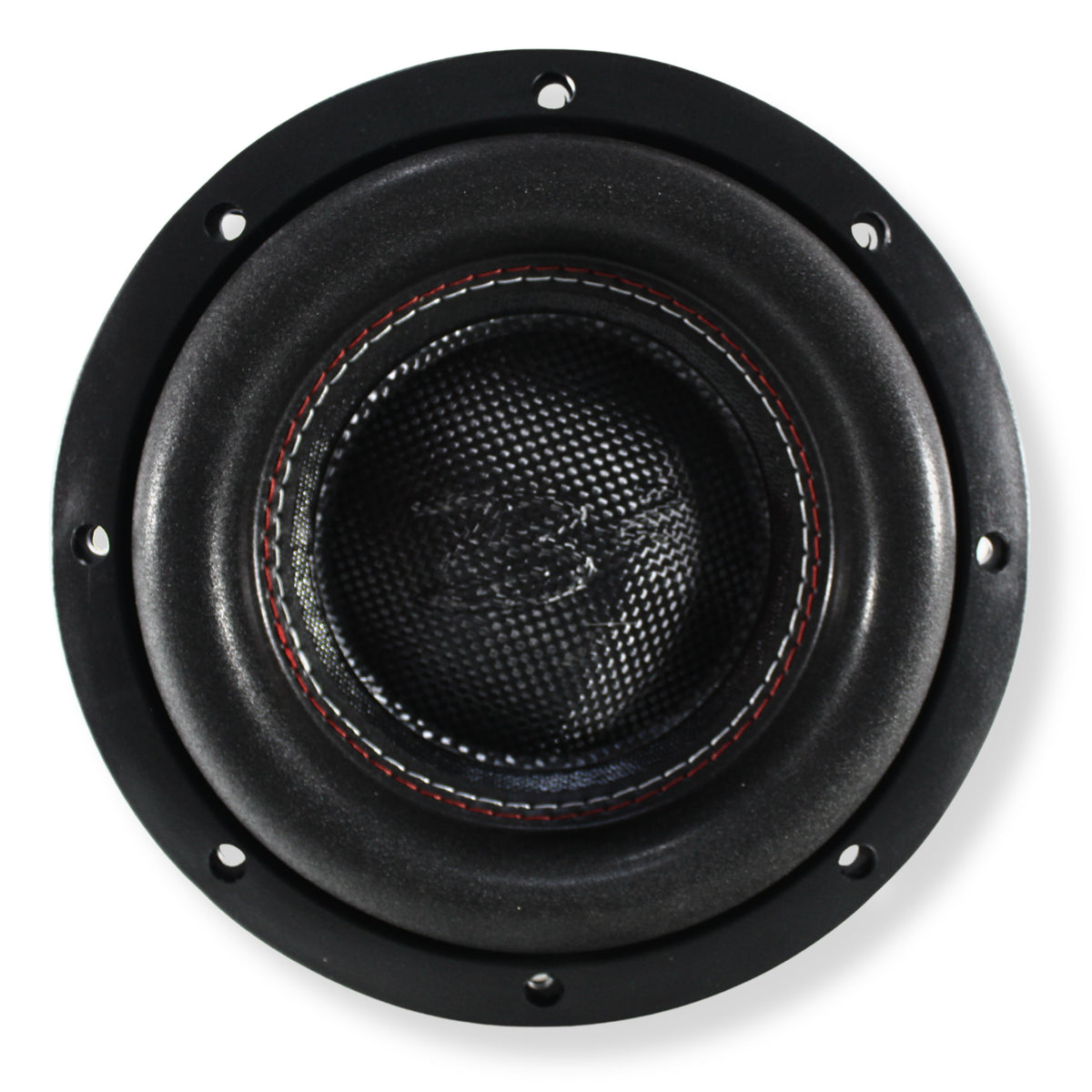

• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 500 Watts RMS, this subwoofer delivers deep, impactful bass.
• Dual Voice Coil Configuration: Dual 2-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.

B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2

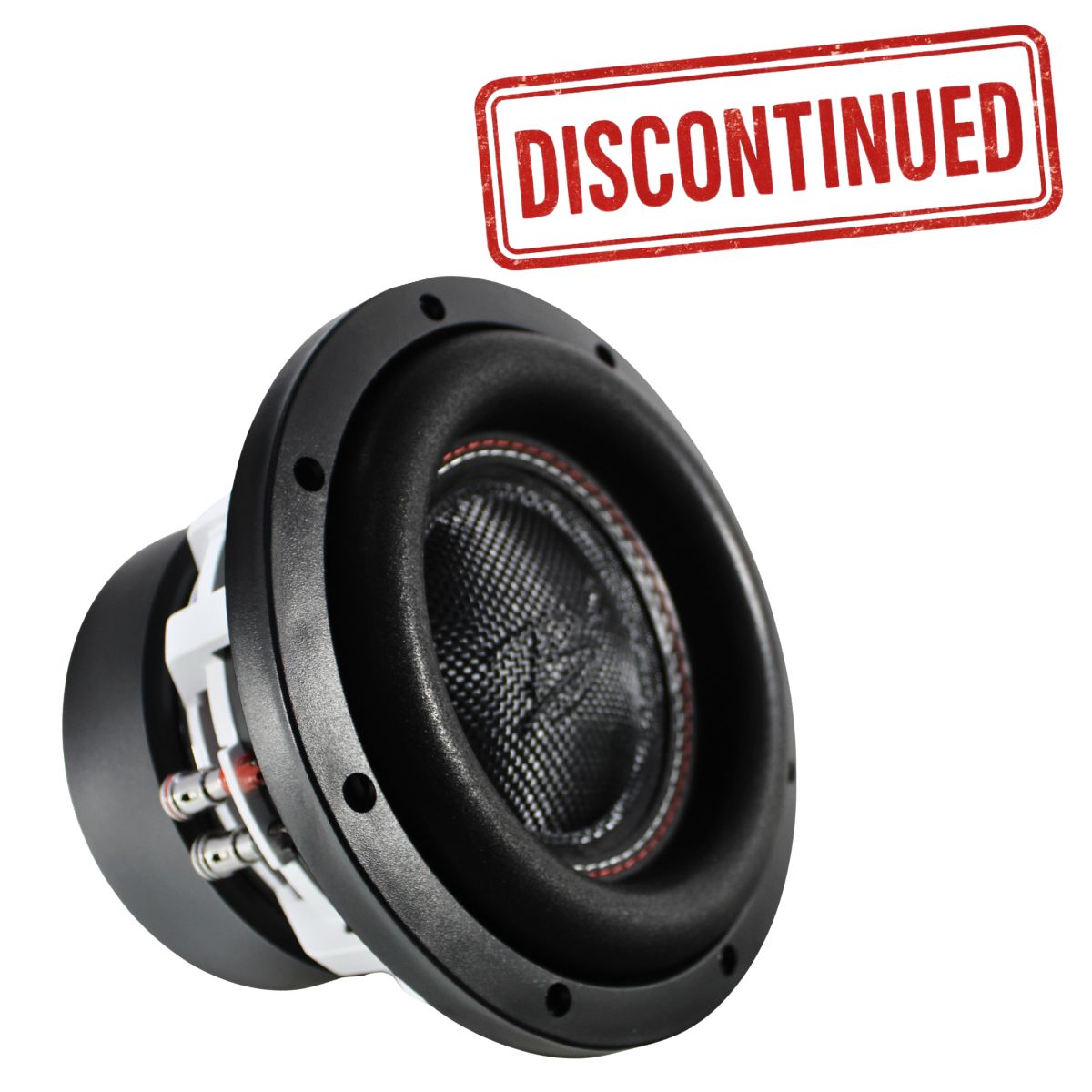

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAGE8-D2-V3.

This Listing Includes:

• (1) 8" DVC 2-ohm  RAGE Subwoofer

Product Description:

Rev up your car audio to the next level with the B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 1000W Max Subwoofer RAGE8-D2-V2. This isn't just any speaker  it's a relentless powerhouse engineered to obliterate your expectations. Designed to deliver bone-shattering clarity and gut-wrenching bass, this speaker doesn't just demand attention, it commands respect on the road. With a ferocious 1000 Watts Max power handling capability and dual 2-Ohm impedance, it's ready to dominate any audio challenge you throw its way. Featuring a 2" voice coil diameter and 12 AWG wire inputs for push terminals, it's built to withstand the most intense audio assaults. Thiele & Small specifications ensure optimized performance, while its aggressive enclosure suggestions cater to the most hardcore audio enthusiasts. So, buckle up and brace yourself for a sonic onslaught like never before with the B2 Audio RAGE8-D2-V2.

Features

• 500W RMS / 1000W Max Power Handling – Built for serious bass in compact spaces


• Dual 2-Ohm Voice Coil Configuration – Flexible wiring options for system matching

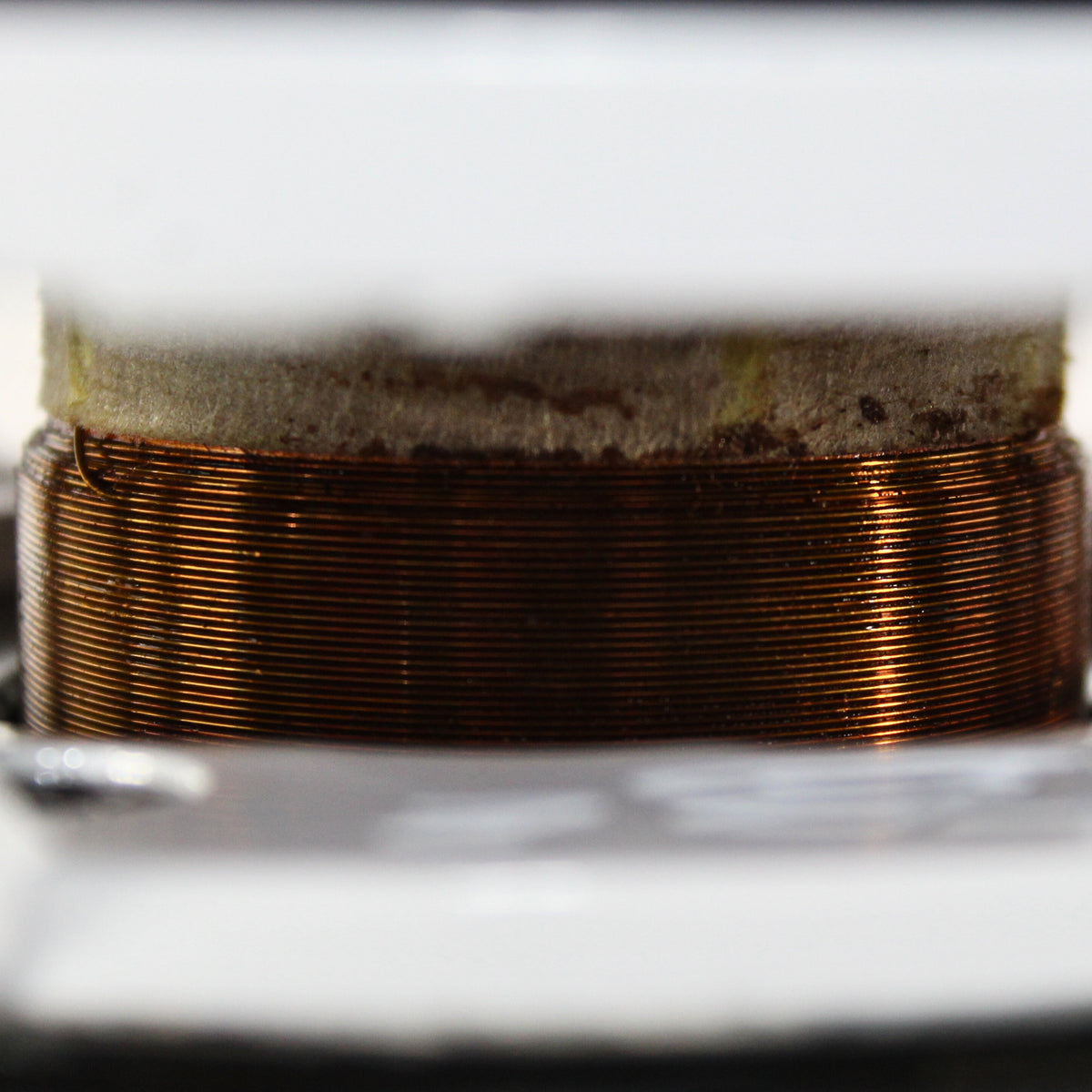

• 2" High-Temperature Voice Coil – Handles extended play at high output levels


• Heavy-Duty 175 oz Motor Structure – Provides deep, forceful low-end performance


• Frequency Response: 10Hz – 500Hz – Wide range coverage for dynamic bass reproduction


• Sensitivity: 83.8 dB – Efficient design delivers powerful output with less power

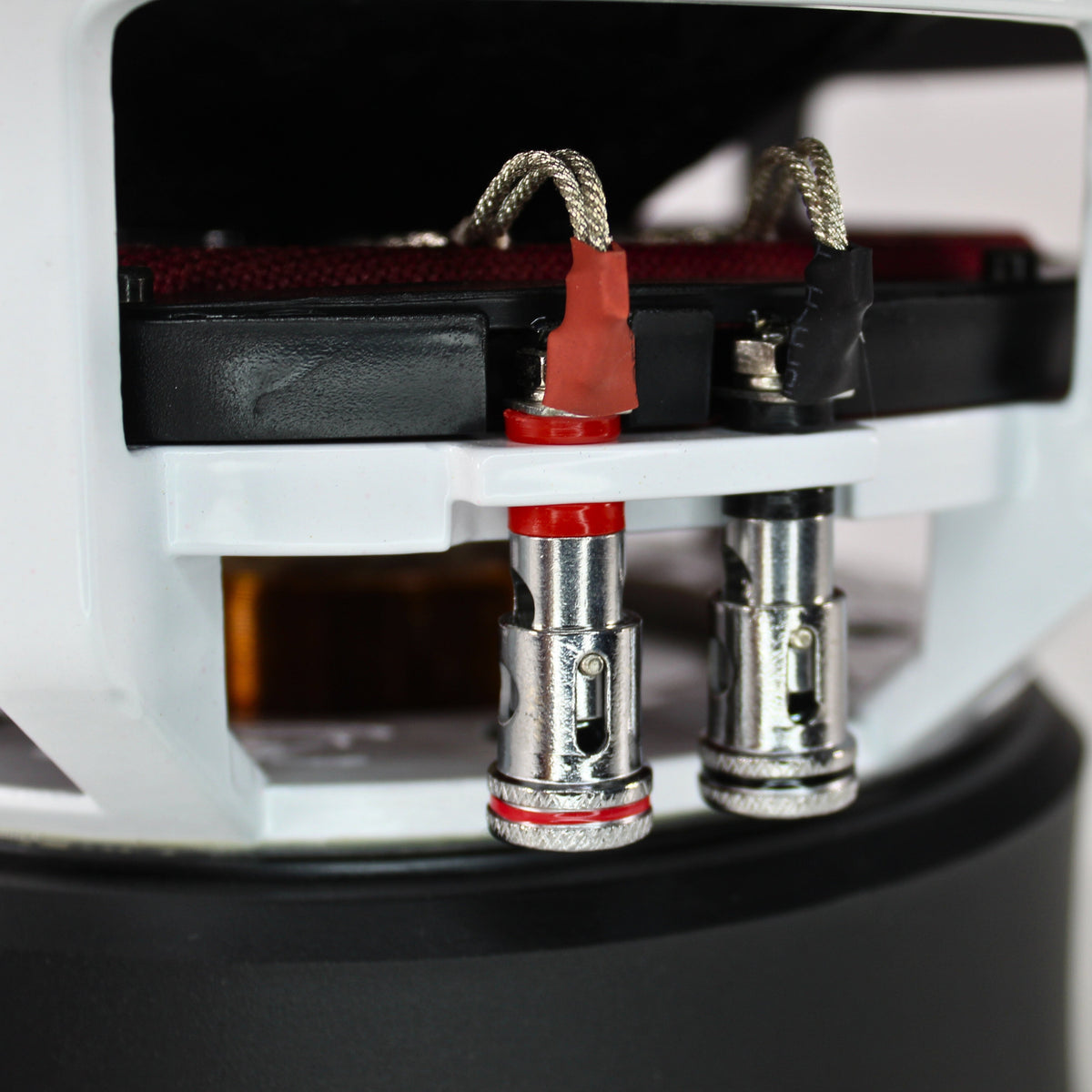

• 12 AWG Push Terminals – Secure connections for high current signal delivery


• High Excursion Xmax: 15mm (0.59") – Deep cone movement for powerful, punchy bass


• Engineered with Thiele/Small Parameters – Optimized for sealed, ported, or bandpass enclosures


• Compact Mounting Depth: 5.31" – Ideal for tight installs without sacrificing performance

Specifications:

• RMS Power Handling: 500W


• Max Power handling: 1000W


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 83.8 dB


• Magnet Weight: 175 Oz


• Displacement: 2.5 L / 0.088 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 39.3 Hz


• Resistance (Re): 1.9 Ohm


• Mechanical Factor (Qms): 6.09


• Electrical Factor (Qes): 0.5


• Total Factor (Qts): 0.48


• Equivalent Volume (Vas): 5.8 L


• Compliance (Cms): 110 um/N


• Moving Mass (Mms): 138.5 g


• BL Factor (BL): 72.9 TM


• Excursion Max (Xmax): 0.59" / 15 mm

Dimensions:

• Overall Diameter: 8.66" / 220mm


• Mounting Diameter: 7.83" / 199mm


• Front Mount Baffle Cutout: 7.28" / 185mm


• Overall Depth: 6.57" / 167mm


• Mounting Depth: 5.31" / 135mm

Enclosure Suggestions:

Sealed:

• 7.6L / 0.269 cu.ft


• Qtc 0.513

Ported Compact:

• 15L / 0.53 cu.ft


• Port: 2"


• Length : 7.16" / 18.2 cm


• FB: 42 Hz

Ported:

• 28L / 0.636 cu.ft


• Port Area: 7.75 sq.in


• Length: 3.34" / 33.9 cm


• FB: 38 Hz

4th Order Bandpass: 3:1 Ratio
