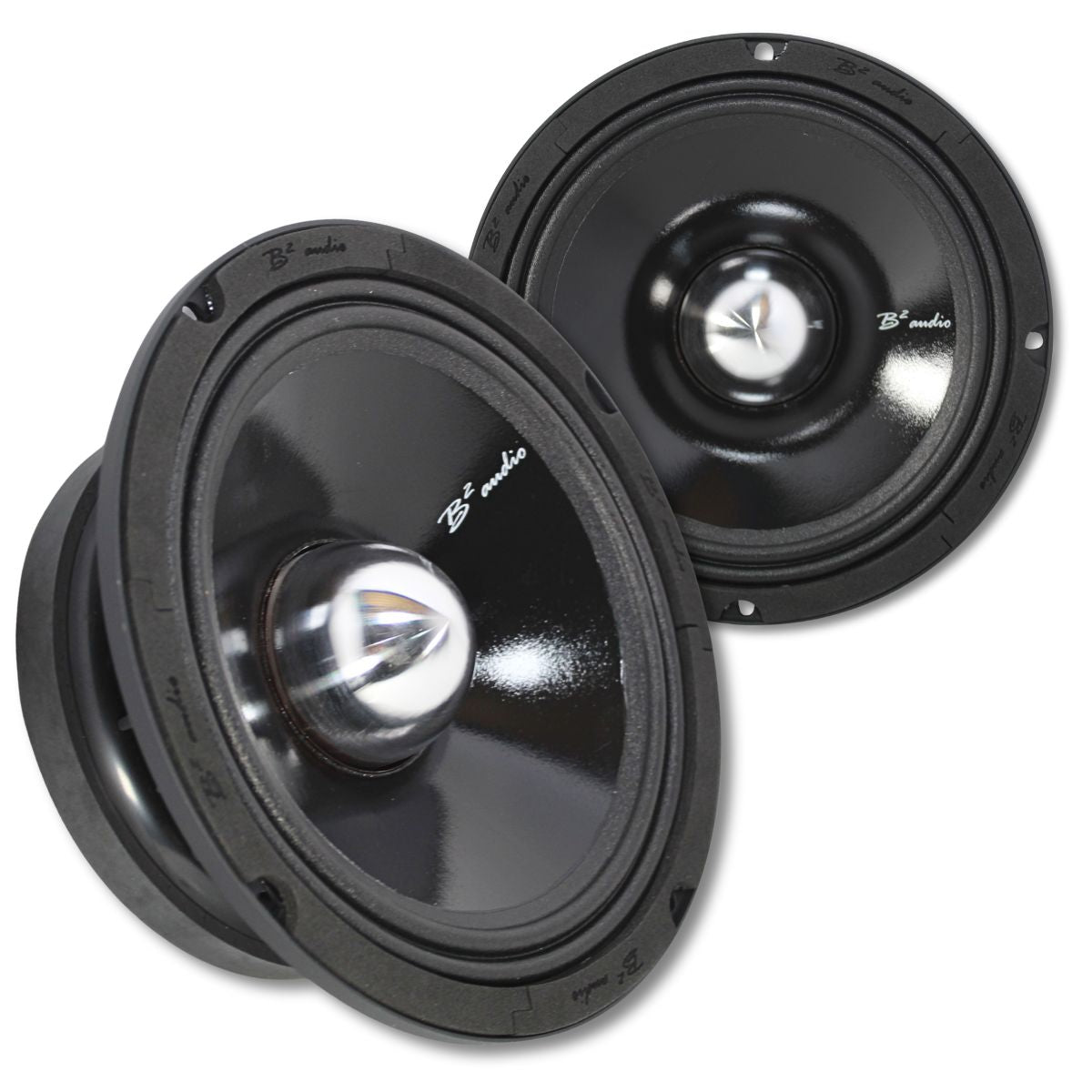

B2 Audio RAGE Series 8" 4-Ohm 250 Watt RMS Mid-Range Speakers UV-Coated Cone, Sold in Pairs RAGE8P

B2 Audio RAGE Series 8" 4-Ohm 250 Watt RMS Mid-Range Speakers UV-Coated Cone, Sold in Pairs RAGE8P

Sold by AudioSellerz.com

The B2 Audio RAGE Series 8" 4-Ohm 250 Watt RMS Mid-Range Speakers UV-Coated Cone, Sold in Pairs RAGE8P is a car audio signal-processing product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• 300W RMS Mid-Range Power: delivers strong, clean vocals and aggressive mid-bass for high-output systems.
• 4-Ohm Impedance: ensures wide amplifier compatibility and easy system integration.
• 2.4" CCAR Voice Coil: provides excellent thermal stability and reliable long-term performance.
• Neo/Ferrite Hybrid Motor: boosts efficiency, output, and overall dynamic response.
• UV-Treated Paper Cone: with dual cloth surround delivers crisp, accurate sound across the 87 Hz – 10 kHz range.
• High 99.7 dB Sensitivity: produces loud, detailed output even at lower power levels.
• Ideal for Doors, Kick Panels, and Pro-Audio Builds: where clean and powerful mids are essential.

B2 Audio RAGE8P Pair of Rage 8" 4-Ohm 300 Watt RMS Mid-Range Speakers

This Listing Includes:

• (2) B2 Audio Rage 8" Speakers


• (2) Set of Hardware

Experience high-output clarity and aggressive mid-range performance with the B2 Audio RAGE 8" 4-Ohm mid-range speakers. Engineered for power, precision, and true musical impact, the RAGE8P delivers 300W RMS of clean, dynamic sound with exceptional efficiency and detail.

With a lightweight UV-treated paper cone, dual cloth surrounds, and a powerful Neo/Ferrite hybrid motor, these speakers produce crisp vocals, sharp instrumentation, and punchy upper bass. Whether used in a car audio system, doors, kick panels, or pro-audio style builds, the RAGE8P brings unmatched output and accuracy.

Perfect for daily builds, stage-3 door upgrades, and high-performance soundstage setups.

Features

• 300W RMS / 600W Max power handling for strong, controlled mid-range output


• 4-ohm impedance for wide amplifier compatibility


• 2.4" CCAR voice coil offers high thermal stability and reliability


• Neo/Ferrite hybrid motor provides exceptional efficiency and motor strength


• UV-treated paper cone delivers clean, natural mid-range reproduction


• Dual U-shaped cloth surround supports fast, accurate movement


• High 99.7 dB sensitivity for loud output even at lower power


• Wide frequency response from 87 Hz to 10 kHz


• Ideal for door panels, pro-audio builds, and high-output systems

Specifications:

• Nominal Chassis Diameter: 8.31 / 211 in/mm


• RMS Power Handling: 300W


• Max Power Handling: 600W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 2.4"


• Winding Material: CCAR


• Frequency Response: 87 Hz ~ 10 kHz


• Sensitivity: 99.7 dB


• Resonance (Natural) Frequency: 87 Hz


• Magnet Weight: 41.5 oz


• Magnet Type: Neo / Ferrite


• Cone Material: UV Treated Paper


• Surround Type: Dual U Shaped Cloth

Thiele & Small:

• Free Air Resonance (Fs): 87 Hz


• Resistance (Re): 3.3 ohm


• Mechanical Factor (Qms): 11.025


• Electrical Factor (Qes): 0.256


• Total Factor (Qts): 0.251


• Equivalent Volume (Vas): 14.69 L


• Compliance (Cms): 110 um/N


• BL Factor (BL): 10.79 T/M


• Moving Mass (Mms): 16.4 g


• Excursion Max (Xmax) (One Way): 0.20" / 5 mm


• SD: 226 cm squared


• Efficiency: 3.742 percent


• Le (1 kHz): 0.303 mH


• EBP: 339.8

Dimensions:

• Overall Diameter: 8.3" /211mm


• Bolt Circle Diameter: 7.48" / 190mm


• Baffle Cutout Diameter: 7.13" / 181mm


• Total Depth: 3.35" / 85mm


• Mounting Depth: 3.05" / 77.5mm


• Net Weight(1 PC): 3.41 kgs


• Shipping Weight (1 PC): 4.32 kgs


• Shipping Box (1 PC): 257 x 241 x 110 mm
