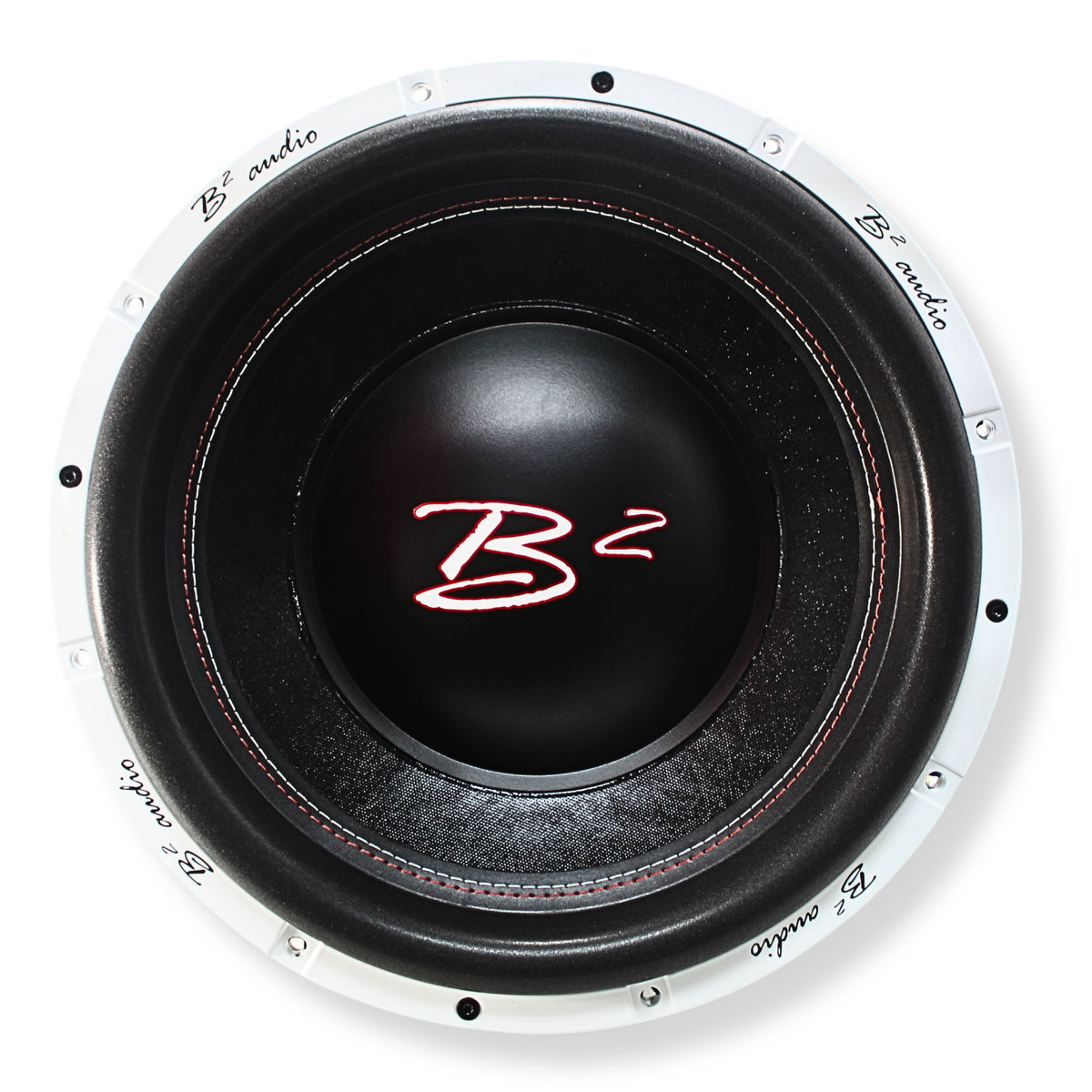

B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Power-Packed Performance: Experience unparalleled bass performance with the B2 Audio RAGE15-D2-V2 subwoofer, featuring 2000 watts RMS power handling and a massive 600 oz magnet weight for thunderous sound reproduction.
• Dual Voice Coil Design: Equipped with a 3" voice coil and dual 2-ohm impedance, this subwoofer offers versatile wiring options and exceptional flexibility in audio configurations.
• High Sensitivity: With a sensitivity rating of 90.7 dB, the RAGE15-D2-V2 efficiently converts power into sound, delivering deep, impactful bass with clarity and precision.
• Precision Engineering: Engineered with precision Thiele & Small parameters and premium materials, this subwoofer ensures optimized performance and durability for long-lasting enjoyment.
• Versatile Enclosure Options: With enclosure suggestions for sealed, ported compact, and ported setups, the RAGE15-D2-V2 adapts to various audio environments, delivering optimal bass response.

B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAGE15-D2-V3.

This Listing includes:

• (1) 15" DVC 2-Ohm RAGE Subwoofer

Get pumped for the B2 Audio RAGE15 D2 V2 15" subwoofer! This speaker is a beast! It doesn't just play nice; it dominates with bone-shaking bass that'll make your bones rattle. With a massive 2000 watts RMS power handling and a dual 2-ohm impedance, this sub doesn't just flex its musclesit obliterates the competition. Engineered with precision Thiele & Small parameters and top-notch materials, it's built to handle anything you throw its way. Whether you want to pound the pavement with a sealed, ported compact, or ported enclosure setup, the RAGE15 D2 V2 doesn't mess aroundit's here to blow your mind with its earth-shattering sound. So strap in, turn it up to eleven, and get ready to be blown away by the audio powerhouse that is the RAGE15 D2 V2!

Specifications:

• RMS Power Handling: 2000W


• Max Power Handling: 4000W

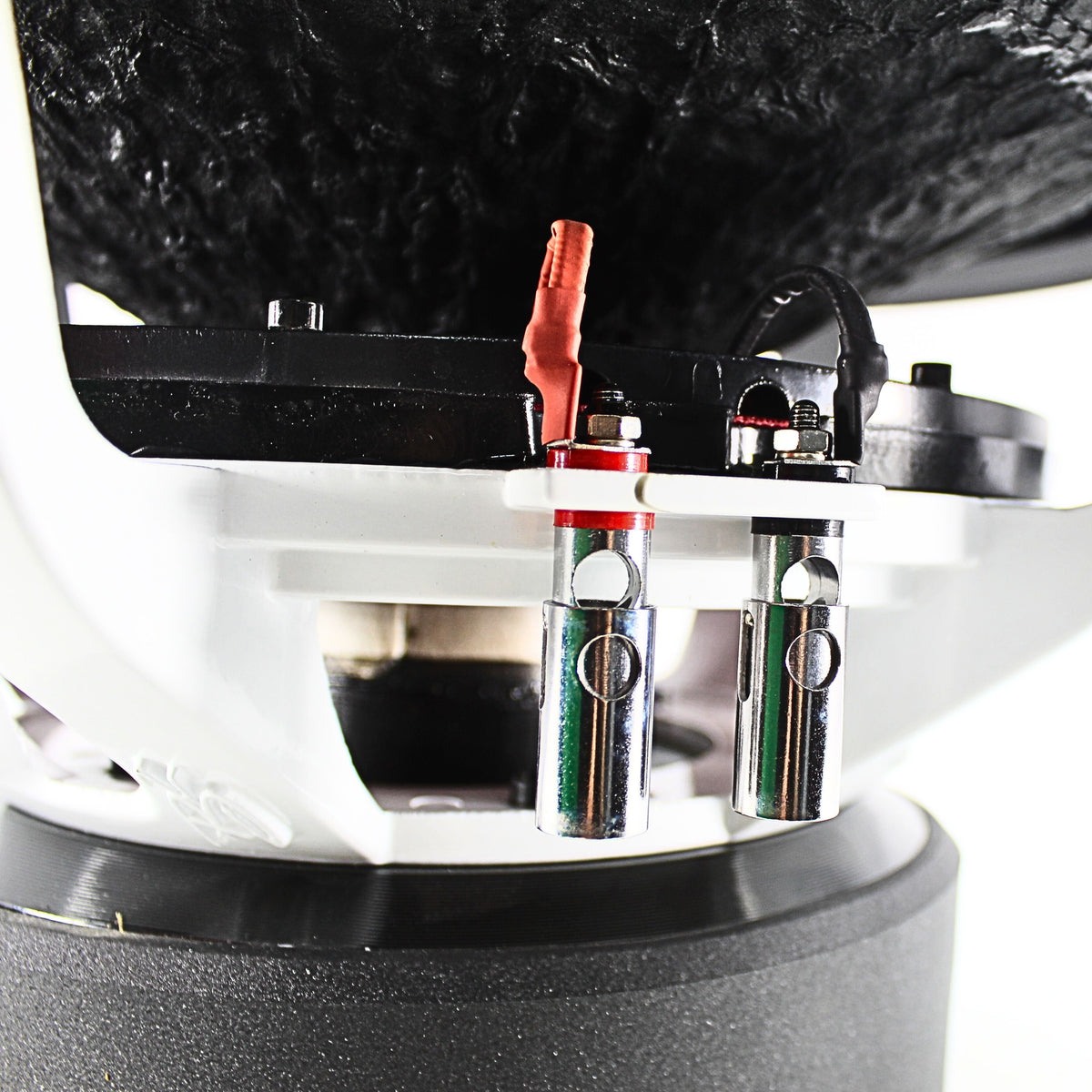

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2 Ohm

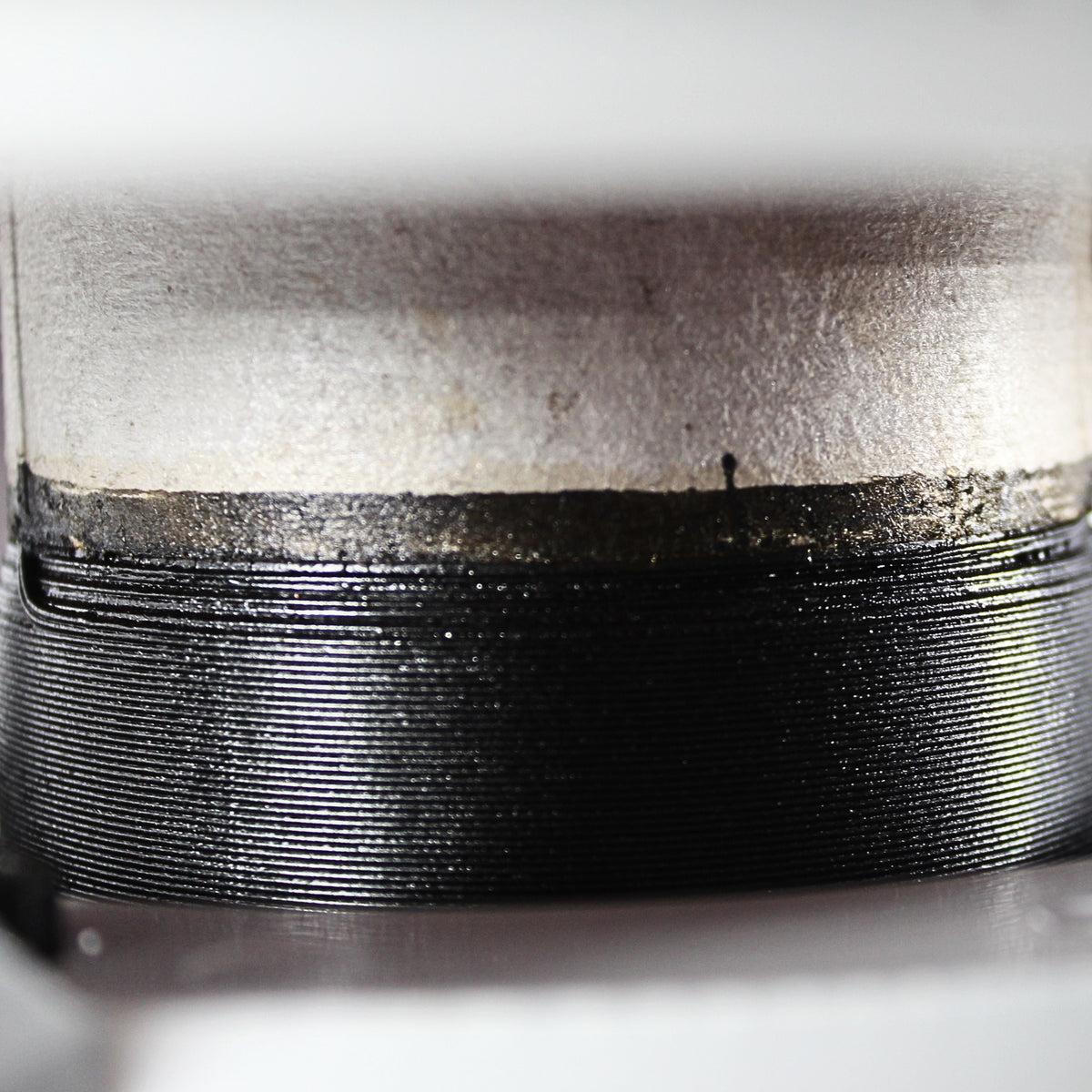

• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 90.6 dB


• Magnet Weight: 600 oz


• Displacement Volume: 10.7 L / 0.37 cu.ft

Thiele & Small

• Free Air Resonance (Fs): 25.5 Hz


• Resistance (Re): 1.9 ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.35


• Total Factor (Qts): 0.33


• Equivalent Volume (Vas): 67 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 262.3


• Moving Mass (Mms): 524.2 g


• Excursion Max (Xmax): 20 mm

Measurements:

• Overall Diameter: 15.35" / 390 mm


• Mounting Diameter: 13.77" / 350 mm


• Bolt Pattern Diameter: 14.76" / 375 mm


• Overall Depth: 9.92" / 252 mm


• Mounting Depth: 8.66" / 220 mm

Enclosure Suggestions:

Sealed:

• 50 L / 1.77 cu.ft


• Qtc 0.41

Ported Compact:

• 100 L / 3.5 cu.ft


• Port: 2 x 4"


• Length : 11.2" / 28.5cm


• FB: 35 Hz

Ported:

• 142 L / 5 cu.ft


• Port Area: 43.4 sq.in


• Length: 22.2" / 56cm


• FB: 30hz
