B2 Audio RAGE 3" Midrange Loudspeaker 80 Watt RMS 6-Ohm Pair

B2 Audio RAGE 3" Midrange Loudspeaker 80 Watt RMS 6-Ohm Pair

Sold by AudioSellerz.com

The B2 Audio RAGE 3" Midrange Loudspeaker 80 Watt RMS 6-Ohm Pair is a car audio signal-processing product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Compact 3" Midrange Power – Small-format driver delivering exceptional clarity and vocal presence for tight-space builds.
• Smooth 200 Hz–18 kHz Response – Fills the critical midrange band with clean detail and accurate musical reproduction.
• 80W RMS Performance – Designed for controlled output within crossover range using a durable 1" voice coil.
• Optimized T/S Design – 209 Hz Fs, 6-ohm impedance, and 83.7 dB sensitivity for easy system integration.
• Versatile Fitment – Ideal for A-pillars, dash pods, custom doors, and pro-audio multi-driver arrays.

Rage 3" 80 Watts RMS 6-Ohm Compact Midrange Loudspeaker Pair B2-RAGE3MR

This Listing Includes

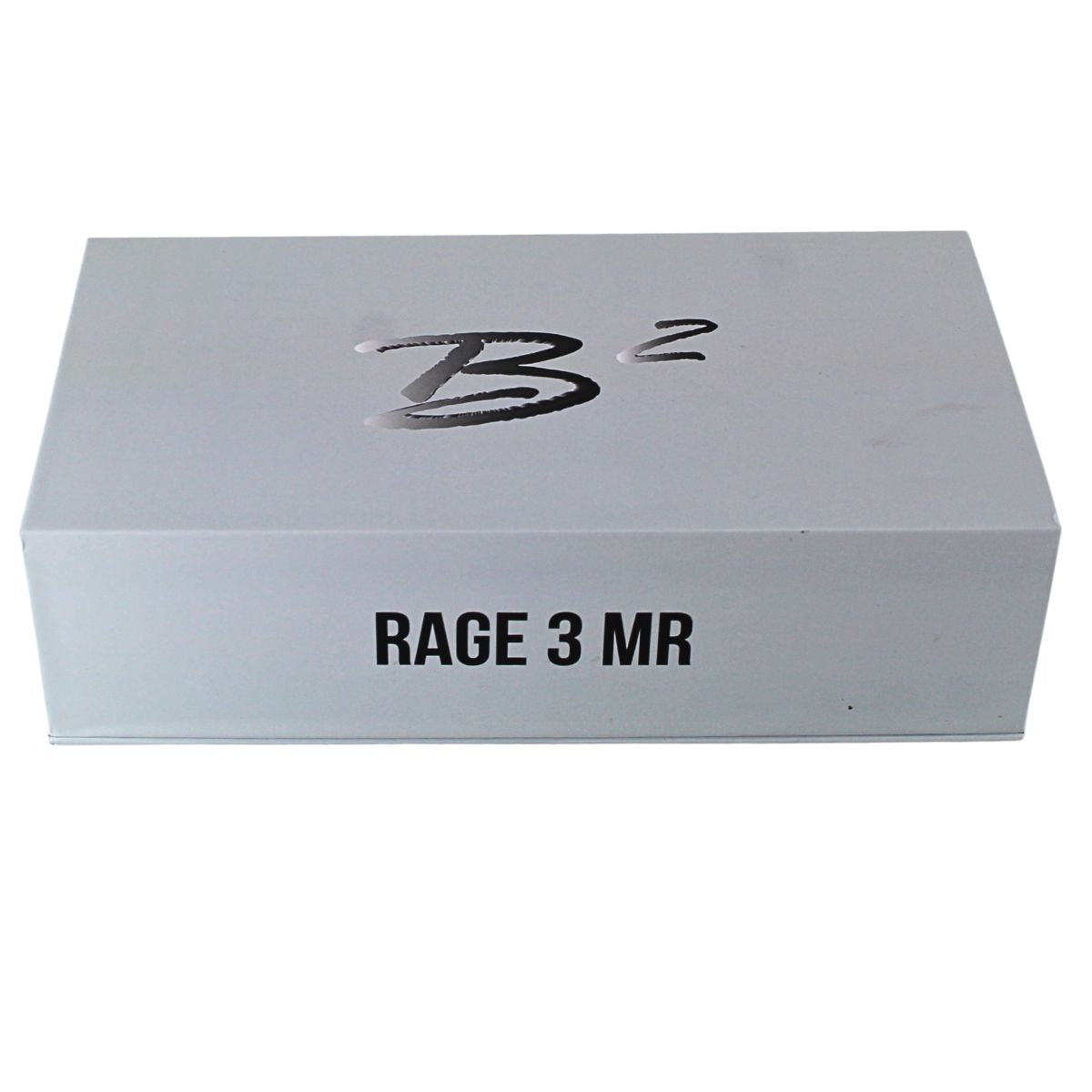

• (2) B2-RAGE3MR Midrange Speakers

Elevate your front-stage precision with the B2 Audio RAGE3MR, a compact 3" midrange pair engineered for clean vocal presence, sharp detail, and smooth upper-mid transition. Designed for tight spaces and demanding builds, these small-format drivers deliver performance far beyond their size class.

With a 209 Hz resonant frequency (Fs) and a usable response from 200 Hz to 18 kHz, the RAGE3MR fills the critical midrange gap between your mids and highs—bringing clarity and articulation to vocals, instruments, and dialogue. The 1" voice coil and 83.7 dB sensitivity deliver controlled, accurate output when paired with a proper crossover, while the 6-ohm impedance makes system matching flexible across a wide range of amplifiers and multi-driver setups.

Whether you’re building a detailed SQ front stage or a high-performance pro-audio door layout, the RAGE3MR offers the punch, precision, and reliability B2 Audio is known for, all in a compact footprint that installs almost anywhere.

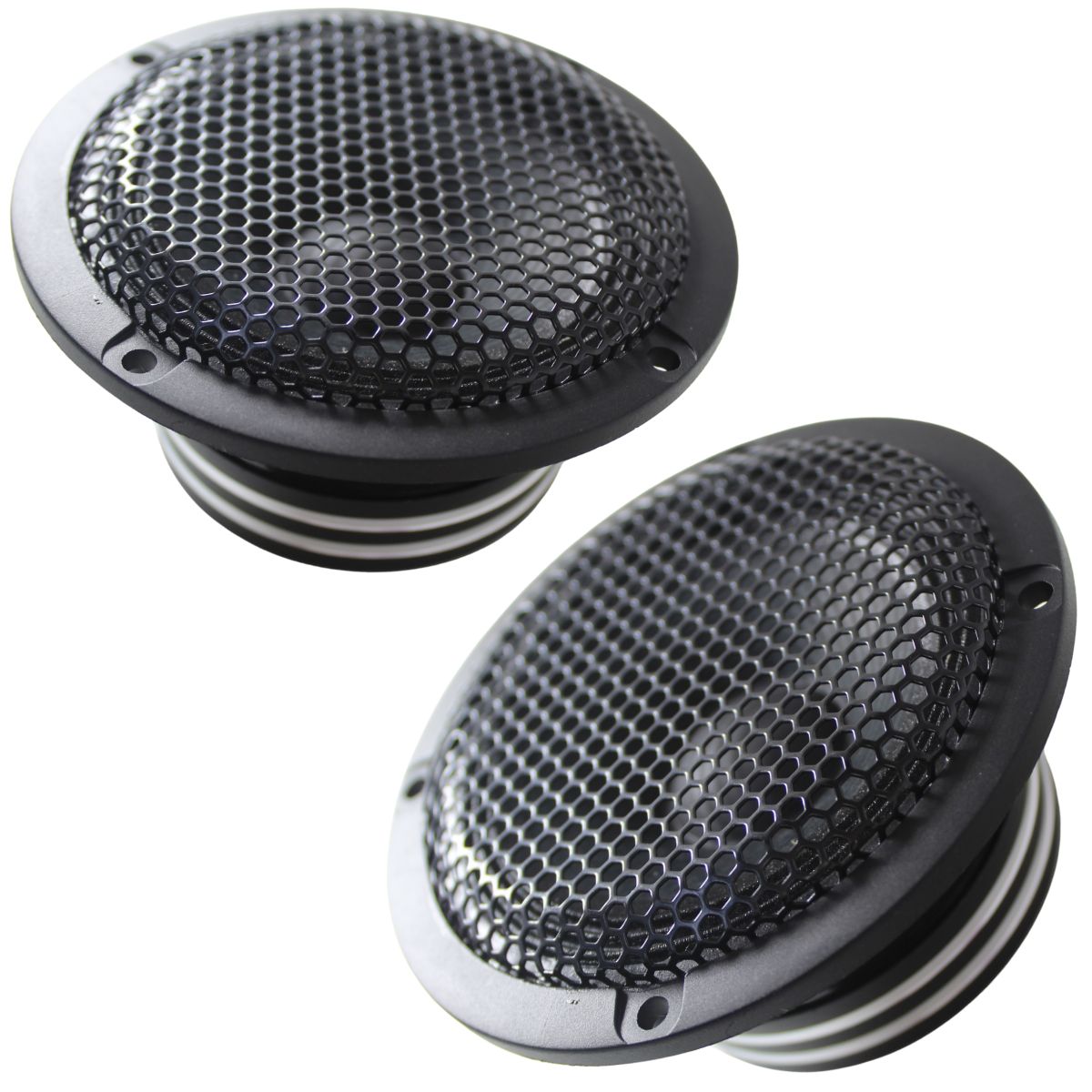

Sold as a pair.

Features

• Compact High-Performance Midrange – Designed to deliver exceptional clarity and detail in tight-space installations.


• Smooth Vocal Presence – Covers the critical 200 Hz to 18 kHz band for accurate vocals, instruments, and front-stage articulation.


• 1" Voice Coil – Optimized for efficiency and heat control during dynamic playback.


• Balanced T/S Profile – With a 209 Hz Fs and 83.7 dB sensitivity, it provides a controlled response when used within a proper crossover setup.


• Lightweight, Versatile Design – Ideal for A-pillars, dash pods, custom doors, and multi-driver arrays.


• Durable Construction – Built to handle real-world abuse while maintaining clean output and tonal accuracy.

Specifications:

Thiele/Small Parameters

• Resonance Frequency: 209 Hz


• Frequency Response: 200 Hz-18 kHz


• Qms: 6


• Qes: 1.28


• Qts: 1.05


• Power Handling: 80 Watts RMS (within crossover frequency range)


• Voice Coil: 1"


• Nominal Impedance: 6 Ohms


• Reactive Impedance: 5 Ohms

Dimensions:

• Total Diameter: 90 mm


• Total Depth: 47.8 mm


• Mounting Depth: 38.7 mm


• Mounting Diameter: 72.3 mm


• Mounting Hole Diameter: 83 mm

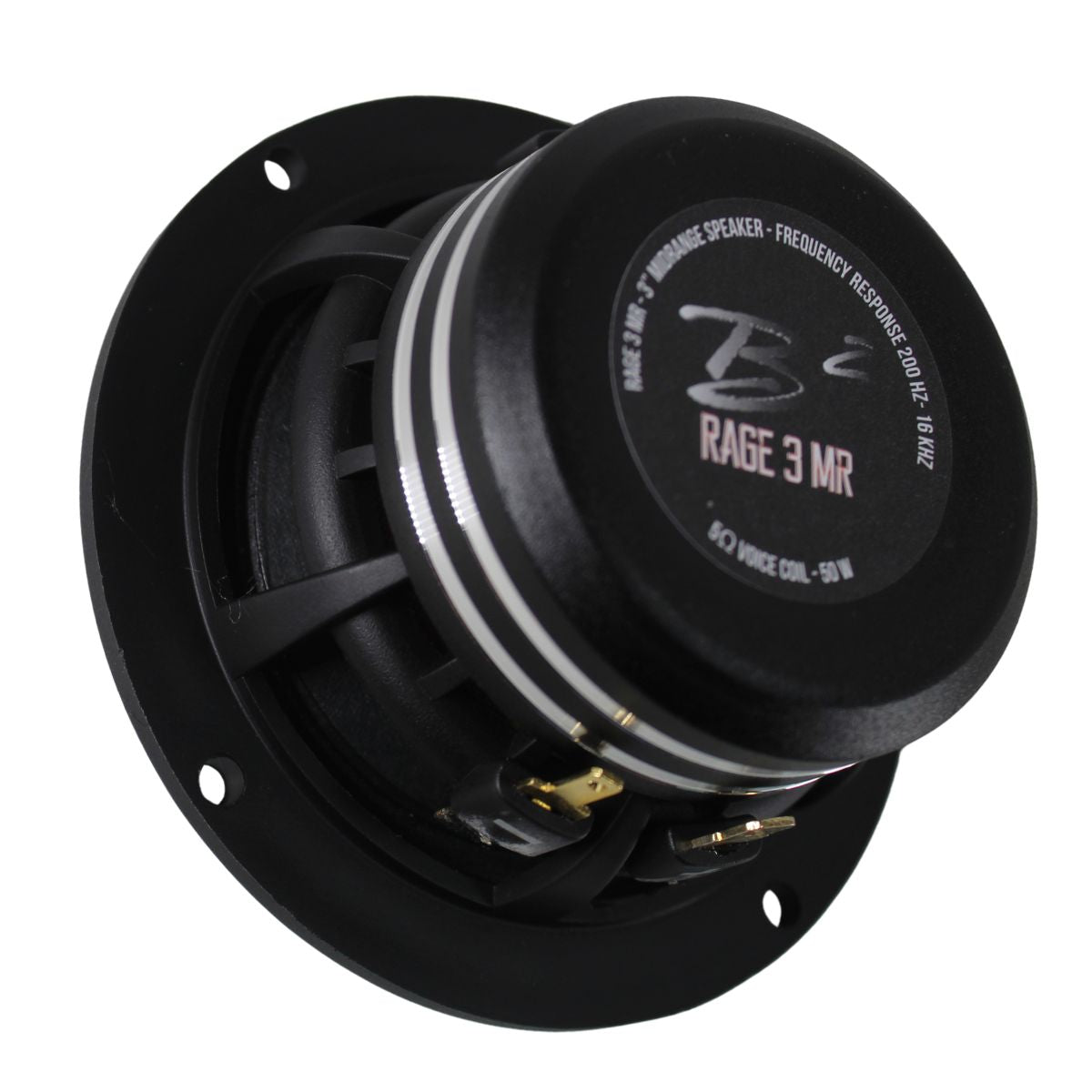

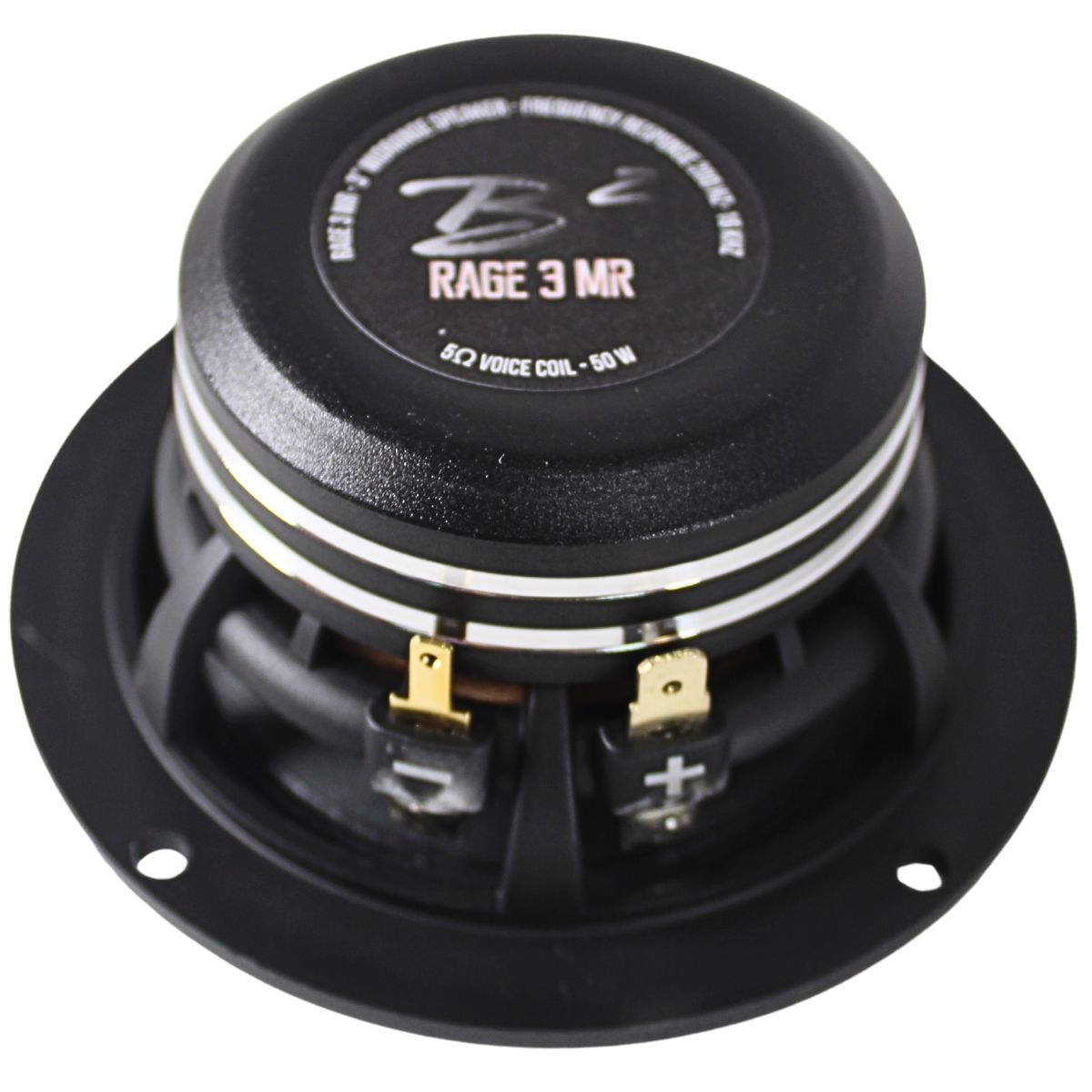

*Speaker Magnet has missprint from the factory: Reactive Impedance: 5 Ohms, and Frequency Response: 200 Hz-18 kHz. Box information is correct specs.
