B2 Audio 6 input 10 output Channel DSP Bluetooth with IOS/Android App 96 KHz - 32 Bit

• Advanced Digital Signal Processing – 6-input, 10-output DSP with 96 kHz, 32-bit resolution for crystal-clear audio and precise tuning.
• Wireless Control via Bluetooth – Adjust settings effortlessly using the iOS & Android app, offering real-time customization from your smartphone.
• High-Voltage Output for Optimal Performance – Each of the 10 output channels delivers a 4-volt signal, ensuring maximum clarity and power for your audio system.
• Compact and Durable Design – Engineered for seamless integration into any setup with a space-saving 4.5” x 5.75” x 1.5” form factor.
• Professional-Grade Sound Quality – Designed for audiophiles and car audio enthusiasts seeking precise frequency control, low distortion, and superior sound staging.

B2 Audio 4v 10 Channel DSP with Bluetooth IOS/Android App 96 KHz - 32 Bit

This listing includes

• (1) B2 Audio DSP-SIXTEN Silver

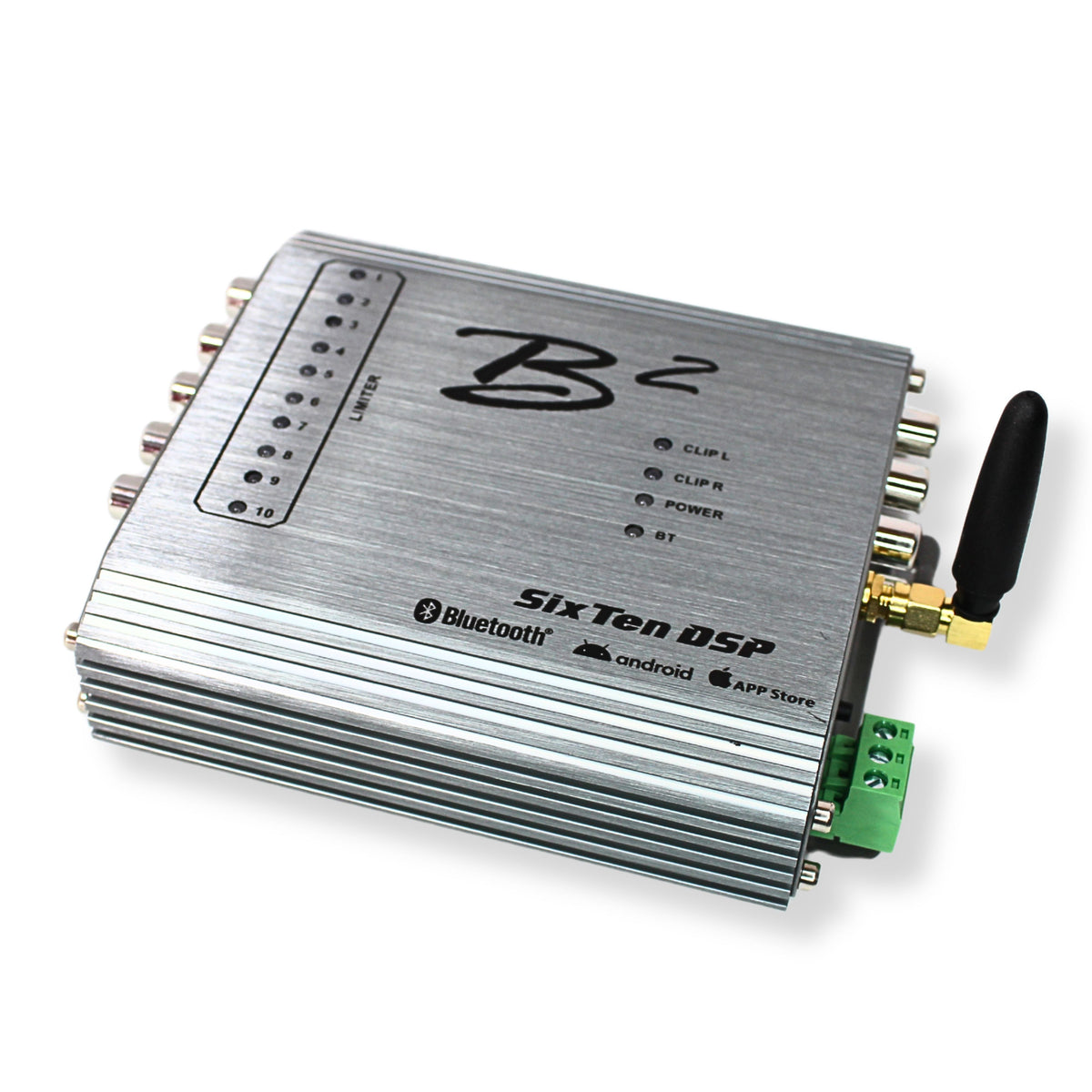

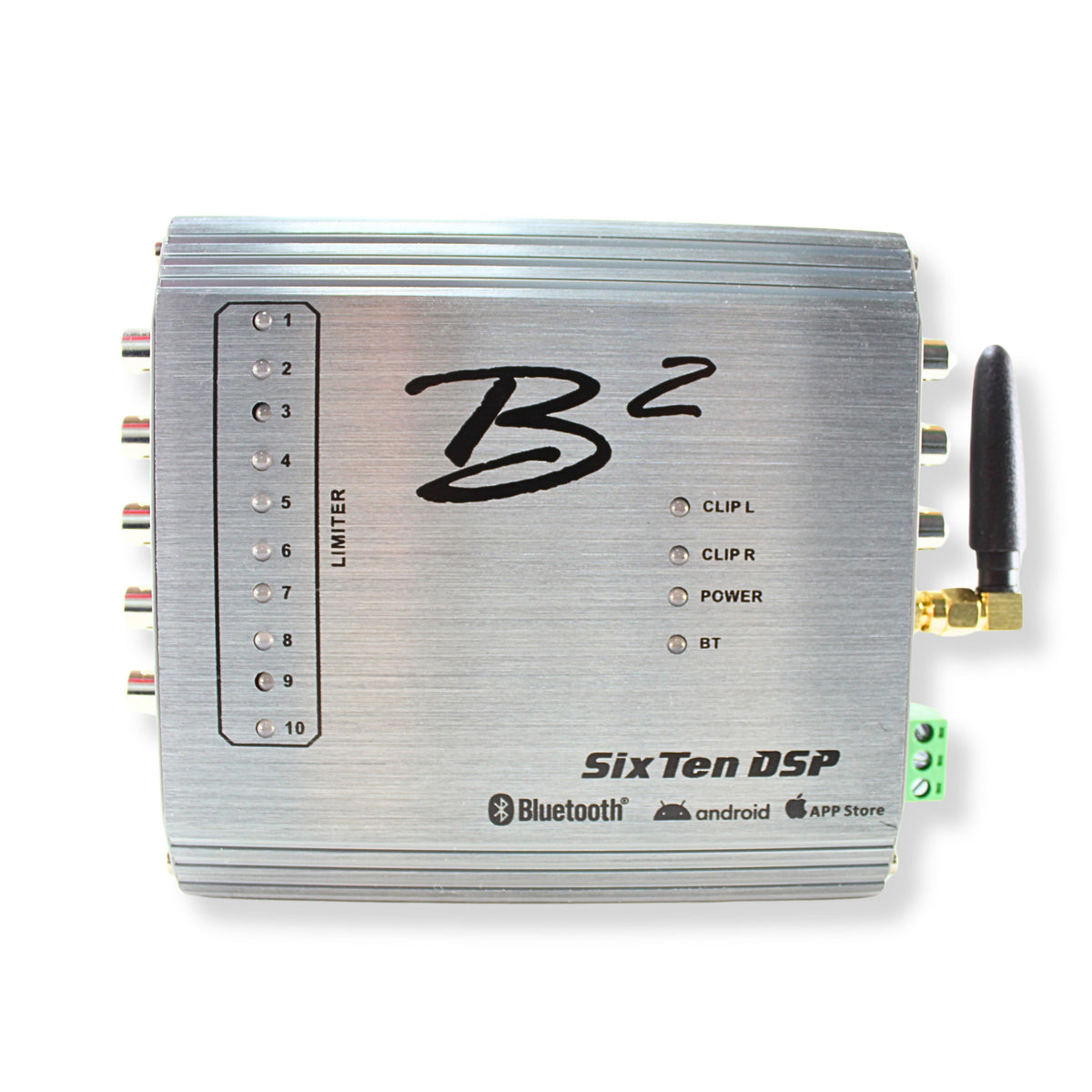

The B2 Audio SixTen DSP is a cutting-edge 6-input, 10-output digital signal processor designed for unmatched audio customization. With Bluetooth connectivity and an intuitive iOS/Android app, it delivers precise tuning through its 96 kHz, 32-bit resolution. Each of the 10 output channels provides a strong 4-volt signal, ensuring optimal performance for high-quality car audio setups.

Technical Specifications

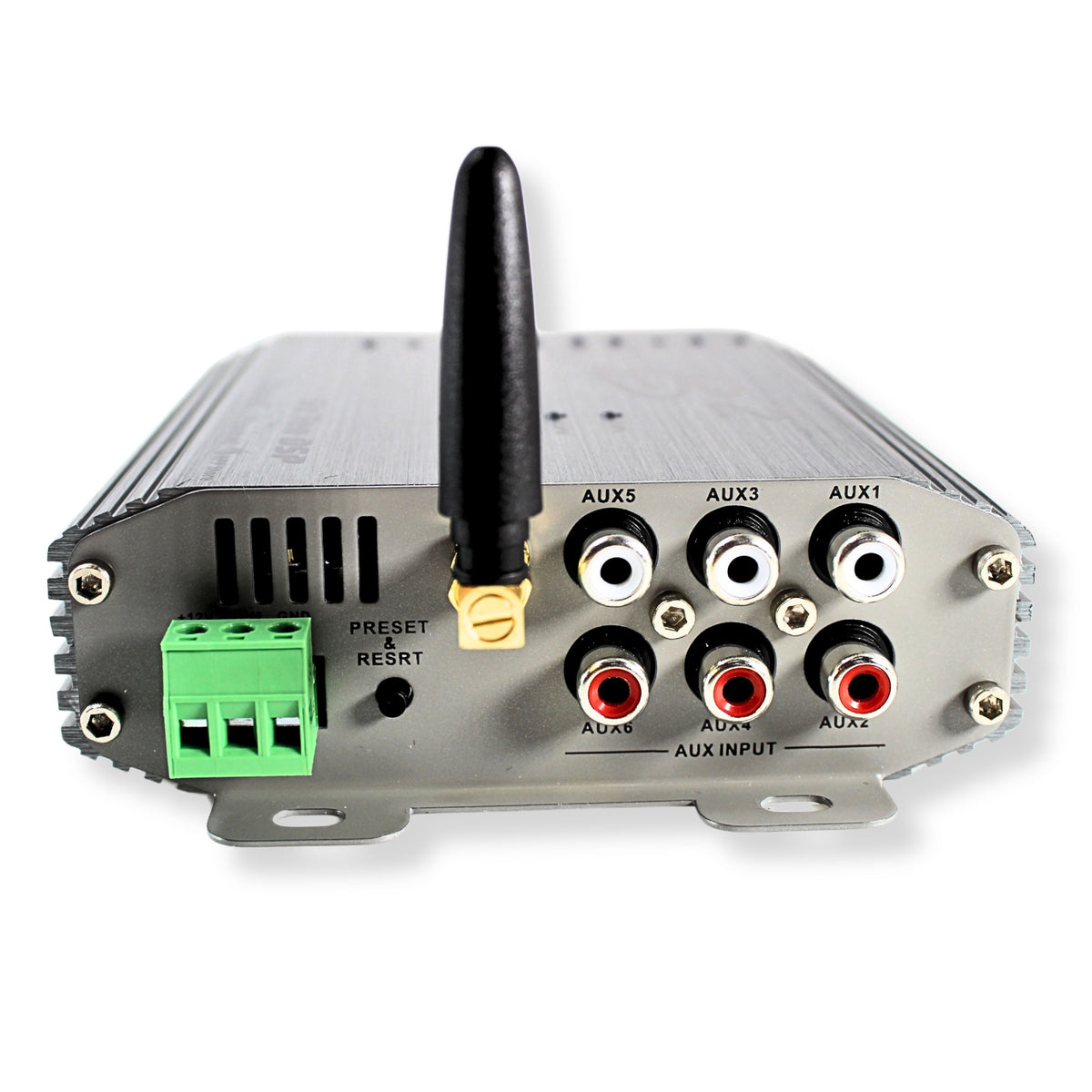

• Inputs: 6 (3 Left/3 Right)


• Connectors: RCA


• Input Level Max: 4.00 Vrms (+ 14dBu)

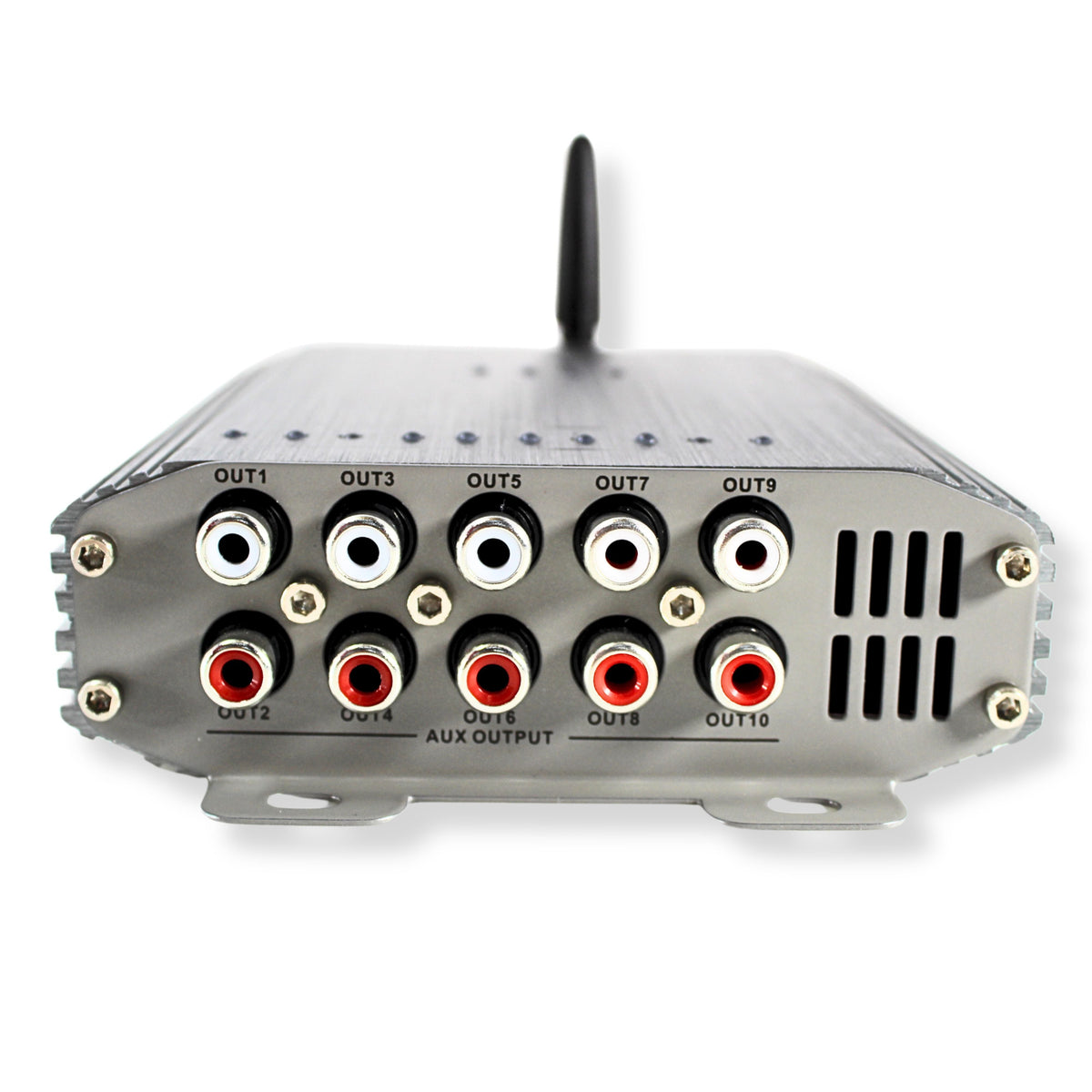

• Outputs: 10


• Output Max Level: 3.50 Vrms (+ 13dBu)


• Frequency Response: 10Hz to 24KHz (-1dB)


• THD+N: <0.01%


• Signal Latency: <0.6 ms


• Bit Rate: 32-Bit


• Sampling Frequency: 96khz


• Voltage DC: 9.5 - 15v DC


• Maximum consumption: 350mA

Processing Technical Documents

Channel Routing:

• Routing Option: A/B/C/D/A+B/A+C/B+C

Gain:

• General Gain: -53 to 0dB


• Channel Gain: -33 to +9dB

Frequency Cut:

• Cut-Off Frequency: 20Hz - 20KHz


• Type of Cuts: Linkwitz-Riley / Butterworth / Bessel


• Attenuations: 6/12/18/24/36/48 dB/8 degrees

Input Equalizer (EQ in):

• Equalization Band: 31 Bands


• Gain: -12 to +12dB

Channel Equalizer (EQ Channel):

• Equalization bands: 8 parameter per channel


• Gain: -12 to +12 dB


• Q Factor: 0.6 - 9.9

Time Alignment (delay):

• Time: 0 to 18.95 ms


• Distance: 0 to 6500mm

Limiter:

• Threshold: -53 to +6dB


• Attack: 1 to 200ms


• Release: 1 to 988ms

Polarity Inversion (Polarity):

• Inversion: 0 or 180 Degrees

Memory (Preset):

• Memories: 3-100% Configurable

Product Dimensions:

• Length: 4.5"


• Width:  5.75"


• Height: 1.5"


• Weight: 13.6 oz

Bluetooth Connection Instructions

• DSP Tuning & Settings: Open the DSP app on your phone and connect to Car Music (BLE). When prompted, enter the default password 000000.


• Wireless Music Streaming: To stream music or other audio through the DSP, open your phone or streaming device's Bluetooth settings and connect to Car Music_XXX.

Important: Car Music (BLE) is used for DSP tuning and control through the app, while Car Music_XXX is used for Bluetooth audio streaming.

Download the app from the QR Codes in the owners manual or from the download links on the manufacturer website.

The default password for the DSP is 000000 - to set a new password, just enter any password other than 000000. If you forget your own password, press and hold the reset button for 15 seconds to reset the device to factory settings. (This will also reset all of your settings saved in the app.)
