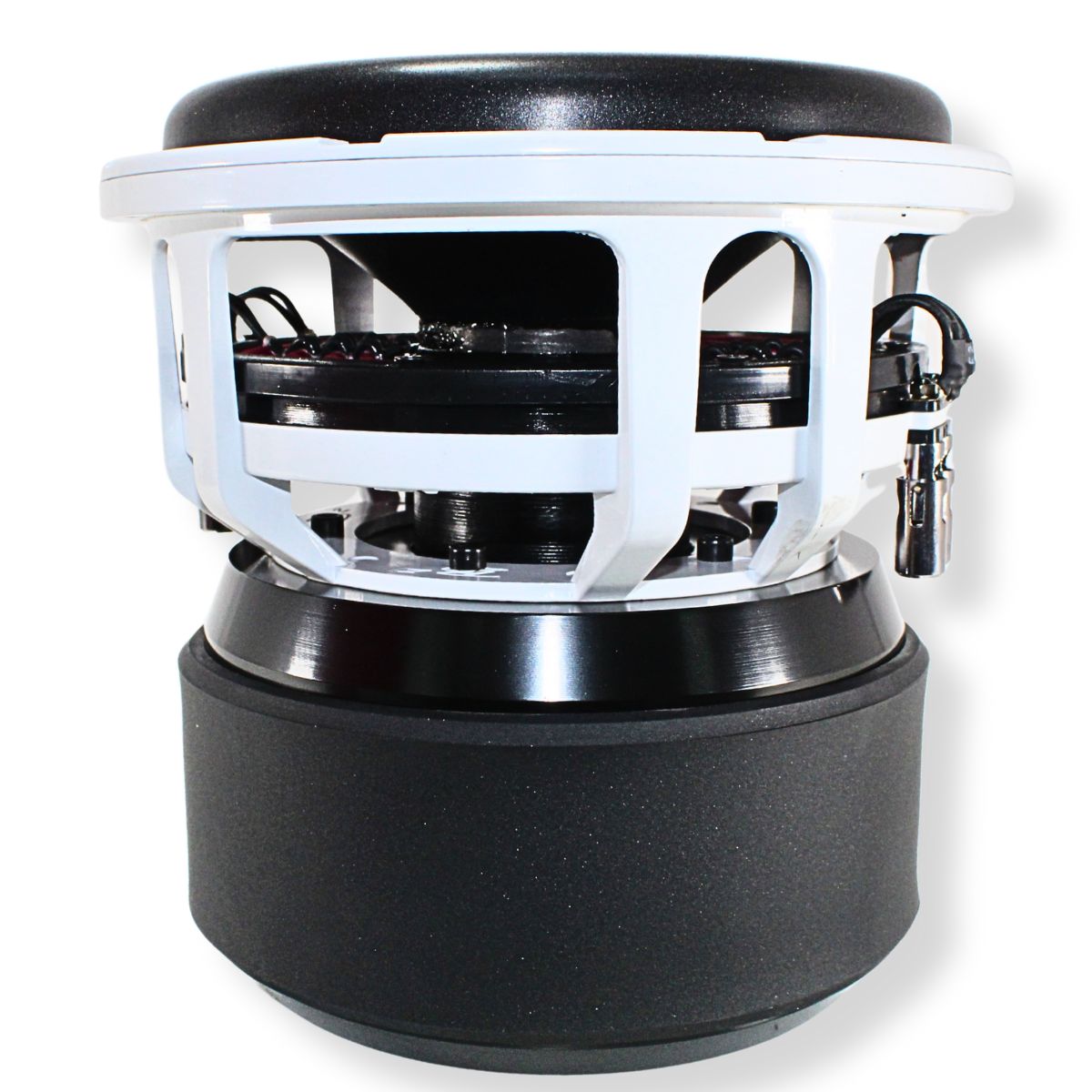

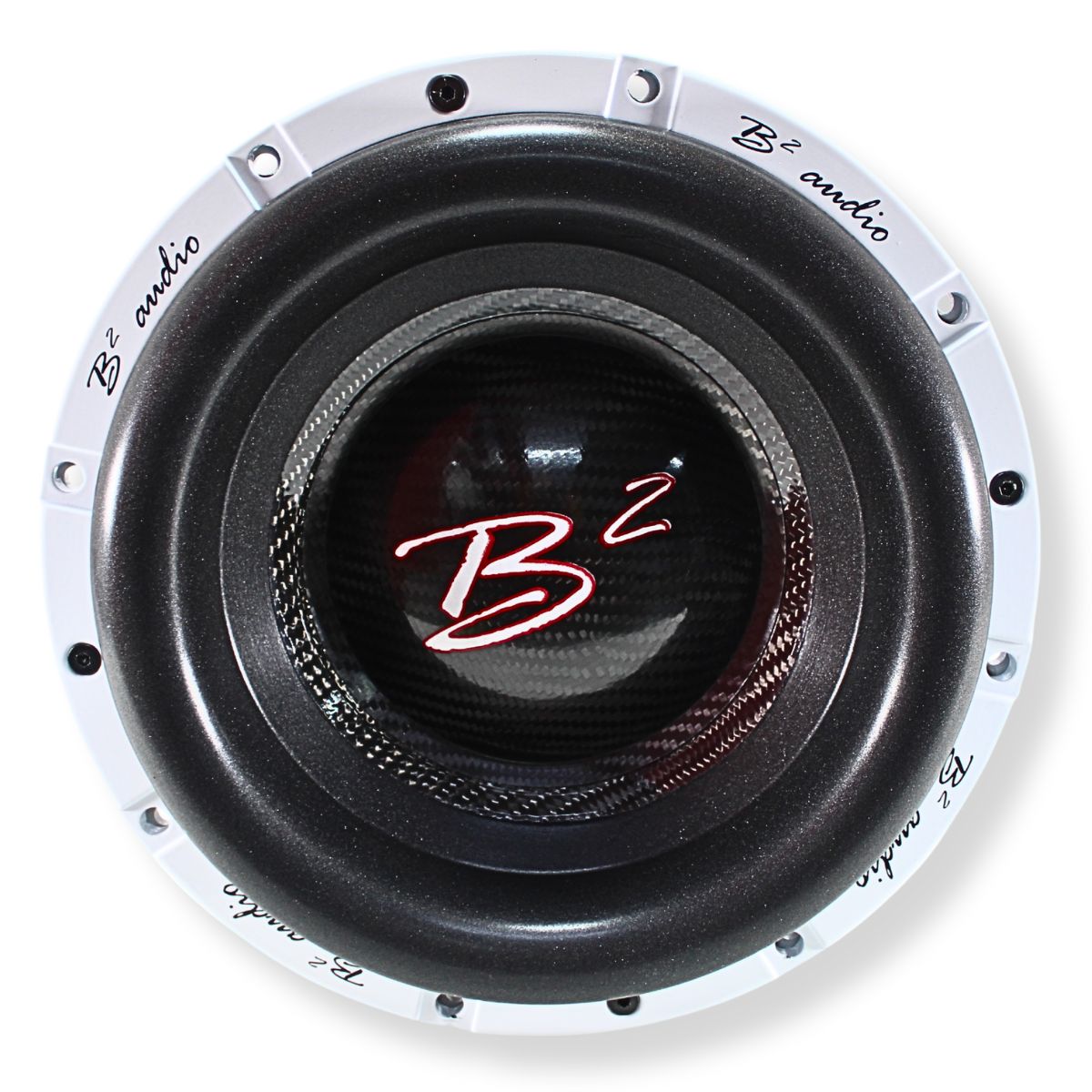

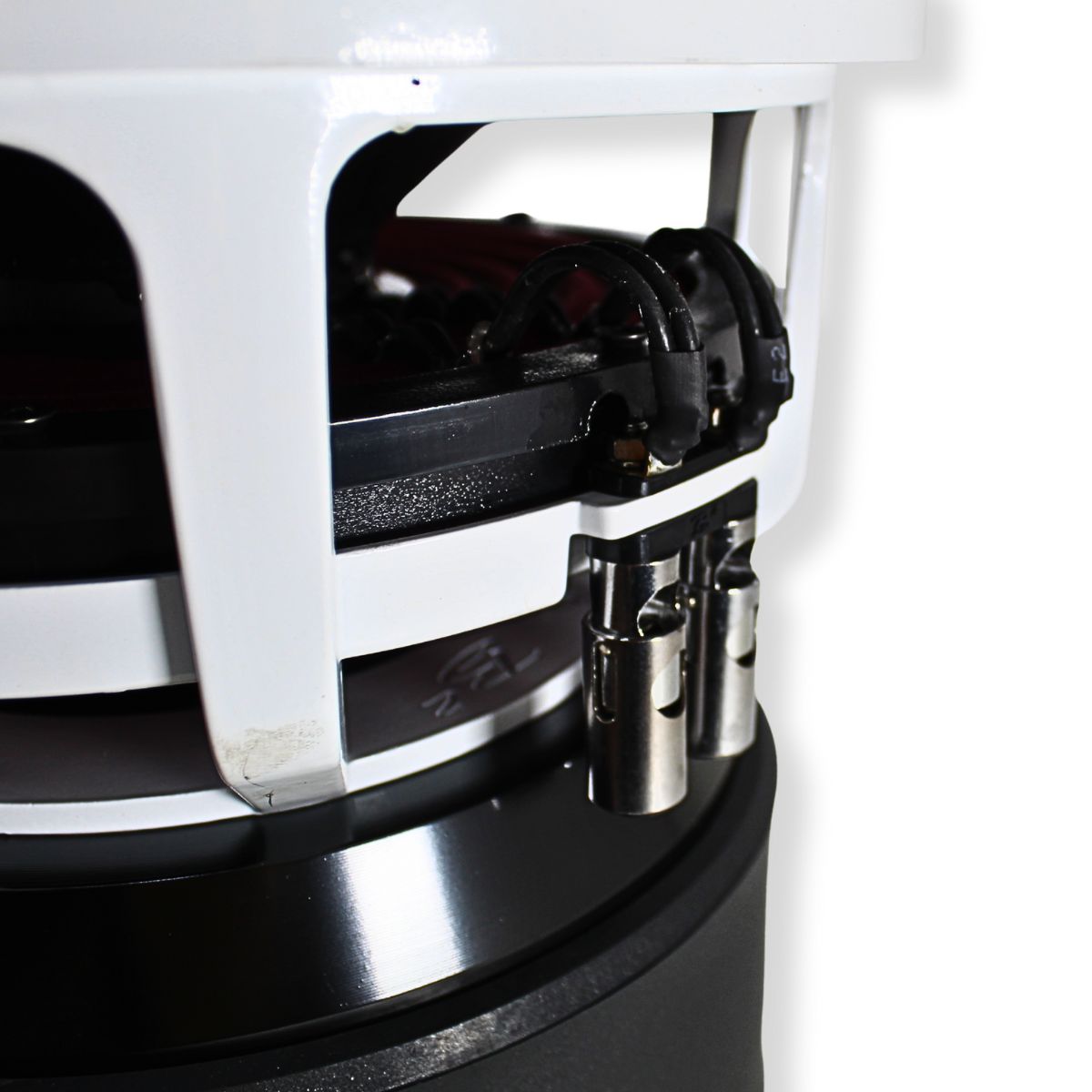

B2 Audio 10" High Excursion Subwoofer RAMPAGE10 D1 3000W RMS

B2 Audio 10" High Excursion Subwoofer RAMPAGE10 D1 3000W RMS

Sold by AudioSellerz.com

The B2 Audio 10" High Excursion Subwoofer RAMPAGE10 D1 3000W RMS is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Massive Power Handling: Capable of 3000W RMS and 7500W peak for deep, dominating bass
• 3" Aluminum Voice Coil: 8-layer design ensures high thermal efficiency and long-term durability
• Carbon Fiber Cone: Lightweight and rigid for accurate sound reproduction under extreme loads
• High Excursion Design: 30mm one-way Xmax with tall U-shaped foam surround for superior movement
• Flexible Enclosure Options: Works in sealed, ported, or bandpass configurations for custom setups

B2 Audio 10" Dual 1-Ohm 3" Voice Coil 3000 Watt RMS RAMPAGE Series Subwoofer

This listing includes:

• (1) RAMPAGE10D1 10" Dual 1 Ohm Subwoofer

The B2 Audio RAMPAGE 10" Dual 1 Ohm subwoofer is built for enthusiasts who demand aggressive, high-output bass in compact enclosures. Featuring a powerful 8-layer aluminum voice coil, a carbon fiber cone, and a robust ferrite magnet, this subwoofer handles serious power with precise response. Its tall U-shaped foam surround and 30mm Xmax allow deep excursion, while the lightweight yet rigid motor structure keeps performance efficient and reliable.

Specifications:

• Frequency Response: 10 Hz - 500 Hz


• Impedance: Dual 1 Ohm


• RMS Power: 3,000 Watts


• Max Power: 7,500 Watts


• Resonance Frequency (Fs): 39.6 Hz


• Sensitivity @ 1W/1m: 88.1 dB


• Voice Coil Diameter: 3" / 76.2 mm


• Magnet Type: Ferrite


• Cone Material: Carbon fiber


• Surround Type: Tall U Shaped Foam

Electrical Parameters:

• Re (DC Resistance): 1.8 Ohms


• Le (Inductance @ 1 kHz): 1.17 mH


• BL/RE: 128.4


• Efficiency: 0.09 %

Thiele/Small Parameters:

• Fs (Resonant Frequency): 39.6 Hz


• Qes (Electrical Q): 0.55


• Qms (Mechanical Q): 5.4


• Qts (Total Q): 0.49


• Vas (Compliance Volume): 8.5 L


• Cms (Compliance): 60 M/N


• Mms (Moving Mass): 285 g


• Xmax (One-Way): 30 mm


• Sd (Cone Area): 315.8 cm


• EBP: 72

Enclosure Suggestions:

Sealed: 17.2L / 0.61 Cubic ft

Qtc: 0.493

F3: 67.5 Hz

Ported Compact: 28.32 L / 1 Cubic ft

Fb: 42 Hz

Port Area: 15.5 Squared Inches

Port Length: 21.8"

Ported: 40 L / 1.42 Cubic ft

Fb: 35 Hz

Port Area: 15.5 Squared inches

Port Length: 22.3"

Bandpass 4th Order Ratio: 3:1

Dimensions:

• Overall Diameter: 10.32" / 262 mm


• Cutout Diameter: 9.25" / 235 mm


• Mounting Depth: 8.78" / 223 mm


• Total Depth: 9.45" / 240 mm


• Net Weight (1 pc): 59.52 pounds.


• Shipping Weight (set): 62.83 pounds.


• Shipping Dimensions: 12.99 x 12.99 x 13.39 inches.
