DC Audio

6.0k 6000 watt Mono Block Amplifier

Name: 6.0k 6000 watt Mono Block Amplifier
Brand: DC Audio
SKU: sku-51875376955704
Price: 999.99 USD
Availability: InStock

$999.99 USD

~~$1,499.99 USD~~ $999.99 USD

Sale Sold out

Shipping calculated at checkout.

6.0k 6000 watt Mono Block Amplifier

Sold by AudioSellerz.com

The DC Audio 6.0k 6000 watt Mono Block Amplifier is a DC Audio monoblock amplifier for the subwoofer side of a car audio system. The original product information below contains the exact published output, operating voltage, impedance, controls, dimensions, and connection details that should be used when planning the installation.

The right subwoofer amplifier is only one part of the bass system. Plan the amp with the subwoofers, final ohm load, box, signal source, wiring, battery support, charging system, and tuning so every part of the build supports the same goal.

Original Product Details

DC Audio 6.0k Amplifier

The 6.0kw competition series amplifier is a 6,000 watt mono block. It is capable of running up to 16.2 volts for up to 7,200 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.

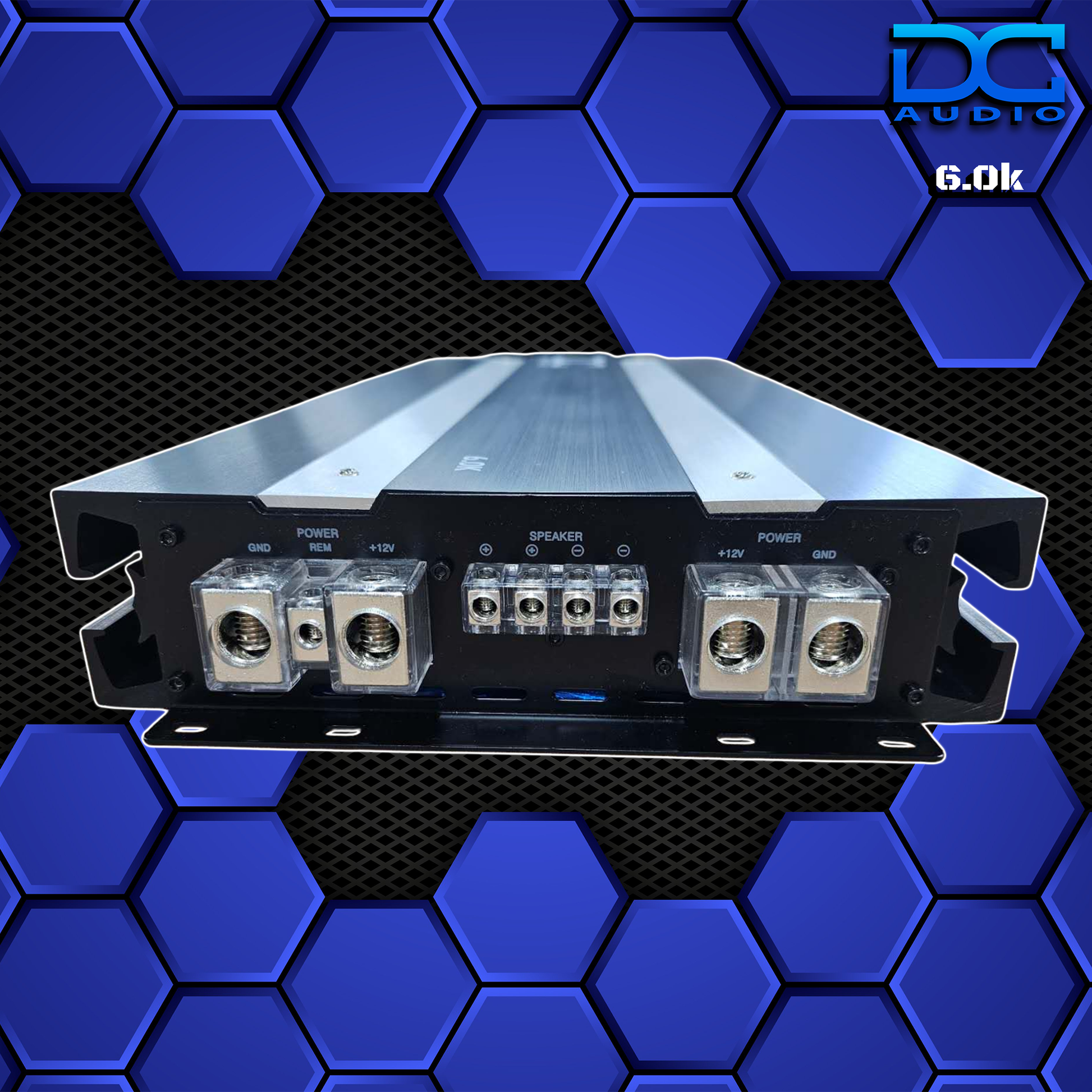

It comes with a bass knob and a clipping indicator. For power inputs it will accept dual 0 awg for power and ground.

Output Power (RMS):

4 ohm 2,100Wx1 @ 14.4 Volts

2 ohm 3,800Wx1 @ 14.4 Volts

1 ohm mono 6,000x1 @ 14.4 Volts

1 ohm mono 7,200x1 @ 16.2 Volts

*Linked Ratings

8 ohm 4,200x1 @ 14.4 Volts

4 ohm 7,600x1 @ 14.4 Volts

2 ohm mono 12,000x1 @ 14.4 Volts

2 ohm mono 14,400x1 @ 16.2 Volts

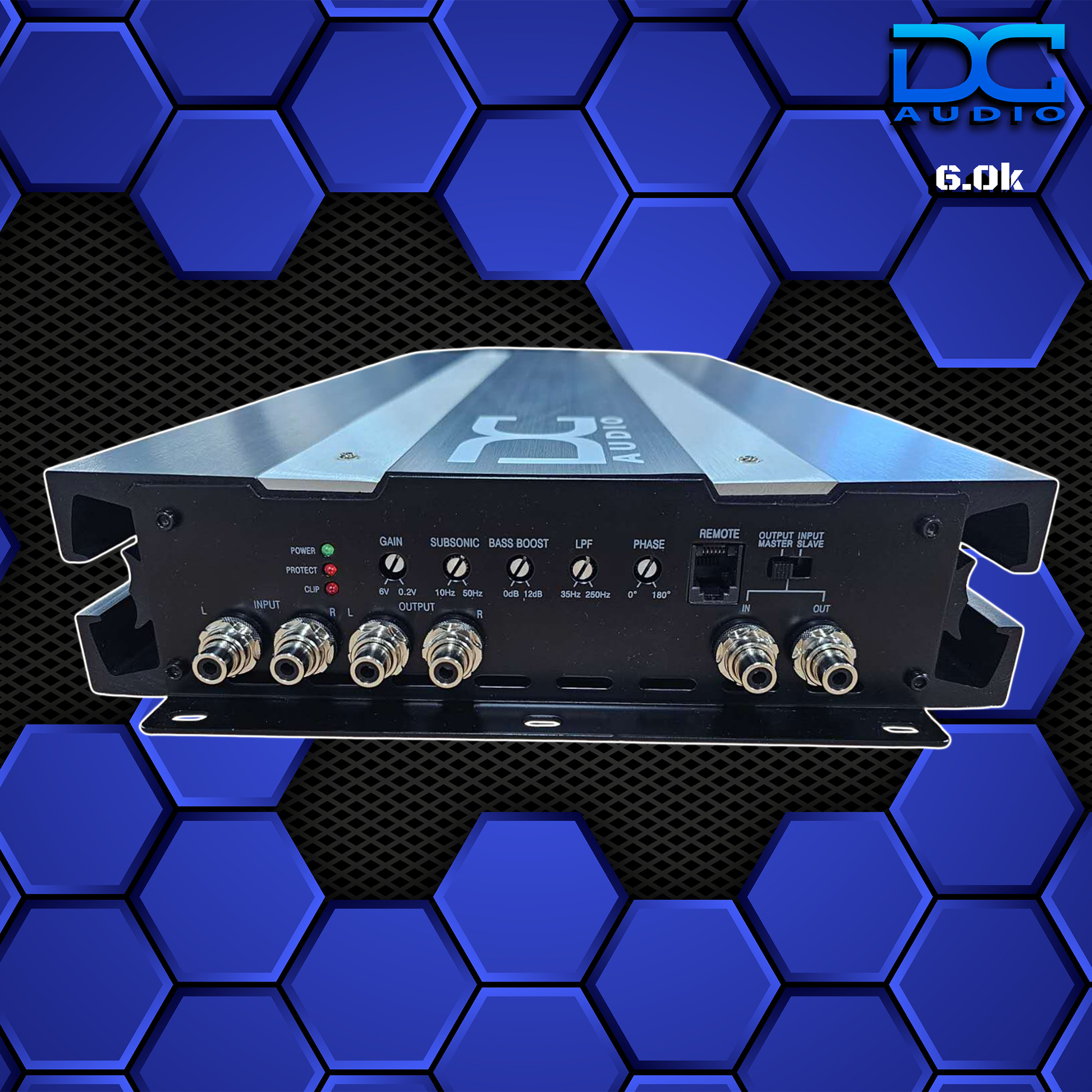

Key Features:

1 ohm stable
Variable low pass filter
Variable subsonic filter
Variable bass boost
Wired Bass Knob remote control W/ Clip light
RCA Pass Thru
Linkable
Tiffany Style RCA Jacks

Full Specs:

DC Amp Model:	6.0k
Input Sensitivity	6V~0.2V
Frequency Response	13Hz~253Hz
24dB / Octave Crossover	YES
Low Pass	35Hz ~ 250Hz
Subsonic Filter	10Hz-50hz
Bass Boost @45hz	0 ~ 9db
Phase Shift	0 ~ 180
Remote Control	Yes
Clip Indicator	Yes
Signal to Noise Ratio	dB90
Damping Factor	520<
THD @ 4ohms	Less than 0.1%
Fuse Rating	External 300 amp x 2
LED Status Lights	Power, Protect, Clip
Master/Slave	YES
Heatsink Length	21.65"/550mm
Heatsink Width	9.38"/238mm
Heatsink Height	2.35"/59.6mm
