DS18
10th Anniversary Edition 6.5" Mid-Bass Loudspeaker 250 Watts Rms 8-Ohm
10th Anniversary Edition 6.5" Mid-Bass Loudspeaker 250 Watts Rms 8-Ohm
Couldn't load pickup availability
10th Anniversary Edition 6.5" Mid-Bass Loudspeaker 250 Watts Rms 8-Ohm
Sold by AudioSellerz.com

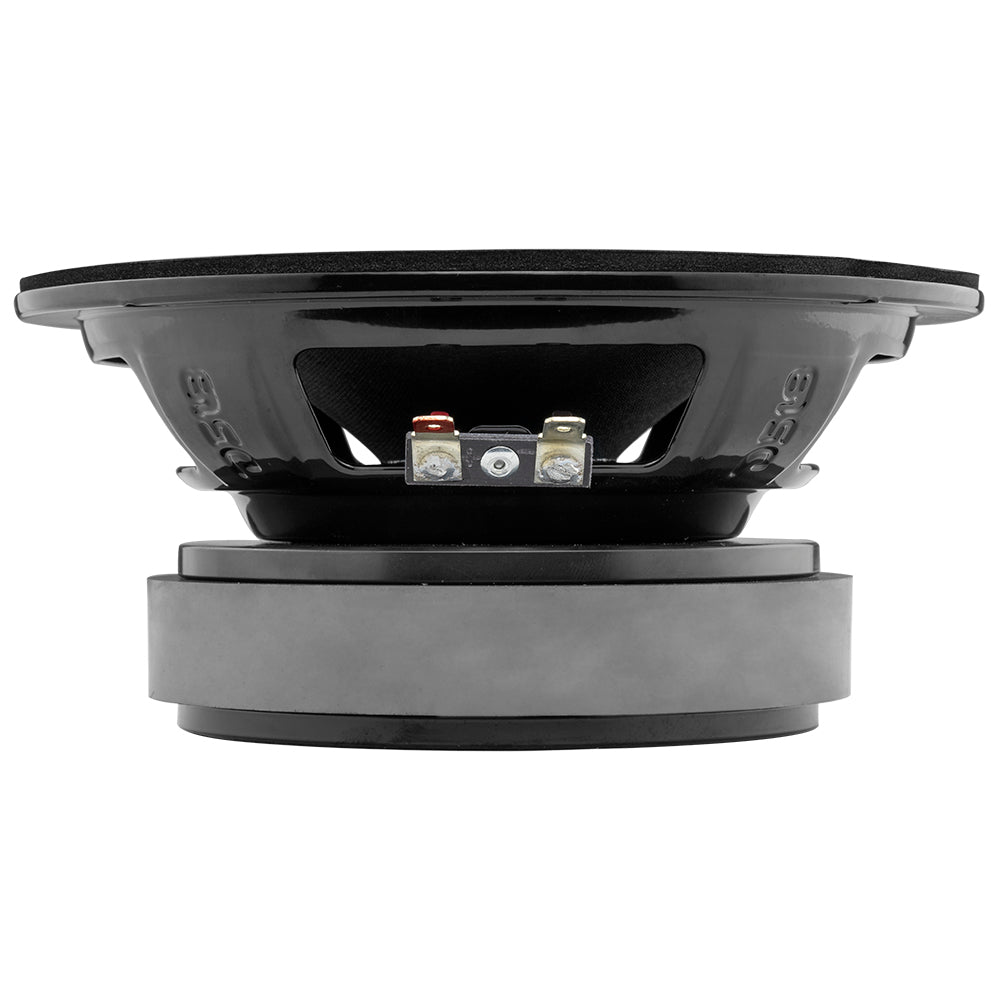

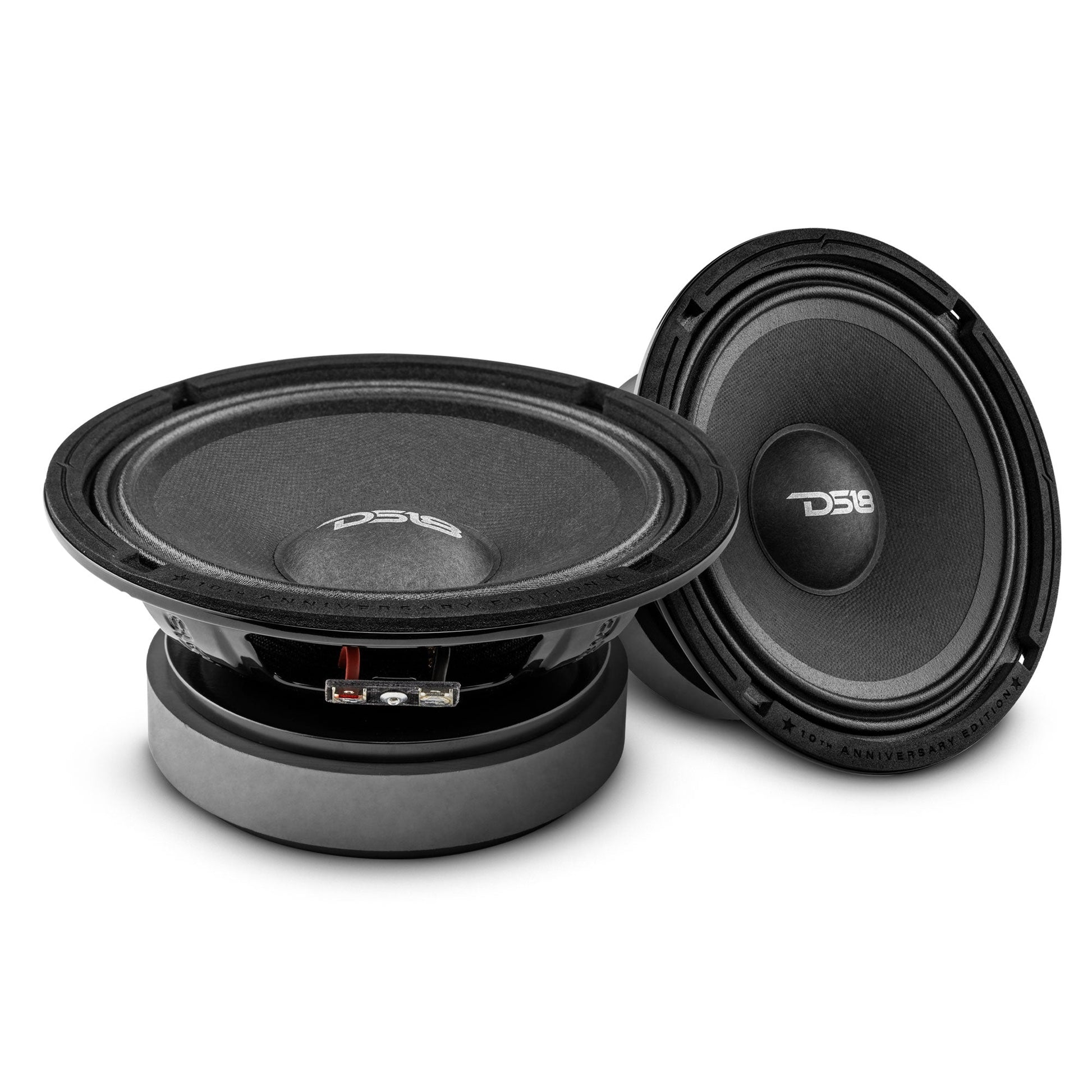

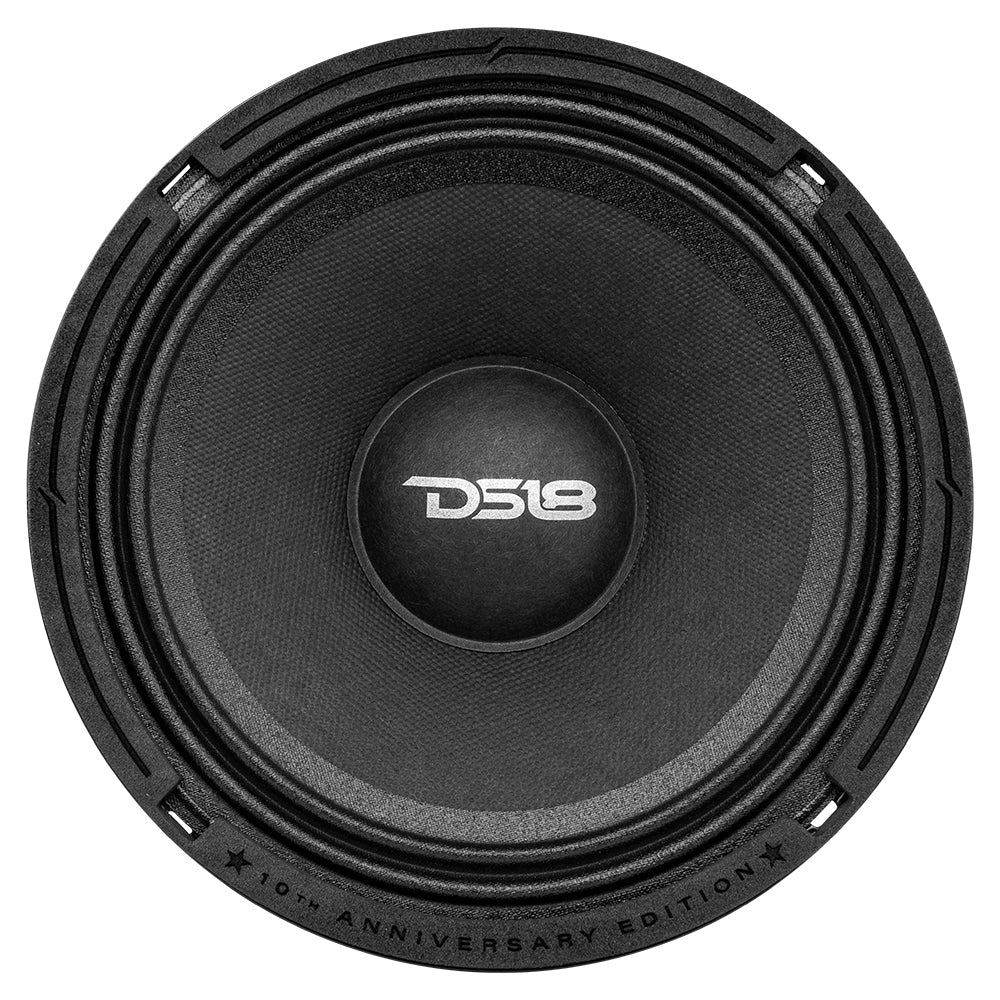

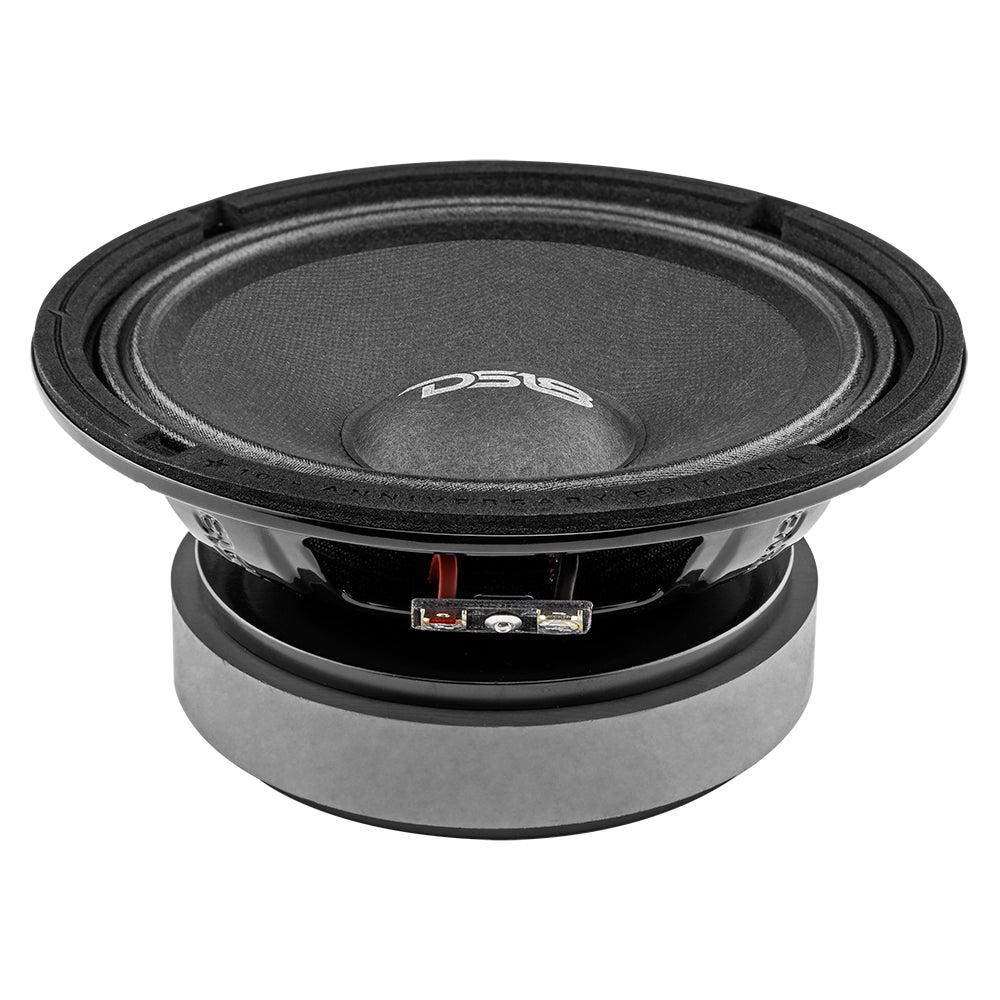

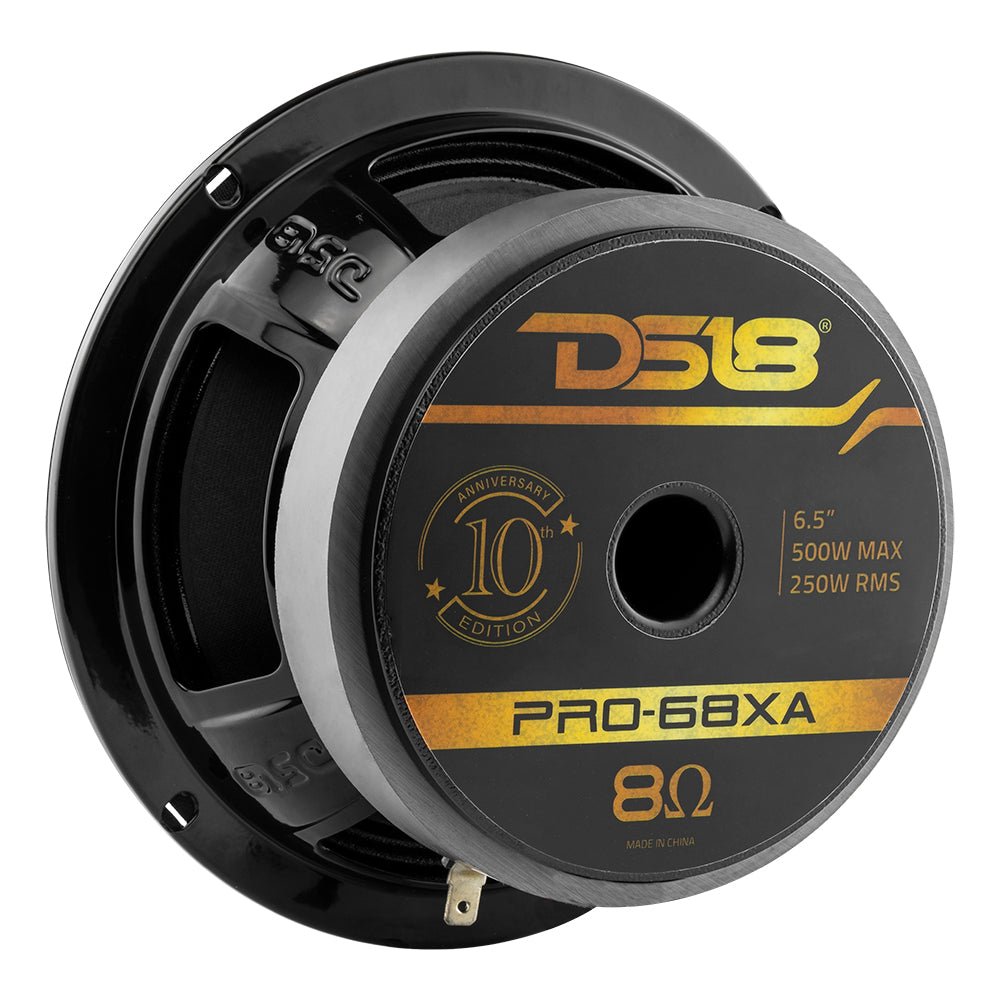

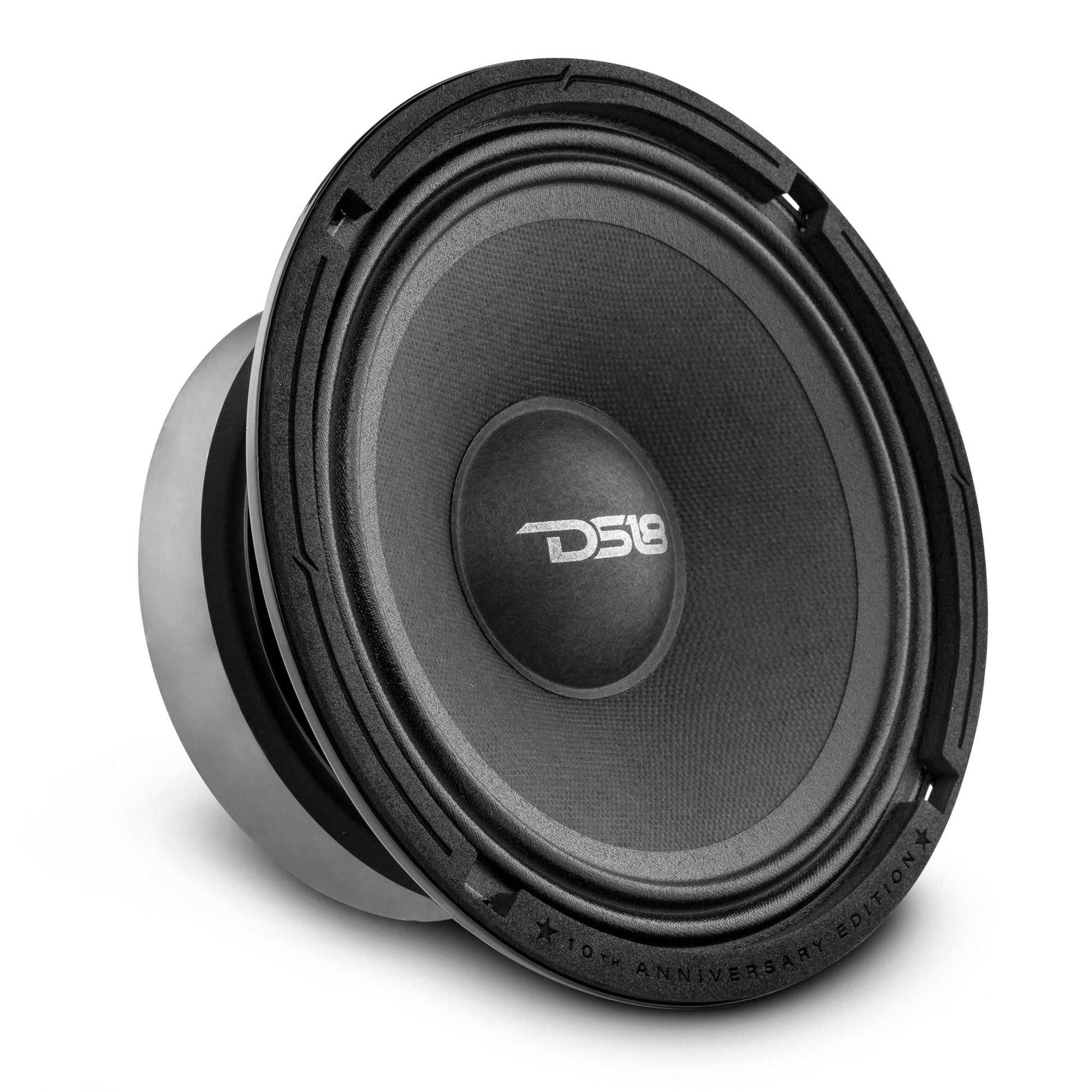

The DS18 PRO-68XA is a 6.5" mid-bass loudspeaker from the DS18 PRO line rated at 250W RMS with an 8 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 PRO-68XA 6.5” 10th Anniversary Mid-Bass Loudspeaker 500 Watts Max 8-Ohm
For 10 years now, DS18 has supplied all vehicles with the loudest and cleanest sound the streets have ever heard. In honor of our 10th anniversary DS18 has created the PRO-68XA; a versatile mid-bass loudspeaker designed to do it all!
This high-quality 6.5” mid-bass speaker was made for the listeners who like it LOUD just as much as we do!
The 96db sensitivity on these speakers allow them to take your sound system to an out of this world volume level!
The 8 Ohm configuration of these speakers allow them to fit into many different sound systems without having to worry about power.
The classic DS18 design from the steel basket to the ferrite magnet is sure to create new memories for some of our oldest customers as we enter our 10th year of bringing LOUD products into every vehicle.
Highlights
- Steel basket for elevated style and durability
- The high powered voice coil on the PRO-68XA allows this speaker to retain high levels of efficiency for those never ending jam sessions.
- Crystal clear clarity you’ve loved and expect from DS18 for the last 10 years
Great For
- Car Audio
Technical Details
|
SPECIFICATIONS |
|
|
Nominal Diameter |
6.5" / 165mm |
|
Nominal Impedance |
8 Ohms |
|
RMS Power Handling |
250W |
|
MAX Power Handling |
500W |
|
Sensitivity (1w/1m) |
96dB |
|
Frequency Response |
80Hz-6.3KHz |
|
Recommended HI Pass Crossover |
100Hz |
|
Sold As Pair or Single |
Single |
|
Grill Included |
No |
|
MOTOR |
|
|
Voice Coil Diameter |
1.5" / 38mm |
|
Voice Coil Former Material |
Kapton |
|
Winding Material |
CCAW |
|
Cone Material |
Paper |
|
Bullet Material |
Paper |
|
Surround Material |
Cloth |
|
Basket Material |
Steel |
|
Basket Color/Finish |
Gloss Black |
|
Magnet Material |
Ferrite |
|
Magnet Weight |
33oz |
|
MEASUREMENT |
|
|
Overall Diameter |
6.5" / 165.5mm |
|
Overall Depth |
3" / 77.6mm |
|
Front Mount Baffle Cutout |
5.6" / 144mm |
|
Mounting Depth |
2.75" / 70mm |
|
Motor Diameter |
4.7" / 120mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 250W RMS at 8 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
