10" Mid-Bass Loudspeaker 600 Watts Rms 8-Ohm
10" Mid-Bass Loudspeaker 600 Watts Rms 8-Ohm
Couldn't load pickup availability
10" Mid-Bass Loudspeaker 600 Watts Rms 8-Ohm
Sold by AudioSellerz.com
The DS18 10PRO1200MB-8 is a 10" mid-bass loudspeaker from DS18 rated at 600W RMS with an 8 ohm design. Swapping in better speakers is one of the most noticeable upgrades you can make to any system.
DS18 Product Details
DS18 10PRO1200MB-8 10" Mid-Bass Loudspeaker 1200 Watts 8-Ohm
Immerse yourself in a world of crisp, powerful sound with DS18’s 10PRO1200MB-8! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 10PRO1200MB-8 reigns supreme!
Featuring a design that prioritizes powerful and punchy bass responses, the 10PRO1200MB-8 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music LOUD!
One of the standout features of these speakers is their impressive frequency response range, which spans from 55Hz to 4.5KHz. This means you can expect a solid mid-bass response from the 10PRO1200MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
With an 8 ohm impedance, the 10PRO1200MB-8 reduces overall power consumption and heat generated by your system. The 10PRO1200MB-8’s interleaved (ISV) 3” voice coil handles 600W RMS and 1200W MAX power levels, an impressively manageable power setting for a speaker with an incredibly high 98 dB sensitivity! The ISV configuration on the 10PRO1200MB-8’s voice coil increases the magnetic field strength, reduces distortion, and handles higher power levels with ease.
If you're on the hunt for a professional audio speaker that plays mid-bass notes with authority, then look no further than DS18’s 10PRO1200MB-8! Don't settle for less than the best - the 10PRO1200MB-8 is the speaker you need to take your music to the next level!
Highlights
- 3” interleaved sandwich voice coil (ISV) configuration employed to enhance speakers performance
- 55Hz - 4.5KHz frequency range for a multitude of tuning options to fit any systems mid-bass needs
- Reach MAX Volume easily with an insanely high 98dB sensitivity
- No Front Facing Logo for easy integration in all competitive builds
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 10” / 260mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 600W |
| MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 55Hz-4.5KHz |
| Recommended HI Pass Crossover | 70Hz |
| Sold in Pair or Single | single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Fiberglass |
| Winding Material | Alumium |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Die cast Alumium |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 90 Oz |
| Displacement Volume | 2.03L / 0.071ft3 |
| MEASUREMENT | |

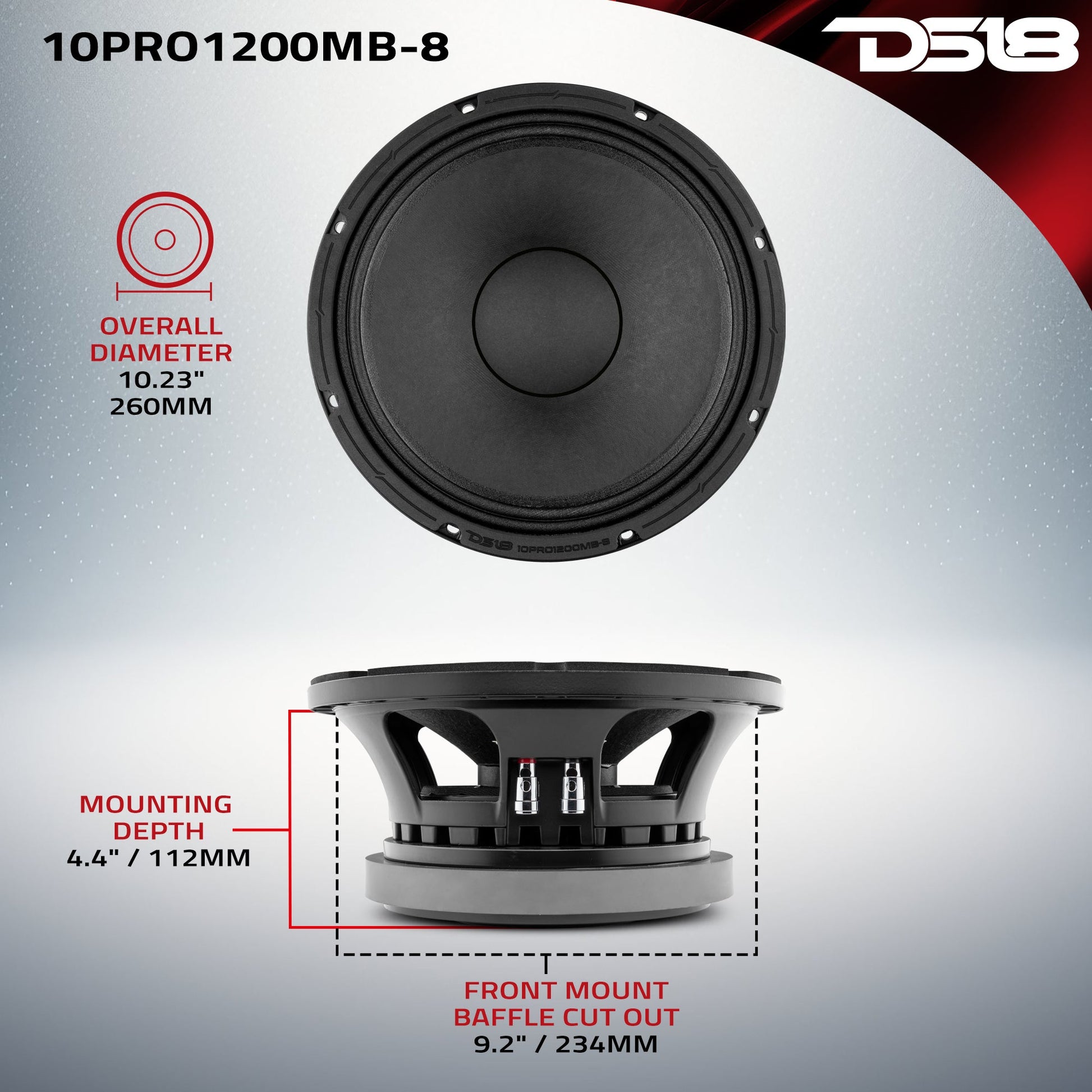

| Overall Diameter | 10.23" / 260mm |
| Overall Depth | 5" / 129mm |
| Front Mount Baffle Cutout | 9.2" / 234mm |
| Mounting Depth | 4.4" / 112mm |
| Motor Diameter | 7.87" / 200mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 600W RMS at 8 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
