DS18
1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc
1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc
Couldn't load pickup availability
1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc
Sold by AudioSellerz.com
The DS18 PRO-DRNSC1.5DK is a 1" horn from the DS18 PRO line with an 8 ohm design. Pro audio drivers and horns are made for high output and efficiency, the kind of top end that stays loud and clear with the windows down.
DS18 Product Details

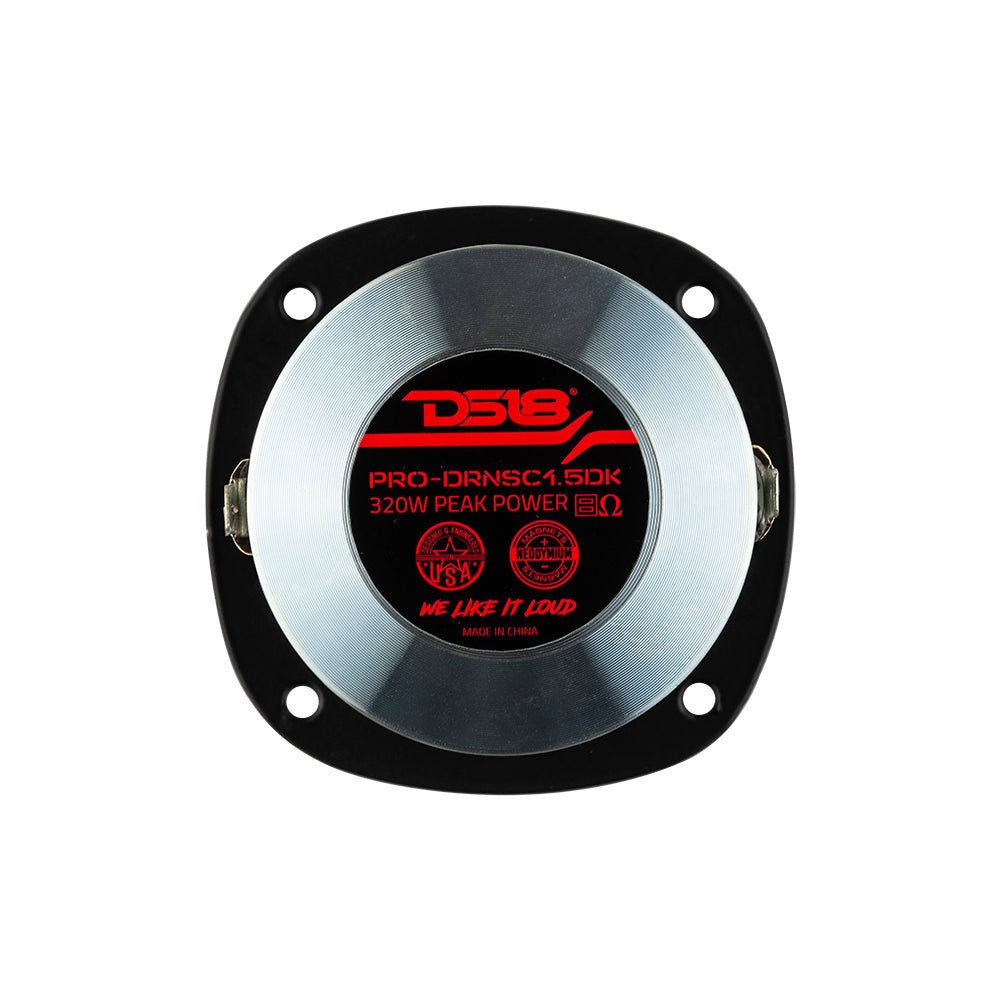

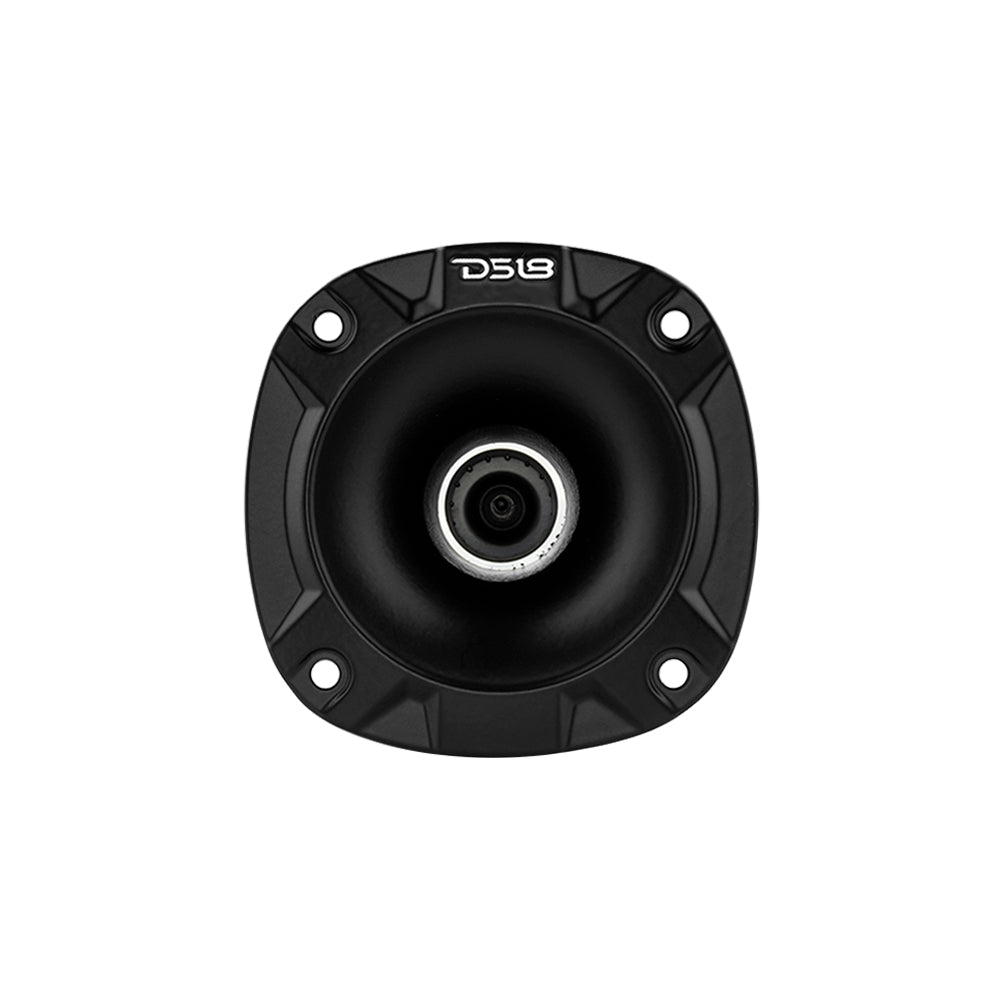

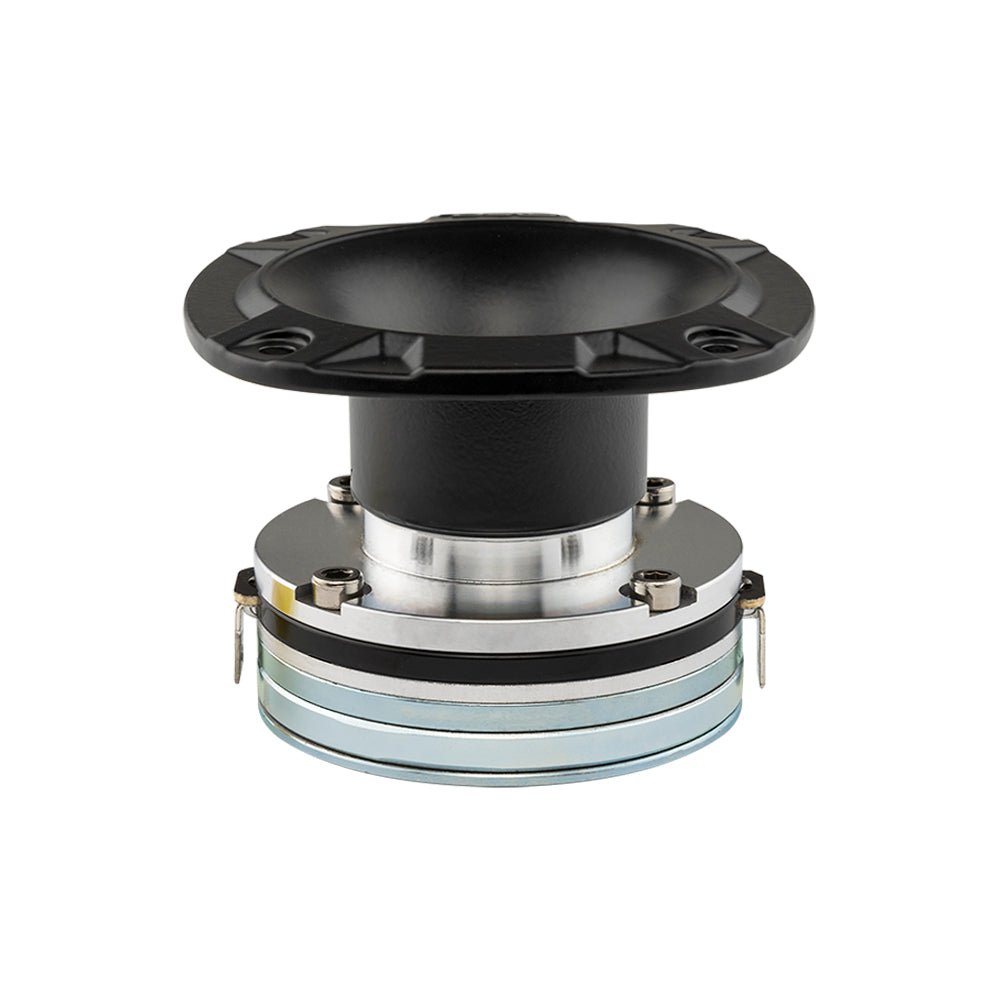

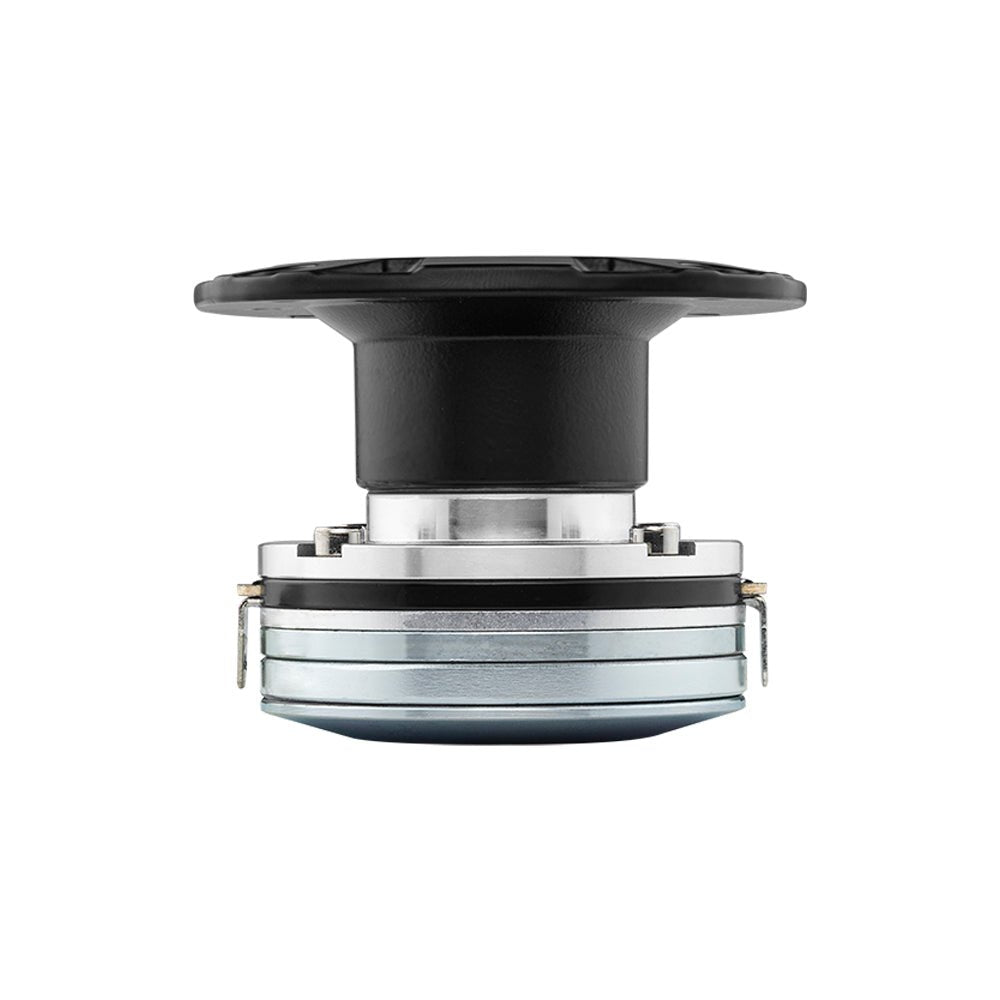

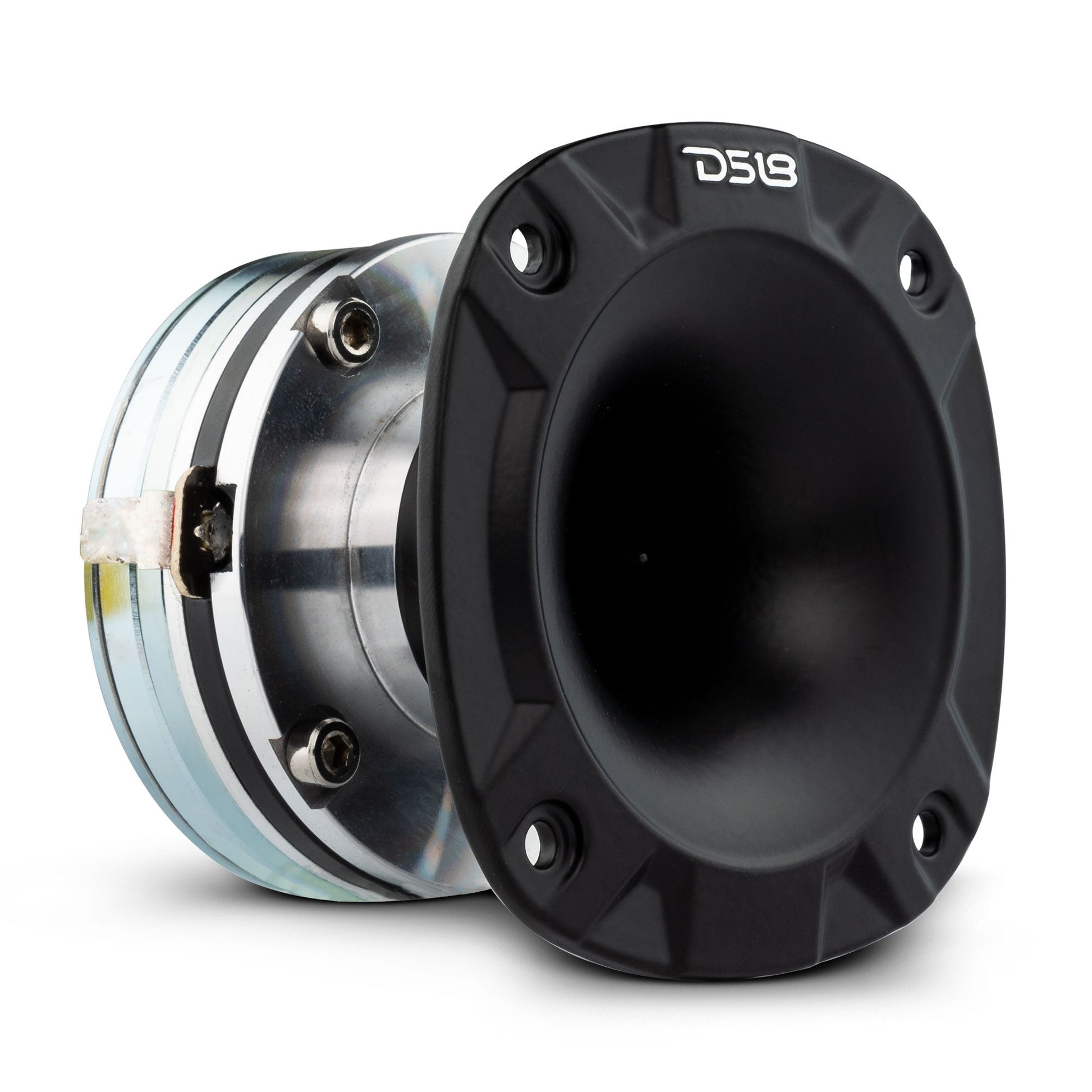

DS18 PRO-DRNSC1.5DK 1" Neodymium Driver with 1.5" Composite Polyamide VC 8 Ohm With Horn
The PRO-DRNSC1.5DK boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment. This variation of the PRO-DRNSC includes a non-removable horn throat so that it is ready to be quickly installed.
Highlights
- 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
- Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered
- Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
- Compact driver with functionality in spaces most drivers can’t fit
- Made to fit most standard thread on horn throats
- 109dB sensitivity for easy climbs to MAX volume
Great For
- Car Audio
- Pro Audio
- DIY Projects
- Motorcycles
- Stunt Walls
Technical Details
| SPECIFICATIONS | |
| Nominal Impedance | 8 ohm |
| AES Power handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power handling | 320 W |
| Sensitivity (1w/1m) With Horn | 111 dB |
| Frequency Response | 1K-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 oz |
| Body Color / Finish | Silver / Raw |
| Body Material | Aluminum |
| HORN SPECIFICATIONS | |
| Nominal Diameter | 3.15" / 80mm |
| Throat Diameter | 1" / 25.4mm |
| Sound Coverage | 60° (round) |
| Body Material | Aluminum |
| Color/Finish | Silver / Raw |
| MEASUREMENT | |
| Overall Diameter | 3.15" / 80mm |
| Overall Depth | 2.42" / 61.5mm |
| Mounting Depth | 2.22" / 56.5mm |
| Mounting Hole Diameter | 2.75" / 70mm |
| Bolt Pattern (Horn) | 2.13" / 54mm |
Setup Tips From Audio Sellerz
- Compression drivers and horns must be crossed over with a high-pass filter. Running them full range will damage them.
- A DSP makes it much easier to level match horns to the mids so the system sounds balanced instead of harsh.
