DC Audio

1.2k 1200 watt Mono Block Amplifier

Name: 1.2k 1200 watt Mono Block Amplifier
Brand: DC Audio
SKU: DC 1.2k
Price: 314.99 USD
Availability: OutOfStock

$314.99 USD

~~$449.99 USD~~ $314.99 USD

Sale Sold out

Shipping calculated at checkout.

1.2k 1200 watt Mono Block Amplifier

Sold by AudioSellerz.com

The DC Audio 1.2k 1200 watt Mono Block Amplifier is a DC Audio monoblock amplifier for the subwoofer side of a car audio system. The original product information below contains the exact published output, operating voltage, impedance, controls, dimensions, and connection details that should be used when planning the installation.

A DC Audio mono amplifier should be matched to the subwoofer RMS power, voice-coil configuration, number of subwoofers, final impedance, enclosure, and vehicle electrical system. The amplifier also needs properly sized wire, correct fuse protection, secure connections, and a clean ground.

Original Product Details

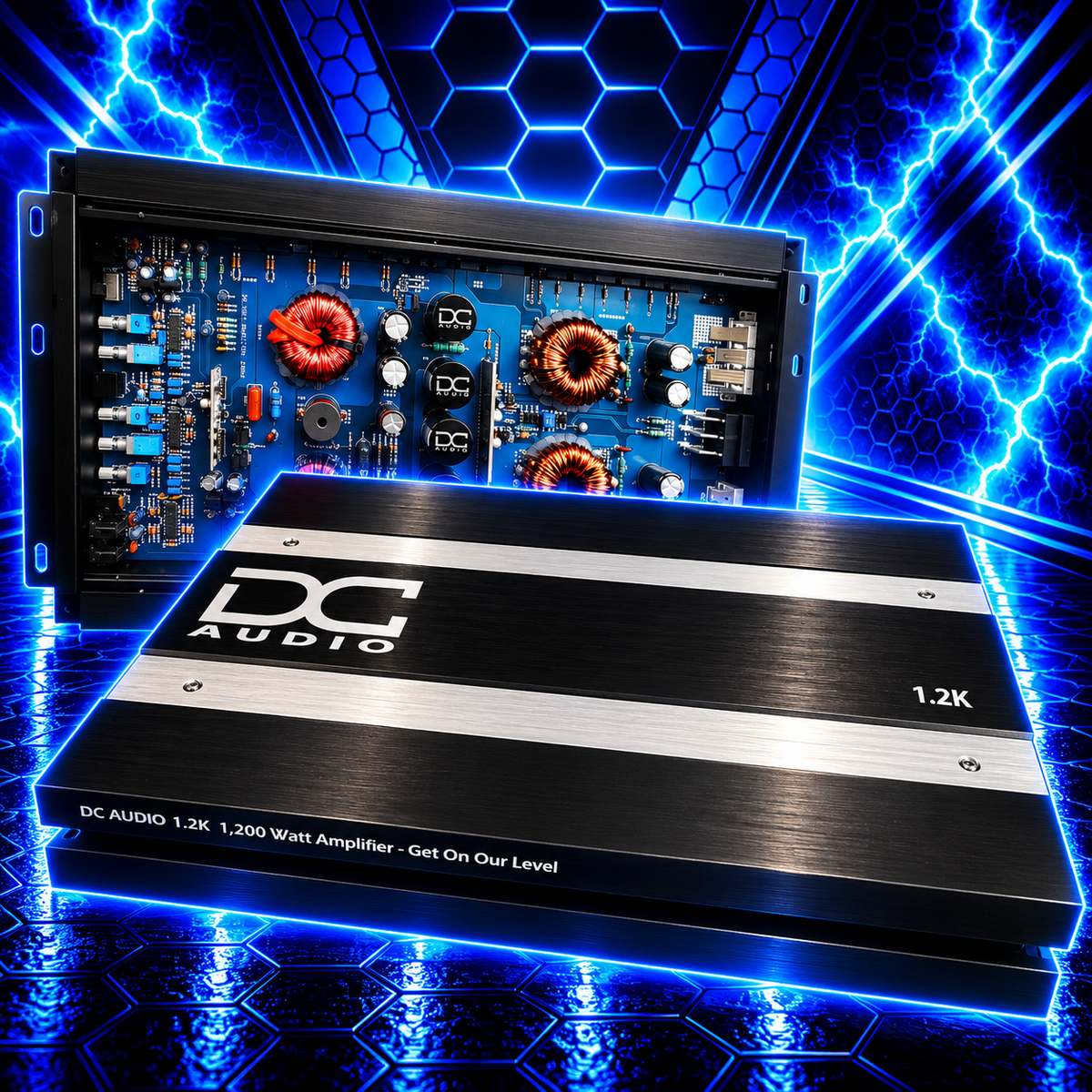

DC 1.2k Amplifier

The 1.2kw competition series amplifier is a 1,200 watt rated mono block. It is capable of running up to 16 volts for up to 1500 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped for up to 3000 watts from a pair.

Output Power (RMS):

4 ohm 350Wx1 @ 14.4 Volts
2 ohm 700Wx1 @ 14.4 Volts
1 ohm mono 1200x1 @ 14.4 Volts
1 ohm mono 1500x1 @ 16.0 Volts

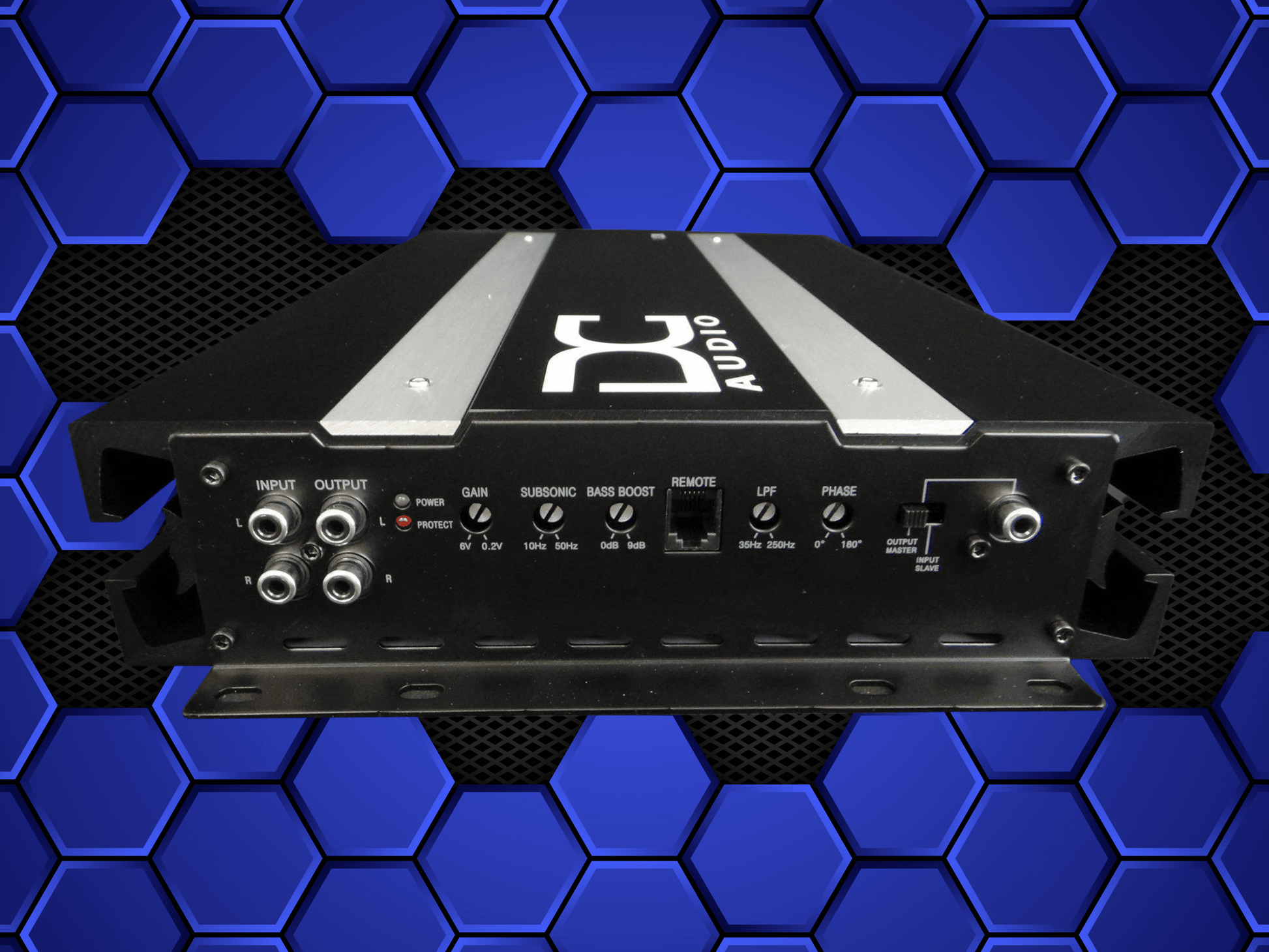

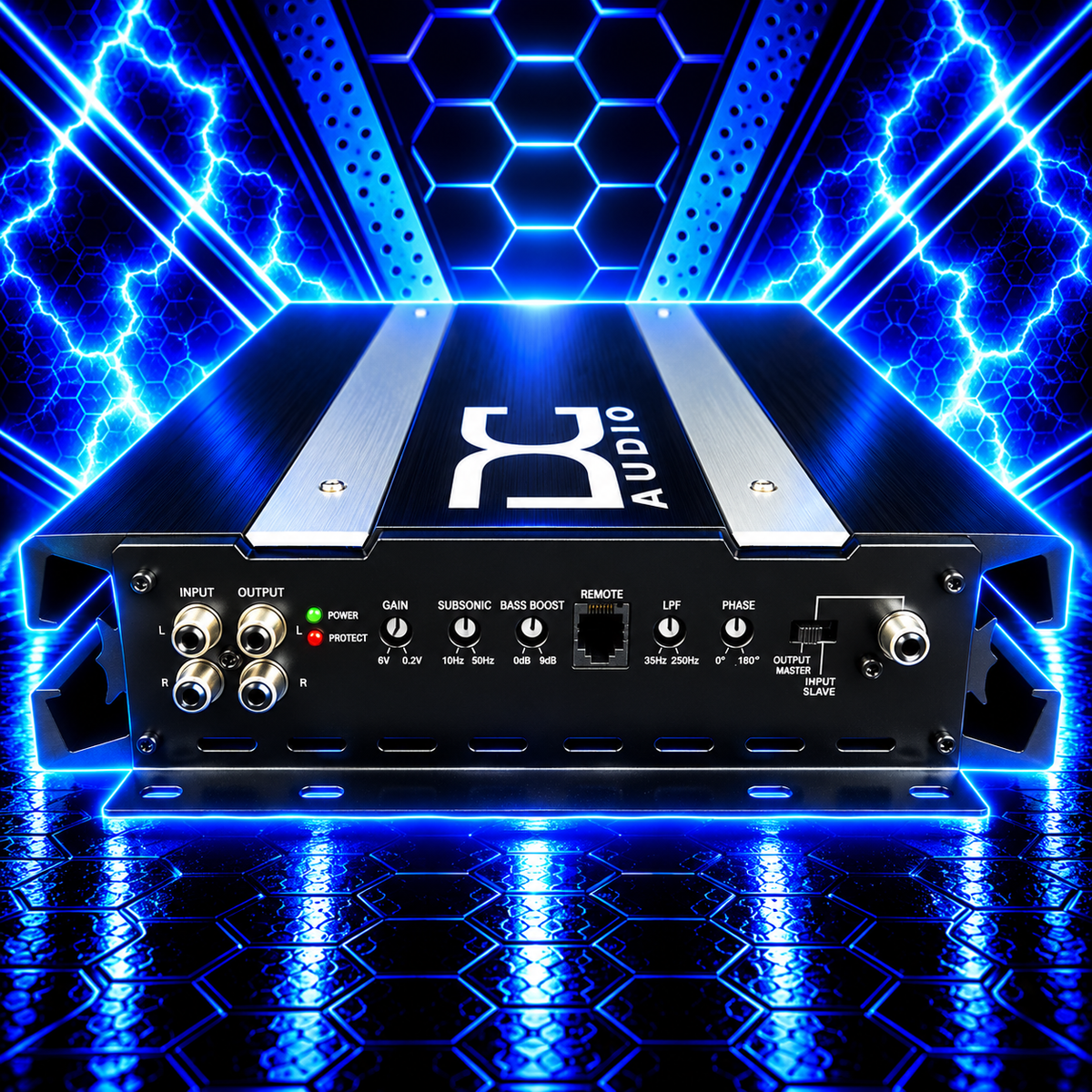

Key Features:

1 ohm stable
Variable low pass filter
Variable subsonic filter
Variable bass boost

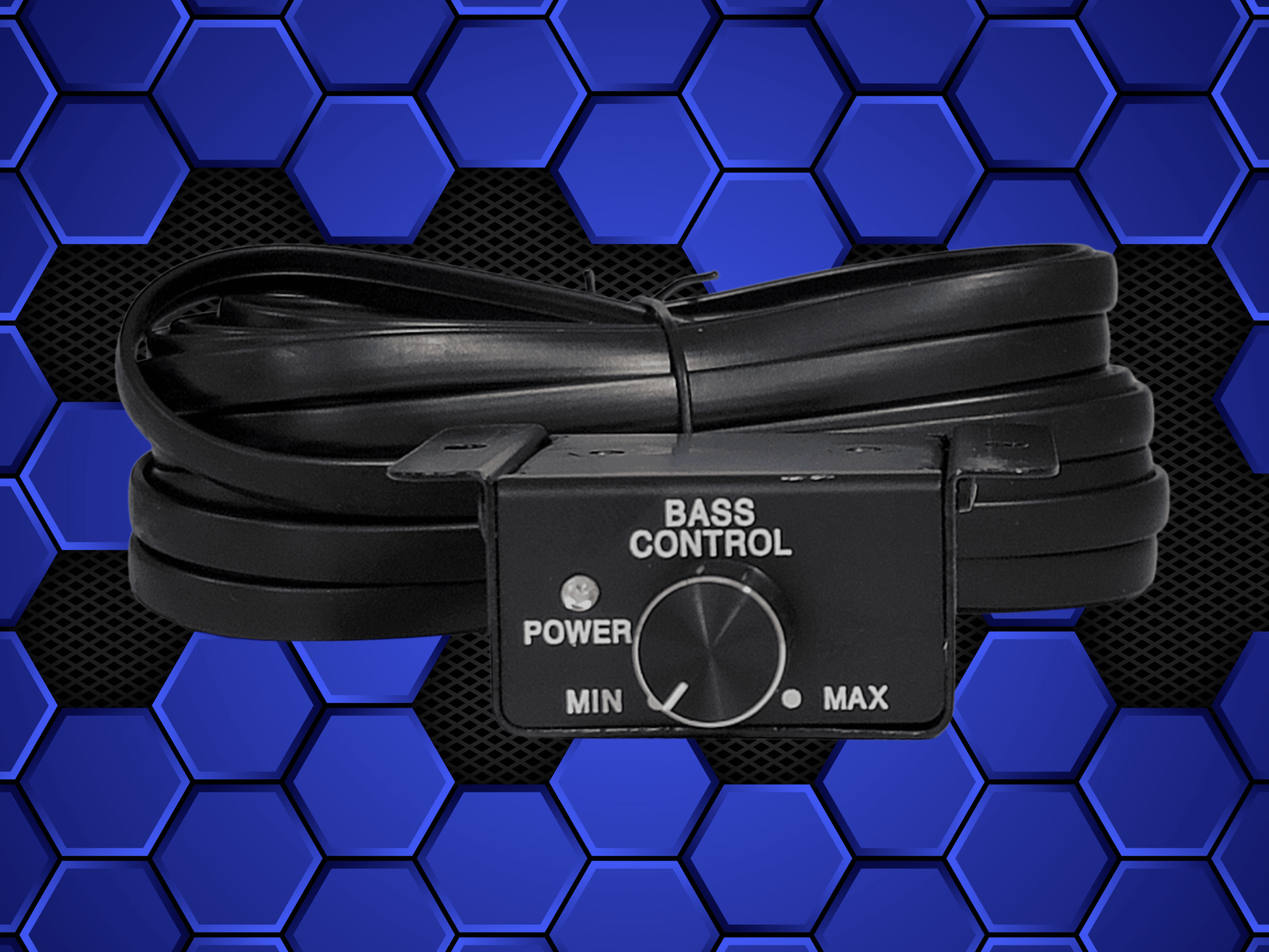

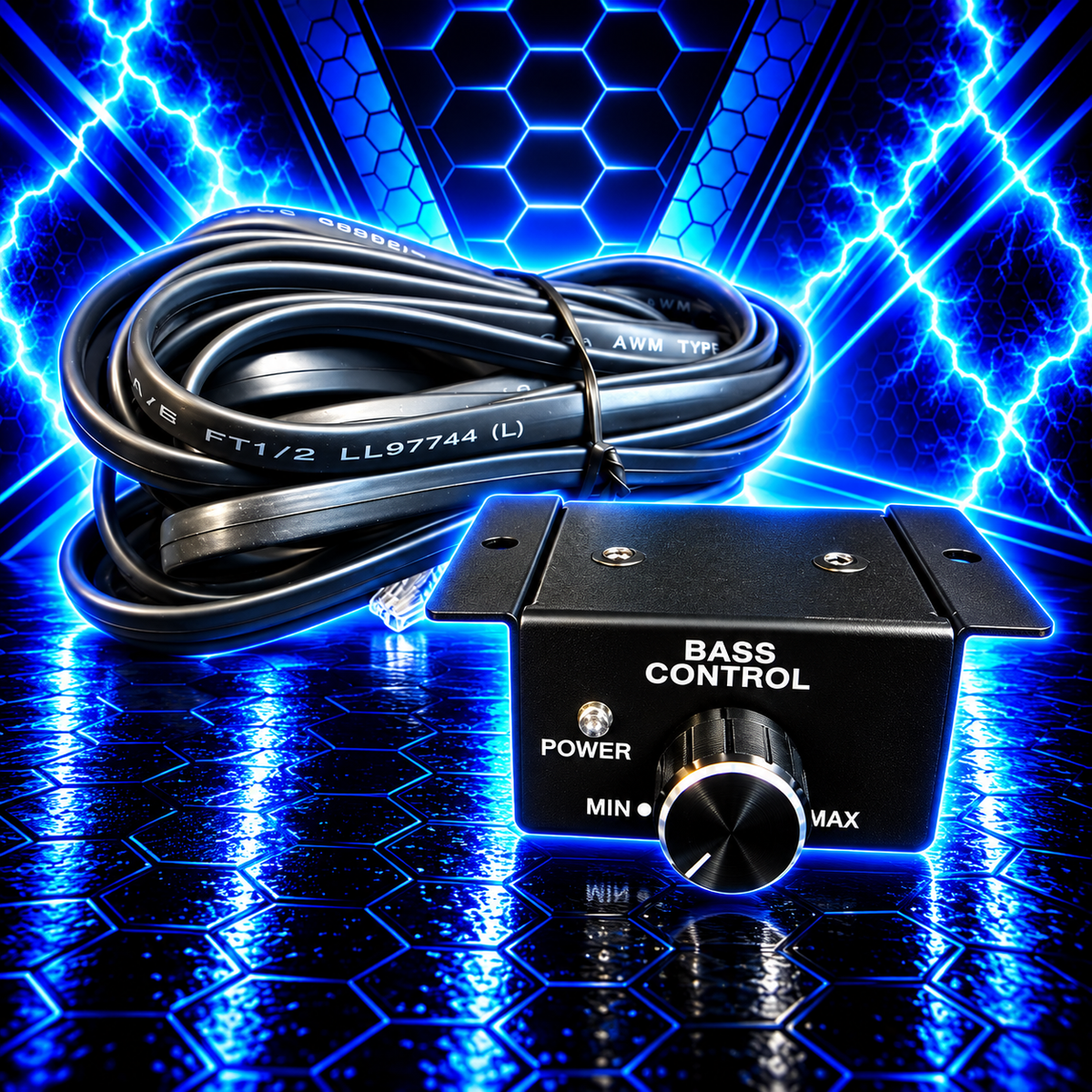

Wired Bass Knob remote control
RCA Pass Thru
Linkable

Full Specs:

DC Amp Model:	1.2k
Input Sensitivity	6V~0.2V
Frequency Response	15Hz~270Hz
24dB / Octave Crossover	YES
Low Pass	35Hz ~ 250Hz
Subsonic Filter	10Hz-50hz
Remote Control	Yes
Signal to Noise Ratio	dB100
Damping Factor	100<
THD @ 4ohms	Less than 0.1%

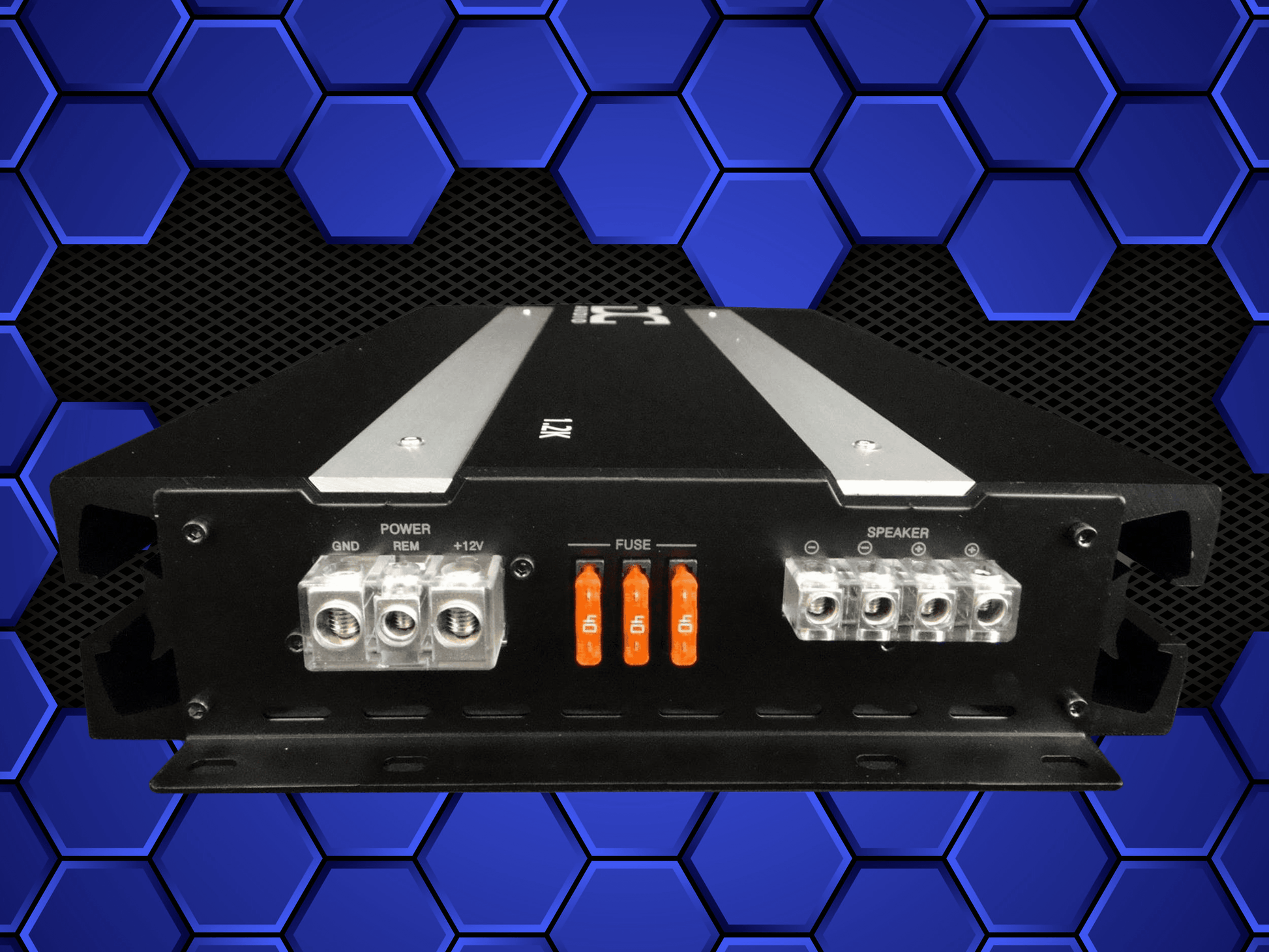

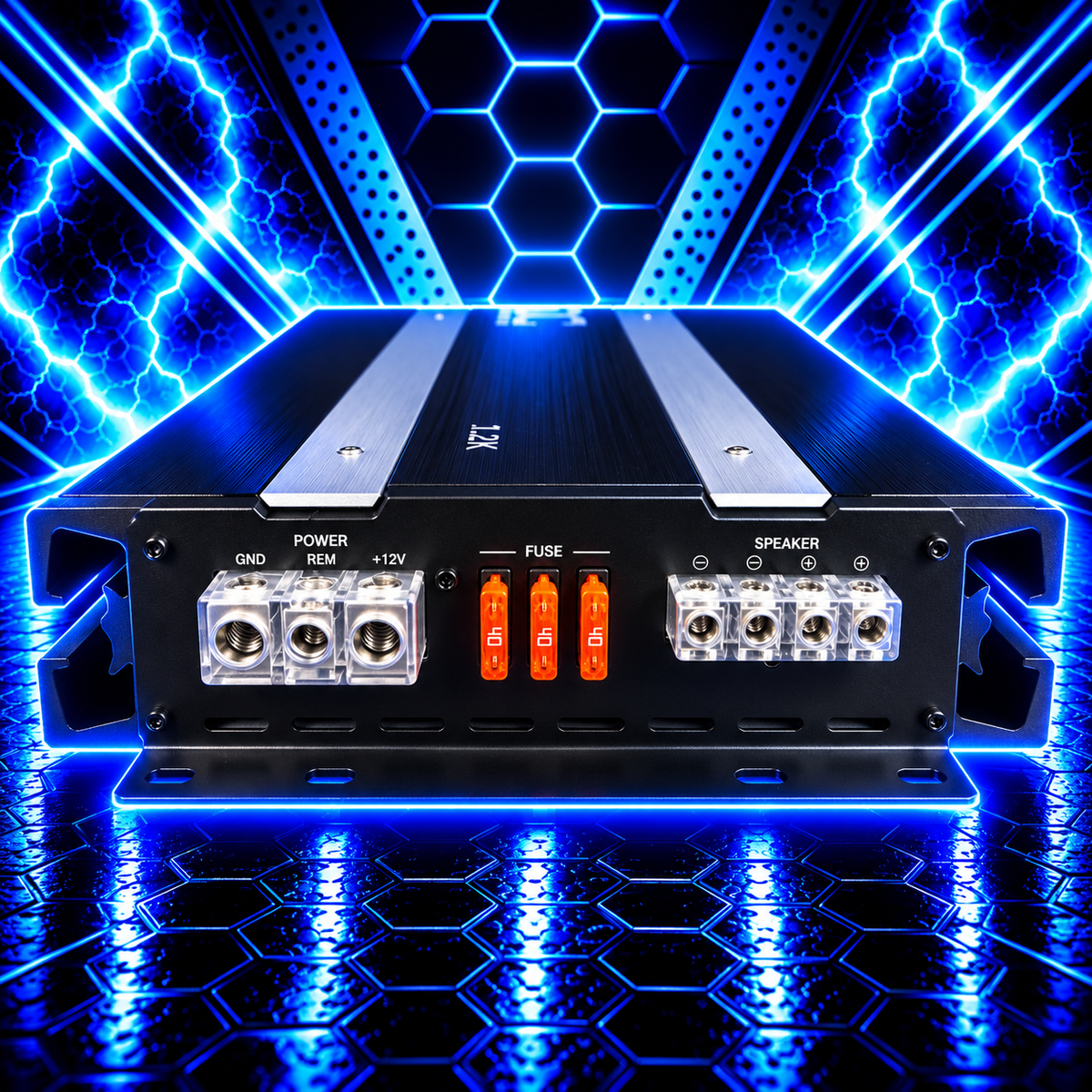

Fuse Rating	External 120 amp
LED Status Lights	Power and Protect
Heatsink Length	16.60"/419mm
Heatsink Width	9.38"/238mm
Heatsink Height	2.35"/59.6mm
