Sky High Car Audio HD Series Full Range Speakers

Shop Sky High Car Audio HD Series hybrid midrange coaxial speakers for loud, clear vocals, strong musical detail and high-output mids and highs. Available in 6.5-inch, 8-inch and 6x9 sizes, these speakers combine a powerful midrange driver with an integrated compression driver horn to cover more of the music from one speaker location.

The Sky High HD Series is built for amplified doors, custom speaker panels, motorcycles, boats, side-by-sides, powersports systems, open-air builds and loud daily drivers that need their vocals and upper frequencies to keep up with serious subwoofer output.

Each HD Series speaker is sold individually. Choose the correct quantity, speaker size, amplifier power and final impedance for your planned installation.

Shop Sky High HD Series Speakers

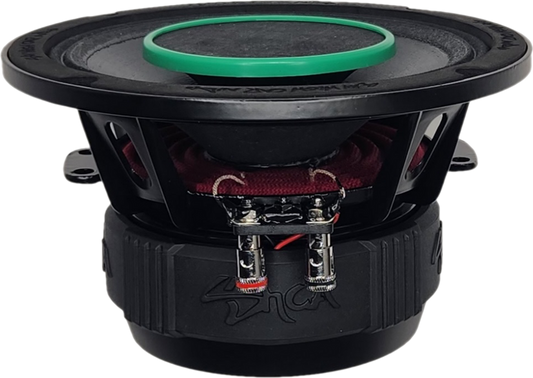

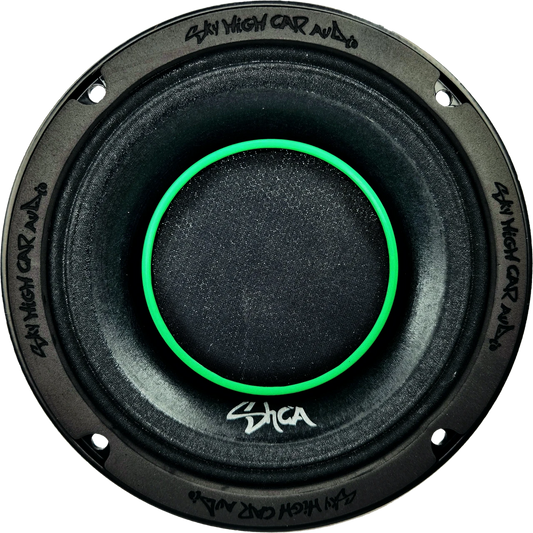

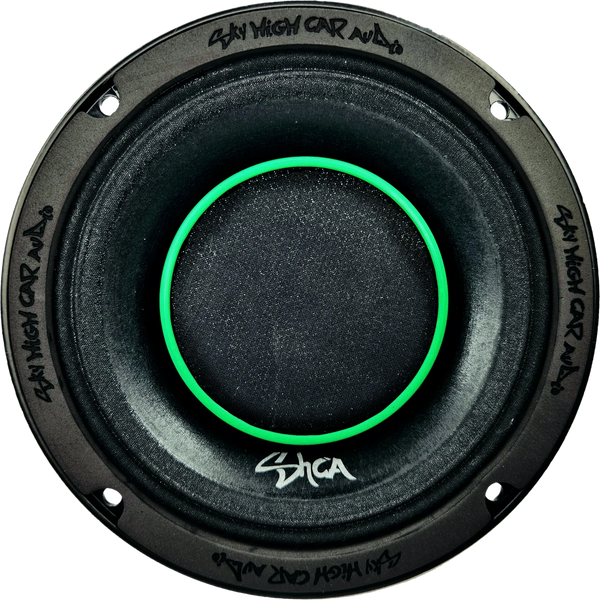

Sky High HD6.4E 6.5-Inch Hybrid Coaxial Speaker

The Sky High Car Audio HD6.4E 6.5-inch hybrid midrange coaxial speaker is the most compact option in the HD Series. It combines a 6.5-inch midrange speaker with an integrated compression driver horn for stronger vocals, upper-frequency detail and sound projection from one location.

  • 6.5-inch hybrid midrange coaxial speaker
  • 225 watts RMS power handling
  • 4-ohm impedance
  • Integrated compression driver horn
  • Water-resistant cone
  • Sold as one individual speaker

The HD6.4E can be a strong choice for custom doors, speaker pods, motorcycle fairings, powersports builds and multi-speaker panels where available mounting space is limited.

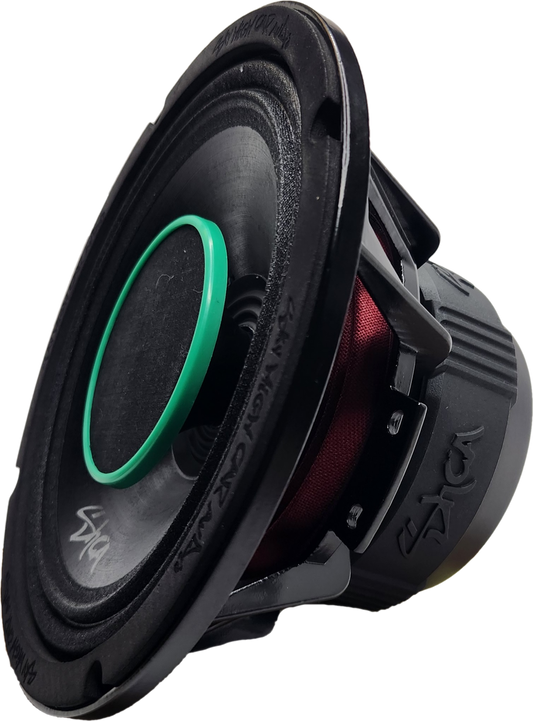

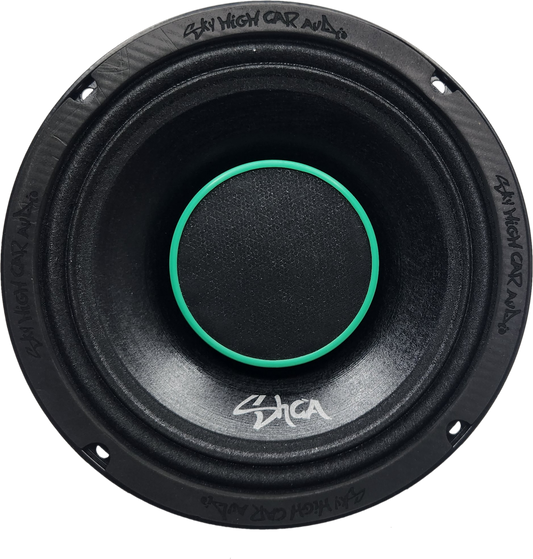

Sky High HD8-4E 8-Inch Hybrid Coaxial Speaker

The Sky High Car Audio HD8-4E 8-inch hybrid midrange coaxial speaker provides more cone area for larger custom doors, pods and open-air systems. Its hybrid design combines high-output midrange performance with an integrated horn-loaded high-frequency driver.

  • 8-inch hybrid midrange coaxial speaker
  • 450 watts power rating
  • 4-ohm impedance
  • Integrated horn-loaded high-frequency driver
  • Designed for strong vocals and sound projection
  • Sold as one individual speaker

The HD8-4E is a strong option when the installation has enough space for an 8-inch speaker and the system needs more output from each location.

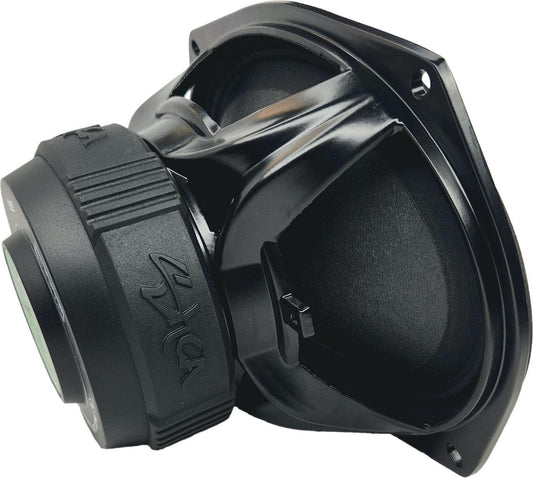

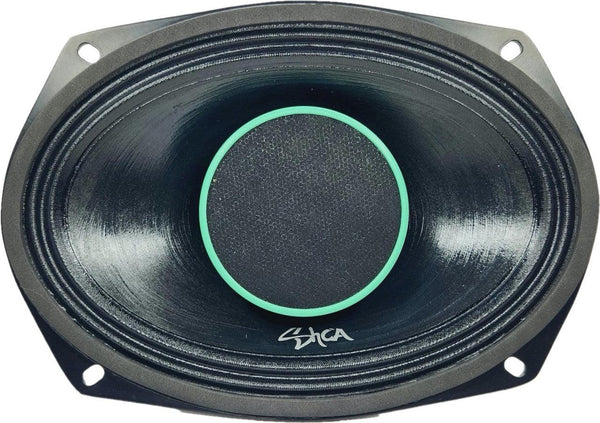

Sky High HD69.4E 6x9 Hybrid Coaxial Speaker

The Sky High Car Audio HD69.4E 6x9 hybrid midrange coaxial speaker provides HD Series output in a larger oval format for custom doors, rear decks, speaker panels and locations designed around a 6x9 speaker.

  • 6x9 hybrid midrange coaxial speaker
  • 250 watts RMS power handling
  • 4-ohm impedance
  • Integrated compression driver horn
  • Water-resistant cone
  • Sold as one individual speaker

The HD69.4E can be useful when an oval speaker fits the available panel space better than a round speaker while still providing strong mids, vocals and upper-frequency projection.

What Is a Hybrid Midrange Coaxial Speaker?

A hybrid midrange coaxial speaker combines a high-output midrange driver with a high-frequency driver mounted in the same speaker assembly. The main cone handles vocals, instruments and musical presence, while the integrated compression driver horn helps reproduce upper-frequency detail and project sound farther.

This design gives customers broader sound coverage from one mounting location without requiring a separate midrange speaker and horn in every position.

Sky High HD Series speakers can work well for:

  • Amplified custom door panels
  • Loud daily-driver car audio systems
  • Motorcycle fairings and speaker pods
  • Boats and moisture-prone installations
  • Side-by-sides and powersports systems
  • Open-air audio builds
  • Demo vehicles and show systems
  • Systems where vocals need to keep up with strong bass

Choosing Between 6.5-Inch, 8-Inch and 6x9 HD Speakers

The best HD Series speaker depends on the available mounting space, panel shape, desired output and number of speakers planned for the system.

Choose the 6.5-Inch HD6.4E When:

  • You have a smaller round speaker location.
  • You are building a compact door pod or motorcycle fairing.
  • You want multiple speakers in one panel.
  • An 8-inch speaker will not fit safely.
  • You need strong output from a more compact speaker.

Choose the 8-Inch HD8-4E When:

  • You have enough room for a larger round speaker.
  • You want more cone area from each speaker location.
  • You are building large custom doors or speaker pods.
  • The front stage needs to keep up with a powerful subwoofer system.
  • Custom fabrication is already part of the installation.

Choose the 6x9 HD69.4E When:

  • The vehicle or custom panel uses a 6x9 opening.
  • An oval speaker fits the available area better.
  • You are upgrading a rear deck or rear speaker panel.
  • You want more cone area without installing an 8-inch round speaker.
  • You are building a custom door or pod around a 6x9 format.

Advertised speaker size alone does not guarantee fitment. Always confirm the cutout dimensions, overall frame size, mounting depth, mounting-hole pattern and surrounding clearance before ordering.

HD Series Speakers Are Not Subwoofers

Sky High HD Series speakers are designed for loud mids, vocals and upper-frequency detail. They should not be treated as subwoofers or forced to reproduce deep bass.

Sending frequencies that are too low to a midrange coaxial speaker can cause excessive cone movement, distortion, overheating and possible speaker damage. Use a properly selected high-pass crossover and allow dedicated subwoofers and midbass speakers to handle the lower portions of the system.

Amplifier Planning for HD Series Speakers

Choose an amplifier using the RMS rating, speaker impedance, number of speakers and completed impedance connected to each channel.

Before wiring the system, confirm:

  • The RMS rating of each speaker
  • The impedance of each speaker
  • How many speakers will be connected to each channel
  • Whether the speakers will be wired in series or parallel
  • The final impedance presented to each amplifier channel
  • The amplifier’s rated output at that impedance
  • The amplifier’s minimum stable impedance

Wiring multiple 4-ohm speakers in parallel lowers the final load seen by the amplifier. Never connect an amplifier below its minimum stable impedance.

Browse 4-channel amplifiers for full range speakers when planning power for an HD Series mids-and-highs system.

Use Proper Gain and Crossover Settings

A high-pass crossover protects the speakers from frequencies they are not designed to reproduce. The correct setting depends on the exact speaker model, amplifier power, mounting location, listening level and the other speakers used in the system.

Amplifier gain should be used to match the amplifier input sensitivity to the source signal. Gain is not an additional volume control. Excessive gain can introduce clipping, harsh output, heat and speaker failure.

Begin with conservative crossover and gain settings. Make careful adjustments while listening for distortion, harshness or mechanical stress.

Plan the Installation Before Ordering

Measure the complete speaker location before purchasing an HD Series speaker.

  • Speaker cutout dimensions
  • Overall frame diameter or width
  • Mounting depth
  • Basket and magnet clearance
  • Window-track and regulator clearance
  • Door-handle and locking-mechanism clearance
  • Mounting-hole pattern
  • Factory or custom grille clearance
  • Required spacer or baffle thickness
  • Speaker-wire routing

Mount each speaker to a strong, secure baffle or panel. Thin or flexible mounting surfaces can create vibration, rattles and lost output. Correct polarity, quality wiring, proper sealing and solid mounting all contribute to a cleaner completed system.

Shop All Sky High Full Range Speakers

Compare the HD Series with other sizes and speaker designs in the Sky High Car Audio full range speaker collection.

You can also browse the complete selection of full range car audio speakers at Audio Sellerz to compare additional brands, sizes and speaker styles.
