Limitless Lithium Retro Series LiFePO4 Batteries

Limitless Lithium Retro Series LiFePO4 Batteries

Sold by AudioSellerz.com

Shop Limitless Lithium Retro Series LiFePO4 batteries for high-power car audio electrical systems at AudioSellerz.com. The current Retro lineup is centered around the Limitless Lithium Retro Pro 56, a 12-volt 56Ah lithium iron phosphate battery built for systems that need serious reserve and high-current electrical support.

The Retro Pro 56 is available by itself or paired with a compatible 3.5A battery maintainer, giving builders the option to purchase the battery alone or get the charging-maintenance equipment at the same time.

You can also shop all Limitless Lithium products at AudioSellerz or compare additional battery options in our lithium car audio battery collection.

What Is the Limitless Lithium Retro Series?

The Limitless Lithium Retro Series is a LiFePO4 battery lineup designed for demanding 12-volt electrical systems. The current Retro Series offering from Limitless Lithium is the Retro Pro 56, a 56Ah battery in a BCI Group 24 case.

This makes the Retro Pro 56 a serious option for car audio builders who want substantial lithium battery capacity while staying within a more traditional automotive-style battery case.

The Retro Pro 56 can make sense for:

  • High-power daily-driver car audio systems
  • Large monoblock amplifier setups
  • Multiple amplifier systems
  • Demo vehicles
  • Competition-oriented audio builds
  • Systems needing additional reserve capacity
  • Vehicles already using upgraded charging systems

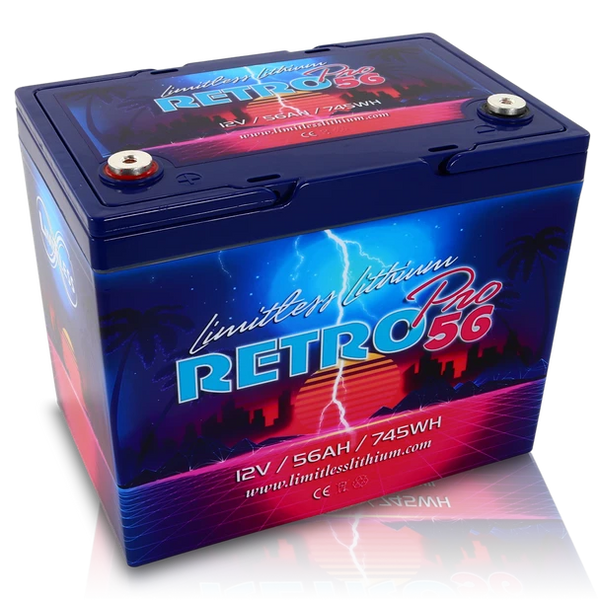

Limitless Lithium Retro Pro 56 Specifications

The Limitless Lithium Retro Pro 56 is a 12V LiFePO4 battery with 56Ah of actual capacity. Limitless lists the battery with the following specifications:

  • Voltage: 12V
  • Capacity: 56Ah
  • Chemistry: LiFePO4 lithium iron phosphate
  • Resting voltage: approximately 13.1V to 13.4V
  • BCI case size: Group 24
  • Weight: approximately 21 lb
  • Dimensions: approximately 8.75 inches high x 6.5 inches deep x 10.125 inches wide
  • Terminal size: M8 x 1.25
  • Terminal orientation: positive left
  • Internal balance board: yes
  • BMS: no
  • Maximum charging voltage: 14.8V
  • Maximum listed input charging current: 400A
  • Continuous discharge current: 750A
  • Listed burst discharge: 1,200 to 1,300A depending on temperature
  • Listed cycle life: 2,000 cycles at 80% depth of discharge

Always verify current manufacturer specifications before installation, especially when designing a higher-current charging system.

How Much Car Audio Power Can the Retro Pro 56 Support?

Limitless lists the Retro Pro 56 with a 9,000 to 13,000 watt continuous range depending on alternator size, with a listed burst rating up to 16,000 watts.

The important part of that specification is depending on alternator size.

A battery does not create electrical power by itself. It stores energy and supplies current when the system demands it. The alternator still has to replenish that energy while the vehicle is running.

Actual electrical-system capability depends on the complete build, including:

  • Alternator output
  • Charging voltage
  • Amplifier efficiency
  • Actual amplifier RMS demand
  • Power and ground wire size
  • Big 3 wiring
  • Fuse and distribution setup
  • Battery placement
  • Voltage drop
  • How long and how hard the system is played

Do not choose a battery only because the manufacturer's wattage number is higher than the amplifier rating. The entire electrical system has to support the power goal.

Retro Pro 56 for High-Power Car Audio

Large car audio amplifiers can demand huge amounts of current during bass-heavy music. Once a system moves beyond basic stock electrical support, the battery and charging system become critical parts of the build.

A properly matched Retro Pro 56 can help provide reserve and current support for systems using:

  • High-output monoblock amplifiers
  • Large subwoofer systems
  • Multiple amplifier configurations
  • High-power daily-driver systems
  • Demo builds
  • Competition-style electrical systems

Adding battery capacity can help support voltage during demanding musical peaks, but it does not replace adequate alternator output.

Retro Pro 56 Charging Voltage

Charging voltage matters with LiFePO4 batteries.

Limitless currently lists a 14.8V maximum charging voltage for the Retro Pro 56. That is a maximum specificationโ€”not an instruction to automatically change every vehicle to 14.8 volts.

Before installing the Retro Pro 56, verify:

  • Normal vehicle charging voltage
  • Alternator output
  • Voltage-regulator behavior
  • Battery cable size
  • Grounding
  • Fuse protection
  • Amplifier current demand
  • Compatibility of other vehicle electronics

Never increase charging voltage without confirming that every battery and electrical component connected to the system can safely operate at that voltage.

Internal Balance Board vs BMS

One specification worth understanding on the Retro Pro 56 is that Limitless lists an internal balance board but no battery management system, or BMS.

A balance board helps keep the individual cells balanced with one another, but it should not be confused with a full BMS that may provide additional electronic protection against certain high-voltage, low-voltage, temperature, or short-circuit conditions.

That means proper electrical-system setup is especially important.

With the Retro Pro 56, pay close attention to:

  • Charging voltage
  • Alternator regulation
  • Battery state of charge
  • Power and ground connections
  • Wire sizing
  • Fuse protection
  • System voltage while playing

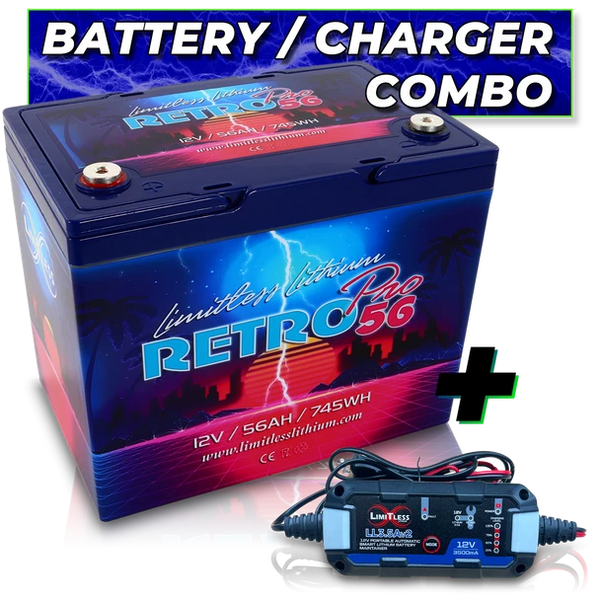

Retro Pro 56 With 3.5A Battery Maintainer

AudioSellerz also carries the Limitless Lithium Retro Pro 56 with a 3.5A battery maintainer.

This package includes the same 56Ah Retro Pro battery along with the compatible stock-voltage Limitless maintainer.

A battery maintainer can be particularly useful for:

  • Vehicles that sit for extended periods
  • Demo vehicles
  • Seasonal builds
  • Show cars
  • Vehicles with small parasitic electrical draws
  • Customers who want an easy way to maintain battery charge between uses

Always use charging and maintenance equipment that matches the battery chemistry and voltage requirements. Do not assume every charger labeled for a 12-volt battery is appropriate for LiFePO4.

Do I Need a High Output Alternator With a Retro Pro 56?

That depends on how much current the audio system demands.

A battery can provide reserve energy, but the alternator is responsible for producing electrical power while the engine is running and replacing the energy removed from the battery.

A high-output alternator becomes increasingly important when:

  • You are running several thousand watts of amplifier power
  • Voltage drops significantly during music
  • The battery does not recover while driving
  • You play the system hard for long periods
  • Multiple amplifiers are installed
  • The vehicle is being built for demos or competition

Limitless itself ties the Retro Pro 56's power capability to alternator size, which is exactly why the battery and alternator should be planned as a system rather than as separate upgrades.

Upgrade the Big 3 With a Lithium Battery

Installing a serious lithium battery while relying on small factory charging and grounding cables can create an unnecessary bottleneck.

The Big 3 upgrade strengthens three major electrical paths:

  • Alternator positive to battery positive
  • Battery negative to chassis
  • Engine block to chassis

If you are upgrading to the Retro Pro 56, browse our Big 3 upgrade kits for car audio to strengthen the charging and grounding foundation of the system.

Use Proper Power and Ground Wire

High-current batteries and amplifiers need wiring capable of safely carrying the current being demanded.

Undersized wire, weak grounds, loose terminals, poor crimp connections, and insufficient fuse protection can cause:

  • Voltage drop
  • Excessive heat
  • Amplifier protect mode
  • Weak charging performance
  • Inconsistent amplifier output
  • Electrical-system damage

Browse car audio power wire, ground wire, speaker wire, amp kits, and installation wiring when planning the rest of the electrical system.

LiFePO4 Battery vs AGM for Car Audio

Builders often consider LiFePO4 when a traditional AGM battery setup becomes too heavy, takes up too much space, or does not provide the reserve and current delivery needed for the power goal.

A properly selected LiFePO4 car audio battery can offer:

  • High current capability
  • Strong usable reserve
  • Lower weight than many large AGM arrangements
  • Good voltage support when properly charged
  • Fast recovery when paired with adequate charging support
  • A compact way to support larger amplifier systems

However, lithium is not automatically better for every vehicle. Charging compatibility, alternator output, installation quality, system size, and intended use still determine whether it is the right upgrade.

For more help deciding whether lithium makes sense for your system, read our Do You Need Lithium for Car Audio? battery upgrade guide.

How Do I Know If the Retro Pro 56 Is Right for My Build?

The Retro Pro 56 is worth considering when your electrical system has moved beyond a simple stock-battery setup and you need substantial reserve for a larger car audio system.

Before ordering, consider:

  • Your amplifier's actual RMS power
  • Alternator amperage
  • Charging voltage
  • Existing battery setup
  • Available battery space
  • Power and ground wire size
  • How long the system will be played at high output
  • Whether the vehicle is a daily driver, demo build, or competition vehicle

If you are unsure, contact AudioSellerz with the vehicle, amplifiers, alternator size, charging voltage, and current battery setup. We would rather help you plan the electrical system correctly than have you guess from a wattage rating.

Why Buy Limitless Lithium Retro Pro Batteries From AudioSellerz?

Audio Sellerz works with real high-power car audio systems. We understand amplifiers, batteries, high-output alternators, wiring, grounding, fuse protection, voltage drop, and the electrical upgrades required when a system starts making serious power.

When you buy Limitless Lithium from AudioSellerz, you can shop the rest of the electrical system in one place and get help matching the components to the actual build.

AudioSellerz carries:

  • Limitless Lithium batteries
  • LiFePO4 batteries
  • Sodium-ion battery options
  • High-output alternators
  • Big 3 kits
  • Power and ground wire
  • Fuse holders and electrical accessories
  • Amplifiers
  • Subwoofers
  • Complete car audio system components

Browse the complete Limitless Lithium collection at AudioSellerz to compare the Retro Pro Series with Nano, NoLi, Shake Awake, chargers, maintainers, terminals, and other Limitless electrical products.

Shop Limitless Lithium Retro Pro 56 Batteries

If your car audio system needs serious lithium battery capacity, the Limitless Lithium Retro Pro 56 gives you 56Ah of LiFePO4 capacity in a Group 24-style battery package designed for high-current electrical systems.

Choose the Retro Pro 56 by itself or select the package with the compatible 3.5A battery maintainer depending on how you plan to use and maintain the vehicle.

Shop the available Limitless Lithium Retro Series products above and build the battery, alternator, wiring, and amplifier system together instead of treating each part as a separate upgrade.
