DS18
PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm
PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm
Couldn't load pickup availability
PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm
Sold by AudioSellerz.com
SKU: PRO-NS8
PRO 8" Shallow Neodymium Full-Range Loudspeaker 200 Watts Rms 8-Ohm is a DS18 audio processor from DS18 built for system tuning, signal control, crossover setup, equalization, and cleaner full-system audio builds. This description helps shoppers looking for DS18 8 inch speakers, DS18 DSP, car audio processor, audio equalizer, digital sound processor, system tuning understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Use clean signal routing and proper tuning so the speakers, subwoofers, and amplifiers work together.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.
DS18 PRO-NS8 8" Shallow Neodymium Mid-Range Loudspeaker 400 Watts 8-Ohm
DS18's new Neodymium shallow speakers were designed to give you maximum loudness and volume all while keeping a nice small framed package. Most neo speakers are full size and take up a good amount of mounting depth, with these new Neo slim speakers, you can get that insane neodymium loudness where there is not much room for full size speakers.
This 8" inch neodymium 2" voice coil Midrange speaker takes 200w RMS and 400w Peak power, so you know they will get loud easily. The 96dB sensitivity rating will be sure to give you plenty of volume as well for years and years of enjoyment.
Highlights- Neodymium Slim design so now you can get all that neodymium power and volume in a slim frame.
- High efficiency 8 ohm 2 inch voice coil that handles 200w RMS and 400w peak power for extreme loudness and frequency precision.
- Shallow mounting depth of only 2.48 inches, these neodymium midrange speakers can fit almost anywhere you need great sound and max volume.





Technical Details
| Nominal Diameter | 8"/208mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 97Hz - 12KHz |
| Recommended Hi Pass Crossover | 160Hz |
| Pair or Single | Single |
| Voice Coil Diameter | 2"/50.8mm |
| Voice Coil Former Material | KSV |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | paper |
| Surround Materia | Cloth |
| Basket Material | Steel |
| Basket Color | Glossy Red |
| Magnet Material | Neodymium |
| Magnet Weight | 3.32oz |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 5.48l / 0.193ft3 |
| Excursion (one way) | 2 mm |
| Free Air Resonance | 120Hz |
| Mechanical Factor | 3.781 |
| Electrical Factor | 0.952 |
| Total Factor | 0.761 |
| Mechanical Mass | 13.242g |
| Mechanical Compliance | 162m cm/N |
| BL Factor | 6.029 |
| Voice Coil Inductance | 7.011mH |
| Cone Area | 213.825 Cm3 |
| DC Resistance | 6.5 ohms |
| Mechanical Mass w/o air/ | 13.07g |
| MEASUREMENTS | |

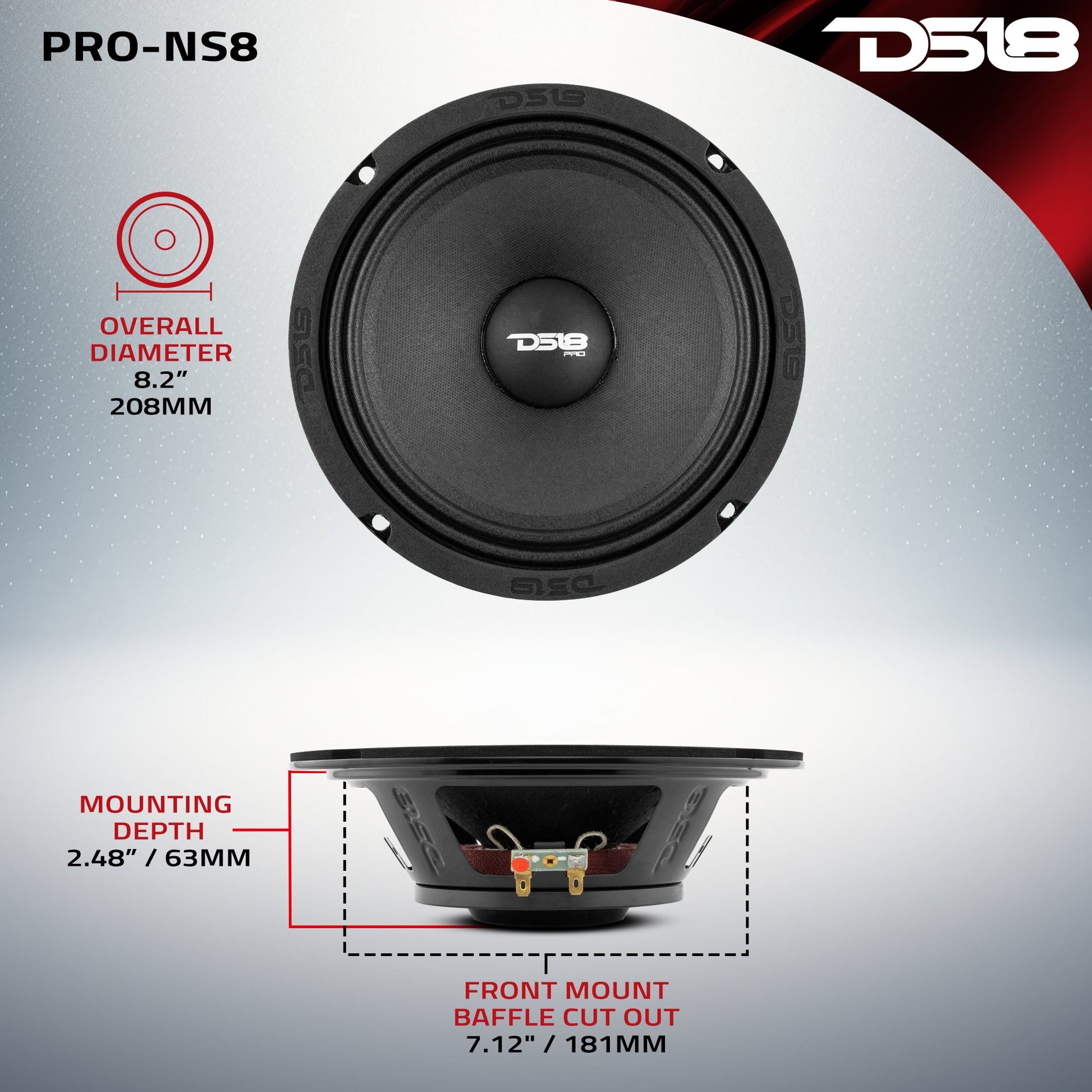

| Overall Diameter | 8.2" |
| Overall Depth | 2.67" |
| Front Mount Baffle Cutout | 7.12" |
| Mounting Depth | 2.48" |
| Motor Diameter | 4.33" |
