DS18
PANCADAO Ported Box with 2 X 10" Mid-Bass PRO-1.5KP10.4 Loaded
PANCADAO Ported Box with 2 X 10" Mid-Bass PRO-1.5KP10.4 Loaded
Couldn't load pickup availability
PANCADAO Ported Box with 2 X 10" Mid-Bass PRO-1.5KP10.4 Loaded
Sold by AudioSellerz.com
The DS18 ENS-PRO1.5KP210LD is a 10" loaded subwoofer enclosure from DS18. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
DS18 ENS-PRO1.5KP210LD PANCADAO Ported Box with 2 X 10" Mid-Bass PRO-1.5KP10.4 Loaded
Designed for the enthusiast who wants to shake the room, DS18’s ENS-PRO1.5KP210LD delivers an unparalleled listening experience that transports you to another dimension. DS18’s ENS-PRO1.5KP210LD combines one of DS18’s mid-bass loudspeakers with a perfectly tuned ported box for a listening experience like no other.
At the heart of this enclosure are two of DS18’s PRO-1.5KP10.4, DS18’s booming mid-bass loudspeakers engineered to redefine your sound system’s boundaries. Equipped with a massive 3” voice coil, and constructed from fiber glass for unparalleled stability, the PRO-1.5KP10.4 was built for those who like it LOUD!
Chosen for it’s rigid construction and unreal responsiveness, DS18’s pursuit of perfection in audio led them to the creation of a custom-designed ported box specifically tailored to complement the PRO-1.5KP10.4. Every inch of this front-ported box constructed from premium ¾” MDF, is engineered to maximize this mid-bass loudspeaker’s potential.
DS18’s ENS-PRO1.5KP210LD flawlessly reproduces midbass frequencies that highlight the depth and richness of your favorite tracks. The ENS-PRO1.5KP210LD's technical prowess is further enhanced by its sensitivity of 96dB and an impressive frequency response ranging from 60Hz to 2KHz. The 1ft3 internal volume of the ENS-PRO1.5KP210LD gives this speaker enough room to perform at it’s best. With a total RMS power handling of 3000W and a maximum power handling of 6000W, prepare to be blown away by the sheer intensity and clarity of your music.
Indulge your senses, elevate your audio experience, and let DS18’s ENS-PRO1.5KP210LD transport you to a world where sound knows no boundaries.
Highlights
- RMS power handling of 3000W and a MAX power handling of 6000W
- 30" (H) x 12.2" (W) x 9" (D)
- 1ft3 front-ported box is constructed from premium 3/4" MDF for optimal resonance control, resulting in tight mid bass reproduction
Great For
- Car Audio
- Pro Audio
Technical Details
| GENERAL | |
| Speaker Type / Size | Single 10" / 254mm |
| Total Impedance | 2 ohm |
| Total RMS Power Handling | 3000 W |
| Total MAX Power Handling | 6000 W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 60Hz-2KHz |
| Recommended HI Pass Crossover | 70 HZ |
| MIDRANGE SPECIFICATIONS | |
| Model | PRO-1.5KP10.4 |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 91 oz |
| BOX SPECIFICATIONS | |
| Internal Volume | 30L / 1ft3 |
| Port Tune | 115Hz |
| Box Type | Front Ported |
| Box Material | 3/4" / 19mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point | 90Hz |
| MEASUREMENT | |
| Overall Height | 30" / 760mm |
| Overall Width | 12.2" / 310mm |
| Overall Depth | 9" / 230mm |
| Port Dimensions (W/H/L Each) | 10.8"x2.36""x4.72" / 275x60x120mm |
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.

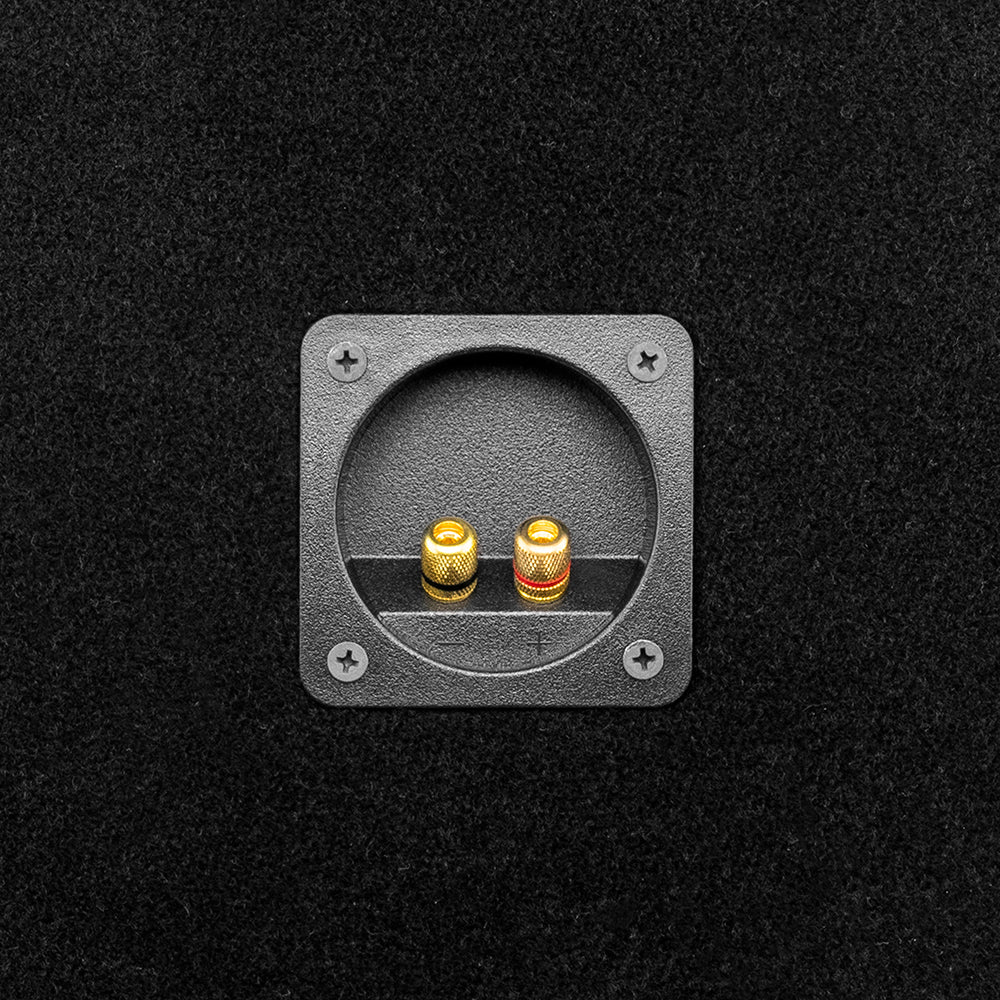

- Seal the terminal cup and any gaps so the box performs the way it was designed.
