DS18
10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS
10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS
Couldn't load pickup availability
10" Loaded Subwoofer Ported Enclosure With GEN-X104D 400 Watts RMS
Sold by AudioSellerz.com

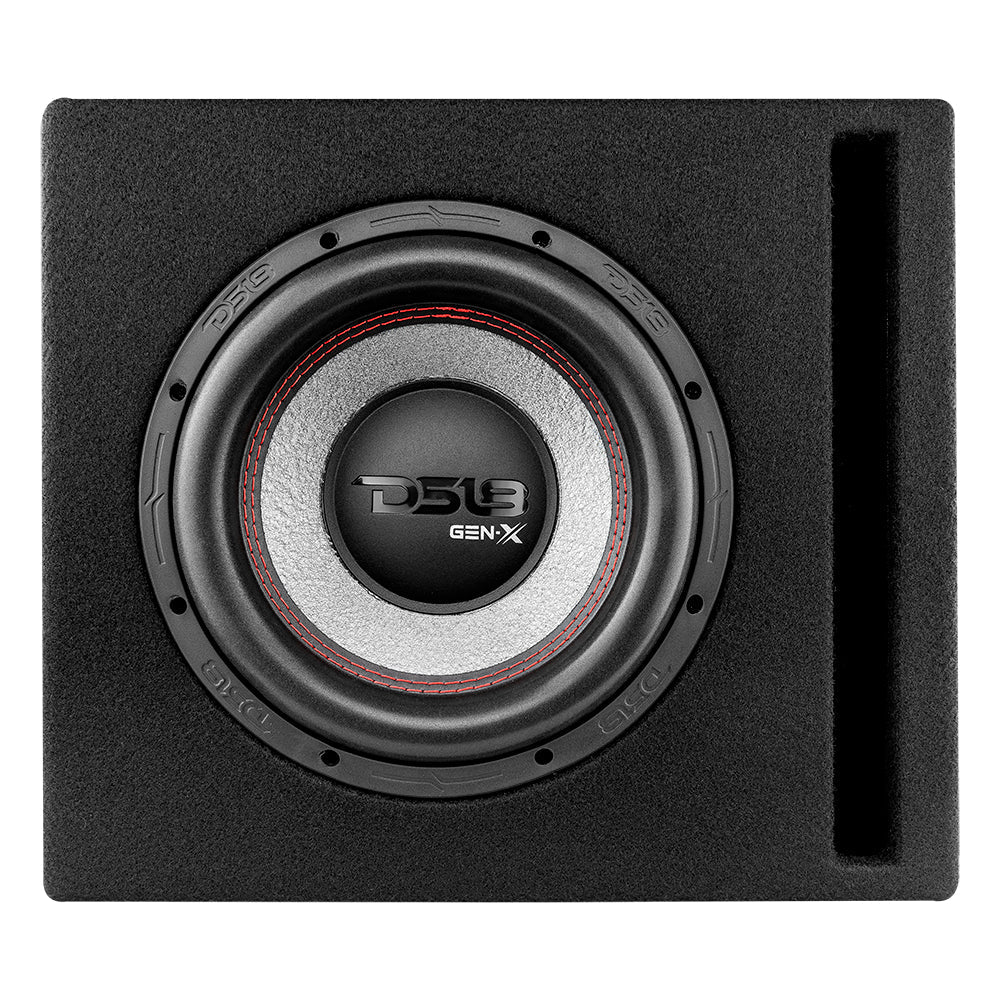

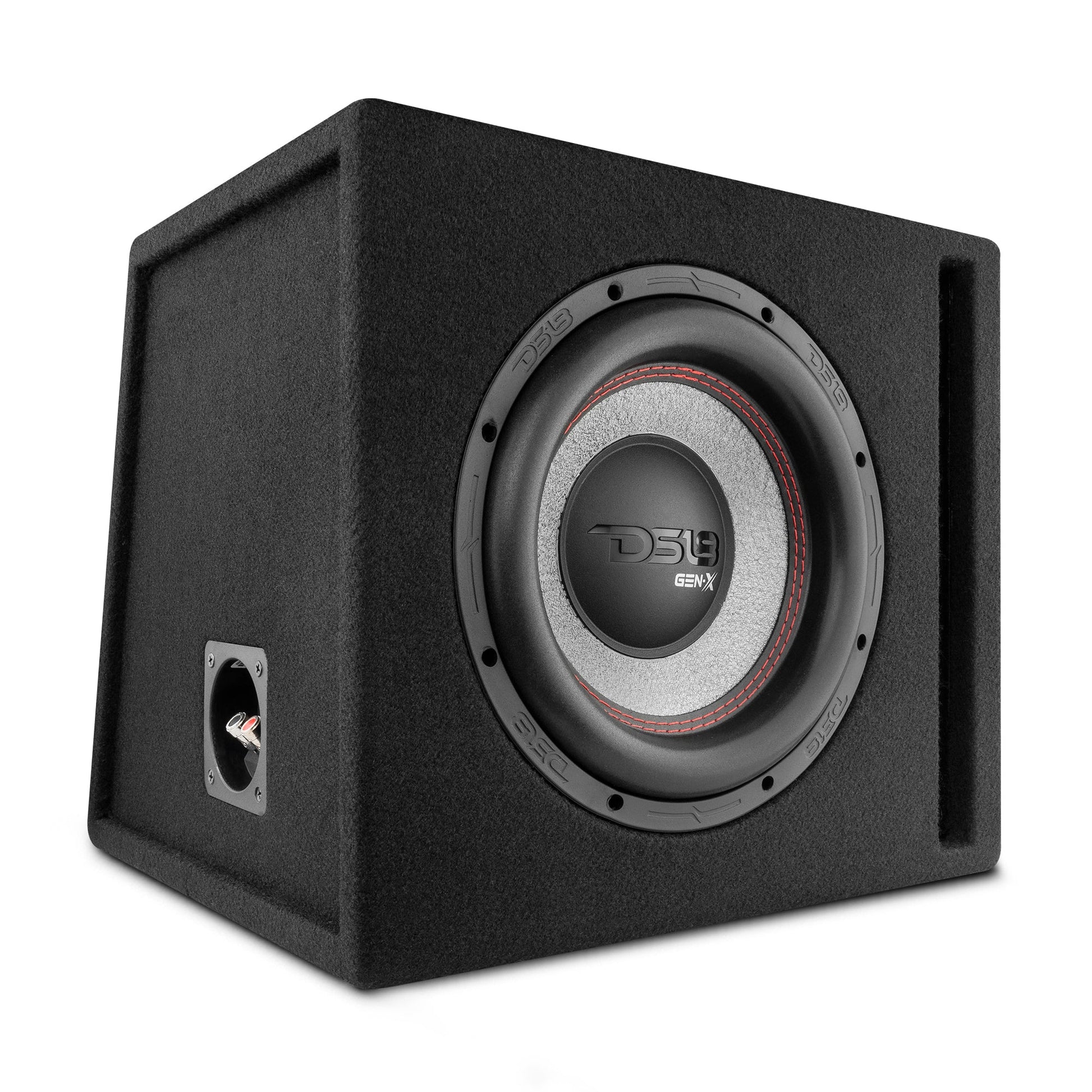

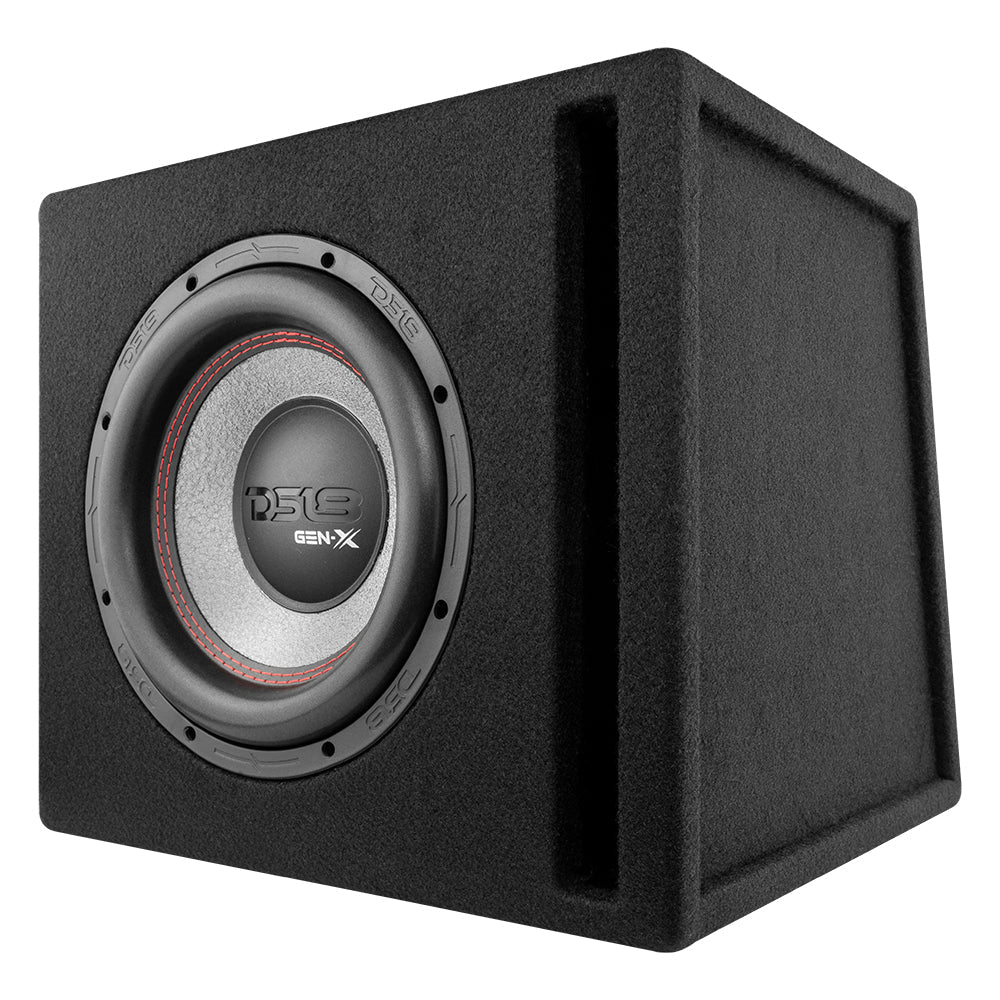

The DS18 GEN-X110LD is a 10" loaded subwoofer enclosure from DS18 rated at 400W RMS. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
DS18 GEN-X110LD Bass Package GEN-X104D 10" Subwoofer In a Ported Box 400 Watts
Buckle up and get ready to feel the rush of crystal-clear sound and bone-shaking bass with DS18’s GEN-X110LD.
The GEN-X110LD transports you to the front row of your favorite concert, where you can feel the thumping bass in your chest. It's an experience that words can hardly capture but one that you’ll never forget.
With an internal volume of 1.28ft3, the GEN-X110LD creates the perfect environment for your subwoofer to thrive. The port tune (Fb) of 35Hz ensures deep, resonant bass that reverberates through your body. Constructed with 1/2" MDF and finished with black carpet, this enclosure is built to outlast any vehicle it’s installed into.
At the heart of the GEN-X110LD is DS18’s GEN-X104D Subwoofer. Crafted with meticulous attention to detail, this 10" powerhouse delivers a thunderous performance every session. Equipped with a 2" voice coil diameter and a black aluminum voice coil former, this subwoofer is built to handle intense power while maintaining exceptional thermal control. With a dual 4-ohm voice coil configuration, wired in parallel, resulting in a nominal impedance of 2 ohms, the GEN-X104D’s design ensures efficient power distribution and compatibility with a wide range of amplifiers, allowing you to extract every ounce of high quality performance from your car audio system. With a total RMS power handling of 400W and a MAX power handling of 800W, the GEN-X104D unleashes a surge of energy that will electrify your senses. Feel the bass resonating in your vehicle as you experience the true depth and impact of your favorite music.
Join the ranks of true audiophiles and let the GEN-X110LD become the heart and soul of your car audio system.
Highlights
- GEN-X104D delivers bone-shaking bass and crystal-clear sound
- Experience the true depth and impact of your favorite music with a total RMS power handling of 400W and a maximum power handling of 800W.
- The sleek and sophisticated enclosure with its front-ported design complements any vehicle interior and provides the ideal environment for optimal subwoofer performance.
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| GENERAL | |
| Speaker Type / Size | Single 10" Subwoofer (GEN-X104D) |
| Total Impedance | 2 ohm |
| Total RMS Power Handling | 400W |
| Total MAX Power Handling | 800W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 25 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 2” / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 66 Oz |
| BOX SPECIFICATIONS | |
| Internal Volume | 36.3L / 1.3ft3 |
| Port Tune | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 29Hz |
| MEASUREMENT | |
| Height | 13.78” / 350mm |
| Width | 15.75” / 400mm |
| Depth 1 | 11” / 280mm |
| Depth 2 | 14” / 356mm |
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.

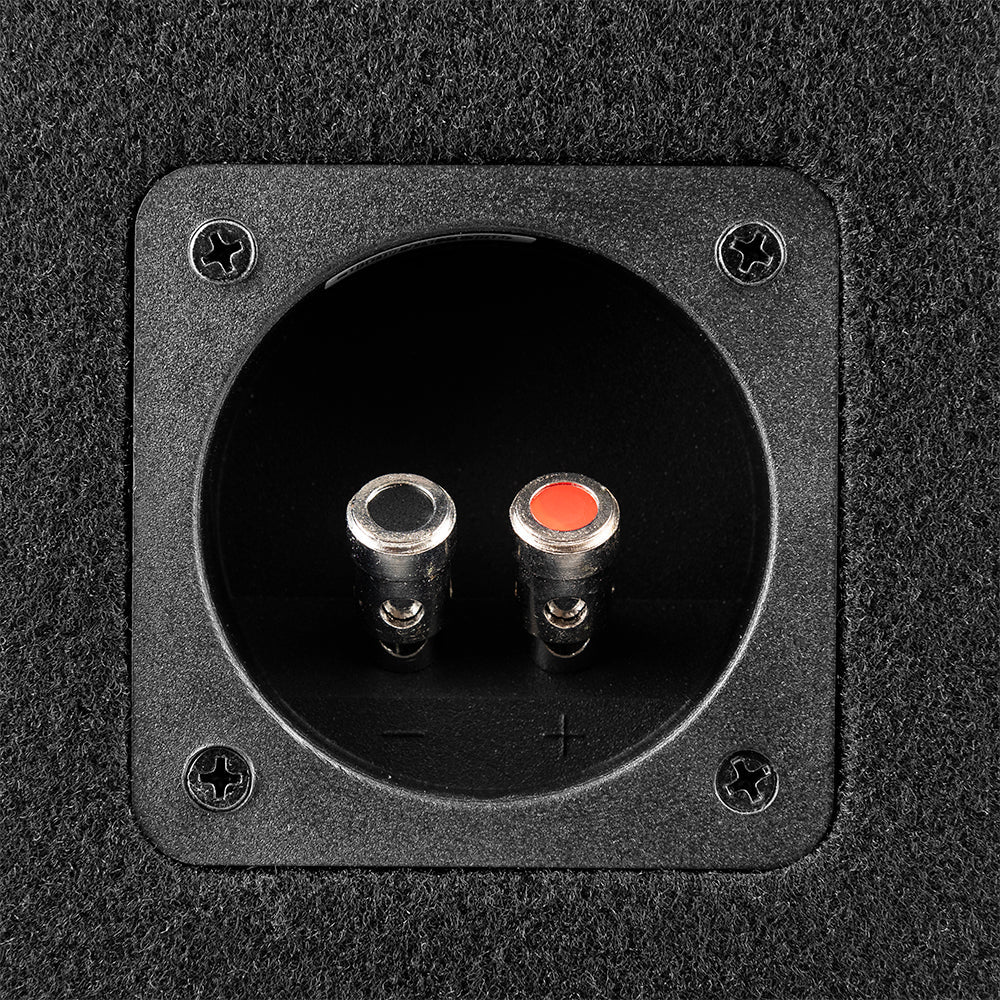

- Seal the terminal cup and any gaps so the box performs the way it was designed.
