DS18
IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 4-Ohm
IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 4-Ohm
Couldn't load pickup availability
IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 4-Ohm
Sold by AudioSellerz.com
The DS18 IXS12.4D is a 12" subwoofer from DS18 rated at 800W RMS with a 4 ohm dual voice coil design. This is the part of the system that does the heavy lifting down low.
DS18 Product Details
DS18 IXS12.4D 12" Car Subwoofer 1600 Watts 4-Ohm DVC Shallow Mount
Continuing the tradition of our very popular shallow mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line. We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier. These subs are perfect for the audiophile that wants a lot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice a lot of room.
Highlights
- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
- Large surround with flexible spider packs will help the CCA voice coil teach maximum Xmax producing full and deep bass with a up to spec box.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Technical Details
| Model: | IXS12.4D |
| Type: | Shallow Subwoofer |
| Size: | 12" |
| RMS Power: | 800W |
| MAX Power: | 1600W |
| Impedance: | 4 + 4 Ohms |
| Sensitivity | 85.1dB |
| Voice coil size: | 2.5" |
| Magnet: | Ferrite |
| Magnet Size: | 62 oz |
| Frequency Response: | 20Hz - 600Hz |
| Materials | |
| Frame: | Aluminum |
| Cone: | Paper |
| Dust Cap Material | Fiberglass |
| Surround: | Stitched Rubber |
| Voice Coil Former Material: | Aluminum |

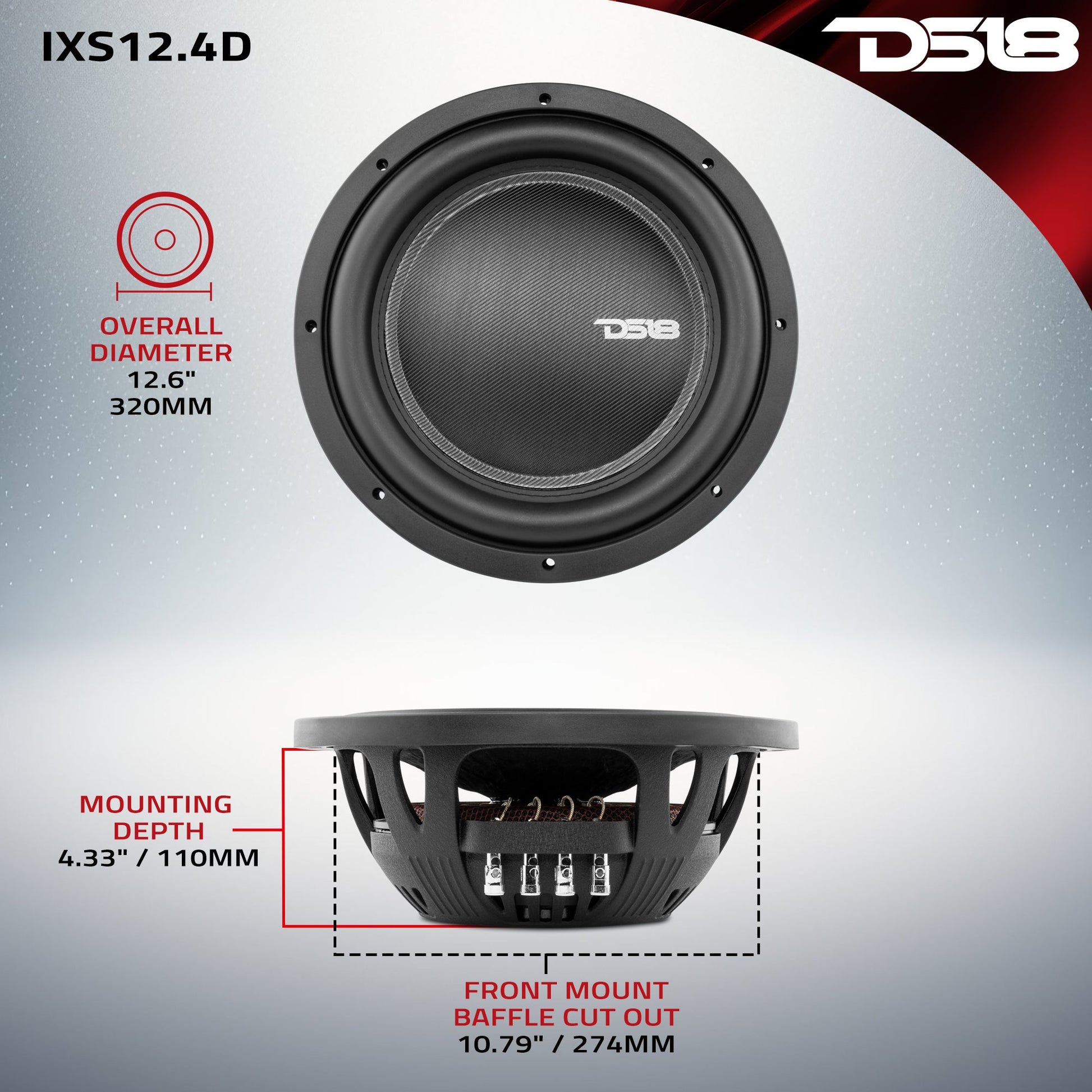

| Measurements | |
| Overall Diameter: | 12.6" |
| Overall Depth | 4.73" |
| Mounting Depth | 4.33" |
| Front Mount Baffle Cutout | 10.79" |
Box Info
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 4 ohm per coil.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
