The DS18 IXS12.2D is a 12" subwoofer from DS18 rated at 800W RMS with a 2 ohm dual voice coil design. Pick the sub to match your amp and box, and it will deliver the low end your speakers can't.
DS18 Product Details
DS18 IXS12.2D 12" Car Subwoofer 1600 Watts 2-Ohm DVC Shallow Mount
DS18’s IXS Line of Shallow Mount Subwoofers are back with the IXS12.2D!
Built from our best selling SW slim subwoofer line the experts at DS18 took the SW line and made it even beefier for more bass.
This sub handles 800 W RMS and 1600 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub raising this model above and beyond the standard.
These Dual Voice Coil Subs are perfect for the listener looking to add more thump to their system.
Make the most of your space with the IXS12.2D!
Highlights
- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
- Large surround with flexible spider packs will help the CCA voice coil maximum Xmax producing full and deep bass with a up to spec box.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Great For
- Car Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 12” / 304.8mm |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 800W |
| MAX Power Handling | 1600W |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20 - 600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.93L / 0.033ft3 |
| MEASUREMENT | |

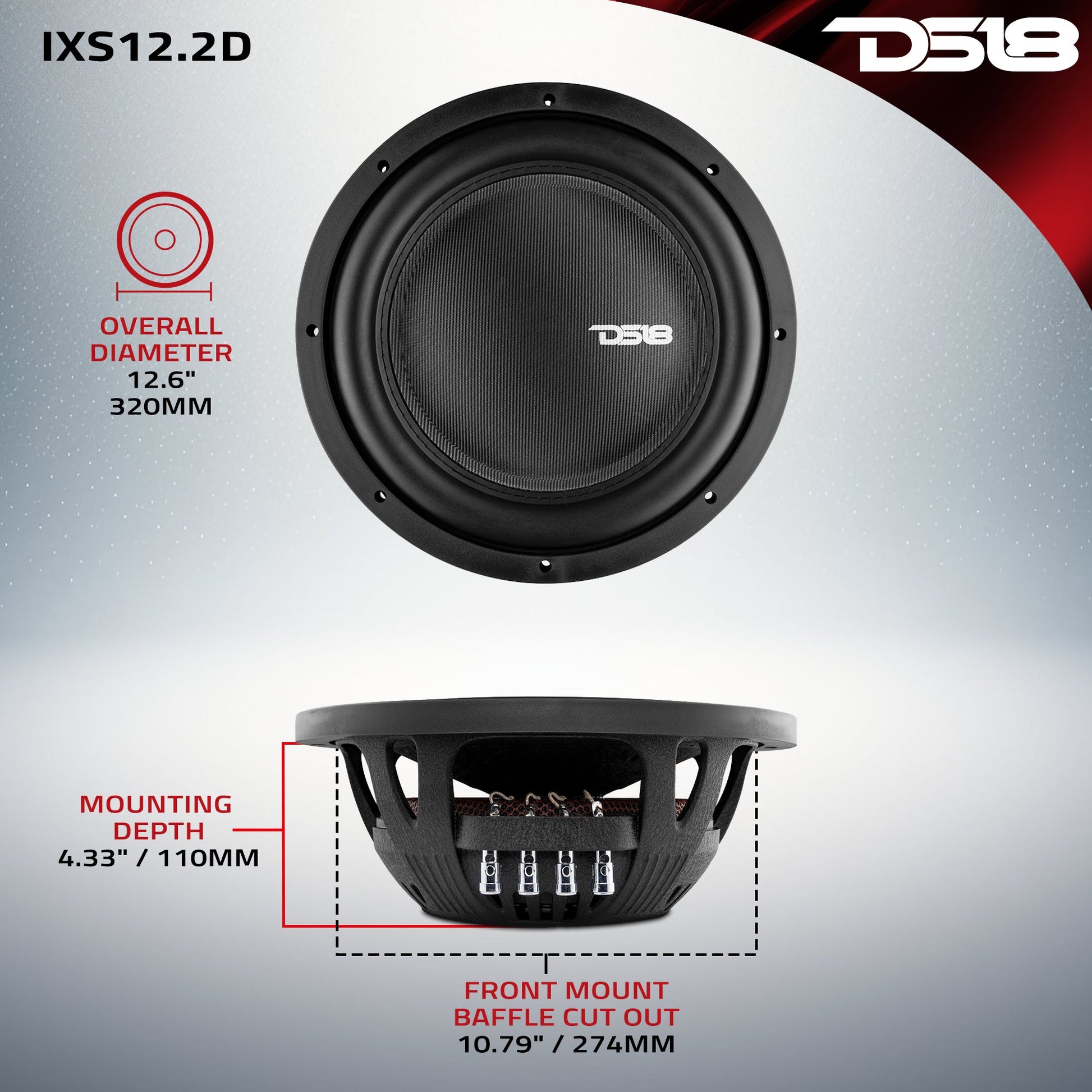

| Overall Diameter | 12.6" / 320 mm |
| Overall Depth | 5" / 129 mm |
| Front Mount Baffle Cutout | 10.79" / 274 mm |
| Mounting Depth | 4.33" / 110 mm |
| Motor Diameter | 6.3" / 160 mm |
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 2 ohm per coil.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
