Dual 12" Loaded Subwoofer Ported Enclosure With GEN-X124D 900 Watts RMS
Dual 12" Loaded Subwoofer Ported Enclosure With GEN-X124D 900 Watts RMS
Couldn't load pickup availability
Dual 12" Loaded Subwoofer Ported Enclosure With GEN-X124D 900 Watts RMS
Sold by AudioSellerz.com
The DS18 GEN-X212LD is a 12" loaded subwoofer enclosure from DS18 rated at 900W RMS. A properly sized enclosure is the difference between deep, tight bass and a sub that just rattles.
DS18 Product Details
Sold by AudioSellerz.com

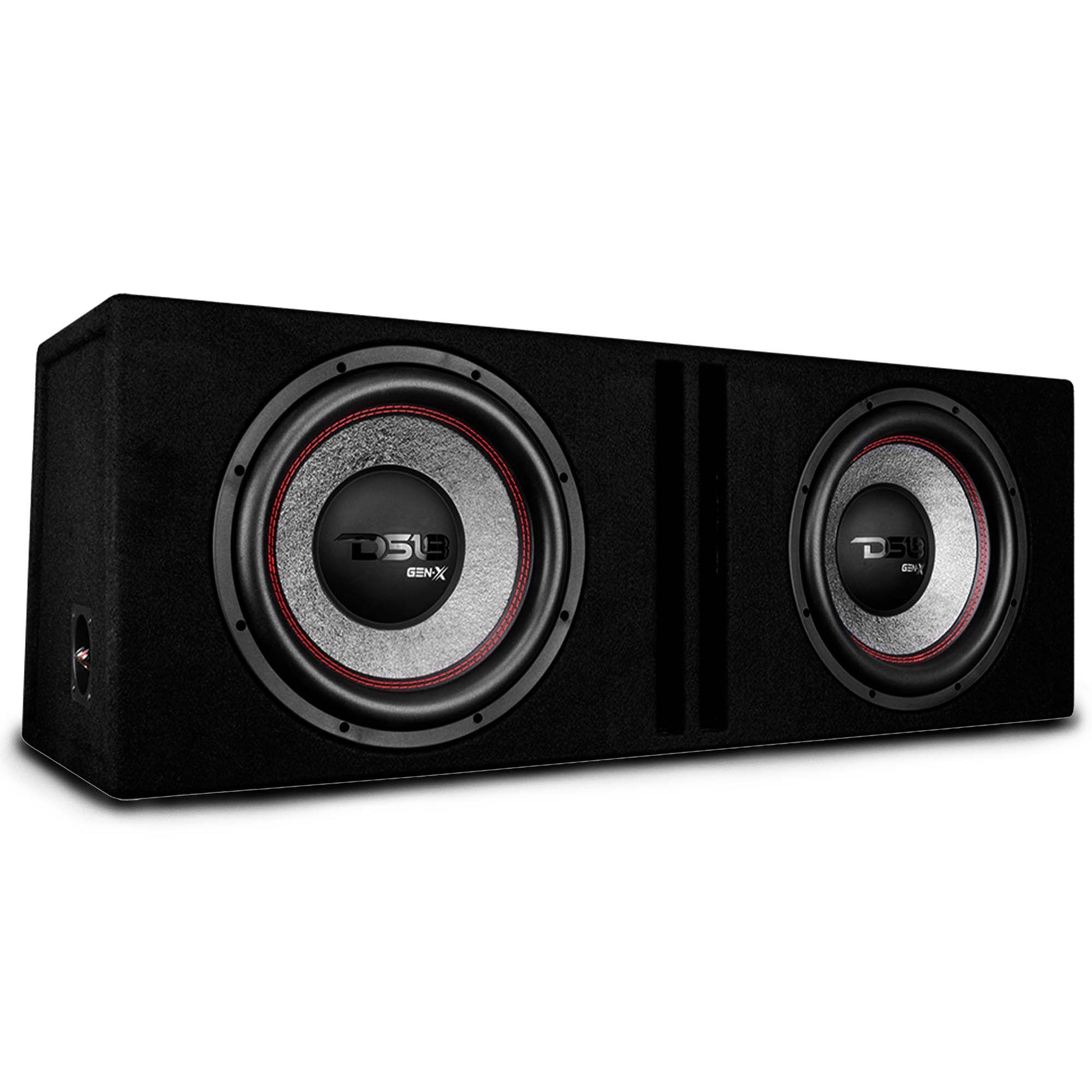

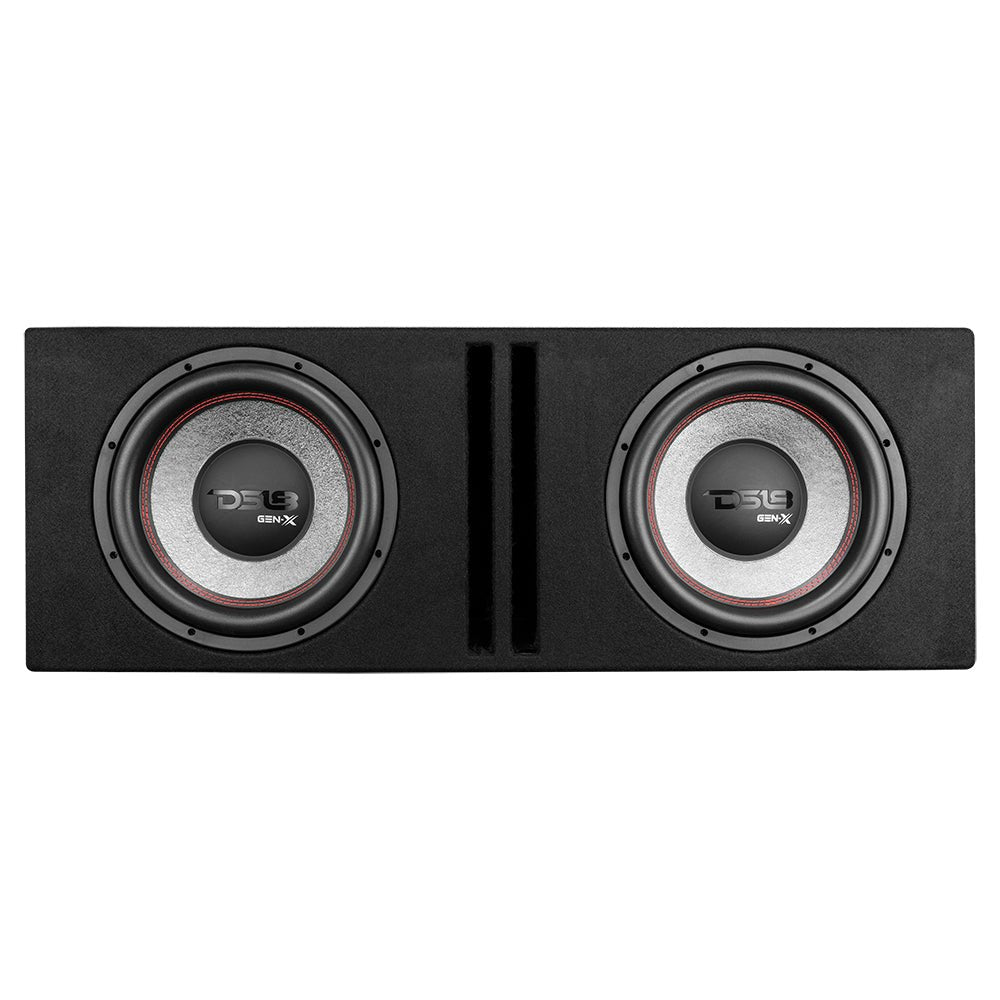

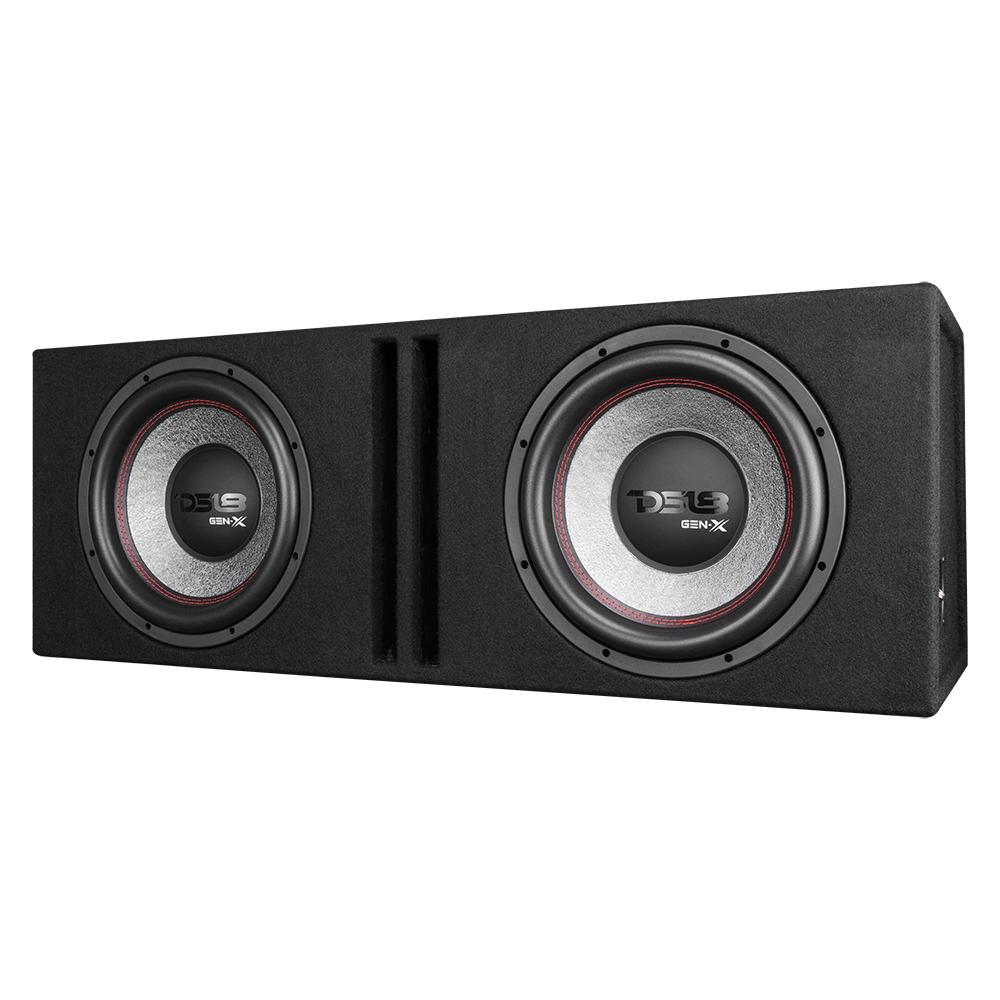

The DS18 GEN-X212LD is a ready-to-install dual 12" bass package with two DS18 GEN-X12.4D subwoofers mounted in a front-ported 1/2" MDF enclosure tuned to 35Hz. The pair handles 900 watts RMS total, so you only need an amplifier and wiring to get it hitting.
It is a good fit for customers who want the output of two 12" subs without building a box. With 3.2 cubic feet of internal volume and a 94dB package sensitivity, it gets loud on a reasonable amount of power.
Browse more DS18 products, compare our 12" subwoofer boxes or view all subwoofer boxes and enclosures.
Two GEN-X12.4D Subs in One Ported Box

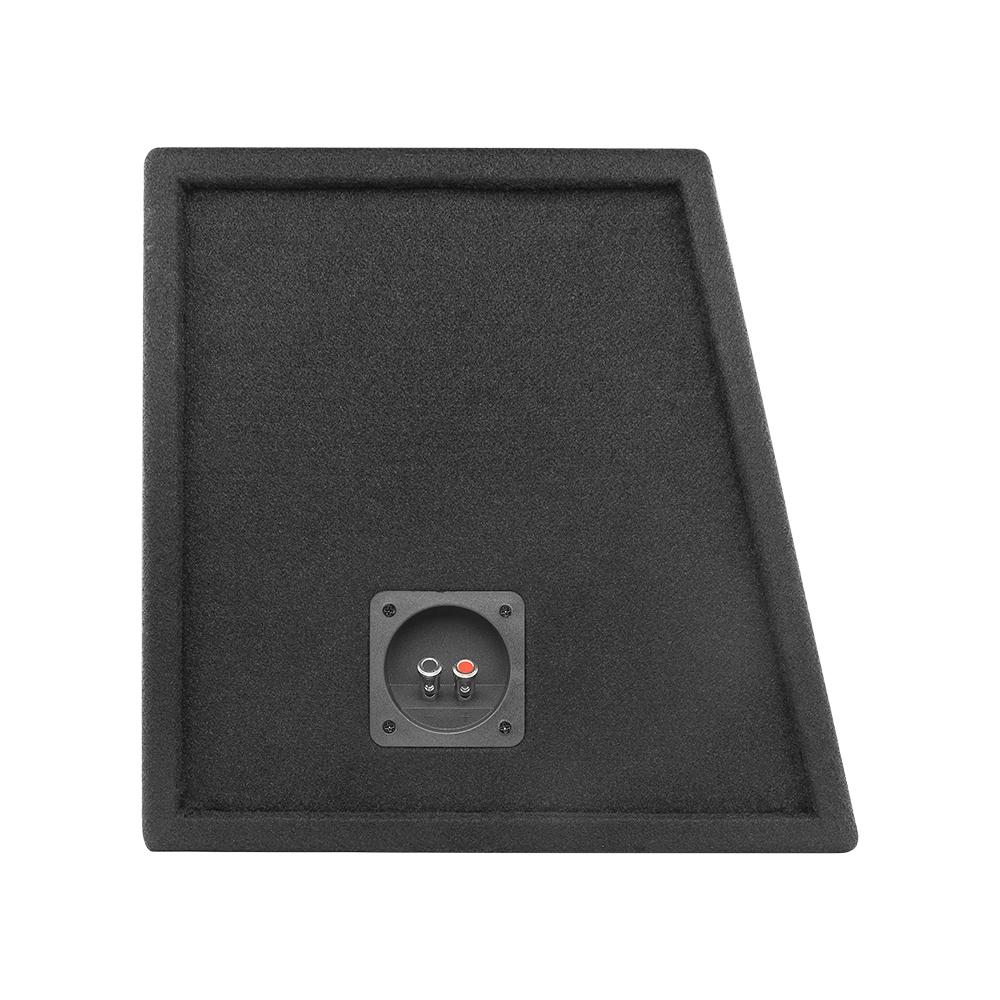

Each GEN-X12.4D is a dual 4 ohm voice coil subwoofer with a 2" voice coil and a 70 oz ferrite magnet. DS18 wires each sub to 2 ohms with its own terminal, and the enclosure is set up for a parallel load configuration at the amplifier.
Run both 2 ohm subs in parallel and the box presents a 1 ohm load to a monoblock amplifier. Confirm your amp is 1 ohm stable before you wire it that way.
GEN-X212LD Specifications
Package
- Subwoofers: two DS18 GEN-X12.4D 12"
- Total impedance: 2 + 2 ohm (individual subwoofer terminals)
- RMS power handling: 900 watts total
- Max power handling: 1800 watts total
- Sensitivity (1W/1m): 94dB
- Frequency response: 29Hz to 250Hz
- Recommended low-pass crossover: 120Hz
Subwoofer Motor and Cone
- Voice coil diameter: 2"
- Voice coil former: black aluminum
- Cone: paper and fiberglass
- Dust cap: PPI
- Surround: foam
- Basket: steel
- Magnet: 70 oz ferrite
Enclosure
- Type: front ported
- Internal volume: 3.2 cubic feet (90.6L)
- Port tuning: 35Hz
- -3dB point: 29Hz
- Material: 1/2" MDF
- Finish: vinyl
Dimensions
- Height: 13.78"
- Width: 38.58"
- Depth: 11" / 14"
At almost 39" wide, measure your trunk or cargo area before ordering and leave open space in front of the port.
Powering the GEN-X212LD
Look for a monoblock amplifier that is stable at your final load and makes around 900 watts RMS. Compare our monoblock amplifiers and finish the install with a properly sized amp wiring kit.
Not sure how the final ohm load works out? Our subwoofer wiring diagram guide walks through parallel and series wiring step by step.
A 900 watt system puts real demand on your charging system. Check the battery, alternator and charging wires before you install it. Our Big 3 upgrade guide is the place to start.
Gain and Crossover Setup
DS18 recommends a 120Hz low-pass crossover for this box. Many builds sound tighter with the crossover set lower, so adjust by ear from there. Set the gain with a test tone to match your head unit output, not by ear at full volume. Our guide on how to set amp gain for subs, mids and highs covers the full process.
Who Should Choose the GEN-X212LD?
The GEN-X212LD makes sense if you want dual 12" output in a matched, ready-to-wire package and have the width in your trunk or cargo area for it. If you want something smaller, compare our DS18 ZR112LD single 12" loaded box.
Connect With Audio Sellerz
Follow Audio Sellerz on Facebook, Instagram, TikTok and YouTube.
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.

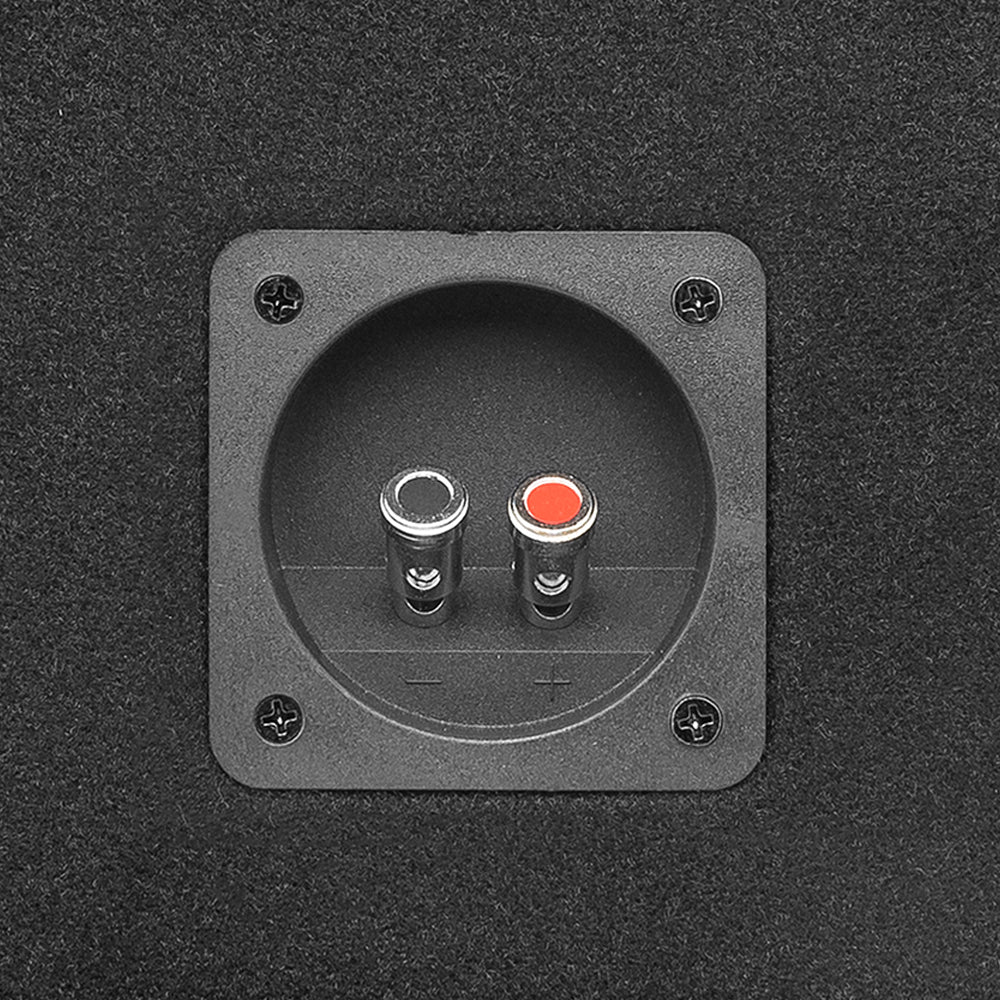

- Seal the terminal cup and any gaps so the box performs the way it was designed.
