Dual 12" Loaded Subwoofer Ported Enclosure With ZR12.2 1600 Watts Rms
Dual 12" Loaded Subwoofer Ported Enclosure With ZR12.2 1600 Watts Rms
Couldn't load pickup availability
Dual 12" Loaded Subwoofer Ported Enclosure With ZR12.2 1600 Watts Rms
Sold by AudioSellerz.com

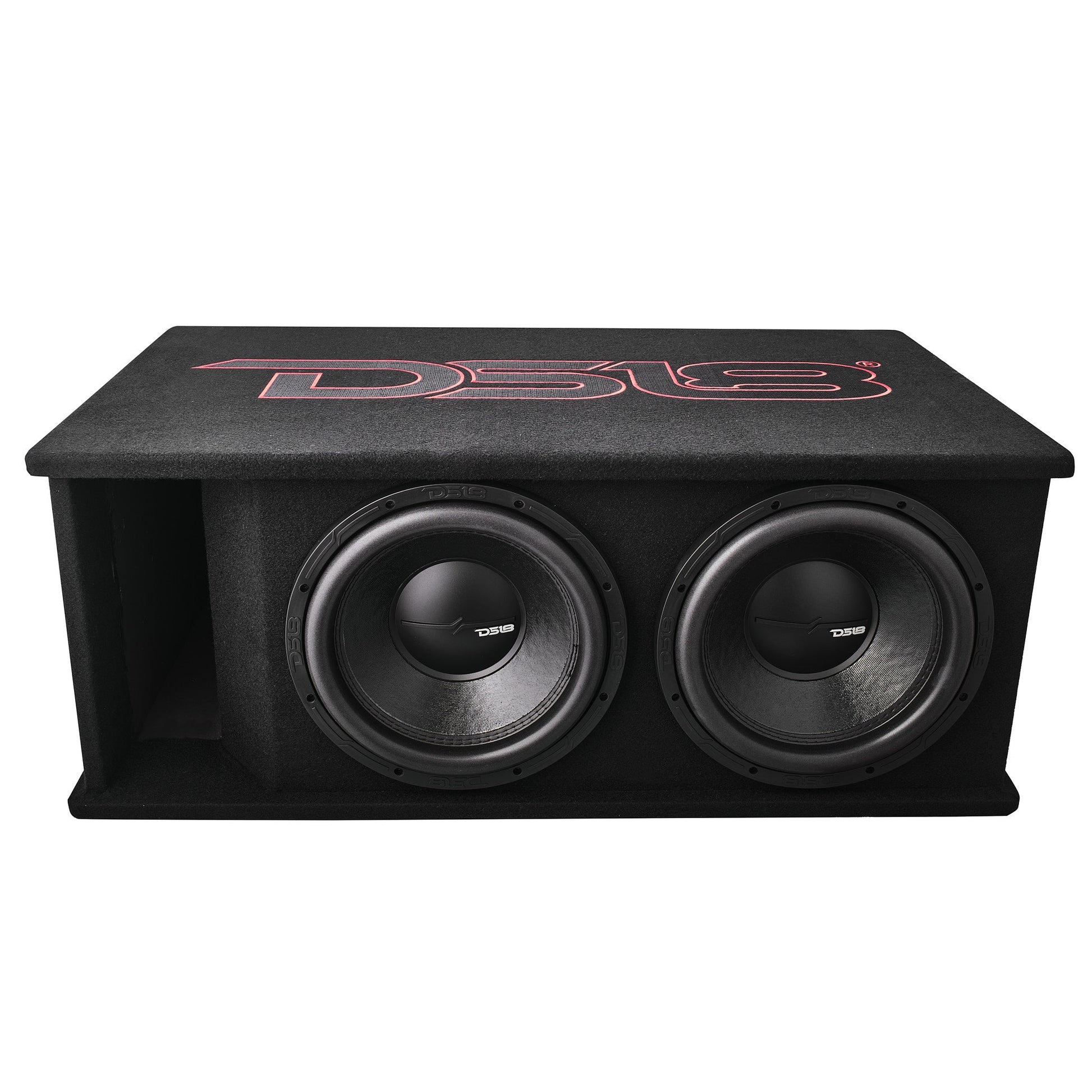

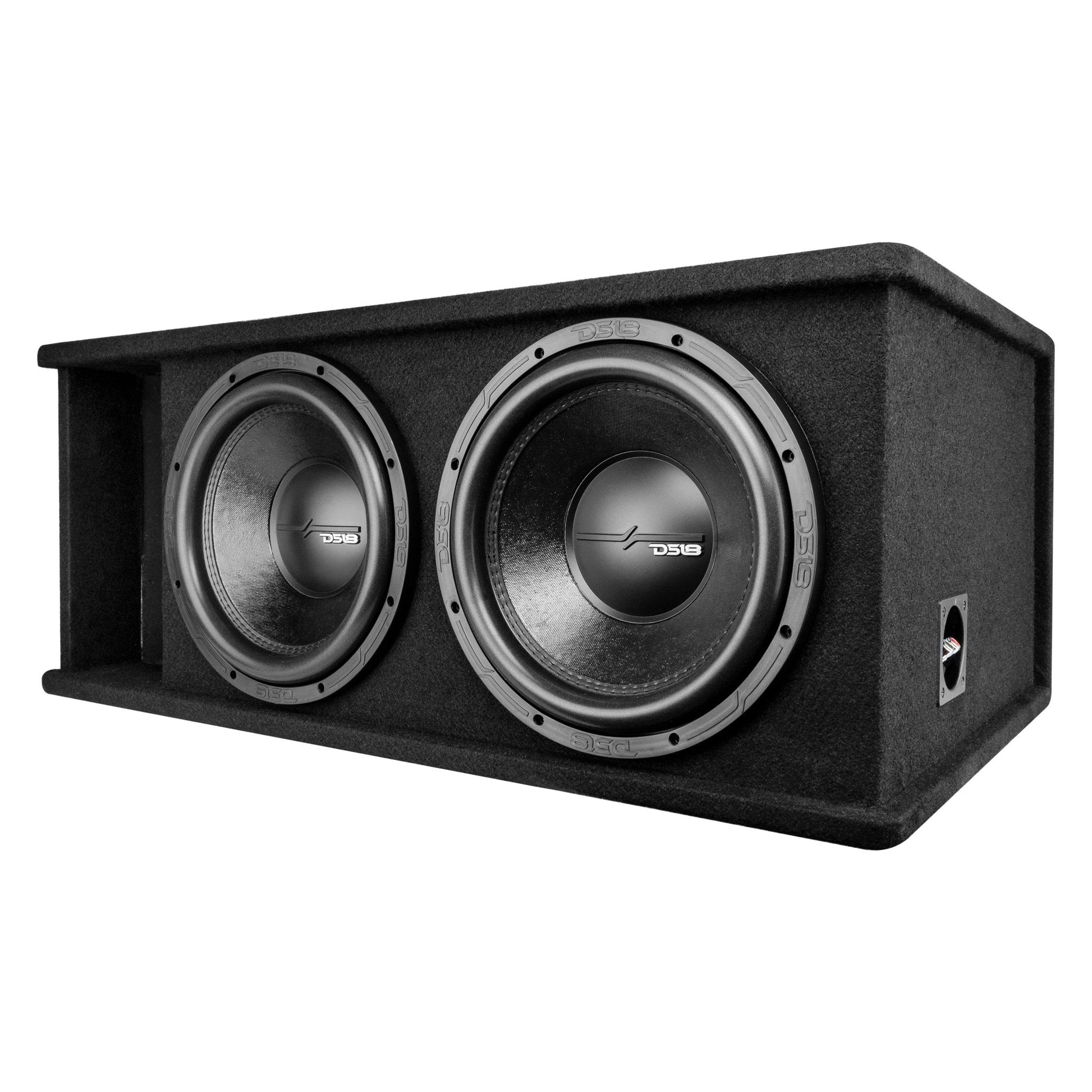

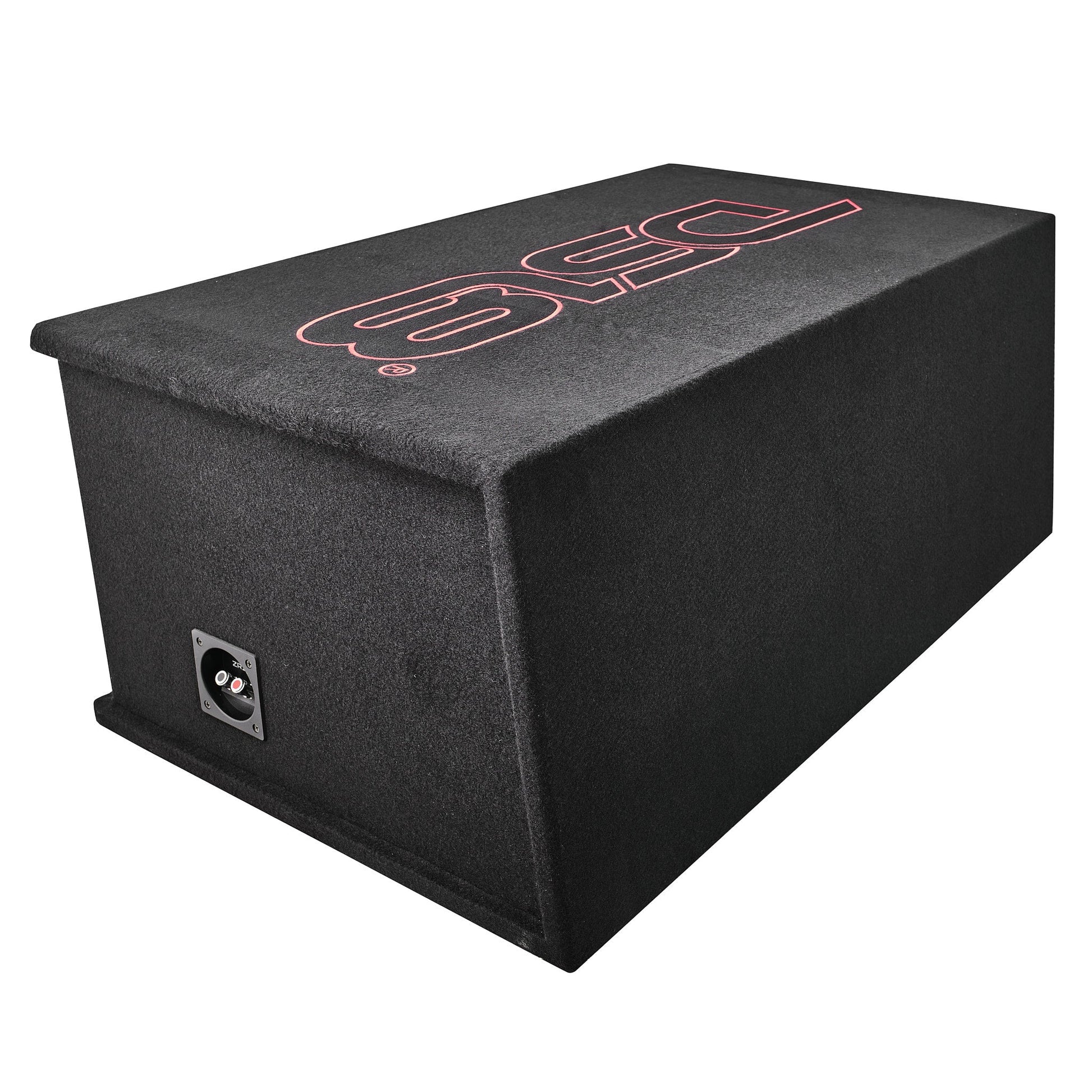

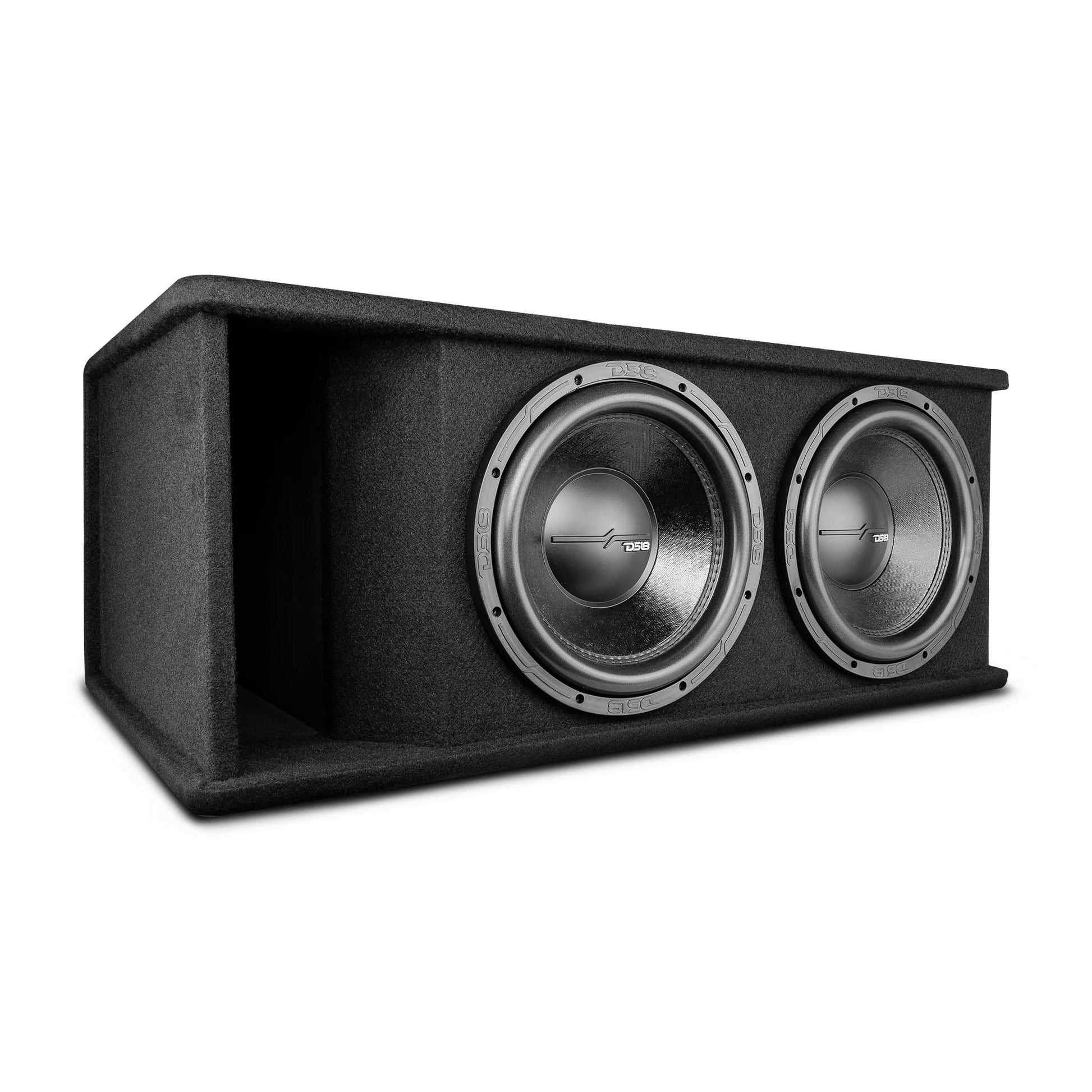

The DS18 ZR212LD is a 12" loaded subwoofer enclosure from DS18 rated at 1600W RMS. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
DS18 ZR212LD Bass Package 2 x ZR12.2 12" Subwoofers In a Ported Box 3200 Watts
The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
Highlights
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
- Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
Key Features
ZR12.4D
- Two 12 inch DVC subwoofer
- Max Power Handling: 1600 watts each
- RMS Power Handling: 800 watts each
- Frequency Response: 25hz-200hz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: Copper
- Impedance: Dual Voice Coil 4-Ohm
- Sensitivity: 82 DB
- Magnet Weight: 100 Oz
- Magnet Material: Ferrite
- Mounting Depth: 6.6"
- Xmax: 25mm one way
Box:
- Box Material: 3/4 inch MDF
- Box Covering: Carpet with DS18 logo
- Box Tuning: 29hz
- Box Type: Side Ported
- Internal Volume: 5.3 ft3Demensions:
- Height: 14.48"
- Width: 36.22"
- Depth 1: 19.68"
- Depth 2: 21.65"
Great For:
- Car Audio
- Pro Audio
- Home Solutions
- Hi-Fi Installation
- DIY Projects
Technical Details
| SPECIFICATIONS / ESPECIFICACIONES: | |
| Speaker Type/Size / Tipo/Tamaño de Altavoz | Dual 12" / 316mm |
| Total Impedance / Impedancia Total | 1 Ohm |
| Total RMS Power Handling / Manejo de Potencia RMS total.. | 1600W |
| Total MAX Power Handling / Manejo de Potencia MAX total | 3200W |
| Sensitivity (1w/1m) / Sensibilidad (1w/1m) | 86db |
| Frequency Response / Respuesta de Frecuencia | 20Hz-200Hz |
| Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado | 70Hz |
| MOTOR / MOTOR: | |
| Voice Coil Diameter / Diámetro de la Bobina de Voz.... | 2.5"/61.6mm |
| Voice Coil Former Material / Material Interior de Bobina Móvil | Aluminum/Aluminio |
| Winding Material / Material de Bobinado . | Copper / Cobre |
| Cone Material / Material del Cono | Non-Pressed Paper / Papel no Prensado |
| Dustcap Material / Material de la Tapa Anti-polvo. | PPI |
| Surround Material / Material de la Suspension | Foam / Espuma |
| Basket Material / Material de la Canasta | Steel / Acero |
| Magnet Material / Material del Imán | Ferrite / Ferrita |
| Magnet Weight / Peso del Imán | 100 oz |

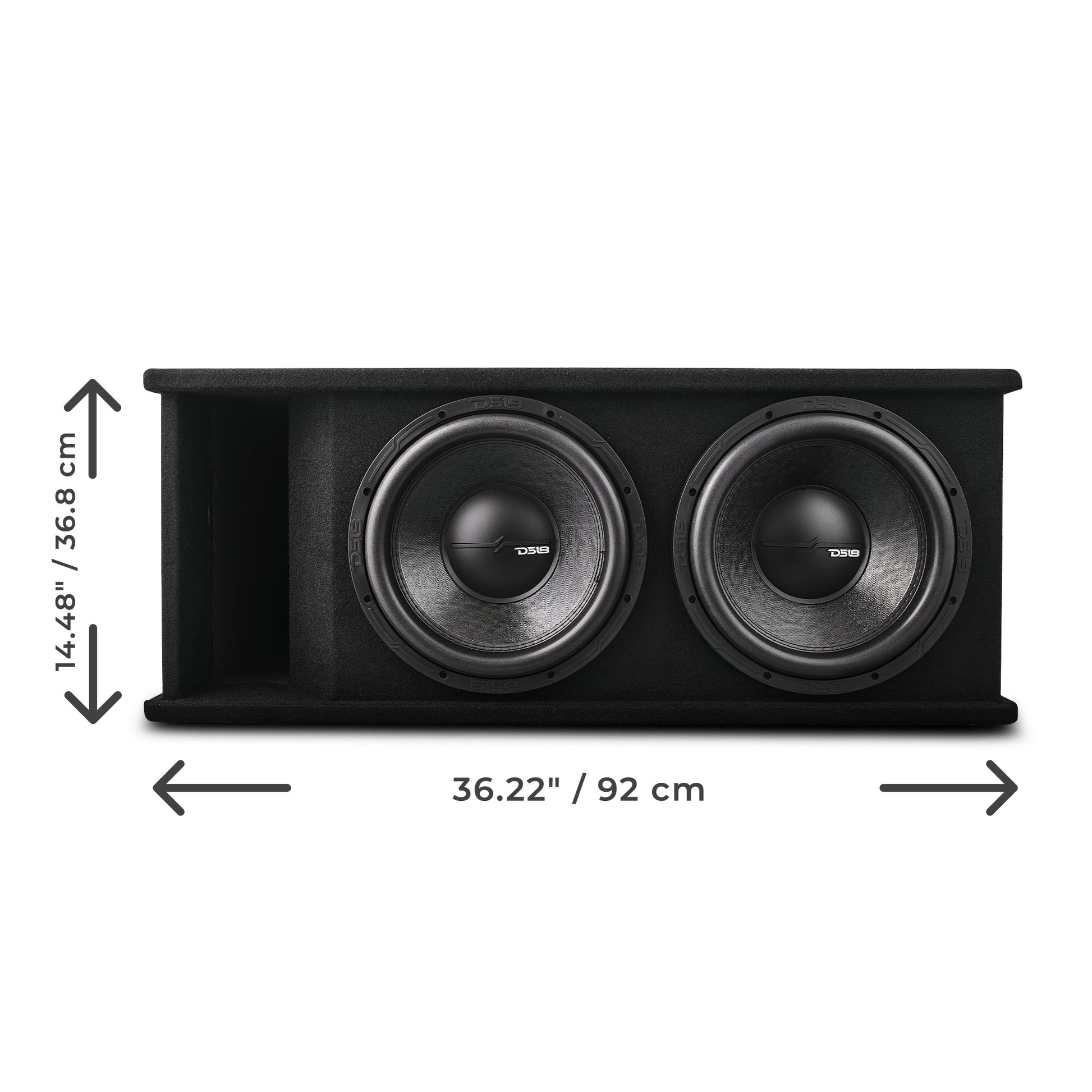

| MEASUREMENTS / MEDIDAS: | |
| Height / Altura | 14.48" / 368 cm |
| Width / Ancho | 36.22" / 920 cm |
| Depth 1 / Profundidad 1 | 19.68" / 500 mm |
| Depth 2 / Profundidad 2 | 21.65" / 550 mm |
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.
- Seal the terminal cup and any gaps so the box performs the way it was designed.
