12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms
12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms
Couldn't load pickup availability
12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms
Sold by AudioSellerz.com
The DS18 ZR112LD is a 12" loaded subwoofer enclosure from DS18 rated at 800W RMS. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
Sold by AudioSellerz.com

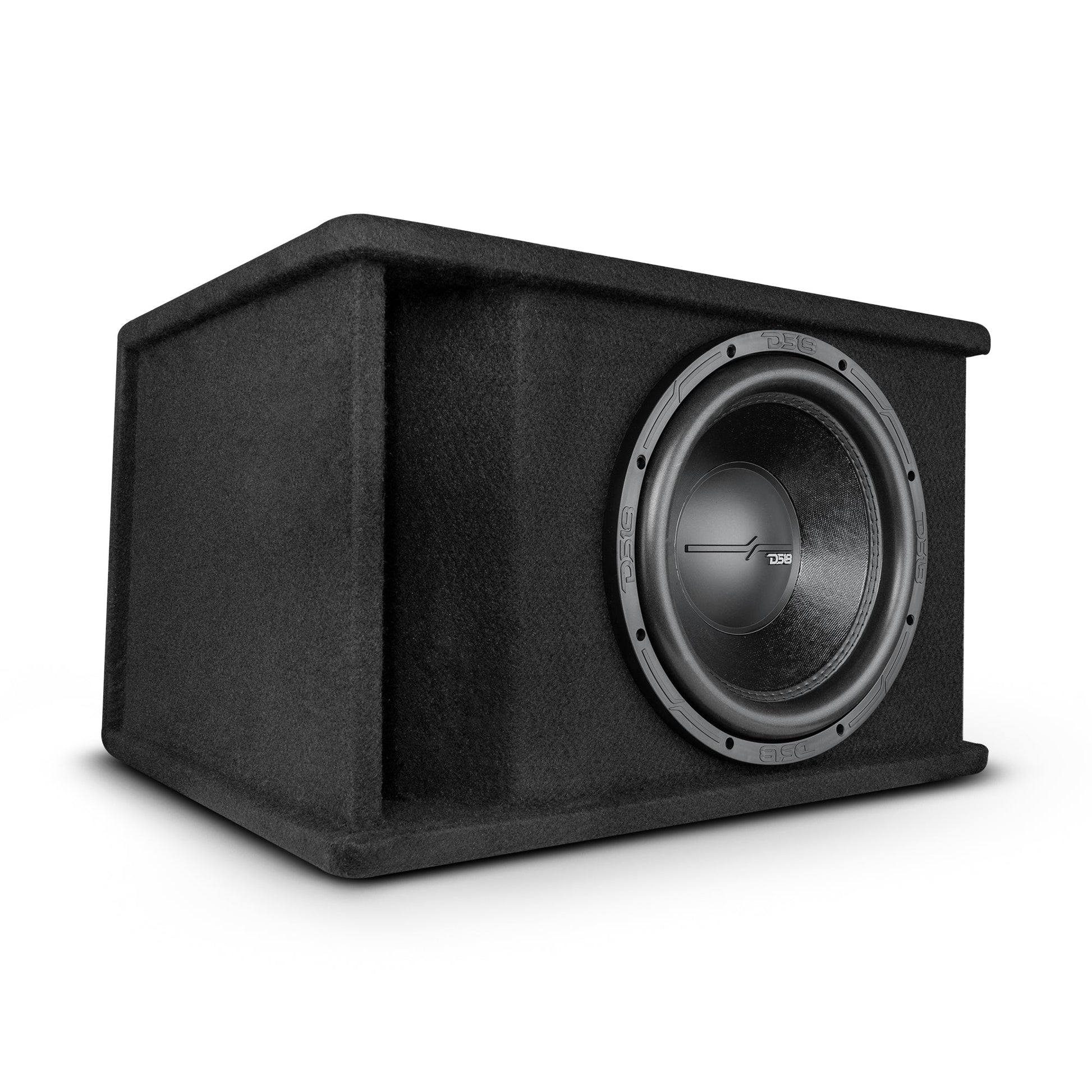

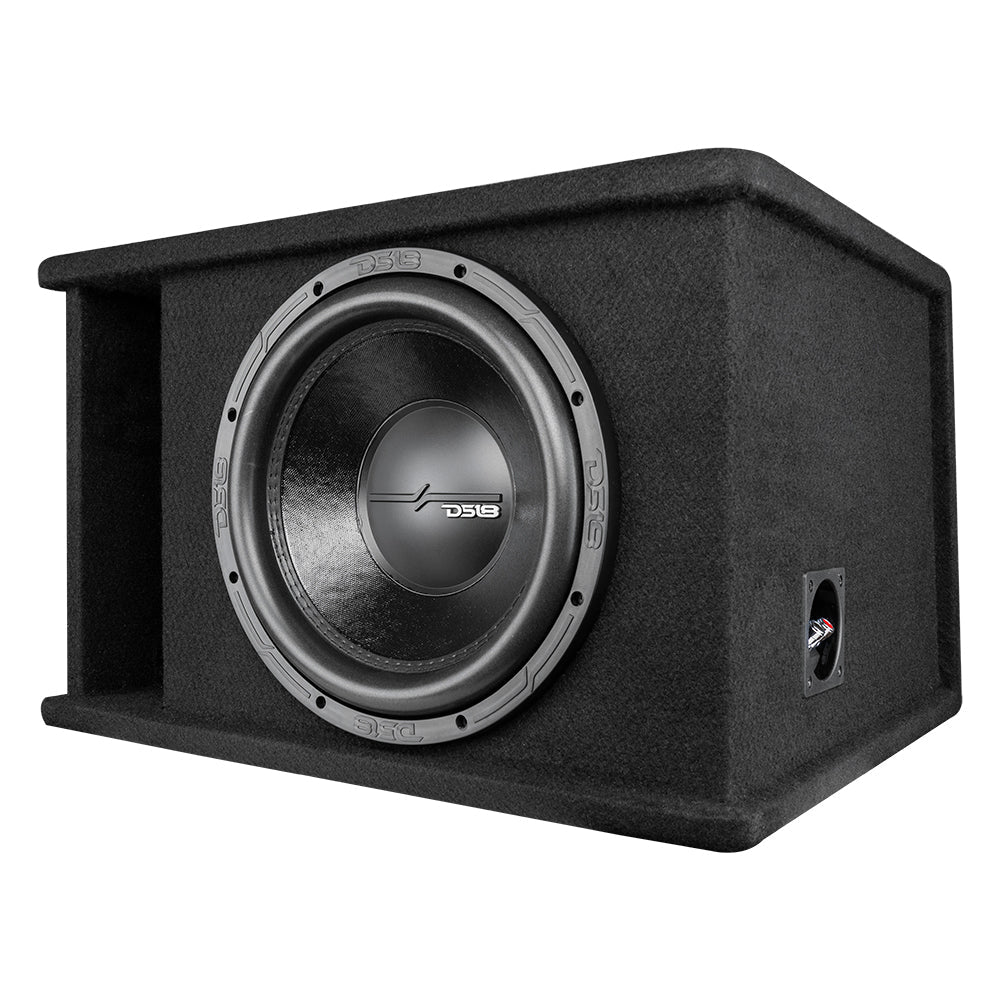

The DS18 ZR112LD is a complete 12" bass package with one DS18 ZR12.2D subwoofer already installed in a ported 3/4" MDF enclosure tuned to 29Hz. It handles 800 watts RMS at a 1 ohm final load, so all you need to add is an amplifier, wiring and a spot to put it.
It is built for customers who want low, hard-hitting bass from a single 12" without designing or building a box. The 29Hz tune and 2.8 cubic feet of internal volume give it real low-end extension for trunk and cargo-area installs.
Browse more DS18 products, compare our 12" subwoofer boxes or view all subwoofer boxes and enclosures.
A Matched Sub and Box That Arrive Ready to Wire

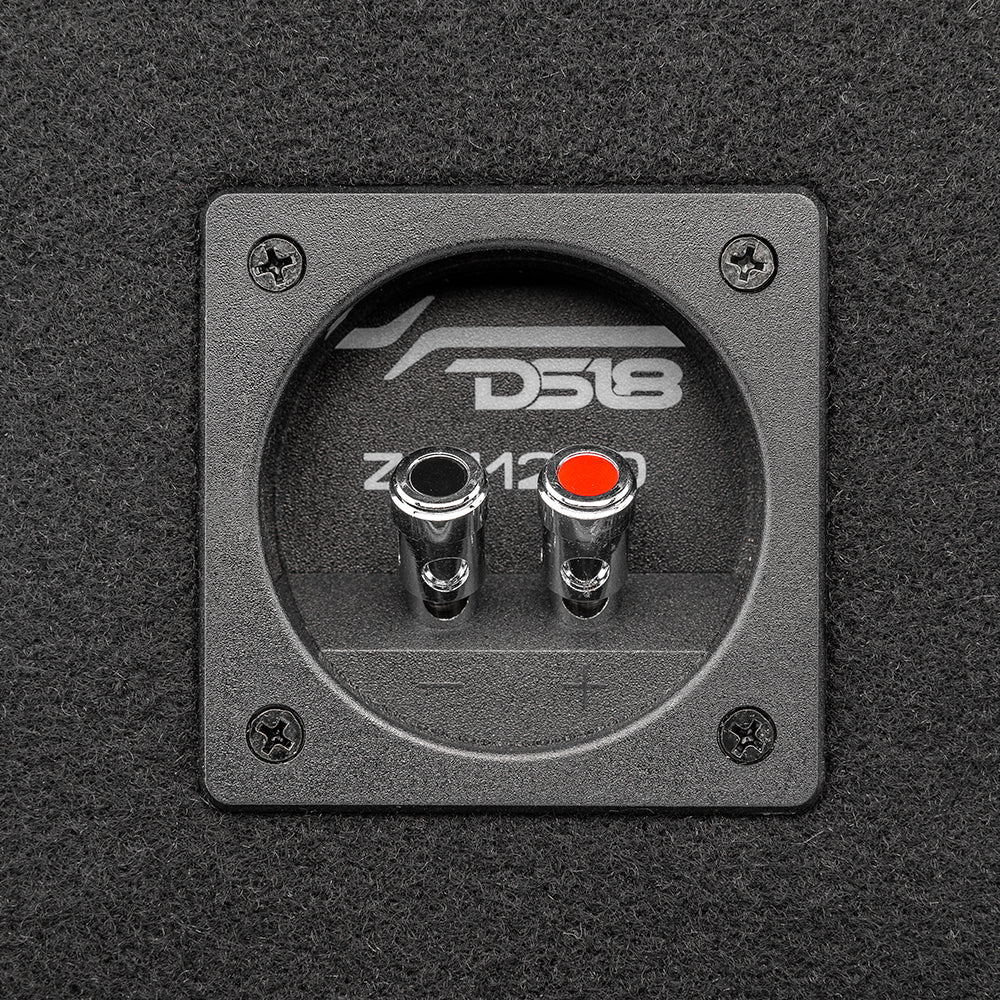

The ZR12.2D is a dual 2 ohm voice coil subwoofer. DS18 wires the two coils in parallel for a 1 ohm final load, so the enclosure connects to one 1 ohm stable amplifier channel.

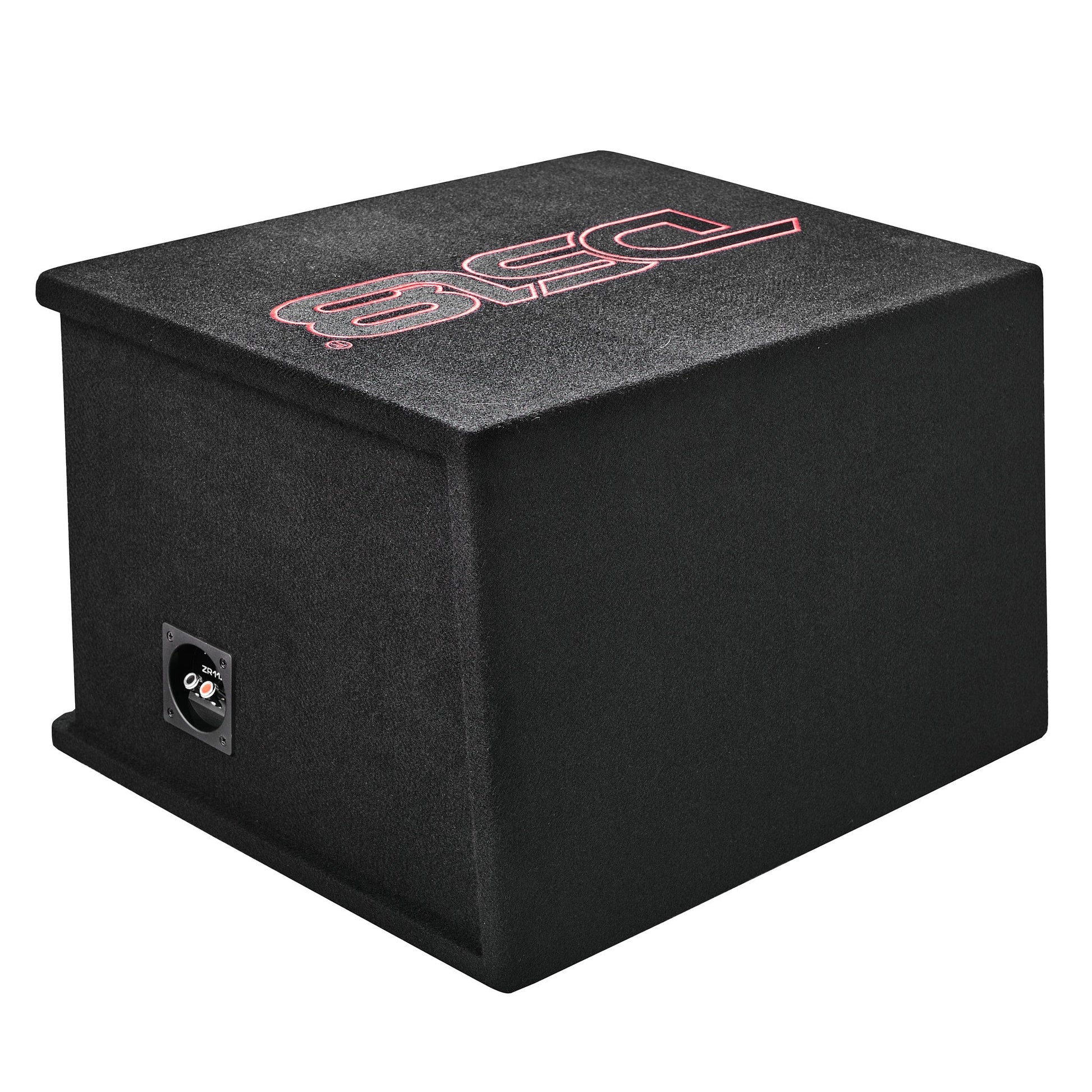

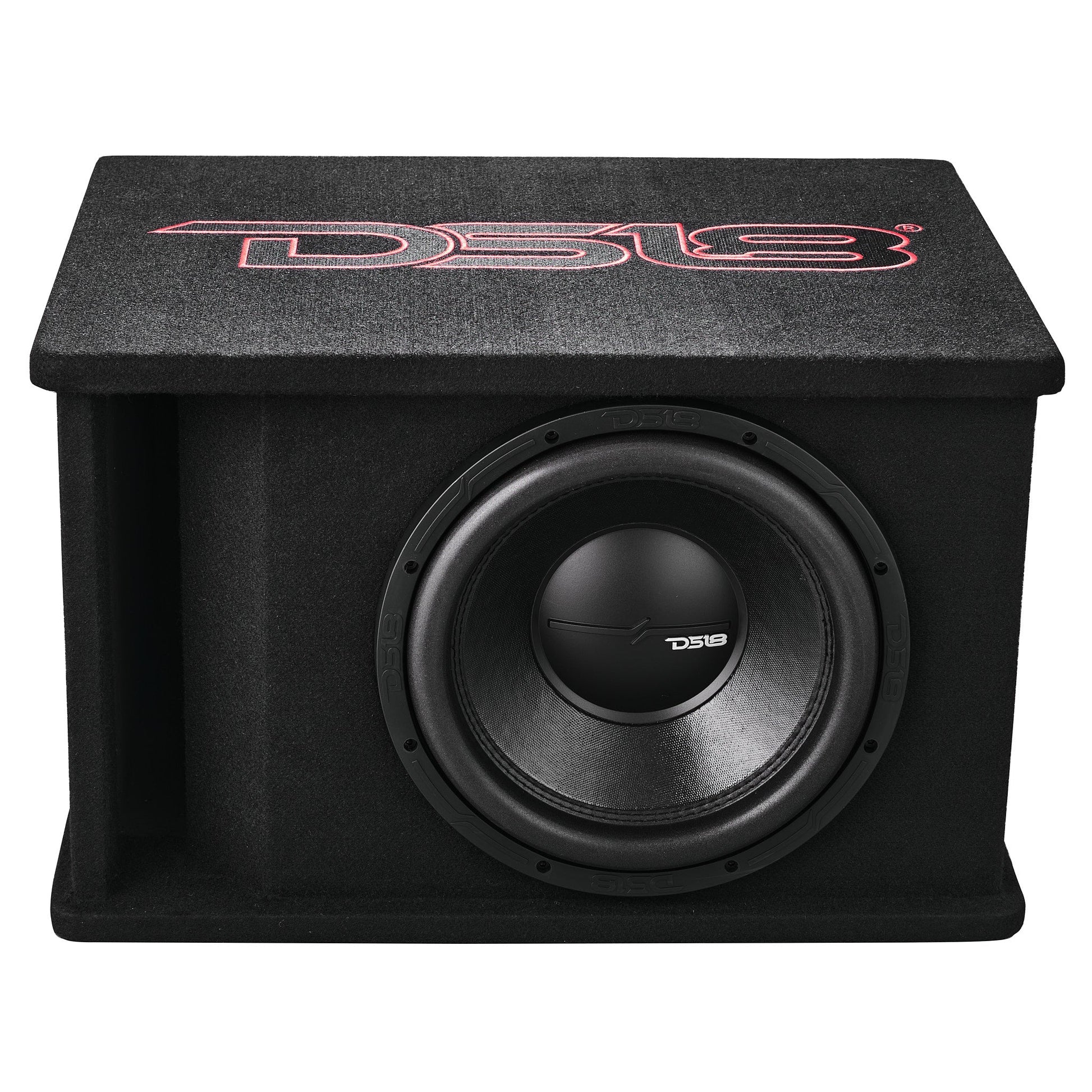

The box is built from 3/4" MDF with 2.8 cubic feet of internal volume, a 29Hz port tune and a -3dB point of 24Hz. It is finished in black carpet with a red stitched DS18 logo.
ZR112LD Specifications
Package
- Subwoofer: one DS18 ZR12.2D 12" (316mm)
- Final impedance: 1 ohm
- RMS power handling: 800 watts
- Max power handling: 1600 watts
- Sensitivity (1W/1m): 84dB
- Frequency response: 20Hz to 200Hz
- Recommended low-pass crossover: 70Hz
Subwoofer Motor and Cone
- Voice coil diameter: 2.5" (61.6mm)
- Voice coil former: aluminum
- Winding: copper
- Cone: non-pressed paper
- Dust cap: PPI
- Surround: foam
- Basket: steel
- Magnet: 100 oz ferrite
Enclosure
- Type: ported
- Internal volume: 2.8 cubic feet (79.3L)
- Port tuning: 29Hz
- -3dB point: 24Hz
- Material: 3/4" (19mm) MDF
- Finish: black carpet with red stitched logo

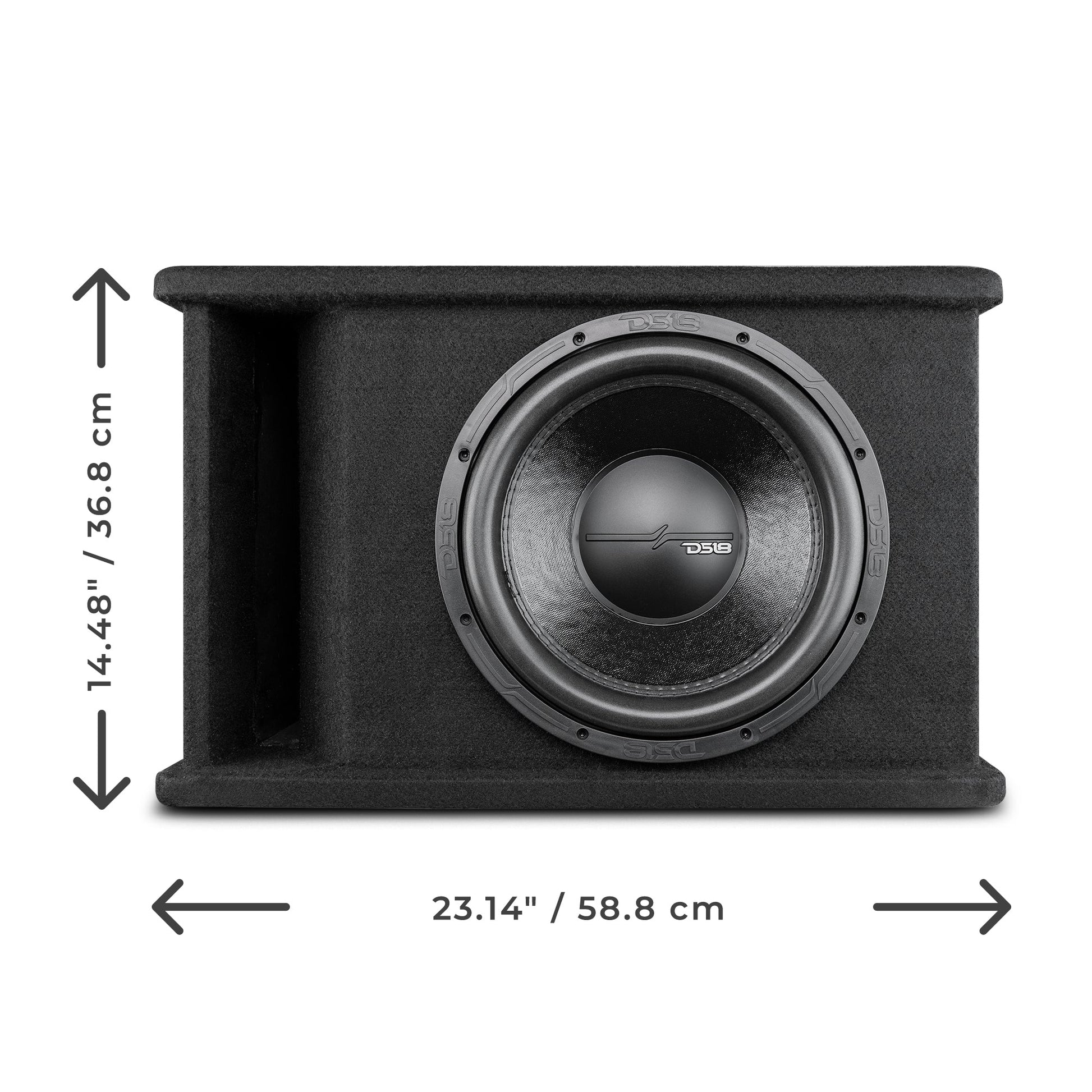

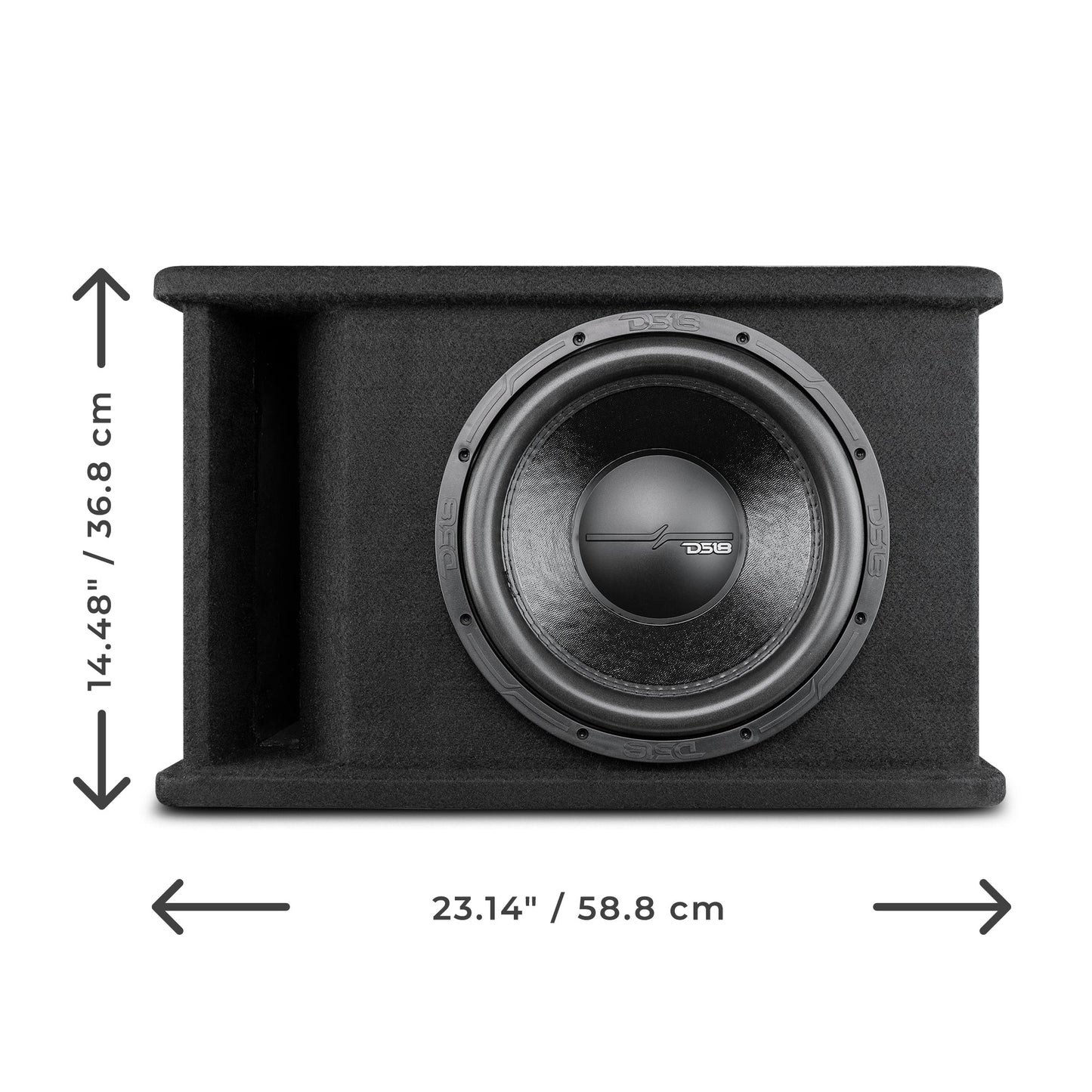

Dimensions
- Height: 14.48"
- Width: 23.14"
- Depth: 17.71" / 19.68"
Measure your trunk or cargo area before ordering and leave open space around the port so air can move freely.
Powering the ZR112LD
DS18 recommends a 1000 watt RMS amplifier such as the DS18 ZR1000.1D 1-channel amplifier for this box. Whatever amp you choose, it has to be stable at 1 ohm, and the gain needs to be set so the sub is never pushed past what it can handle.
If you want everything in one order, the DS18 ZR112LD-PKG bass package includes this enclosure, the ZR1000.1D and an AMPKIT4 4 gauge wiring kit. You can also compare more monoblock amplifiers and amp wiring kits.
A 1000 watt RMS system pulls real current. Before you add it, make sure the battery, alternator and charging wires can keep up. Our Big 3 upgrade guide covers where to start, and we carry Big 3 kits if your vehicle needs one.
Gain and Crossover Setup
Start with the low-pass crossover around 70Hz, which is DS18's recommended setting for this box, and adjust by ear from there. Set the amplifier gain with a test tone to match your head unit's output. Gain is not a volume knob, and setting it too high is the quickest way to clip the signal and damage the sub.
Our guide on how to set amp gain for subs, mids and highs walks through it step by step.
Who Should Choose the ZR112LD?
The ZR112LD makes sense if you want a single 12" setup with low tuning for a daily driver, and you would rather install a matched sub and box than build your own. Not sure ported is right for your vehicle? Read our sealed vs ported guide before you order.
Connect With Audio Sellerz
Follow Audio Sellerz on Facebook, Instagram, TikTok and YouTube.
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.
- Seal the terminal cup and any gaps so the box performs the way it was designed.
