DS18
DS18 Good Bass Package
DS18 Good Bass Package
Couldn't load pickup availability
DS18 Good Bass Package
Sold by AudioSellerz.com
This is an audio package from DS18. Buying a matched package takes the guesswork out of pairing parts.
DS18 Product Details

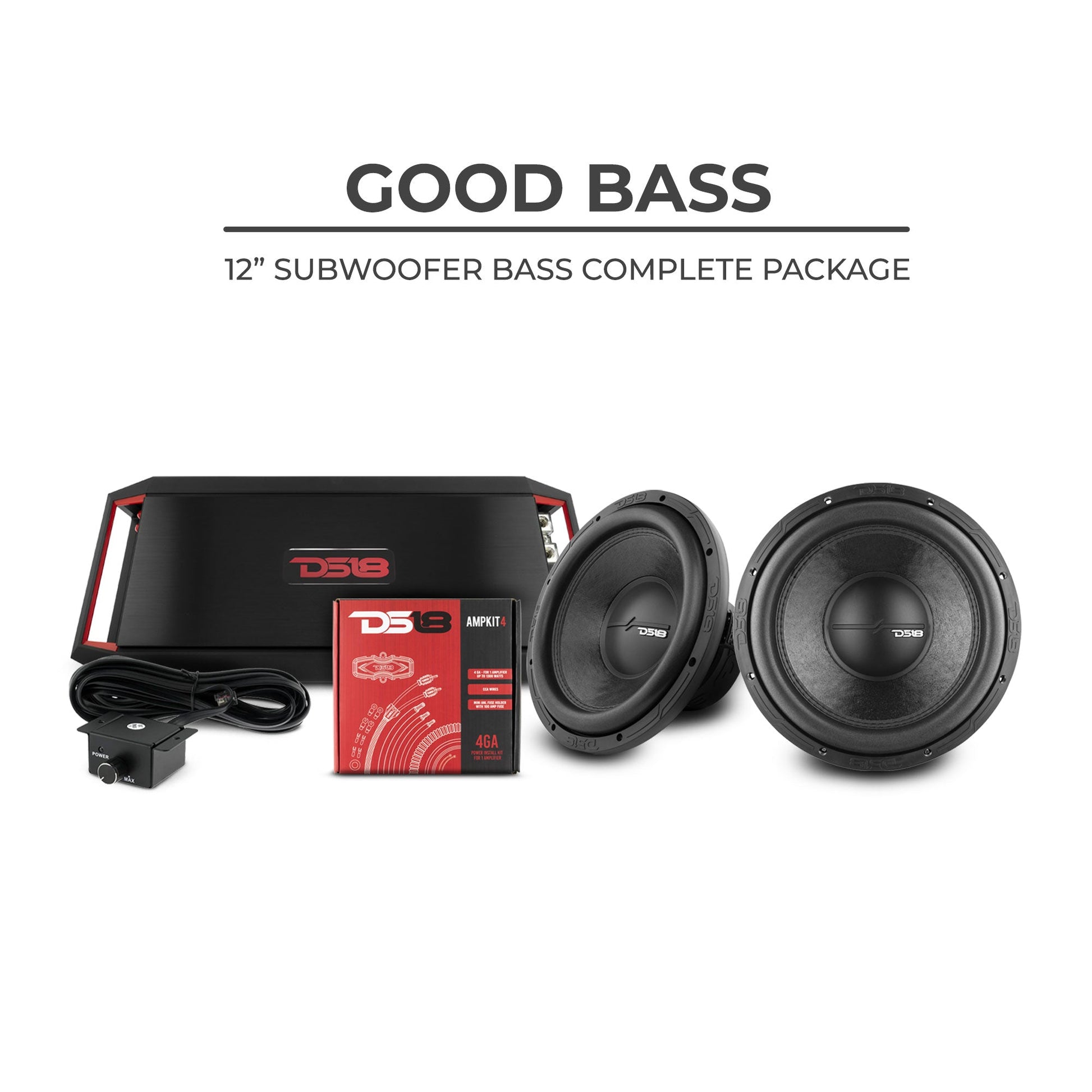

Package Includes:

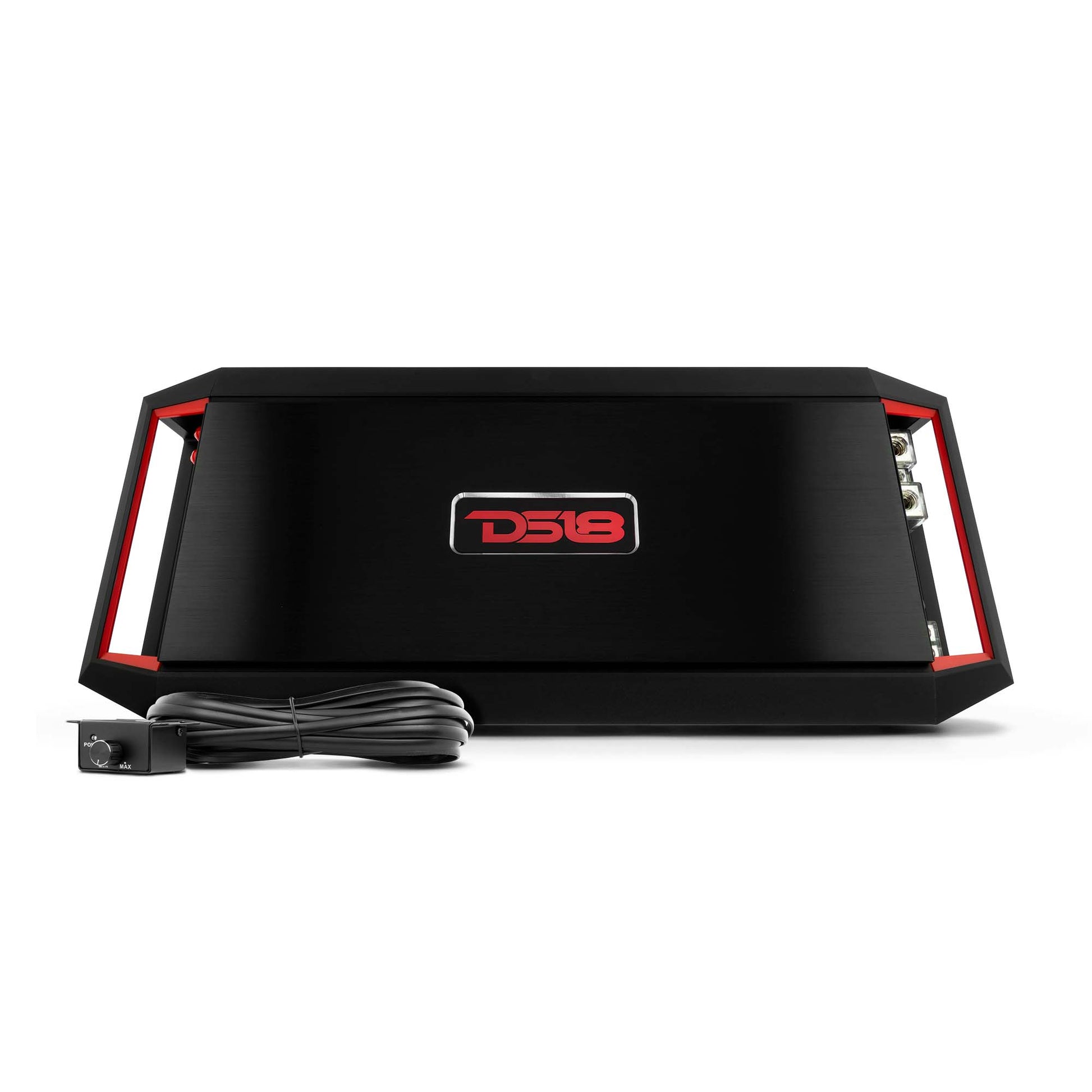

• (1) GEN-X4500.1D - Class D 1-Channel Monoblock Amplifier 4500 Watts

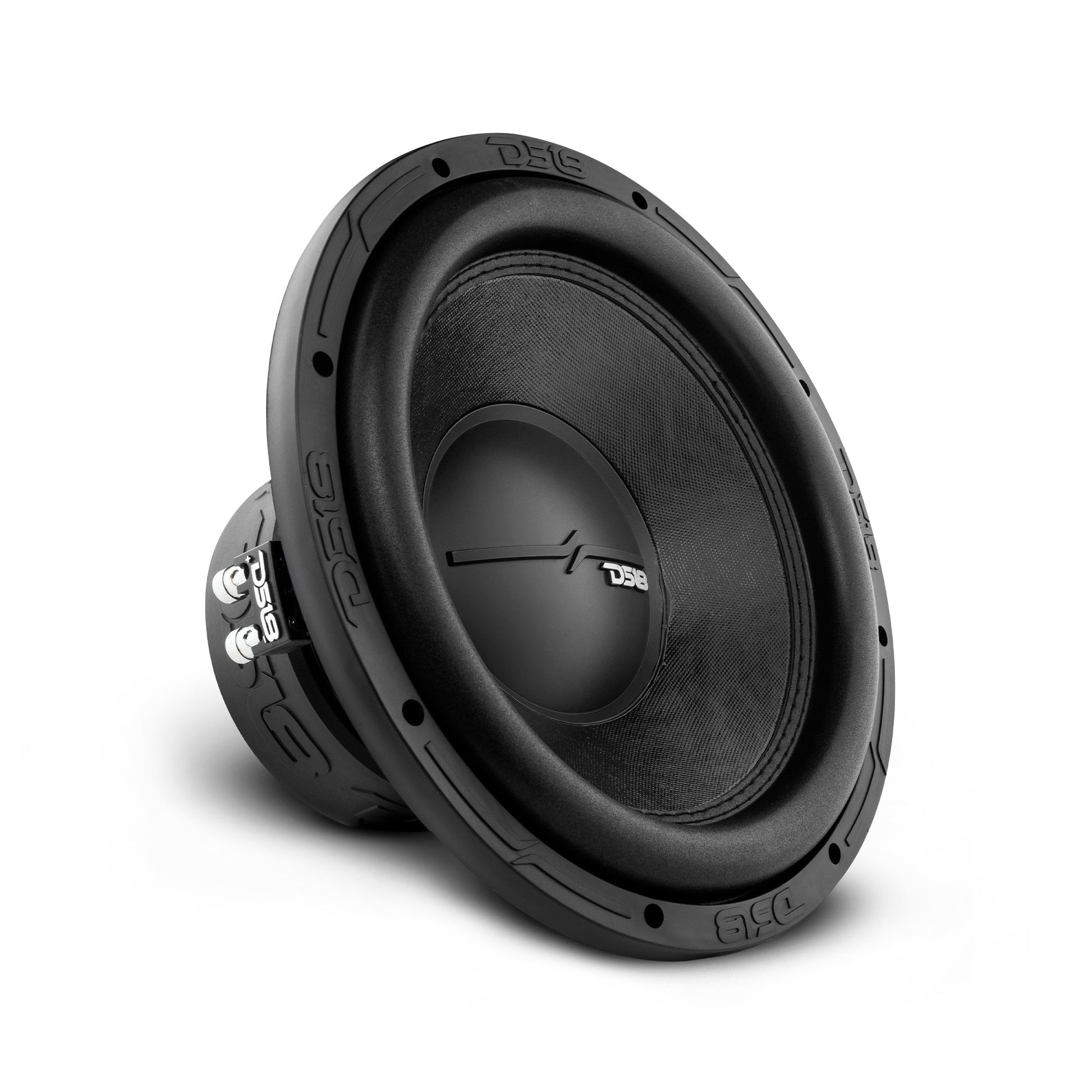

• (2) ZR12.4D - 12" Subwoofer with 1600W Watts DVC 4-Ohm

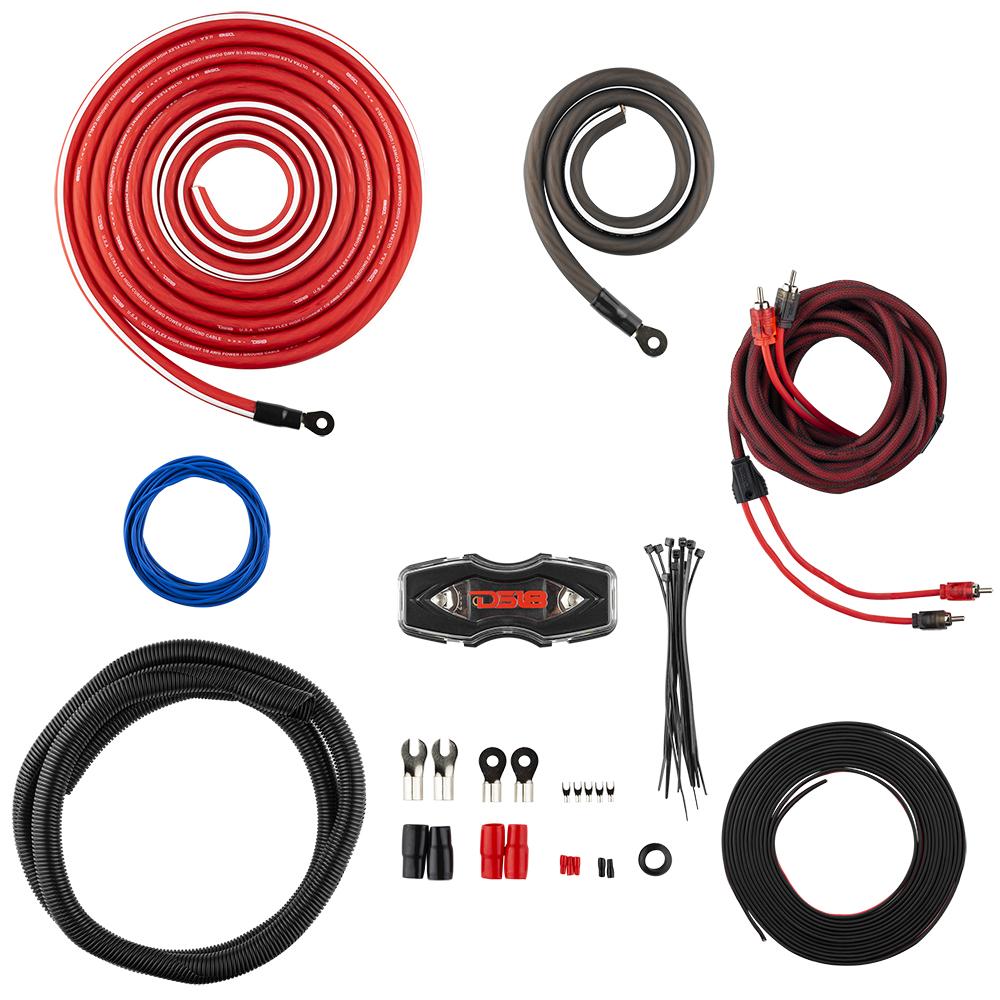

• (1) AMPKIT4 - 4-GA Installation Kit For Car
A great bass package ready to hit the street and pump out some hard-hitting bass throughout the air and really ease the bass monster inside you. This package will satisfy any entry level bass head will great sounding bass and amplifier especially picked by out professionals to not only power your subs to their full potential but leave room for longevity and reliability as well. We also include a high quality CCA 4ga installation kit to help you complete you installation easily.
Highlights
- Two hard hitting ZR12.4D subwoofers to bring massive ground shaking bass into your life and really put the thump in your trunk! These sub woofers are made to satisfy all your bass cravings!
- High powered amplifier to push the 12s to their max with great efficiency and longevity bringing them to their maximum potential all while retaining longevity and reliability.
- High Quality CCA installation kit made of CCA copper with a very high conductivity so you may power your amp to its maximum potential. Includes power, ground, remote, RCA, and fusing for the installation.
Technical Details
ZR12.4D |
|
| Specifications | |
| Nominal Diameter | 12" / 305mm |
| Nominal Impedance | 4 + 4 ohms |
| RMS Power Handing | 750W |
| MAX Power Handing | 1500W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 25Hz - 200Hz |
| Recommended Lo Pass Crossover | 90 Hz |
| Motor | |
| Voice Coil Diameter | 2.5” / 61.6 mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 100 oz |
| Displacement Volume | 0.07 ft3 |
| Measurements | |
| Overall Diameter | 12.44” / 316mm |
| Overall Depth | 7.7”/195.56mm |
| Front Mount Baffle Cutout | 11”/279.43mm |
| Mounting Depth | 6.6”/168mm |
| Overall Depth | 6.1" / 155mm |
|
|
| Power | |
| Total Watts (Peak) | 4500W |
| RMS Power @ 4 ohm | 1 x 500W |
| RMS Power @ 2 ohm | 1 x 900W |
| RMS Power @ 1 ohm | 1 x 1500W |
| Min. Speaker Impedance | 1 Ohm |
| Audio | |
| Frequency Response | 10-500Hz |
| Signal to Noise Ratio | 98 dB |
| Total Harmonic Distortion (THD) | 0.0008 |
| Low Level Input Range | 0.2-6V |
| High Level Input | No |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 40-180Hz |
| Bass Boost Range | 0~12dB |
| Bass Boost Frequency | 30~80Hz |
| Infrasonic Filter | 17~50Hz |
| Phase Selector | No |
| Input Impedance | 10k |
| Input Sensitivity | 0.2V - +6V |
| Channel separation | 50 db |
| Remote Gain Control | 0.2 - 6V |
| Features | |
| Amplifier Class | Digital |
| Amplifier Type | MonoBlock Subwoofer |
| Led Indicator | Power / Protection |
| Power Input Terminal Size | 0Ga |
| Fuse Rating | 4x40A |
| Remote Level Control | Yes, Dash Mount |
| Cooling Fan | Yes |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Cliping Protection | No |
| Measurements | |
| Overall Lengh | 16.9” / 430 mm |
| Overall Wide | 7.48” / 190 mm |
| Overall Height | 2.16” / 55 mm |
|
|
| What's in the box? | |
| ANL fuse holder with ANL-100A | |
| 6 ft. 4-GA Loom Tube | |
| Rubber Grommet | |
| 17 ft. Red Power Cable: 21mm² OD: 10mm | |
| 3 ft. Black Ground Cable: 21mm² OD:10mm | |
| 17 ft. Red/Black Twisted RCA Cable | |
| 17 ft. Remote Cable 20 x 0.15mm | |
| 17 ft. Red/Black Speaker Cable 1.31mm² x 2 wires OD 3.2 x 6.4mm |
Setup Tips From Audio Sellerz
- Check the included parts list so you know what else you need, like speaker adapters, harnesses or a signal source.
- The amplifier needs a signal. An aftermarket radio with RCA outputs, or a line output converter or DSP on the factory radio, are the usual ways to get it.
- Set the gains and crossovers before playing the system hard.
