DS18 - Best Bass Package

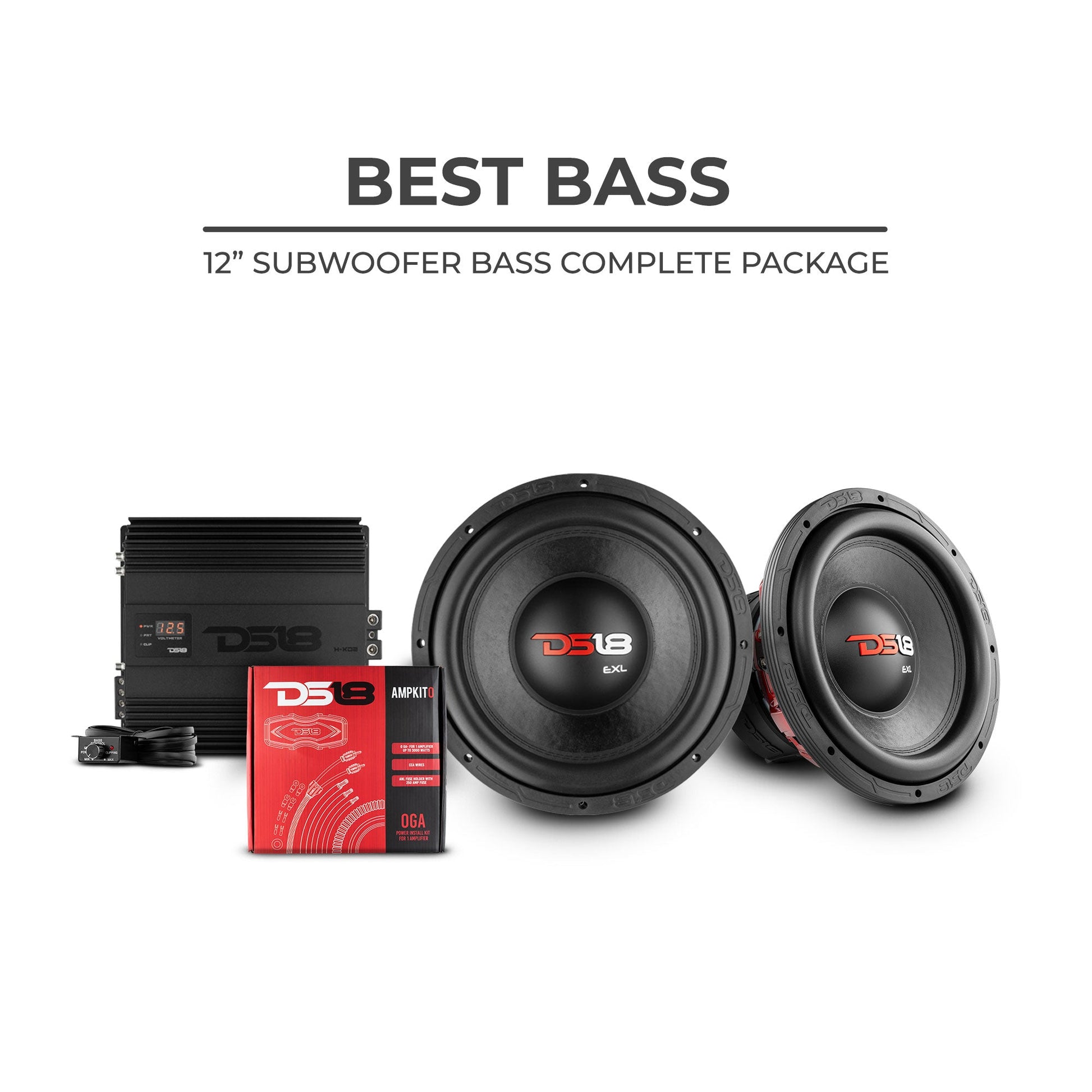

Package Includes:

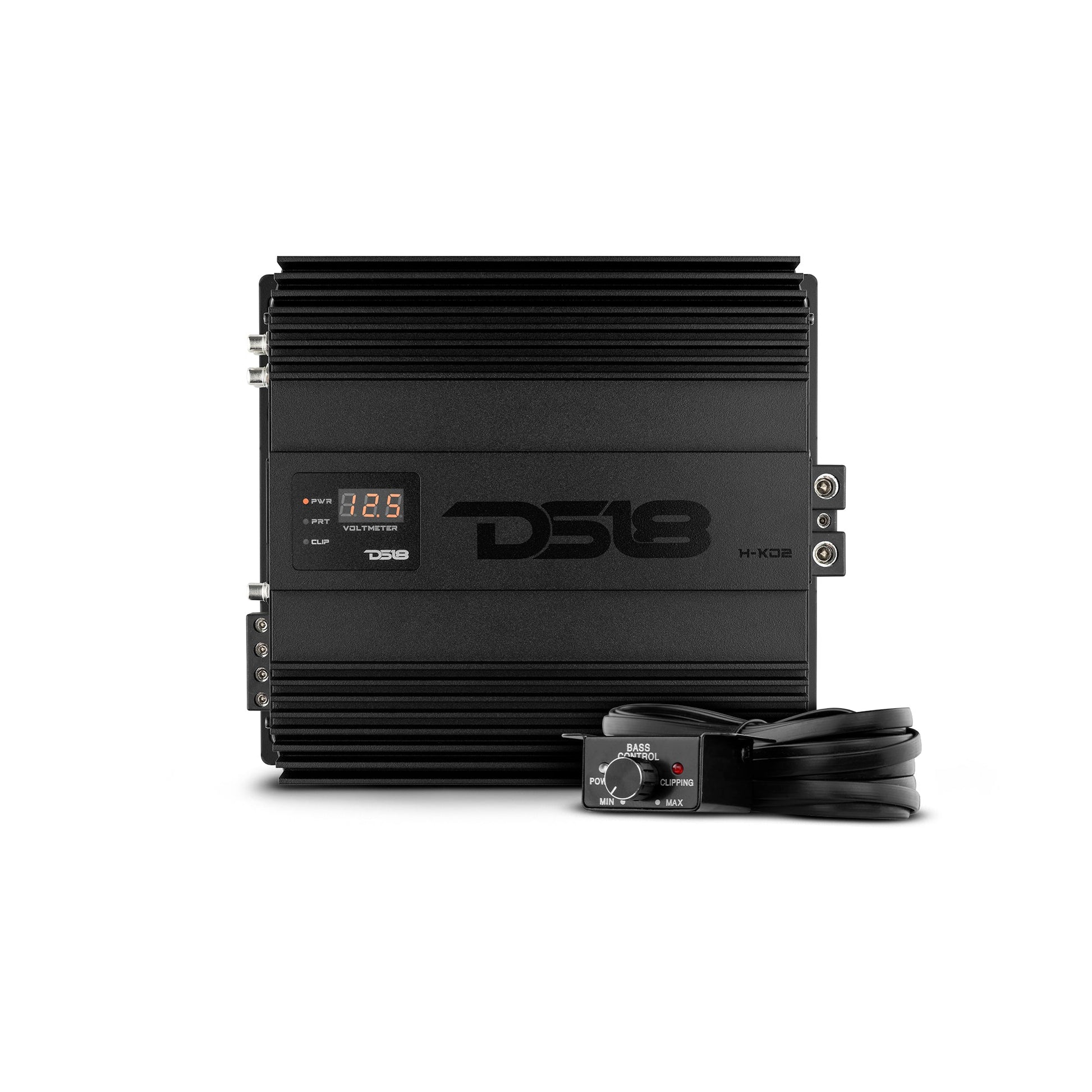

• (1) H-KO2 - KO SPL Series 1-Channel Monoblock Amplifier 2000 Watts

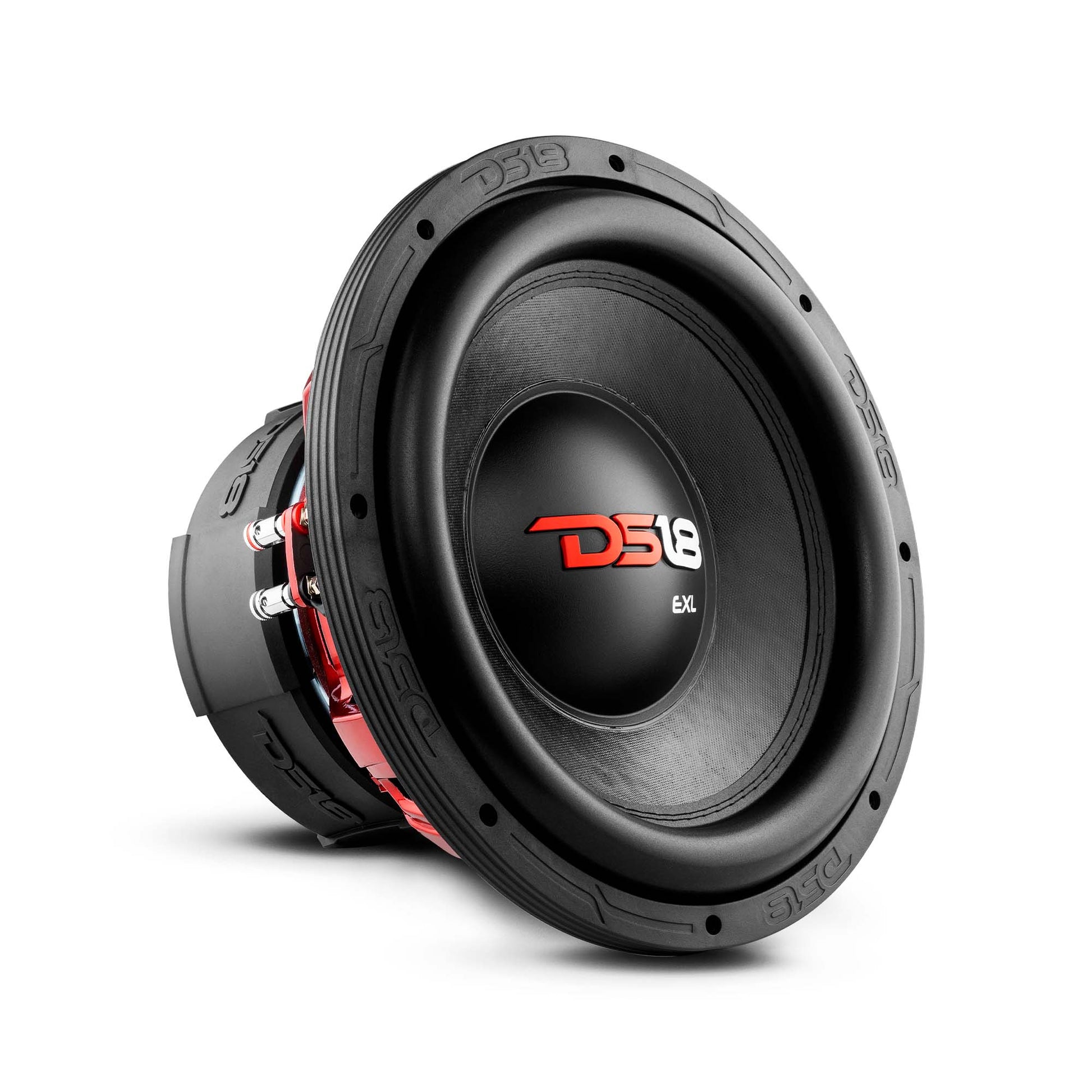

• (2) EXL-X12.4D - 12" Subwoofer 2500 Watts DVC 4-Ohms

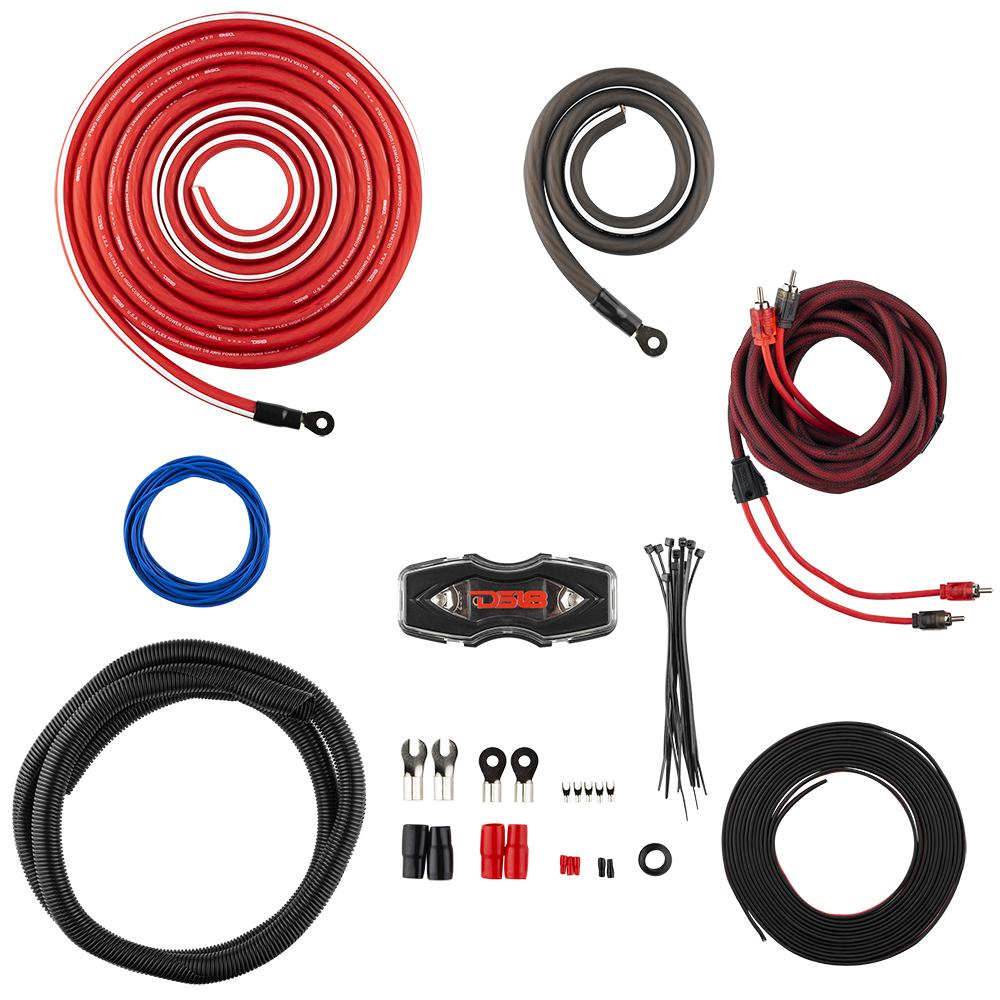

• (1) AMPKIT0 - 0-GA Installation Kit For Car
Looking to shut down other people's systems at the red light? Do you want people to hear your bass shaking the ground from blocks away? Well, DS18 has the perfect package for you! This Bass package is high powered and has the cone area to really push some deep bass throughout the vehicle. It comes with two of our EXL X-12-inch subs and the monster H-KO2 2000w RMS half bridge Korean amplifier to push them to their limits and satisfy all your bass cravings!
Highlights
- Two hard hitting EXL-X12.4D high excursion subwoofers to bring massive ground shaking bass into your life and really put the thump in your trunk!
- High powered Korean Half bridge amplifier to push the 12-inch subwoofers to their max with great efficiency and longevity by bringing them to their maximum potential all while retaining longevity and reliability.
- High current CCA installation kit made of copper for the highest conductivity offered so you may power your amp to its maximum potential.
Technical Details
EXL-X12.4D |
|
| Specifications | |
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 1250W |
| MAX Power Handling | 2500W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 30Hz-1.7KHz |
| Recommended Lo Pass Crossover | 100Hz |
| Motor | |
| Voice Coil Diameter | 2.57” / 65.2mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 2 x 105 oz |
| Displacement Volume | 3L / 0.105ft3 |
| Measurements | |
| Overall Diameter | 12.6” / 321mm |
| Overall Depth | 8.14” / 207mm |
| Front Mount Baffle Cutout | 11.1” / 282mm |
| Mounting Depth | 7” / 180mm |
| Motor Diameter | 7.72" / 196mm |
|
|
| Specifications | |
| Class | Class-D |
| RMS Power @ 4 ohm | 950W |
| RMS Power @ 2 ohm | 1500W |
| RMS Power @ 1 ohm | 2000W |
| RMS Power @ 0.5 ohm | 3600W (BURST) |
| Frequency Response | 13Hz-300Hz |
| Signal / Noise Ratio | >80 dB |
| Efficiency @ 4 ohm | 95% |
| Damping Factor | 400 |
| THD % | <0.2% |
| Low Level Input Range | 0.2-6V |
| Selectable X-OVER | Fixed LPF |
| X-OVER Filter Range | 35HZ-250Hz |
| Bass Boost Range | 0-9 dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10-50Hz |
| Phase Selector | 0-180 Degrees |
| Power Input Size | 0GA X 1 |
| Fuse Size | 180A |
|
|
| What's in the box? | |
| ANL fuse holder with ANL-250A | |
| 6 ft. 0-GA Loom Tube | |
| Rubber Grommet | |
| 17 ft. Red Power Cable: 53mm² OD: 15.80mm | |
| 3 ft. Black Ground Cable: 53mm² OD: 15.80mm | |
| 17 ft. Red/Black Twisted RCA Cable | |
| 17 ft. Remote Cable 20 x 0.15mm | |
| 17 ft. Red/Black Speaker Cable 3.31mm² x 2 Wires OD 4.5 x 9.0mm | |
