DS18 ELITE ZXI.1 1-Channel Class D Amplifier 1000 Watts RMS @ 1-Ohm
DS18 ELITE ZXI.1 1-Channel Class D Amplifier 1000 Watts RMS @ 1-Ohm
Couldn't load pickup availability
DS18 ELITE ZXI.1 1-Channel Class D Amplifier 1000 Watts RMS @ 1-Ohm
Sold by AudioSellerz.com
The DS18 ZXI.1 is a Class D monoblock amplifier from the DS18 ZXI line rated at 1000W RMS. An amplifier is what lets speakers and subs reach their real output without the distortion you get from head unit power.
DS18 Product Details
Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand.
The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and mono block amps in this line to power every aspect of your DS18 audio system
Highlights
- Elegant design that retains very high durability with incorporated high efficiency heat sync.

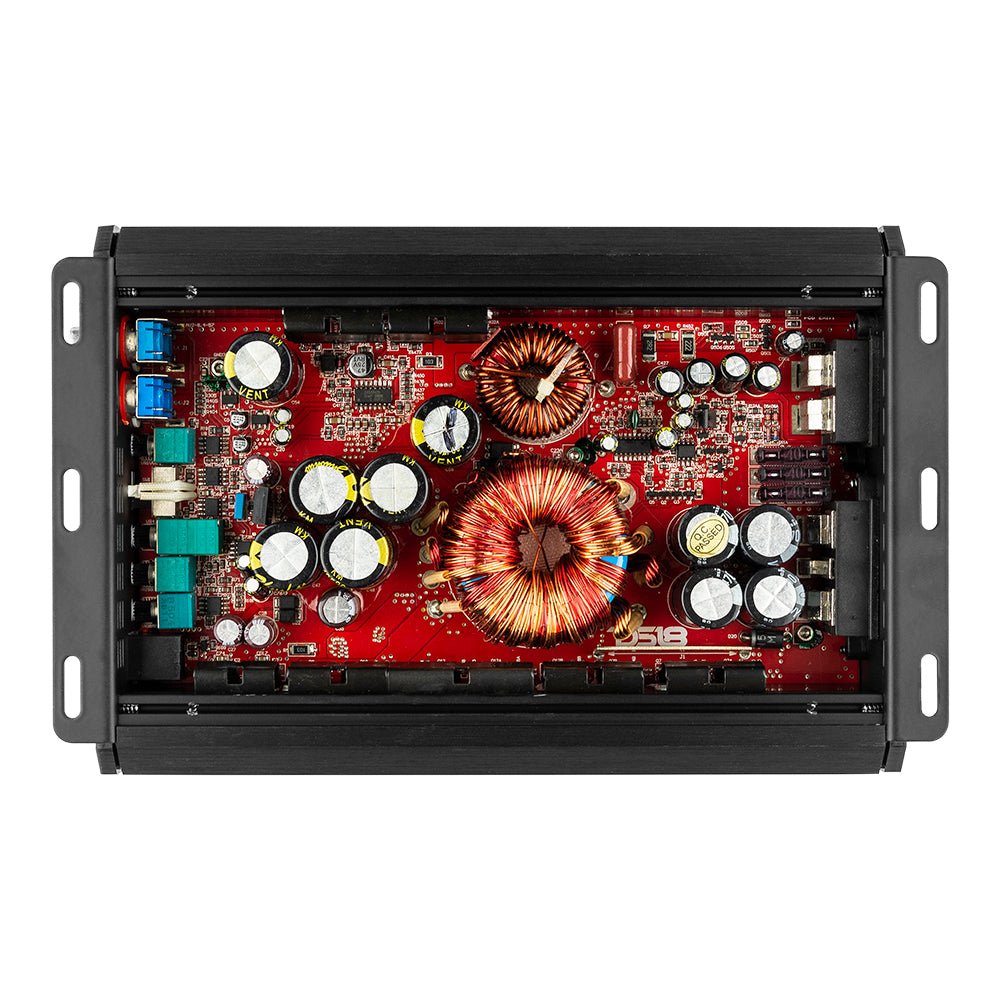

- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand.

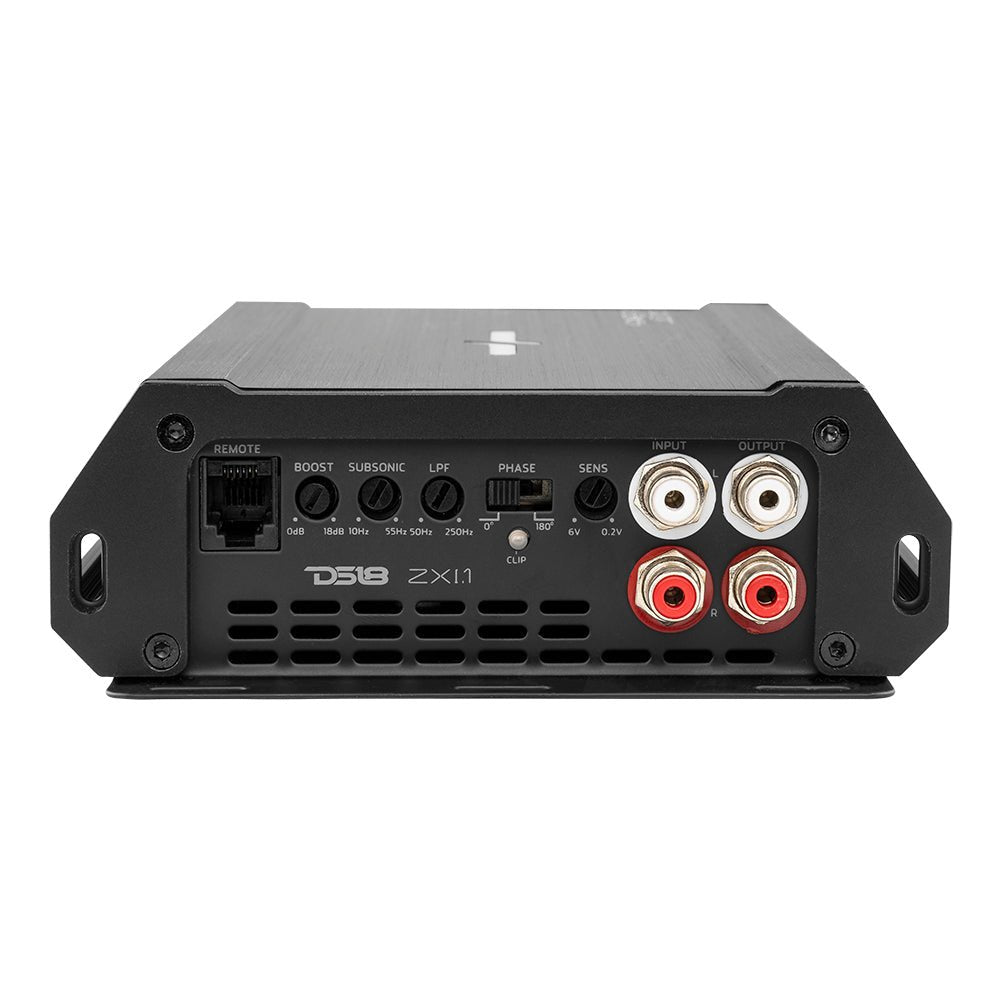

- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle.
Technical Details
| Model | ZXI.1 |
| Class | D |
| Channels | 1 |
| RMS PORWER @ 4 OHMS | 450W x 1CH |
| RMS PORWER @ 2 OHMS | 750W x 1CH |
| RMS POWER @ 1 OHM | 1000W x 1CH |
| PEAK POWER @ 4 OHMS | 680W x 1CH |
| PEAK POWER @ 2 OHMS | 1000W X1CH |
| PEAK POWER @ 1 OHM | 1500W x1CH |
| MINIMUM IMPEDANCE | 1 OHM |
| FREQUENCY RESPONSE | 20-500KHz |
| THD % | 0.10% |
| INPUT SENSITIVITY | 0.2-6V |
| SIGNAL/NOISE RATIO | >90dB |
| CROSSOVER LOW PASS | 50-250Hz |

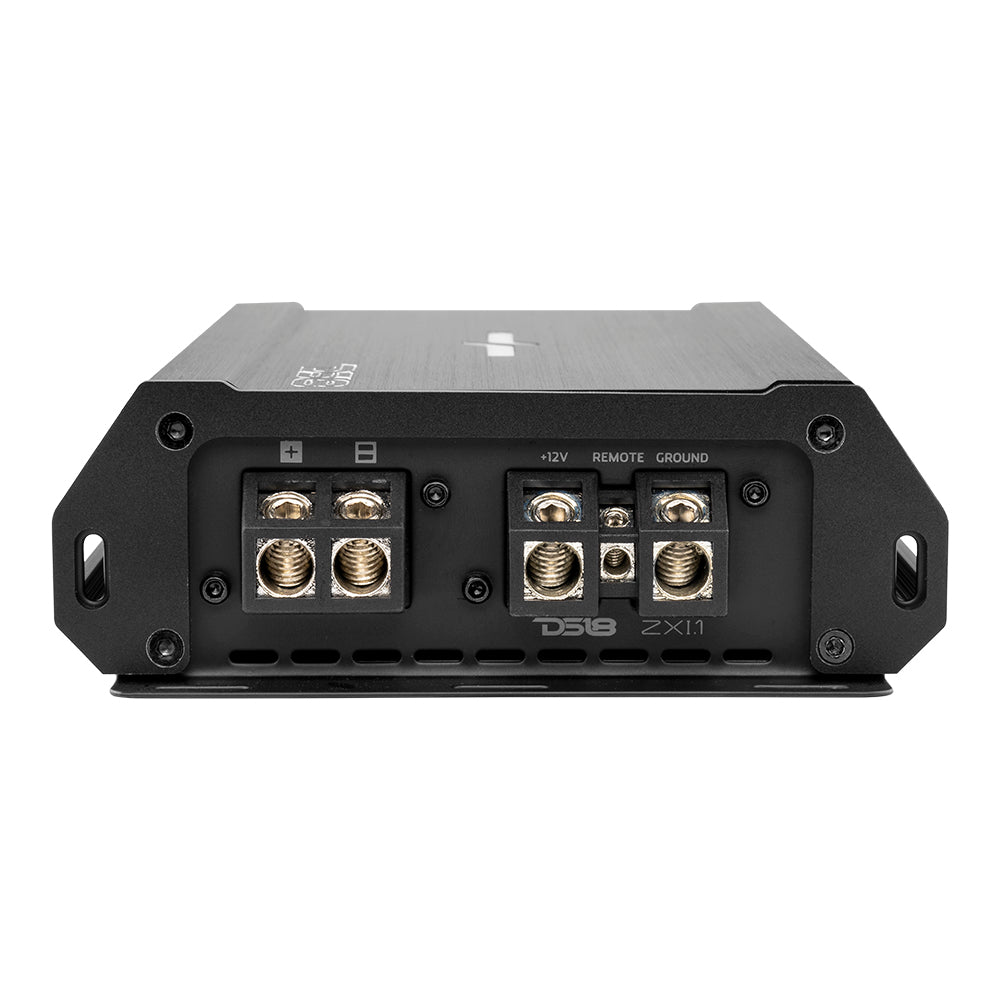

| POWER INPUT SIZE | 4GA |
| DIMENSIONS LxDxH (INCHES) | 9.1 x 5.7 x 1.9 |
Setup Tips From Audio Sellerz
- Run power and ground wire sized for the amp's current draw, and fuse the power wire as close to the battery as possible.
- Wire the subwoofers to a final impedance the amp is rated for. Going below its rated load is a common cause of failures.
- Set gains with a proper method, not by ear at full volume. That is how amps and speakers get damaged.
