DS18

ZXI 5-Channel Class D Amplifier 4 x 125 @ 4-Ohm + 1000 x 1 Watts Rms @ 1-Ohm

Name: ZXI 5-Channel Class D Amplifier 4 x 125 @ 4-Ohm + 1000 x 1 Watts Rms @ 1-Ohm
Brand: DS18
SKU: ZXI.5
Price: 719.95 USD
Availability: OutOfStock

$719.95 USD

Sale Sold out

Shipping calculated at checkout.

ZXI 5-Channel Class D Amplifier 4 x 125 @ 4-Ohm + 1000 x 1 Watts Rms @ 1-Ohm

Sold by AudioSellerz.com

SKU: ZXI.5

ZXI 5-Channel Class D Amplifier 4 x 125 @ 4-Ohm + 1000 x 1 Watts Rms @ 1-Ohm is a DS18 amplifier from DS18 built for powering subwoofers, mids, highs, full-range speakers, motorcycles, marine systems, Jeeps, and powersports audio. This description helps shoppers looking for DS18 amp, DS18 amplifier, car audio amplifier, DS18 4 channel amp, monoblock amplifier understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

Match the amplifier to the speaker or subwoofer RMS power, final ohm load, wire size, fuse protection, and vehicle electrical support.
For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

DS18 ELITE ZXI.5 Full-Range 5-Channel Class D Amplifier 125 Watts x 4 @ 4-Ohm + 1000 Watts x 1 @ 1-Ohm RMS

Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand. The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, 5 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.

Highlights

Sleek and elegant design so you get a great amount of power while not requiring too much real estate in your vehicle.

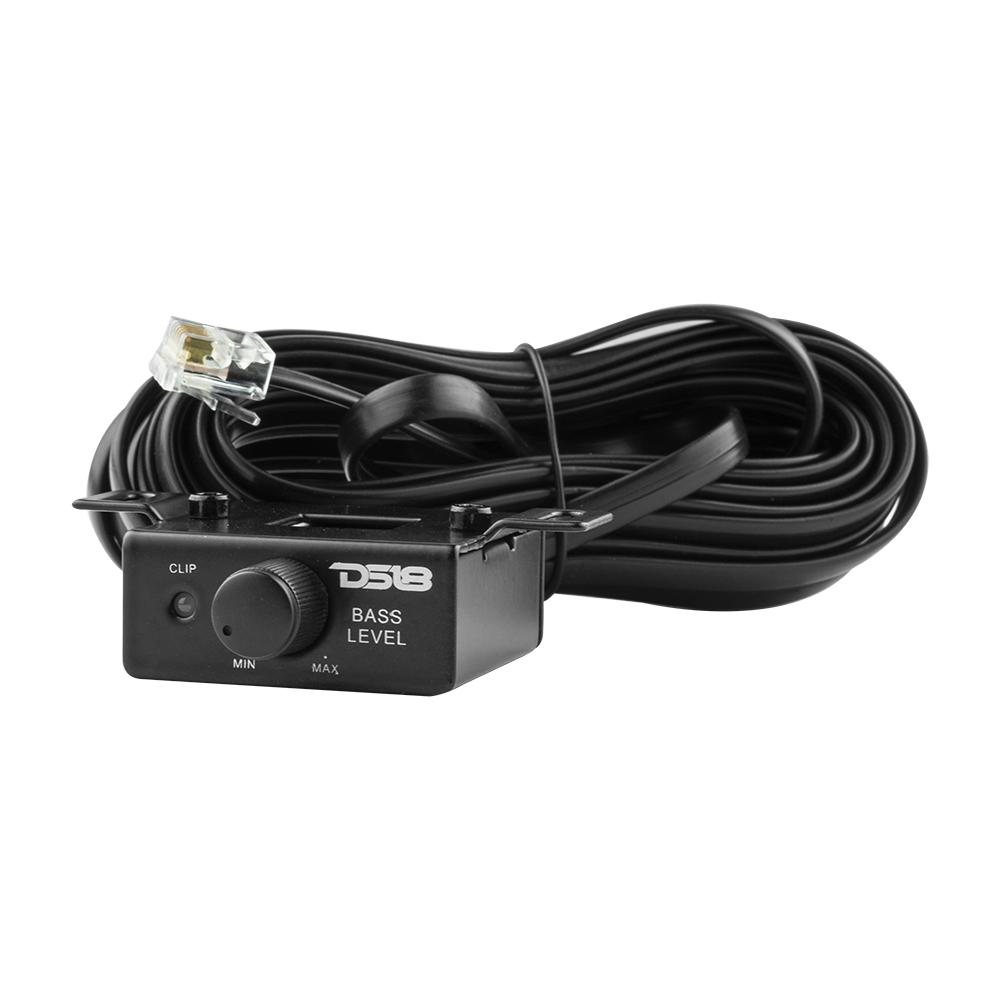

(Mono blocks only) An included bass knob will help you adjust bass on the fly for extreme bass.
Filters are included so you can adjust the high pass and low pass filters so your speakers perform at their best.
0 to 180 degree phase switch is included for more complex systems that need the phase reversed.
Fuses included on the amplifier for easy access and amp circuitry protection.
The terminals are stainless and use Allen keys to tighten for the best connectivity possible.

Technical Details

Download ZXI.5 Product Manual

Model	ZXI.5
Class	D
Channels	5
RMS POWER @ 4 OHMS	125W x 4CH + 420W
RMS POWER @ 2 OHMS	170W x 4CH + 705W
POWER @ 1 OHM	SUB 1x 1000W
RMS POWER @ 4 OHMS BRIDGE	F&R CHs: 2x 340W
PEAK POWER @ 4 OHMS	200W x 4CH+680W
PEAK POWER @ 2 OHMS	300W x 4CH+1000W
PEAK POWER @ 1 OHM	SUB: 1500W x 1CH
PEAK POWER @ 4 OHMS BRIDGE	F&R CHS:600W x 2CH
MINIMUM IMPEDANCE	F&R CHS :2 OHM/SUB: 1 OHM
FREQUENCY RESPONSE	20Hz - 20KHz
THD %	0.10%
INPUT SENSITIVITY	0.2-6V
SIGNAL/NOISE RATIO	>90dB
CROSSOVER HIGH PASS	40-4KHz
CROSSOVER LOW PASS	50-250Hz
POWER INPUT SIZE	4GA
DIMENSIONS LxDxH (INCHES)	14.2x5.7x1.9
