DS18
2.5" Dome Neodymium Tweeter with Aluminum Body 50 Watts 1" Silk 4-Ohm Vc
2.5" Dome Neodymium Tweeter with Aluminum Body 50 Watts 1" Silk 4-Ohm Vc
Couldn't load pickup availability
2.5" Dome Neodymium Tweeter with Aluminum Body 50 Watts 1" Silk 4-Ohm Vc
Sold by AudioSellerz.com
The DS18 TW2.5 is a 2.5" tweeter from DS18 with a 4 ohm design. Tweeters handle the top end of the system, so they decide how clear vocals and cymbals sound.
DS18 Product Details

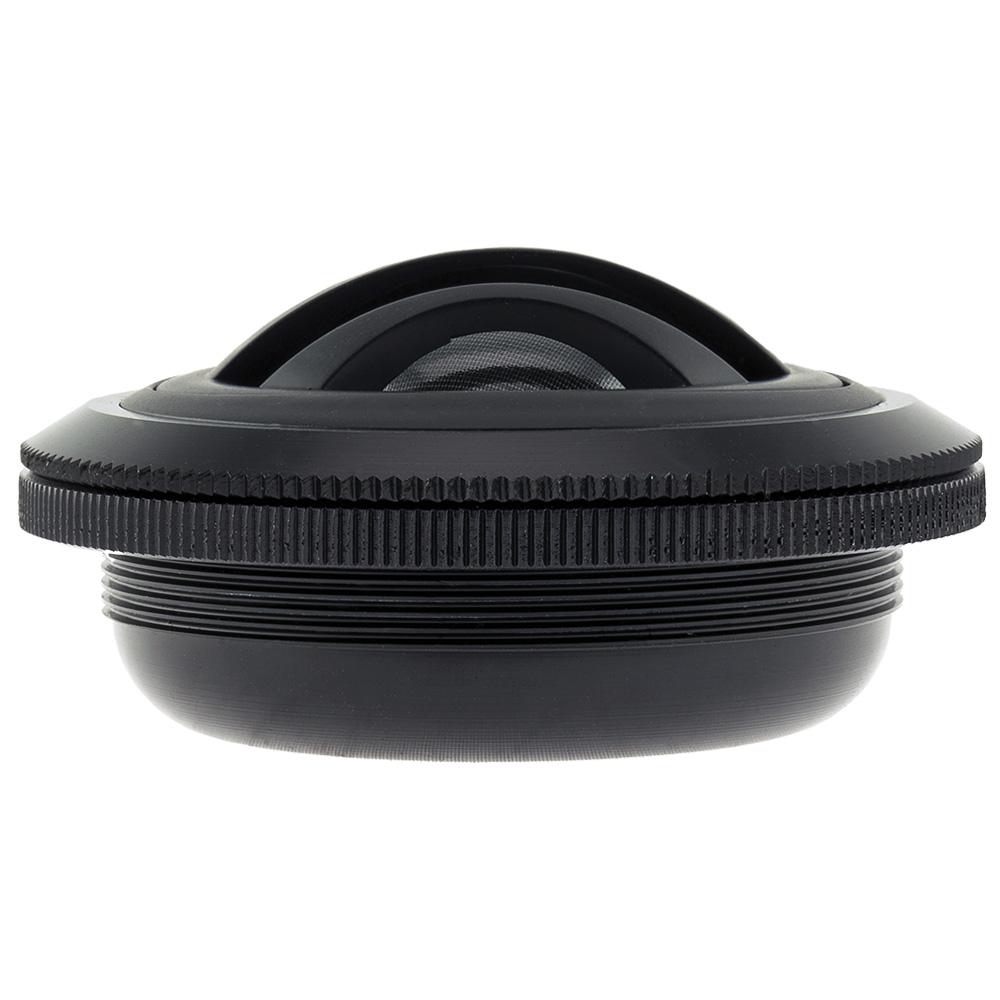

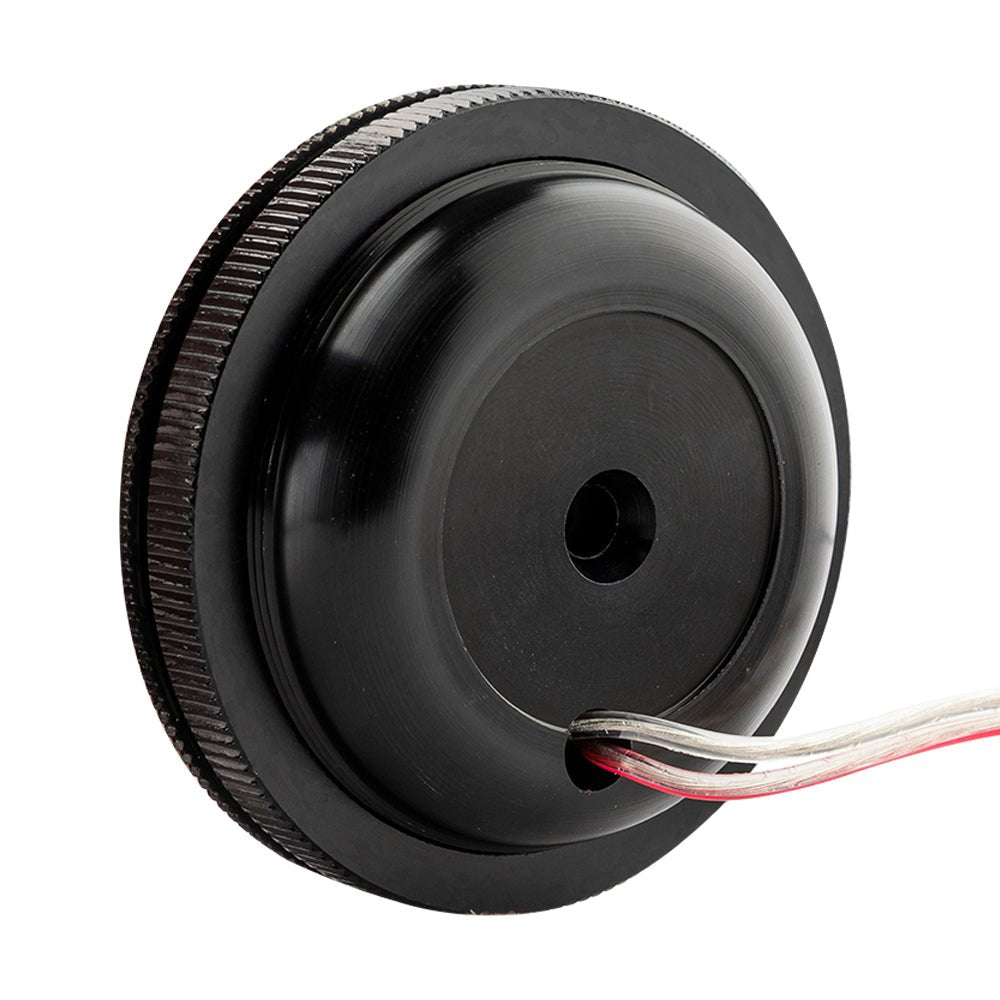

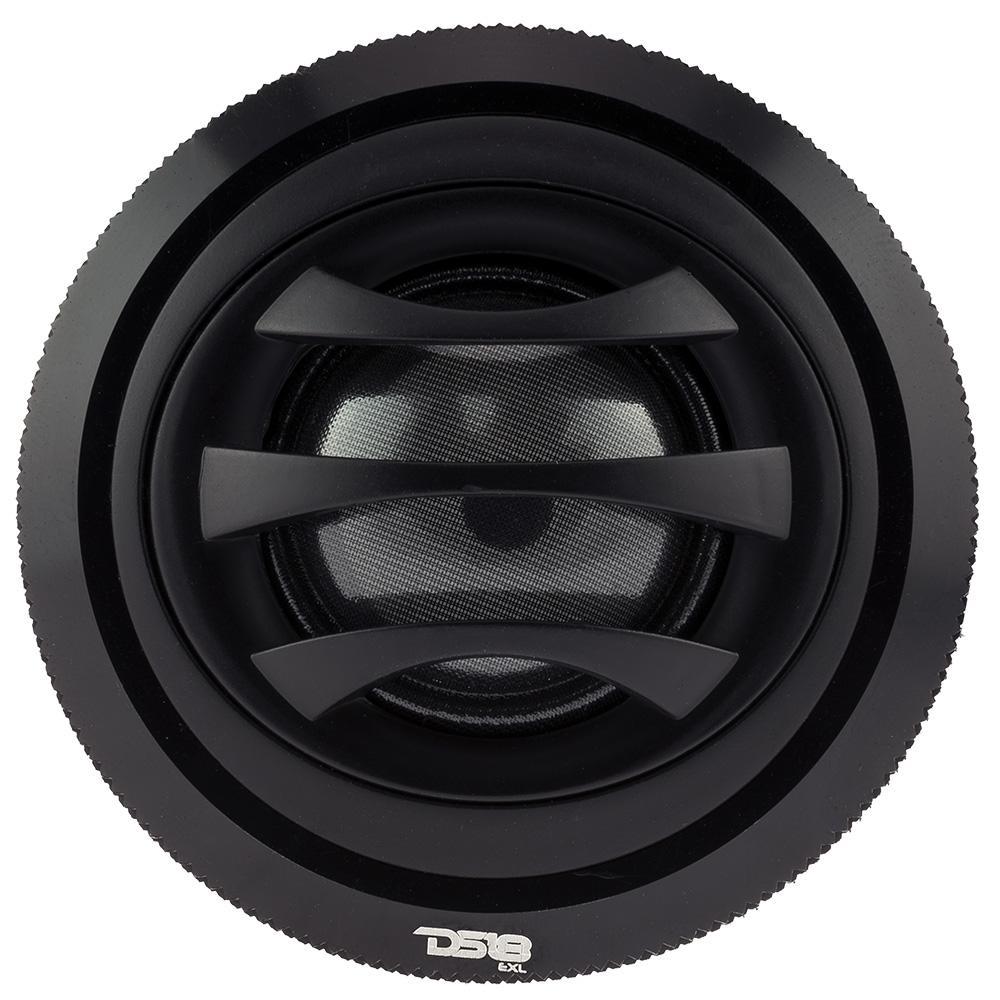

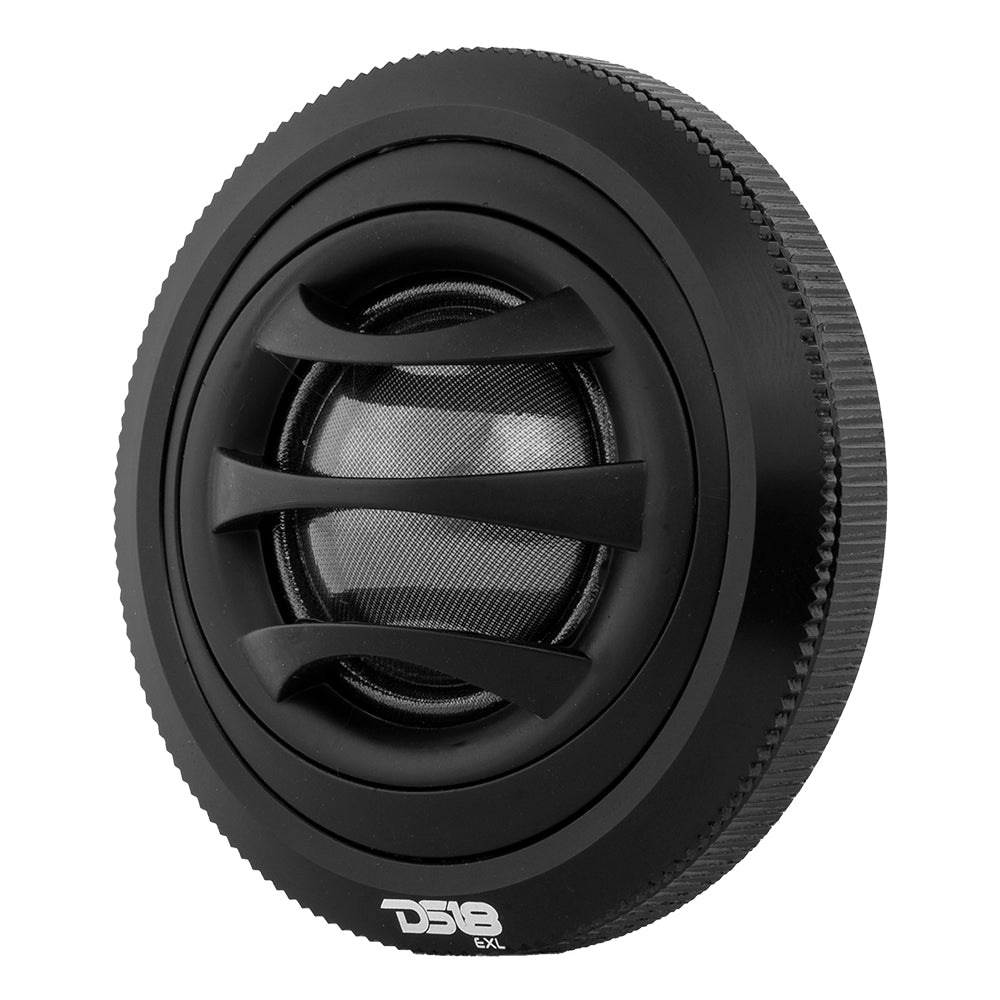

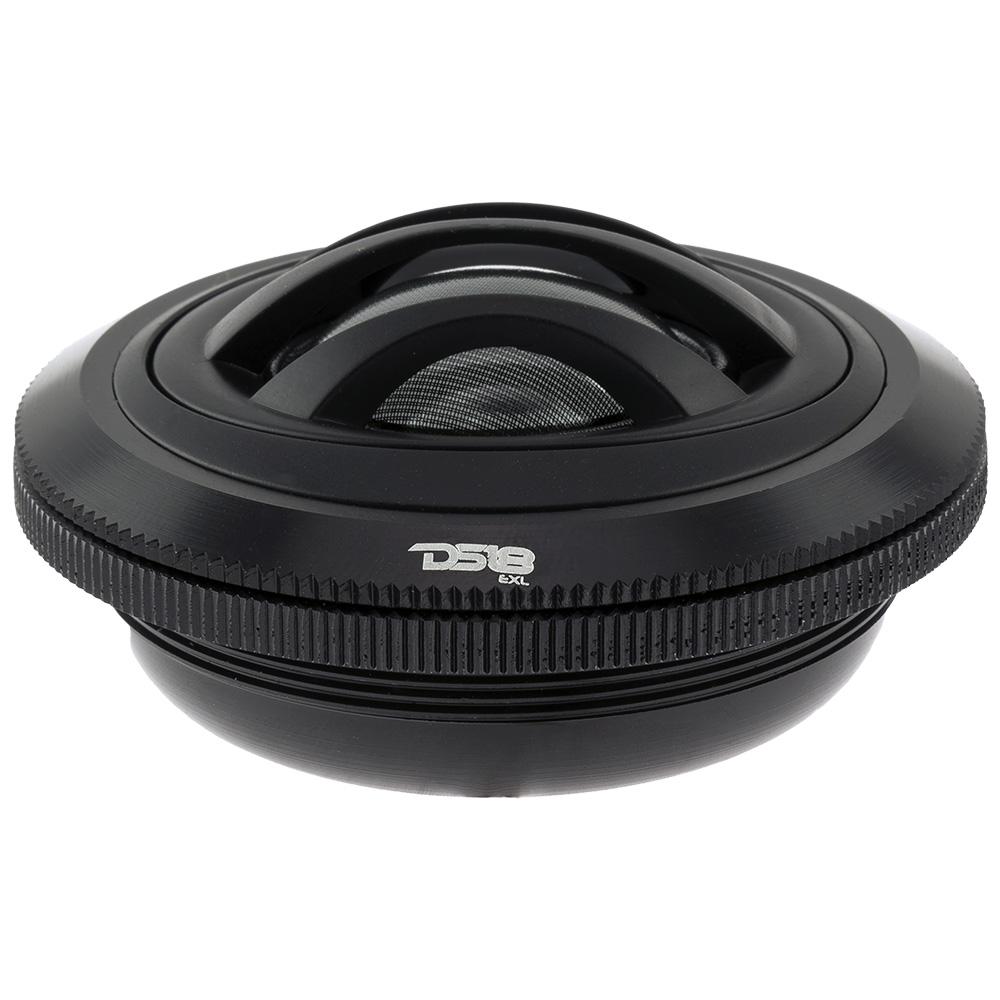

DS18 TW2.5 2.5" Flush mount 1" Vc Aluminum Silk Dome Tweeter 100 Watts
|

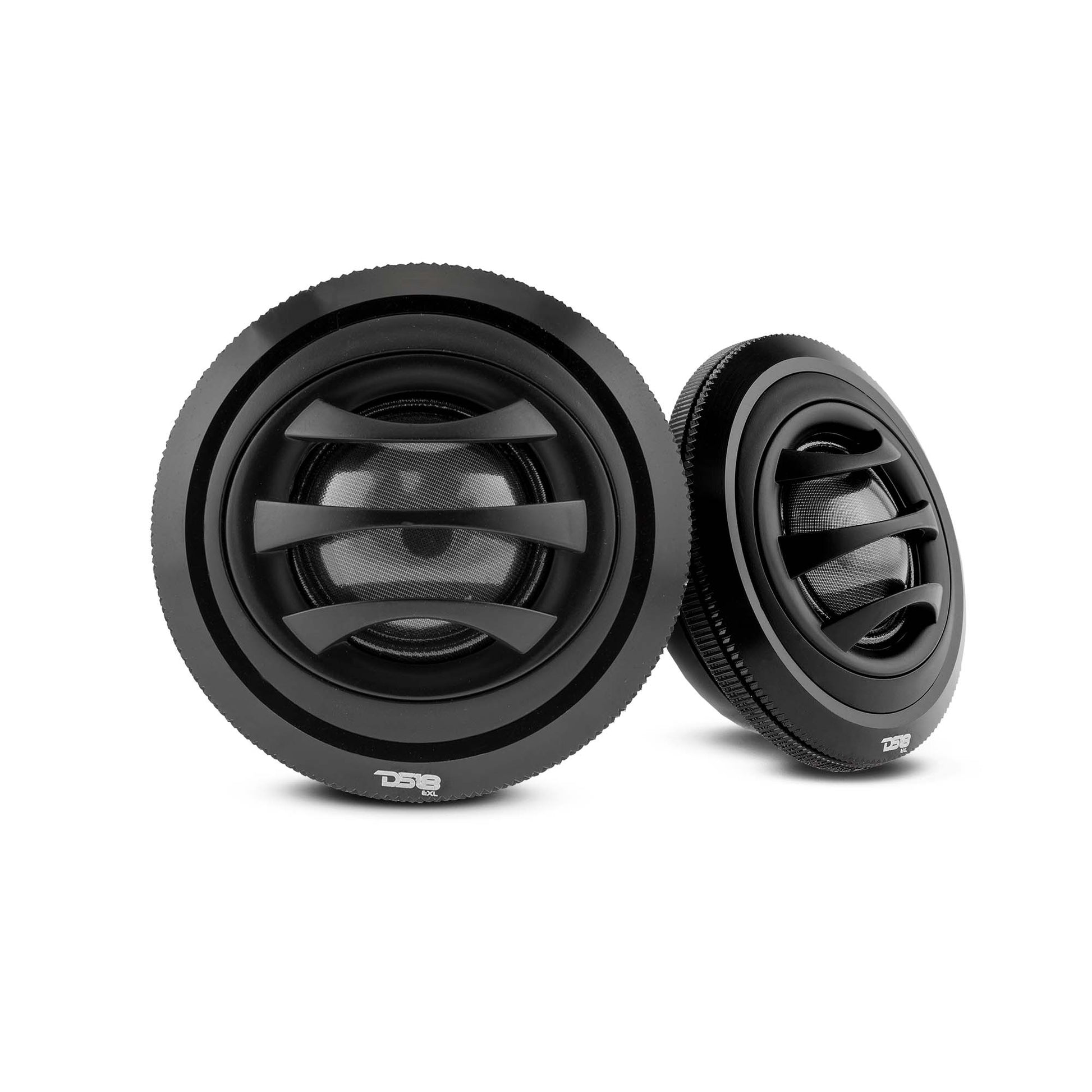

The DS18 TW2.5 are a pair of lightweight, high efficiency tweeters giving you loud and clear sound, even with your factory radio. the TW2.5 are made with a 1 inch silk dome diaphragm for lightweight, shape retaining properties while the magnet is made up of Ferrite to handle high temperatures between 80 and 250 degrees C. The TW2.5 also have a low impedance of 4 ohms, a RMS of 40 watts and a MAX power of 100 Watts. Along with the tweeters, you will receive mounting hardware to help you affix the tweeters in the position you want. Highlights
|
Technical Details
| Model: | TW2.5 |
| RMS Power: | 50W |
| Max Power: | 100W |
| Overall Diameter: | 64mm |
| Baffle Cutout Diameter: | 52.5mm |
| Depth: | 33.5mm |
| Nominal Impedance : | 4 Ohms |
| Minimum Impedance: | 3.6 Ohms |
| Sensitivity: | 93.5dB w/m |
| Frequency Response: | 1.8KHz-20KHz |
| Recommended Crossover: | 1800Hz |
| Diaphragm Material: | Silk Dome |
| Voice Coil Material: | 25mm |
| Winding Material: | ASV |
| Magnet Material: | Ferrite |
Setup Tips From Audio Sellerz
- Never run a tweeter full range. Use a high-pass filter or crossover set to the manufacturer recommendation.
- Aim tweeters toward the listening position when you can. Small angle changes make a big difference in how they sound.
