1.92" Dome Neodymium Tweeter with Aluminum Body 60 Watts 1" Silk 4-Ohm Vc

Overview

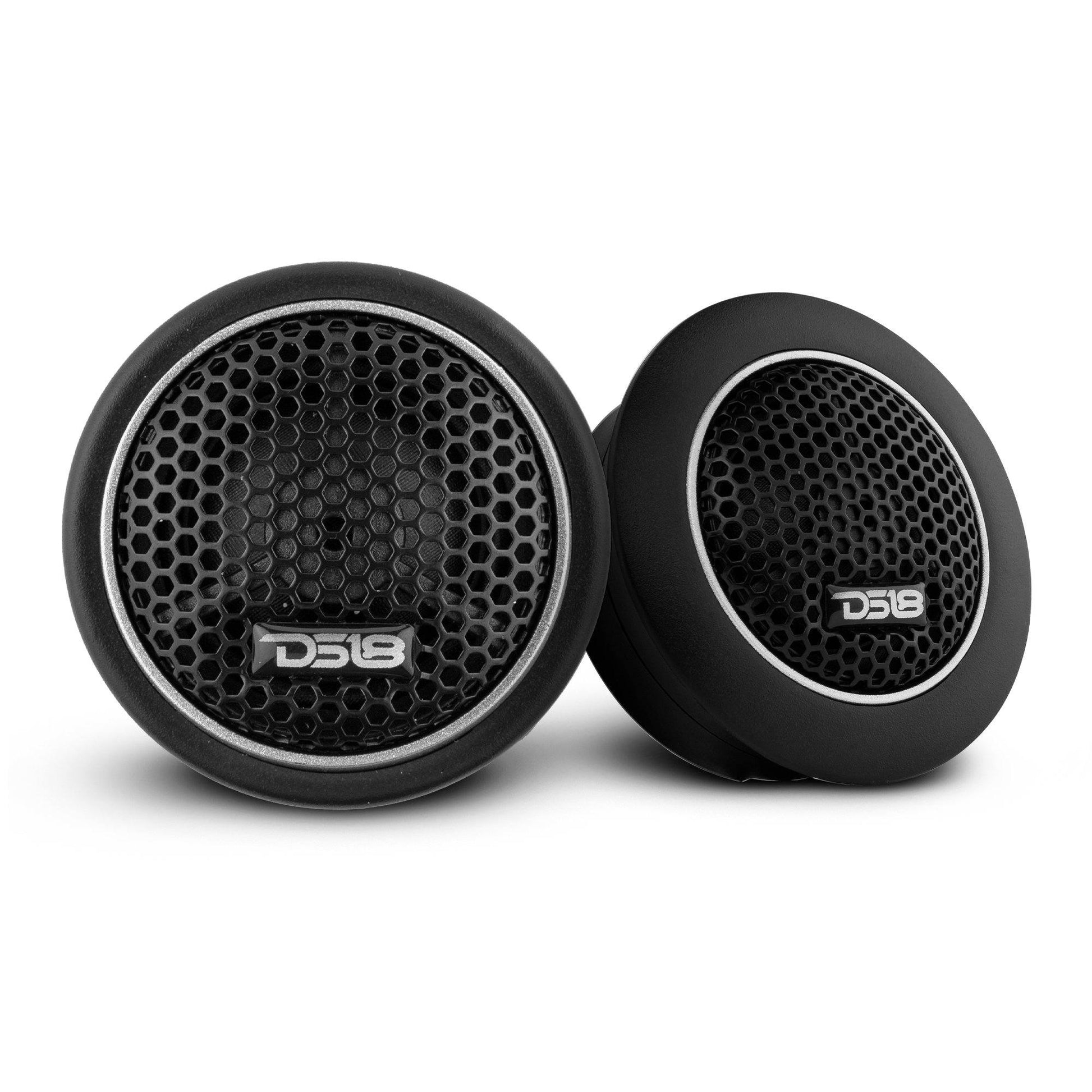

DS18 CXT 1.92" Silk Dome Tweeter With 1" Voice Coil And Neodymium Magnet 120 Watts Max

Our CXT tweeter is a great option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's tweeters are known for around the world.
This tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The high quality design gives it a unique look that demands attention from everyone around it. This drop in 1.92 inch overall diameter tweeter can handle 30w AES and 120w peak power so it will be sure to deliver all the high range frequencies you are looking for with amazing sound quality and responsiveness.

Highlights

• 1.9 inch overall diameter with a 1 inch voice coil is designed to make crisp and bright high frequencies with maximum loudness for your system.
• Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
• Power rating of 30w AES and 120 peak which will allow the high frequencies to play with authority.

Technical Details

CXT Product Manual

Model	CXT
Nominal Diameter	1.92" / 49mm
Nominal Impedance	4 OHMS
AES Power Handling	30W
Program Power Handling	60W
Peak Power Handling	120W
Sensitivity (1w/1m)	87 dB
Frequency Response	1.5KHz-20KHz
Recommended Hi Pass Crossover	3KHz
Pair	Yes
MOTOR
Voice Coil Diameter	1” / 25.4mm
Voice Coil Former Material	Aluminum
Winding Material	SV
Diaphragm Material	Silk
Magnet Material	Neodymium
Magnet Weight	0.33 oz / 9.6g
Body Material	ABS
Body Color	Black
MEASUREMENTS / MEDIDAS:
Overall Diameter	1.69" / 43mm
Overall Depth	0.74" / 19mm
Front Mount Baffle Cutout	1.92" / 49mm
Mounting Depth	0.7" / 18mm
