1.7" Dome Neodymium Tweeter 50 Watts 1" Pei 4-Ohm Vc
1.7" Dome Neodymium Tweeter 50 Watts 1" Pei 4-Ohm Vc
Couldn't load pickup availability
1.7" Dome Neodymium Tweeter 50 Watts 1" Pei 4-Ohm Vc
Sold by AudioSellerz.com

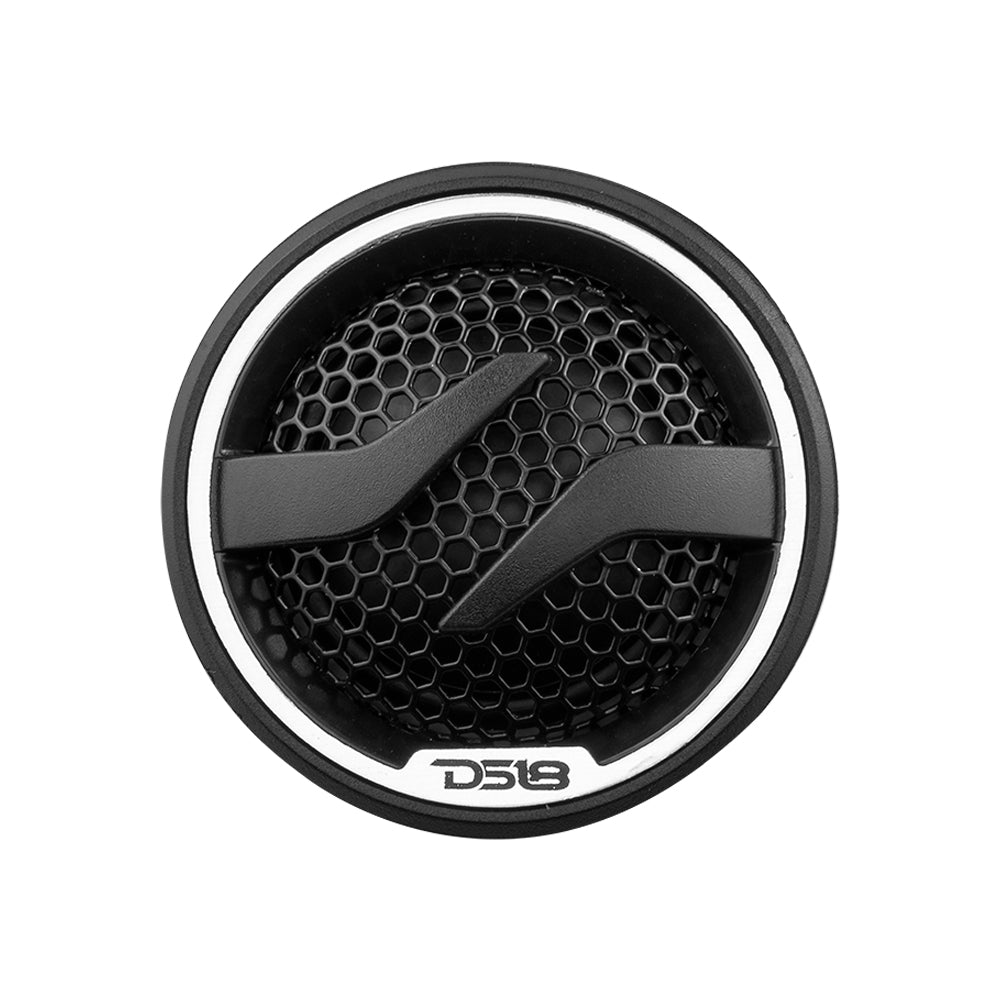

The DS18 ZXI-T1 is a 1.7" tweeter from DS18 with a 4 ohm design. A good tweeter adds the detail and sparkle that mids and midbass can't reproduce on their own.
DS18 Product Details

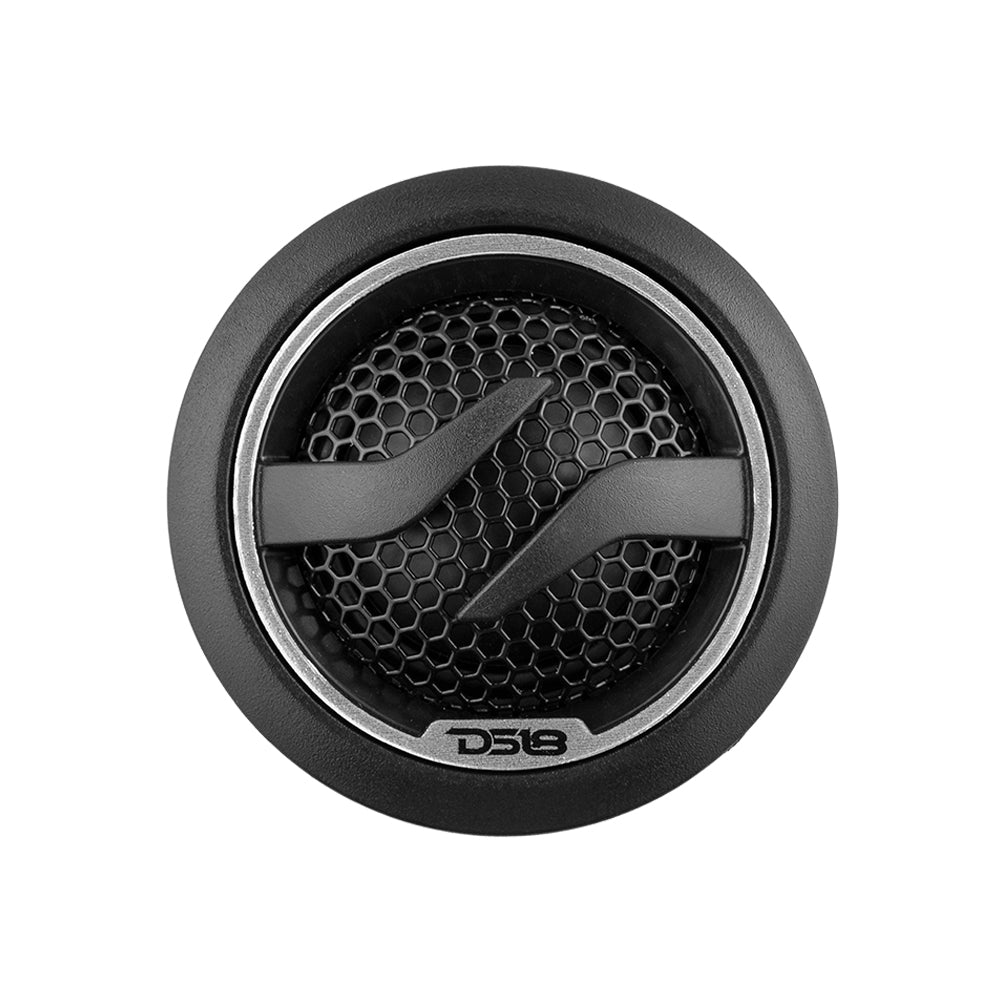

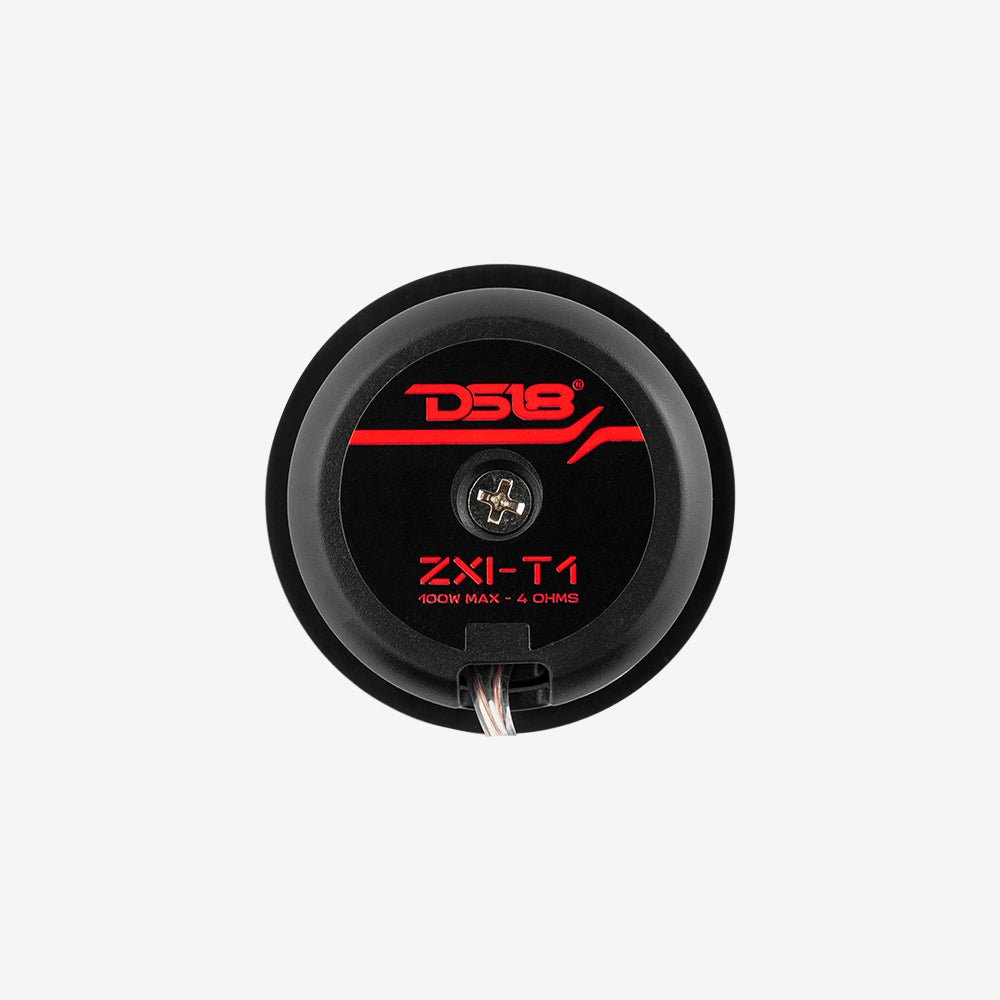

DS18 ZXI-T1 1.7" PEI Dome Tweeter With 1" Aluminum VC 100 Watts Max 4 Ohm
The aluminum design 1" voice coil enhances extreme volume and gives you amazing crisp highs to complement your mid and low range pro audio speakers. These tweeters are great for someone wanting to add crisp and clear highs to their existing system and can also be ran on factory radio power.
Highlights
-
Extremely loud and versatile that will give you clear and crisp highs with overall amazing looks.
-
Great Power and Tweeter design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
-

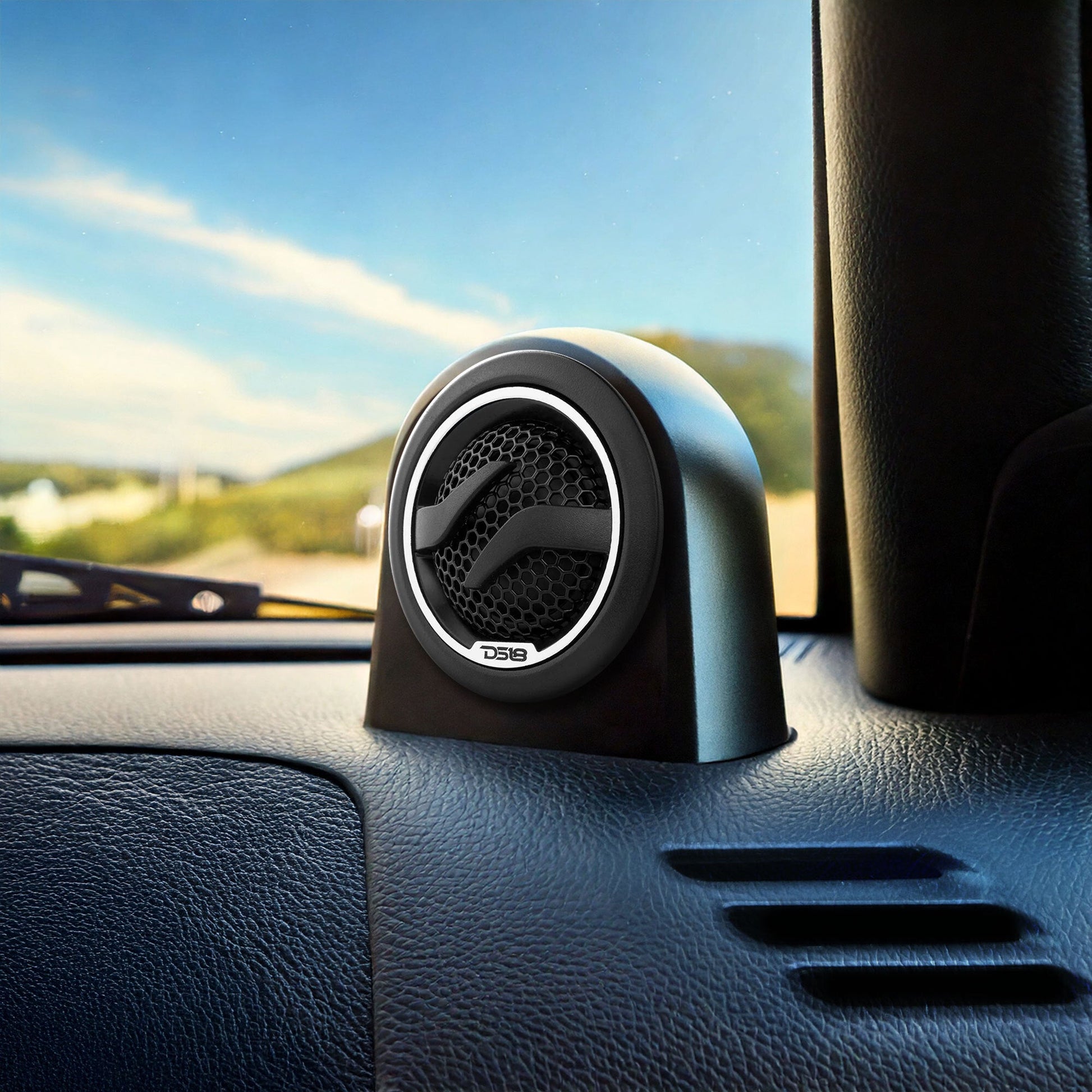

Easily mountable and configured with stock and aftermarket sound systems.
-
AES power handling of 25 watts with a peak of 100 watts @ 4 ohm for a good amount of power that does not require large aftermarket amps
Technical Details
| Nominal Diameter | 1.7β / 43mm |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 25W |
| Program Power Handling | 50W |
| Peak Power Handling | 100W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 1KHz-20KHz |
| Recommended Hi Pass Crossover | 3.5KHz |

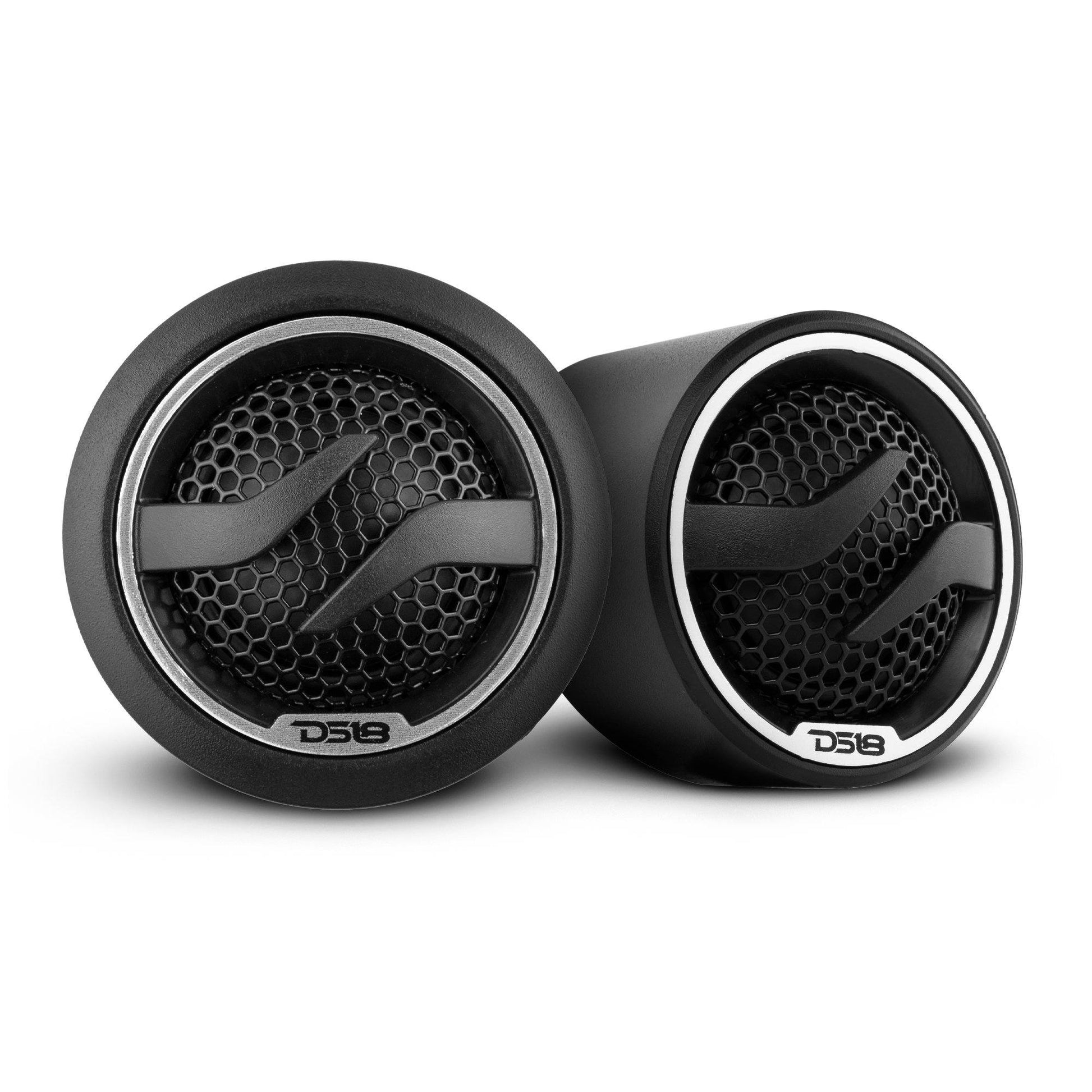

| Pair | Yes |
| Body Color & Material | Black ABS |
| MOTOR | |
| Voice Coil Diameter | 1β/ 25.4 mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 13 g |
| MEASUREMENTS | |

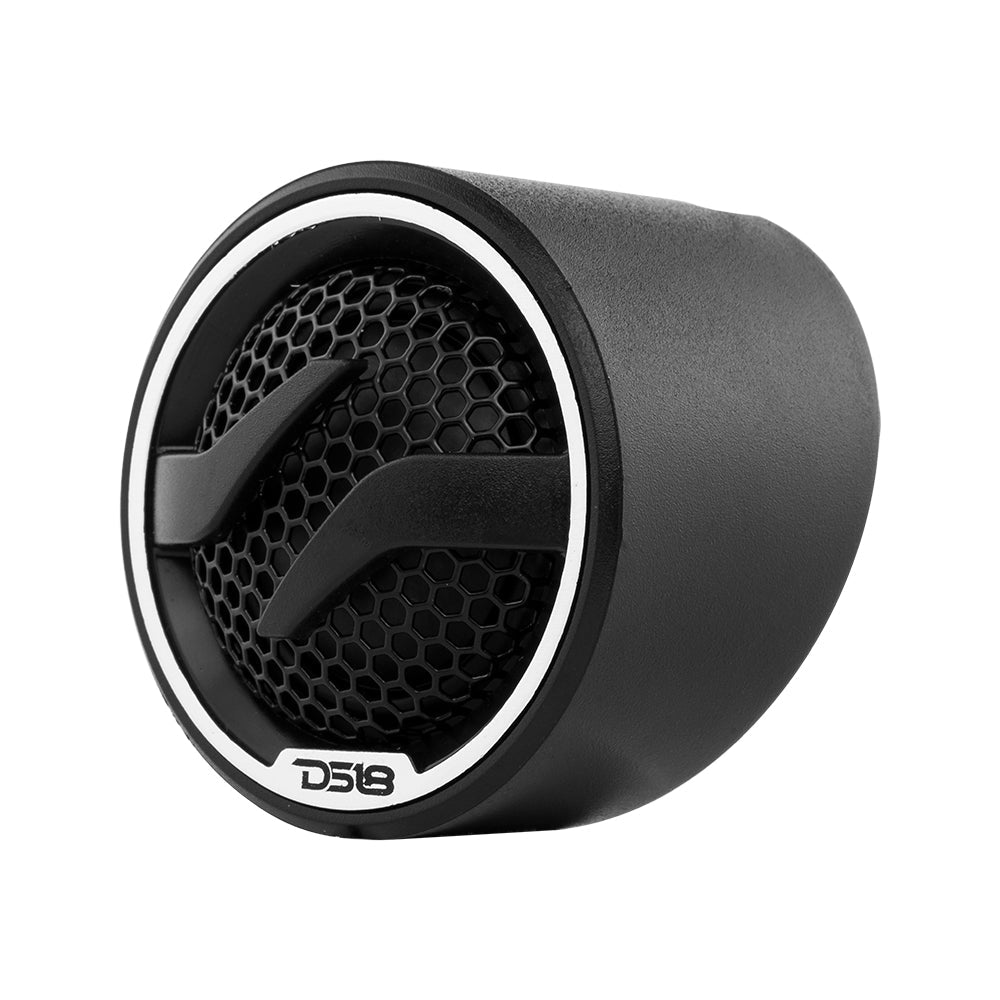

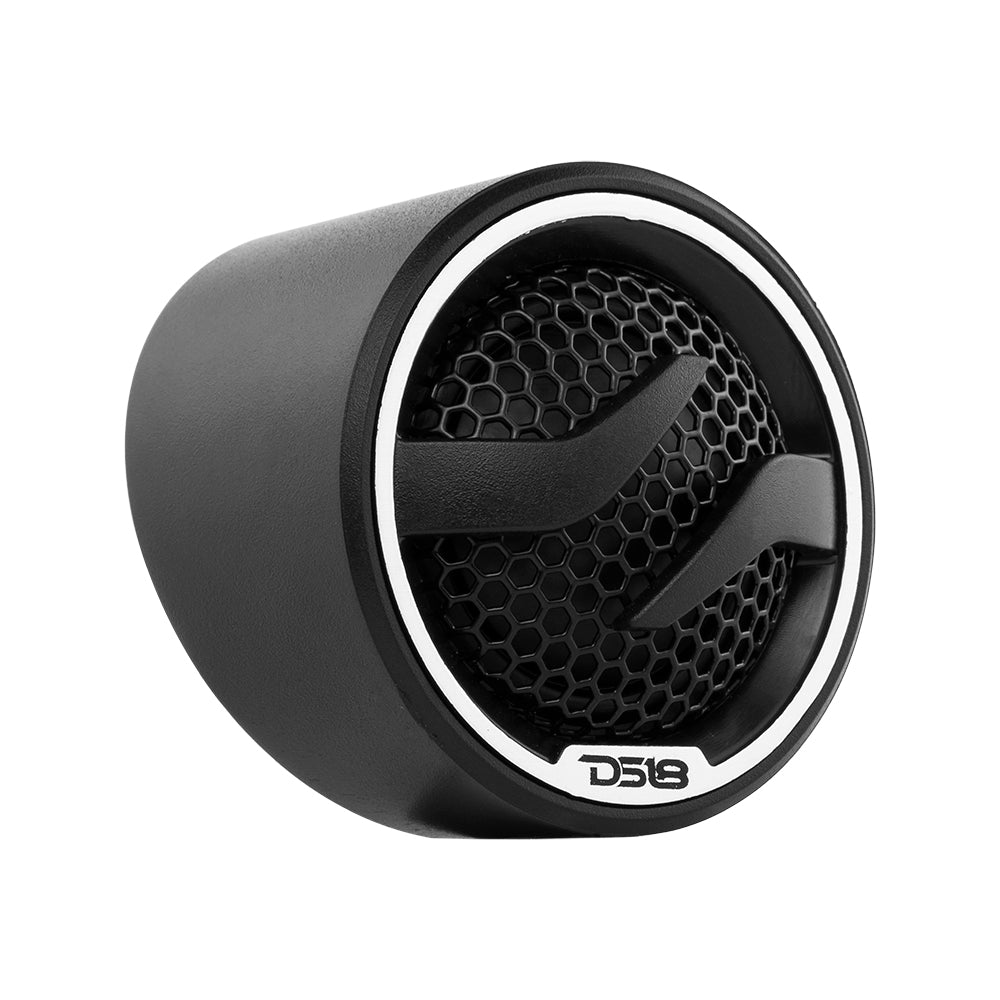

| WITH ANGLE SURFACE MOUNT ADAPTOR | |
| Overall Diameter | 1.89" / 48 mm |
| Overall Height | 1.73" / 44 mm |

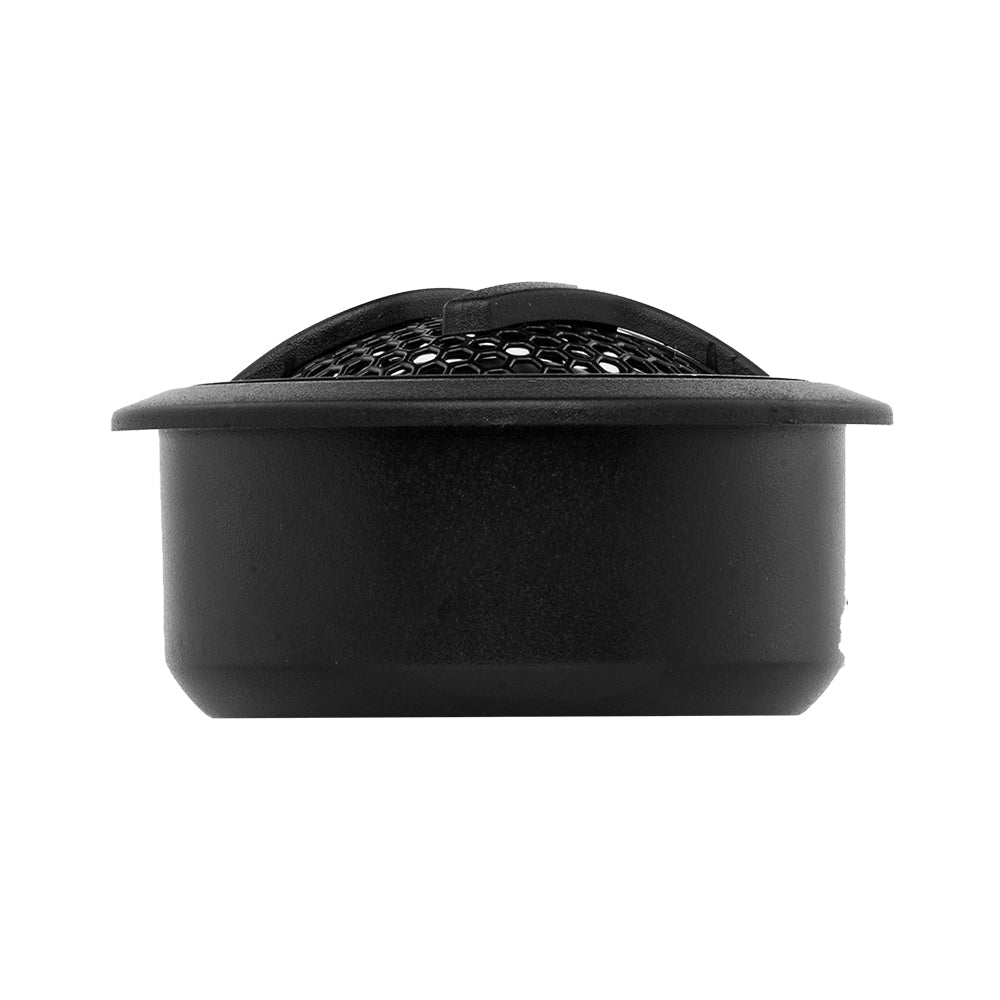

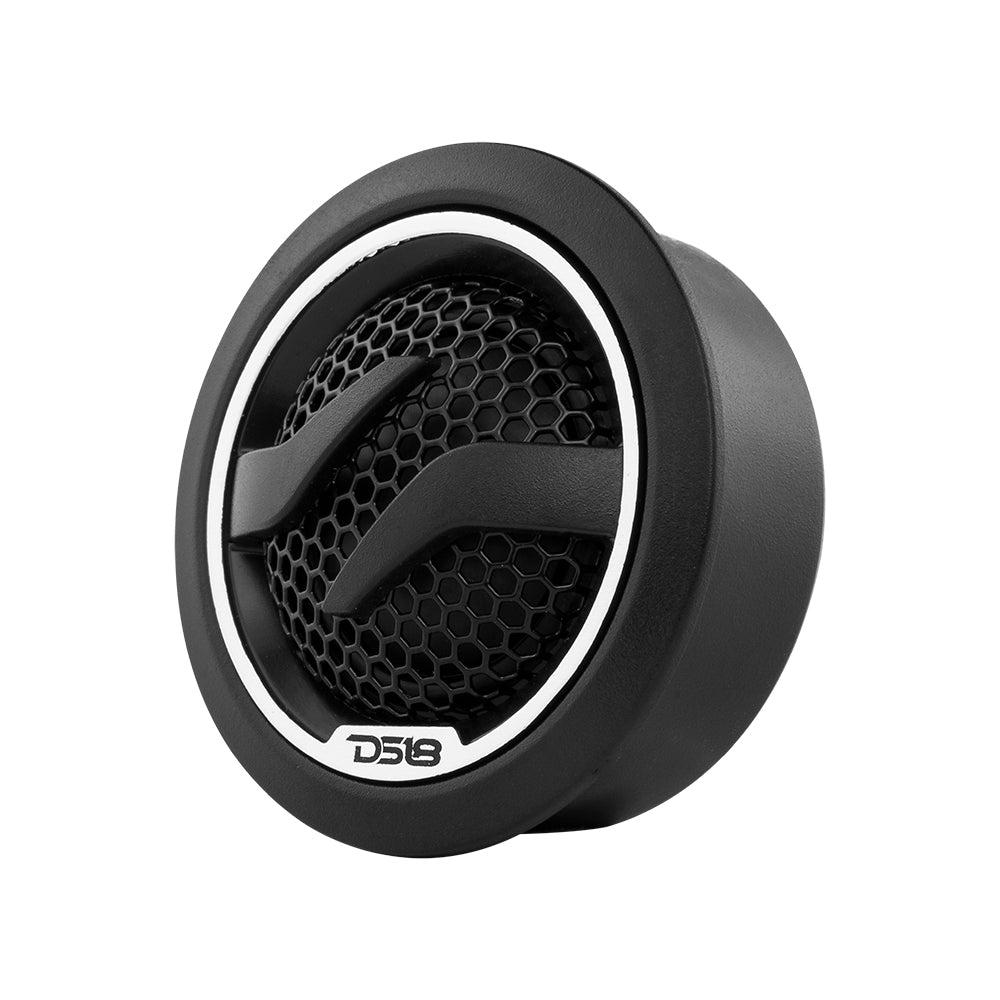

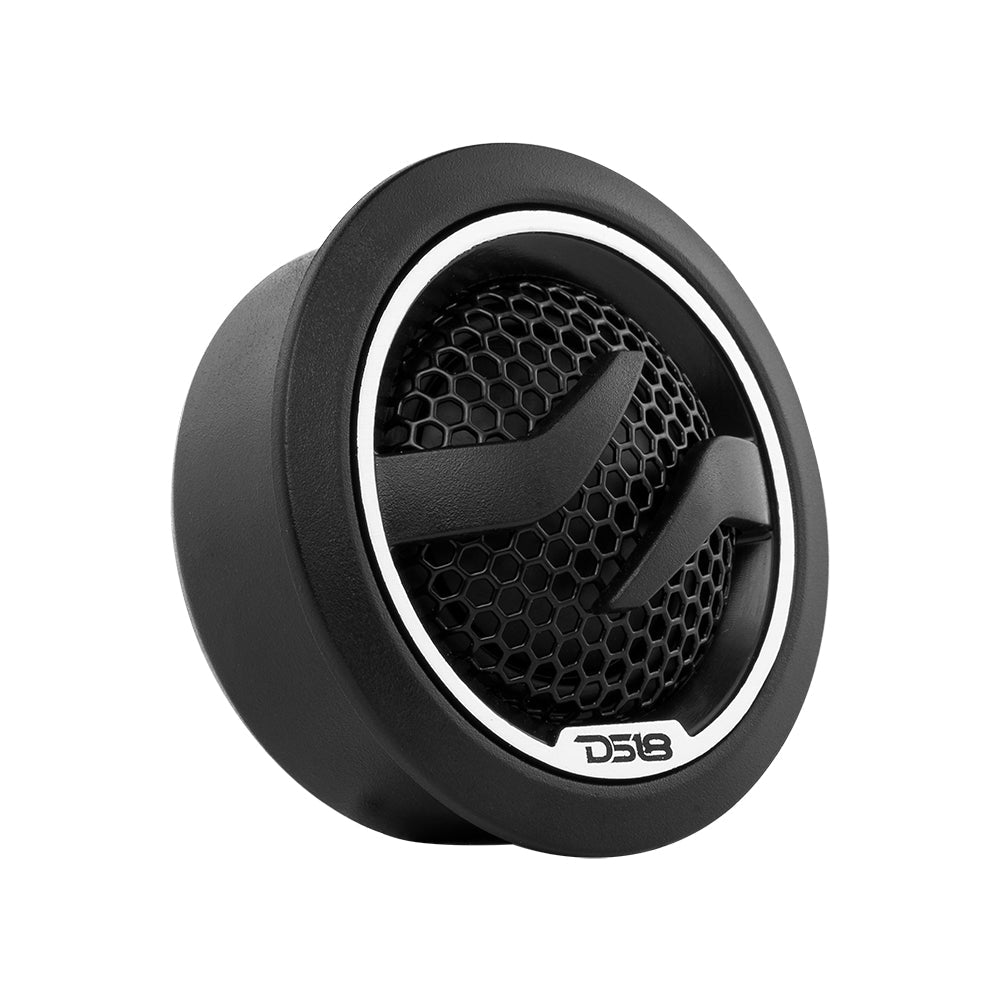

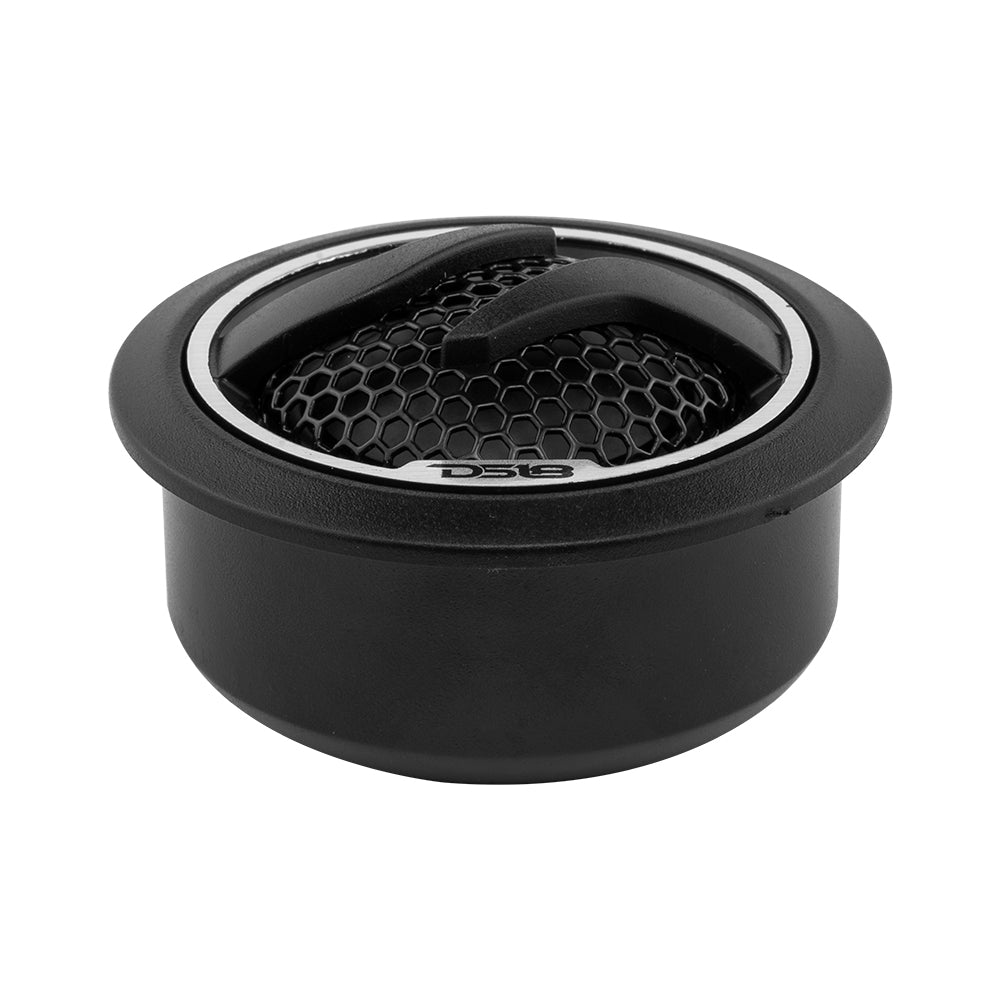

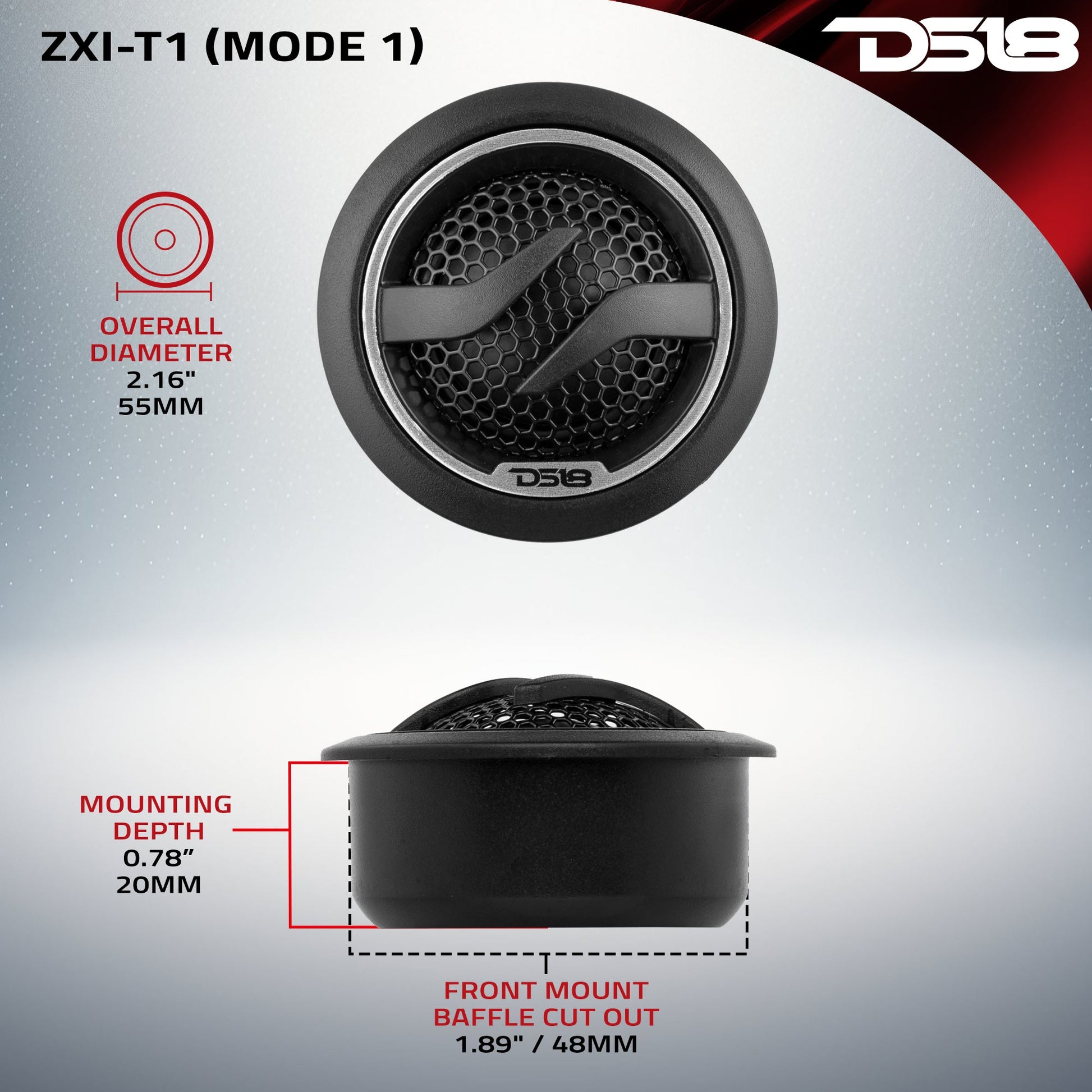

| WITH FLUSH MOUNT ADAPTOR | |
| Overall Diameter | 2.16" / 55 mm |
| Overall Depth | 1.18" / 30 mm |
| Front Mount Baffle Cutout | 1.89" / 48 mm |
| Mounting Depth | 0.78β / 20 mm |
| TWEETER WITHOUT ADAPTER | |
| Overall Diameter | 1.71" / 43.5 mm |
| Overall Height | 1" / 27.5 mm |
Setup Tips From Audio Sellerz
- Never run a tweeter full range. Use a high-pass filter or crossover set to the manufacturer recommendation.
- Aim tweeters toward the listening position when you can. Small angle changes make a big difference in how they sound.
