SoundQubed

SoundQubed HDS3.2 10 Series Subwoofer

$269.95 USD

Sale Sold out

Shipping calculated at checkout.

OHM LOAD D2 D4

Type Subwoofer

Size 10"

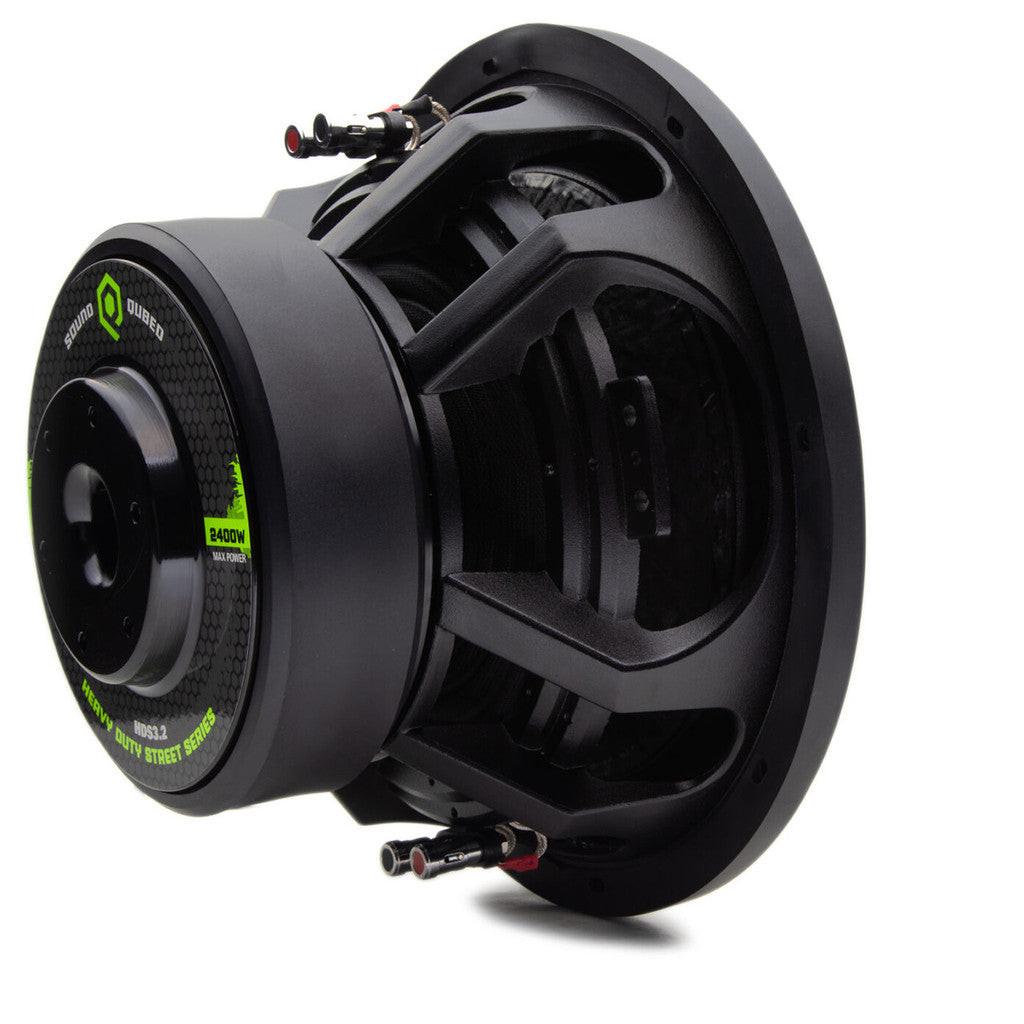

SoundQubed HDS3.2 10 Series Subwoofer

Sold by AudioSellerz.com

The SoundQubed HDS3.2 10 Series Subwoofer is a SoundQubed HDS3.2 car audio subwoofer for a properly matched car audio bass system.

Use this page to compare the exact model, size, RMS rating, voice-coil options, enclosure requirements, wiring plan, and electrical support before ordering. The original specifications and product details remain below.

Original Product Details and Specifications

The Heavy Duty Street 3.2 Series 1200W Subwoofer improves on its predecessor in terms of build, sound quality, heat dispersion, and frequency response. The 10, 12, or 15-inch models are available with dual 2 or 4-ohm voice coil.

The HDS3.2 series is a perfect option for elevating your daily-driver car audio system build to the next level. First, choose a sealed, ported, or band-pass enclosure. Once you decide on an enclosure option, pair your sub(s) with the appropriate S Series Monoblock amp. From there, enjoy easywiring in series or parallel thanks to the 10 AWG push terminals. Soon you’ll be on your way to a dramatically enhanced listening experience.

As with any SoundQubed subwoofer, proper break-in is key to enjoying long life from your HDS3.2. Make sure you follow the steps to loosen up the suspension before pushing these subs to the limit.

The HDS3.2 1200W Subwoofer

The dual-magnet motor features a bumped T-yoke for greater travel and better heat resistance. Additionally, the vented, electroplated back plate gives heat a way out and decreases turbulence in the coil gap. The HDS3.2 series uses a 3-inch diameter, four-layer, copper dual voice coil with a conical back plate for long-distance travel.

The HDS3.2 series feature cast aluminum frames. This upgrade provides better heat sinking and increased excursion over stamped-steel baskets. A softer three-piece spider system achieves enhanced performance and lower tuning. As a result, the HDS3.2 has an F(s) of 28.26 Hz compared to 35 Hz for the HDS3.1.

An Extended Range of Motion (EROM) surround profile keeps your cone diameter as large as possible while allowing for long, controlled excursion. The EROM profile gives you more cone area, greater stiffness, and lower mass for more accurate coil signal response. The HDS3.2 has a non-pressed, fiber added cone for maximum rigidity and long life.

1200 Watt RMS, 2400 Watts Peak (Burp Only)
3-inch diameter, four-layer copper coil
Cast Aluminum Frame
Available in Dual 2 and Dual 4 ohm configuration
10 AWG push terminals
Black EROM surround without stitching
Vented back-plate for optimal cooling and less turbulence in the coil gap.
Conical back plate to allow more voice coil travel.
Black electroplated top and bottom plates.
Non-pressed, fiber added cone for maximum rigidity.

Model: HDS3.210 | HDS3.212 | HDS3.215
RMS Power: 1200 Watts | 1200 Watts | 1200 Watts
Peak Power: 2400 Watts | 2400 Watts | 2400 Watts
Magnet Weight: 160 ounce | 160 ounce | 160 ounce
Coil Diameter: 3″ | 3″ | 3″
Impedance: D2/D4 | D2/D4 | D2/D4
R(e): 4.296 | 6.2 | 5.284 Ω
F(s): 33.85 | 32.16 | 28.26 Hz
Z(max): 61.1 | 67.13 | 56.26 Ω
BL: 25.07 | 25.4 | 22.66
Q(ms): 4.752 | 5.767 | 6.394
Q(es): 0.359 | 0.586 | 0.6628
Q(ts): 0.334 | 0.5326 | 0.6006
V(as): 13.21 L | 29.23 L | 83.34 L
L(e): 1.9 mH | 2.35 mH | 7.619 mH
n(0): 0.136 % | 0.158 % | 0.27%
M(ms): 247.2 grams | 302.1 grams | 362.6 grams
C(ms): 0.089 mm/N | 0.081 | 0.087 mm/N
Sensitivity 1W/1m: 83.43 | 84.09 | 86.42 1W/1m
Xmax: 13 mm | 13 | 13 mm
Displacement: 0.11 Ft³ | 0.12 Ft³ | .16 Ft³
Mounting Depth: 6.75″ | 6.75 | 7.75″
Circle Cutout: 9 3/16″ | 11 1/4″ | 13.875″
Outer Diameter W/Gasket: 10.75″ | 12.75″ | 15.5″
Sealed Enclosure (Cu Ft):: .5-1.0 FT³ | .75-1.5 FT³ | 1.75-2.75 FT³
Ported Enclosure (Cu Ft):: .75-1.25 FT³ | 1-1.75 FT³ | 3-6 FT³

ADDITIONAL INFO

SKU:SQ-HDS32-10

WIDTH:14.00

HEIGHT:14.00

DEPTH:10.00

Match This SoundQubed Subwoofer to the Amplifier and Enclosure

A subwoofer money page must connect the woofer to the rest of the bass system. Match the verified RMS power handling and voice-coil configuration to a stable amplifier load. Then confirm the enclosure type, net air space, tuning, port area, mounting depth, cutout, subwoofer displacement, available vehicle space, speaker wire, and electrical support from the exact specifications.

Shop Related SoundQubed Bass-System Products

Compare more SoundQubed subwoofers, browse monoblock car audio amplifiers, and shop subwoofer boxes and enclosures for the rest of the bass-system plan.

Helpful Subwoofer Guides

Use the subwoofer wiring diagrams and final ohm-load guide before choosing a voice-coil option. Read the subwoofer enclosure guide before selecting or building a box, and use the complete car audio bass setup guide to match the subwoofer, amplifier, enclosure, wiring, fusing, battery, and alternator.

The subwoofer specifications guide explains common woofer ratings, while the amplifier gain guide for subwoofers helps protect the system from poor setup and clipping.

Shop SoundQubed at Audio Sellerz

Browse the complete SoundQubed car audio collection at Audio Sellerz for SoundQubed subwoofers, amplifiers, speakers, tweeters, wiring, deadener, and system accessories. Read why Audio Sellerz sells and supports SoundQubed to learn more about the brand relationship and the product categories we carry.

Frequently Asked Questions About SoundQubed HDS3.2 10 Series Subwoofer

What amplifier should I use with this SoundQubed subwoofer?

Use the product's verified RMS power handling, voice-coil configuration, number of subwoofers, final wired impedance, and the amplifier's continuous output at that impedance. Do not match from peak or maximum power alone.

What enclosure should I use?

Use the exact enclosure recommendations, displacement, mounting depth, and cutout information listed for this model. The best box also depends on the vehicle, available space, music, and desired output.
