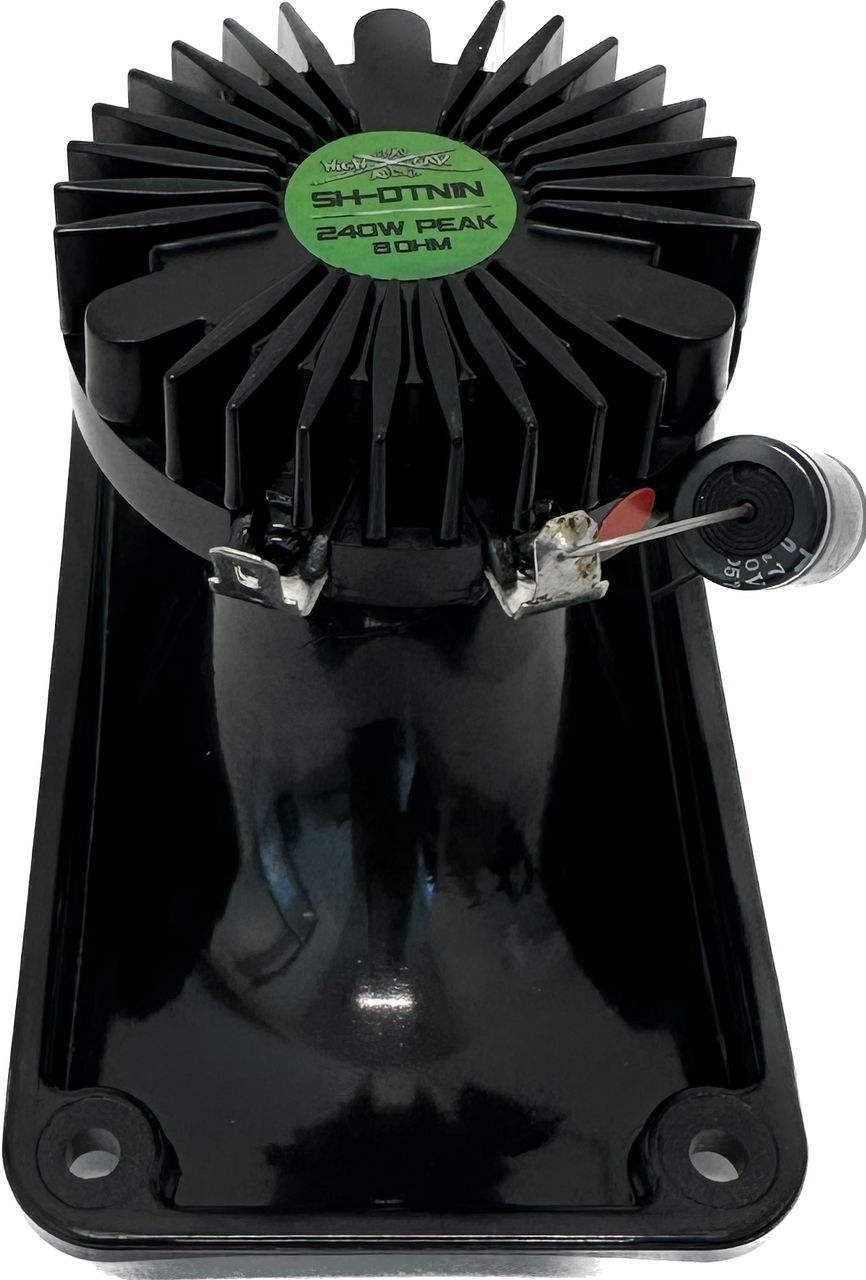

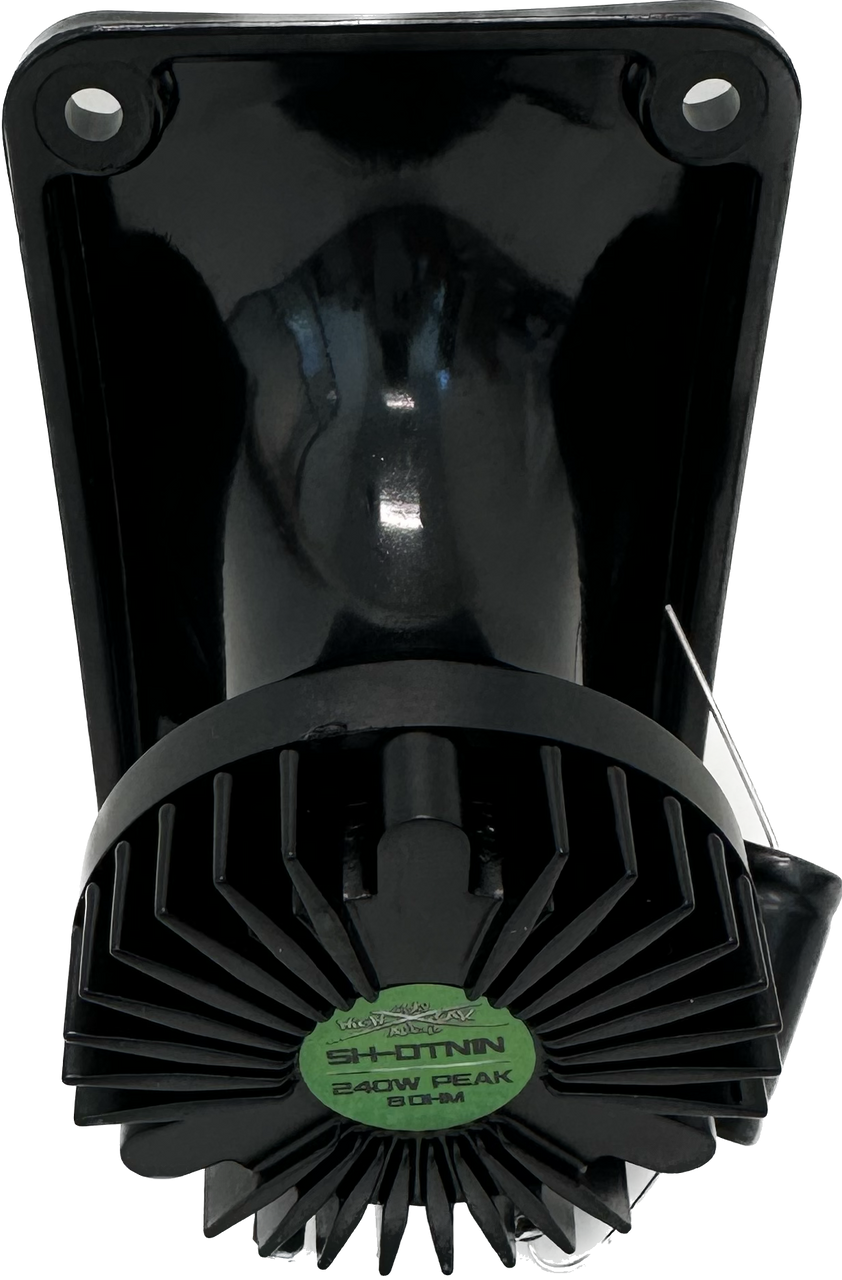

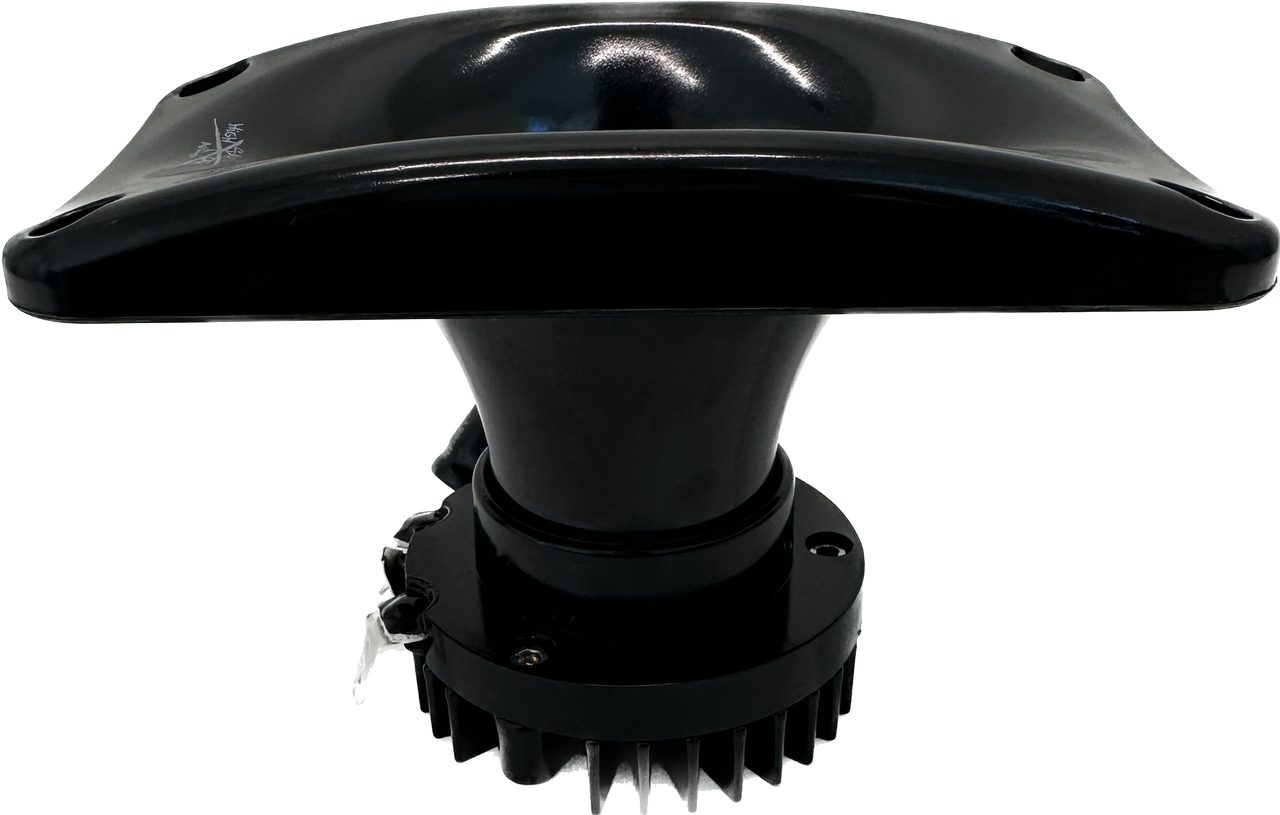

Sky High Car Audio Neodymium Horn Driver SH-DTN1N

Sky High Car Audio Neodymium Horn Driver SH-DTN1N – Compact, Loud, and Razor-Clear

Sold by AudioSellerz.com.

The Sky High Car Audio SH-DTN1N neodymium horn driver is built for front stages that need to scream without taking up a ton of space. With a sensitivity of 108 dB (1W/1m with horn) and a compact neodymium motor, this driver delivers sharp, projecting highs that cut through road noise, engine noise, and violent substage output—perfect for pro-audio style doors, A-pillars, pods, and show builds.

Matched with its included horn, the SH-DTN1N is designed to play from about 1.5 kHz to 18 kHz, with a recommended 2 kHz high-pass crossover, giving you a strong, controlled top end that keeps up with serious mids and mid-bass.

Key Features

• High-Output Horn Driver

• Nominal impedance: 8 ohm
• AES power handling: 60W
• Program power: 120W
• Peak power: 240W
• Sensitivity (with horn): 108 dB (1W/1m)
• Frequency response: 1.5 kHz – 18 kHz
• Recommended high-pass crossover: 2 kHz
• Neodymium Motor Assembly

• 1” (25.4 mm) voice coil diameter
• High-temp voice coil former
• CCA (copper-clad aluminum) winding
• Phenolic diaphragm for strong output and durability
• Neodymium magnet for high power in a compact, lightweight package
• Magnet size: 0.96” x 0.19” (24.5 × 5 mm)
• Motor diameter: 2.2” (57.2 mm)
• Aluminum body for strength and heat dissipation

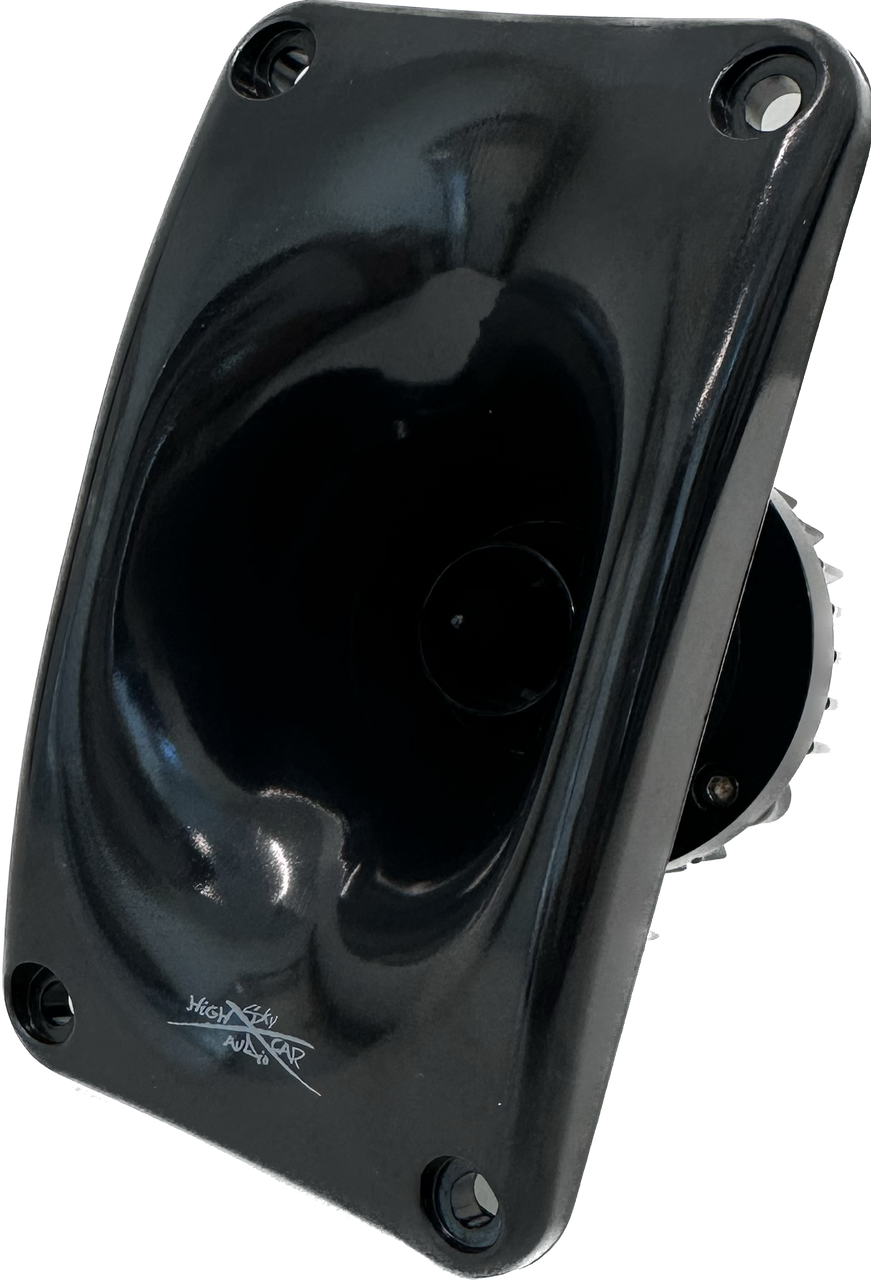

• Included Horn

• Nominal horn face size: 2.7” × 4.7” (70 × 120 mm)
• Throat diameter: 1” (25.4 mm)
• Sound coverage: 45° x 30° – focused projection for long throw and clean staging
• ABS body, black finish
• Form Factor & Mounting

• Overall diameter: 4.72” × 2.75” (120 × 70 mm)
• Overall depth: 3.12” (79.5 mm)
• Mounting depth: 2.48” (63 mm)
• Mounting hole spacing: 2.75” × 2.3” (69.8 × 58.4 mm)
• Sold individually (single) – order two or more for left/right front stages or multi-driver arrays

Where It Fits Best

• Pro audio–style door and dash builds
• A-pillar or sail panel pods
• Show/demo vehicles with loud front stages
• Any build needing a compact, efficient horn that can keep up with serious mids and substage power

The Sky High Car Audio SH-DTN1N gives you big horn output in a small, neodymium-powered package—perfect for today’s high-output systems where space is tight and volume is non-negotiable.
