DS18
NXL 4-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier <br> 4 x 100 Watts Rms @ 4-Ohm
NXL 4-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier <br> 4 x 100 Watts Rms @ 4-Ohm
Couldn't load pickup availability
NXL 4-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier <br> 4 x 100 Watts Rms @ 4-Ohm
Sold by AudioSellerz.com

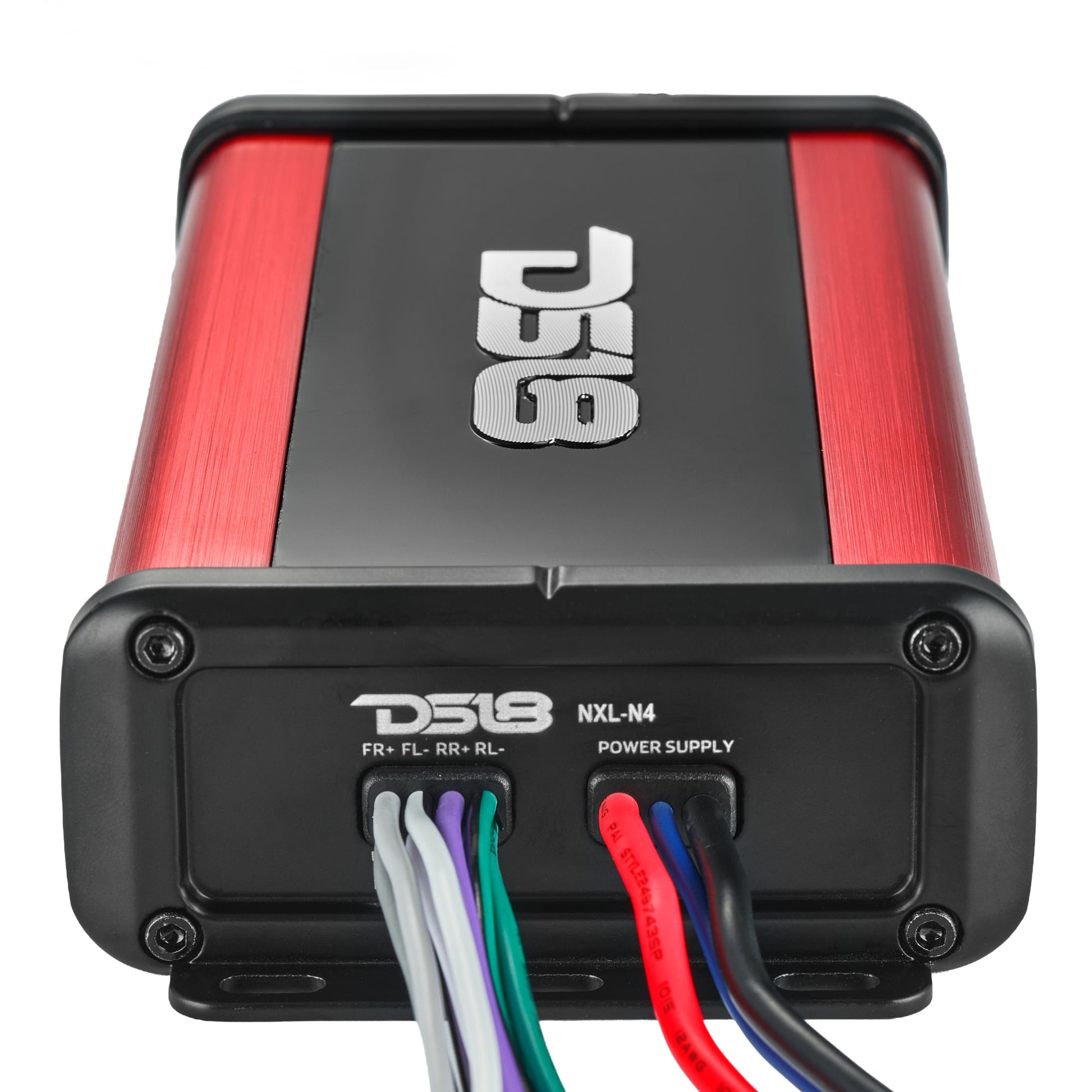

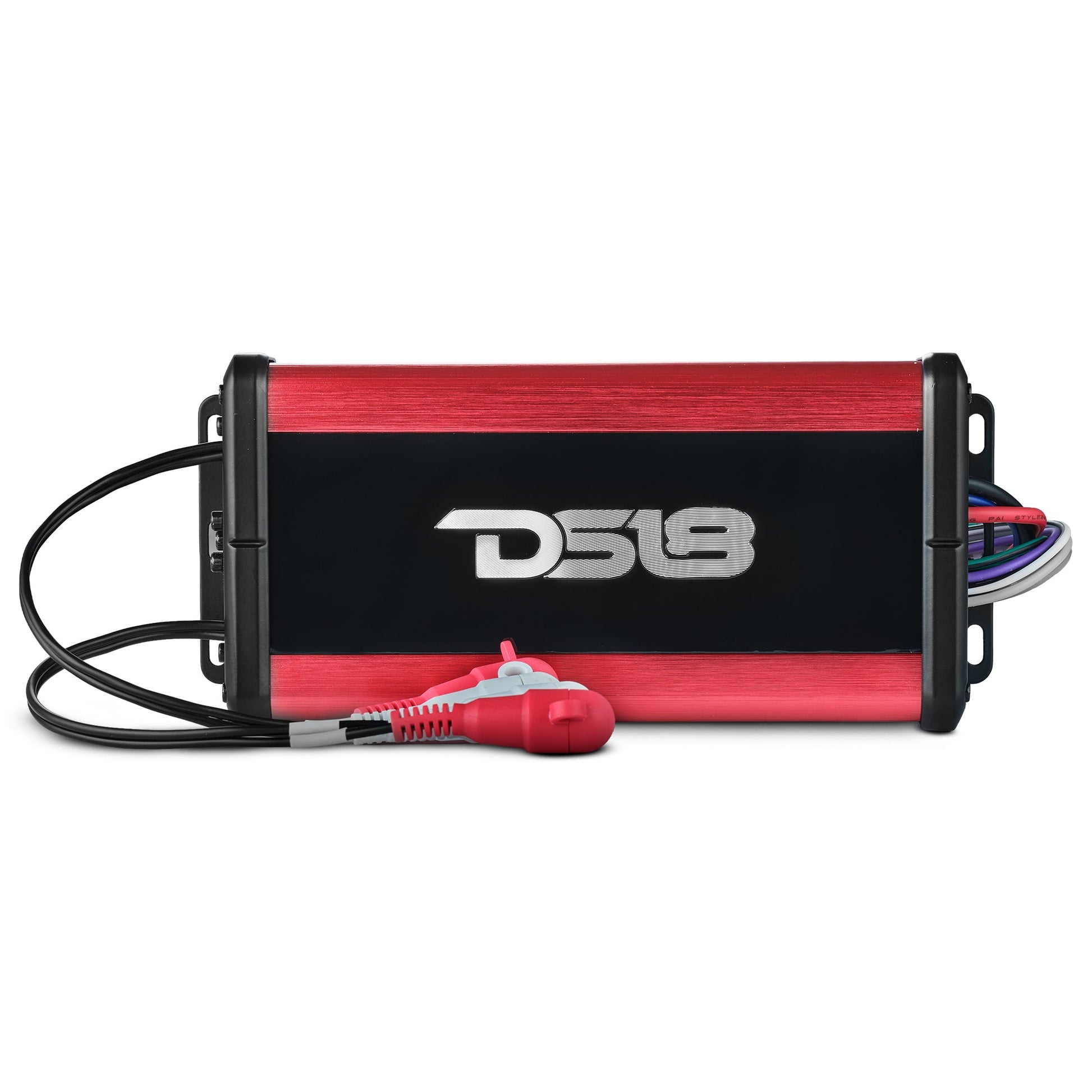

The DS18 NXL-N4 is a Class D 4-channel amplifier from the DS18 NXL line rated at 4 x 100W RMS. Clean power is the foundation of any system that plays loud for a long time. Built for the DS18 marine and powersports lineup, it is meant for boats, UTVs, Jeeps and other open-air rides.
DS18 Product Details
DS18 HYDRO NXL-N4 Nano Full-Range Digital Marine 4-Channel Boat, ATV, UTV Amplifier 4 X 100 Watts @ 4 Ohm RMS 1800 Watts Peak
Whether you are the type of audio enthusiast that likes to hit the open road on his bike, ride the rough trails on your side by side, or cruise the open waters, you are going to need a powerful and waterproof rated amp that has a small footprint and also make great power.
DS18 has a line just for the job with the NXL series of amplifiers to power your whole system. These amps are very efficient, small, and have great power output. These amps come in 1 channel, 2 channel, 4 channel, and 5 channels to help you accommodate for all your different speaker setups without having to look further. Being full range amps, these can be run on subs, mids, or tweeters because of the internal design of the amp.
All units have stable and reliable 4-layer PCB layouts, IPX67 rated for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification. The NXL line of amps is what the serious outdoors person will need for their vehicle hands down!
Highlights
- Stable and reliable 4 layers PCB layout design
- IPX67 Waterproof for Powersports applications
- Ultra-compact size for easy installation
- Audio precision quality control verification
- Selectable X-Over: LPF / FULL / HPF
Technical Details
| Model: | NXL-N4 |
| Number of Channels: | 4 |
| Max Power | 1800W |
| Frequency Response: | 20Hz - 20KHz |
| 2 Ohms RMS Power (14.4V) Per Channel: | 4 x 150W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 4 x 100W |
| 4 Ohms RMS Power Bridge (14.4V) Channel: | 2 x 300W |
| Input Sensitivity: | 0.2V + 10V |
| High Pass | 40Hz - 500Hz |
| Signal-to-Noise Ratio: | 90dB |
| Product Dimensions: (L x W x H) | 200 x 93.4 x 39.8 |
Setup Tips From Audio Sellerz
- Run power and ground wire sized for the amp's current draw, and fuse the power wire as close to the battery as possible.
- Use the amp's crossovers so each channel only plays the range its speakers are built for.
- Set gains with a proper method, not by ear at full volume. That is how amps and speakers get damaged.
