DS18
EXL-X 6.5" Subwoofer 400 Watts Rms DVC 4-Ohms
EXL-X 6.5" Subwoofer 400 Watts Rms DVC 4-Ohms
Couldn't load pickup availability
EXL-X 6.5" Subwoofer 400 Watts Rms DVC 4-Ohms
Sold by AudioSellerz.com

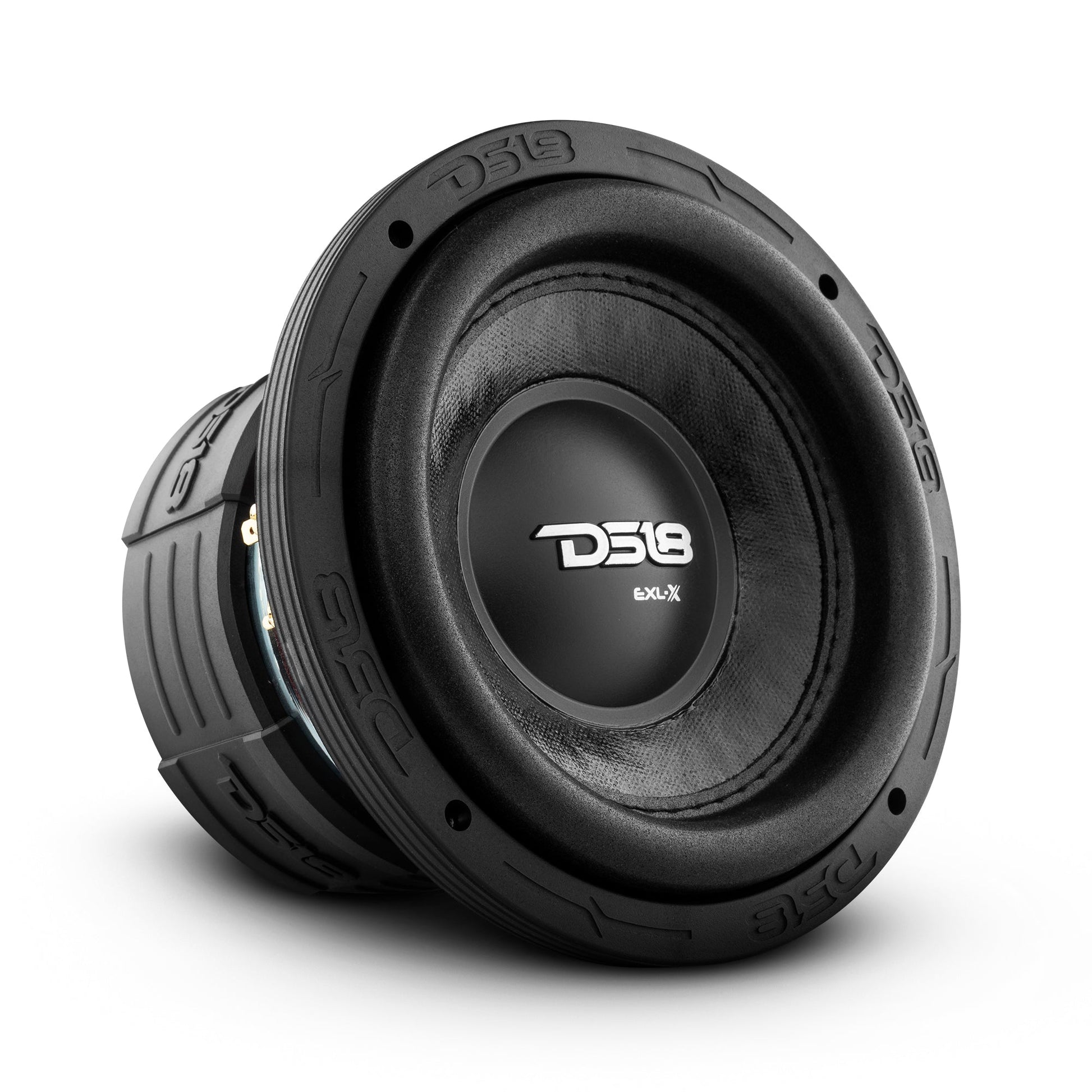

The DS18 EXL-X6.4D is a 6.5" subwoofer from the DS18 EXL line rated at 400W RMS with a 4 ohm dual voice coil design. Pick the sub to match your amp and box, and it will deliver the low end your speakers can't.
DS18 Product Details
DS18 EXL-X6.4D 6.5" Car Subwoofer 800 Watts 4-Ohm DVC
EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2" voice coils and 800 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.
Highlights
- Big bass in a small package. Small sized sub with full size ferrite magnet and lots of Xmax.
- High strength foam surround holding a durable pressed cone with fiberglass
- DS18 dustpan will not only give you DS18 flare but is strong enough to force great bass out even with a small cone area size.
- Works great in ported and sealed boxes in all vehicles shapes and sizes!
Technical Details
| Model: | EXL-X6.4D |
| Type: | Subwoofer |
| Size: | 6.5" |
| RMS Power: | 400W |
| MAX Power: | 800W |
| Impedance: | 4 + 4 Ohms |
| Voice Coil Size: | 2" |
| Magnet: | Ferrite |
| Magnet Weight: | 90oz |
| Frequency Response: | 40Hz-820Hz |
| Materials | |
| Frame: | DS18 Private Red Aluminum |
| Surround: | Foam Edge |
| Dust Cap: | Glass Fiber |
| Voice Coil Former Material: | Black Aluminum |

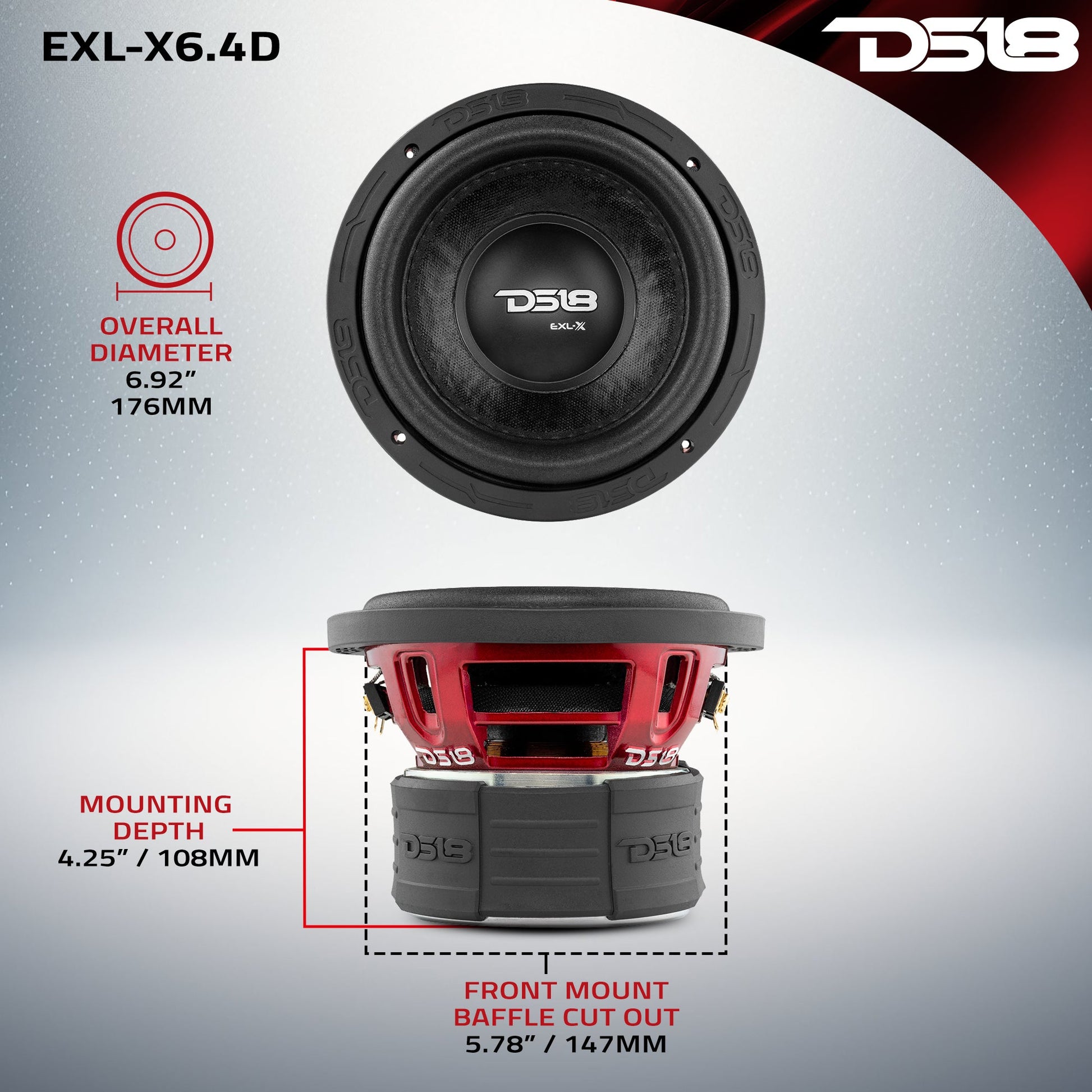

| Diameters | |
| Mounting Cut-Out: | 5.78" |
| Mounting Depth: | 4.25" |
| Overall Diameter: | 6.92" |
| Optimum Sealed ft3 | 0.24 |
| Optimum Ported ft3 | 0.6 |
| Port Tune | 46Hz |
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 4 ohm per coil.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
