CANDY Compact Full-Range Class D 4-Channel Amplifier 1600 Watts
Sold by AudioSellerz.com
The DS18 CANDY-X4B is a Class D 4-channel amplifier from the DS18 CANDY line. Clean power is the foundation of any system that plays loud for a long time.
DS18 Product Details
DS18 CANDY-X4B Compact Full-Range Class D 4-Channel Car Amplifier 1600 Watts
Small, compact, and powerful is what the DS18 Candy amps are all about! Just like edible candy, we have many different flavors to choose from to give audio enthusiasts goosebumps when they turn it up! Instead of making your mouth tingle, DS18 Candy makes your ears tingle with pleasure when you hook them up to any of our abundant lines of pro audio, marine, and power sports audio.
These amps not only have the power to keep your speakers at maximum wattage efficiently, they are very small and compact in design so they can be mounted almost anywhere and still not have to worry about room! These mini amps come in 2 channel stereo, 4 channel, 1 channel, 5 channels, and even 6 channel configurations so the setup of your entire audio system is easy and painless to match up.
These amps are perfect for people who want a very small audio footprint with also having all the benefits of a huge amplifier putting out lots of power in a small package.
Highlights
- One of our most popular models because of its power output to size ratio.
- Small and powerful design that gives it a wide range of versatility because of its size.
- High grade components made to stand the test of time and give you loud sound on demand.

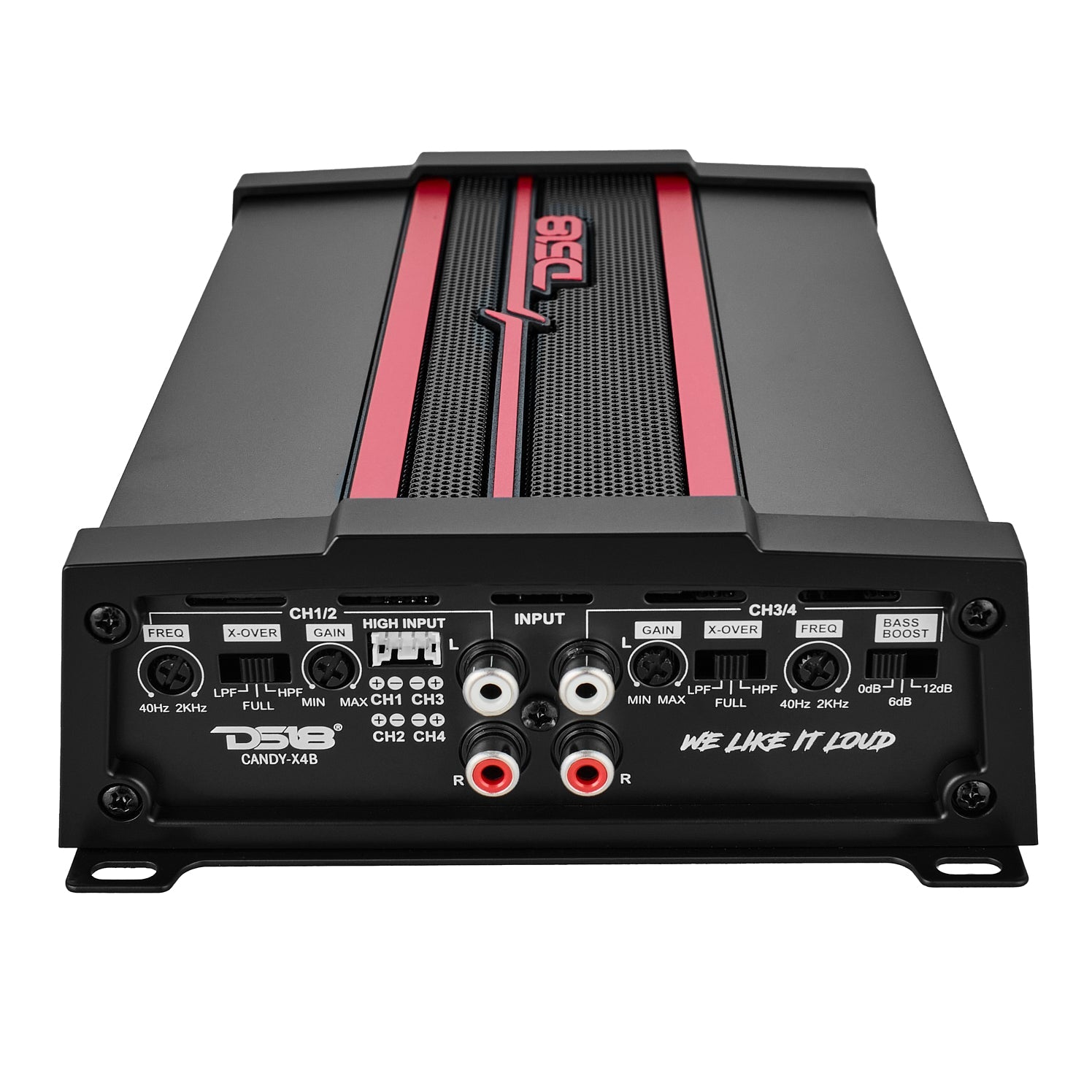

- RCA and Hi/Lo inputs so you can integrate this amp into your factory audio system easily.
Technical Details
| Model: | CANDY-X4B |
| Number of Channels: | 4 |
| Frequency Response: | 20Hz - 20KHz |
| 2 Ohms RMS Power (14.4V) Per Channel: | 4 x 120W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 4 x 80W |
| Bridged 4 Ohms RMS Power (14.4V) Per Channel: | 2 x 240W |
| Speaker Impedance Range: | 2 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 40Hz - 250Hz |
| High Pass Filter: | 40Hz - 250Hz |
| Signal-to-Noise Ratio: | 100 dB |
| THD: | 0.01% |
| Bass Boost: | 0dB -+12dB |
| Product Dimensions: | 234.4x127x47.5mm |
Setup Tips From Audio Sellerz
- Run power and ground wire sized for the amp's current draw, and fuse the power wire as close to the battery as possible.
- Use the amp's crossovers so each channel only plays the range its speakers are built for.
- Set gains with a proper method, not by ear at full volume. That is how amps and speakers get damaged.
