DS18
Bass Package 2 X SLC-MD12 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 250 Watts Rms
Bass Package 2 X SLC-MD12 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 250 Watts Rms
Couldn't load pickup availability
Bass Package 2 X SLC-MD12 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 250 Watts Rms
Sold by AudioSellerz.com
The DS18 LSE-212A is an audio package from DS18 rated at 250W RMS. Buying a matched package takes the guesswork out of pairing parts.
DS18 Product Details

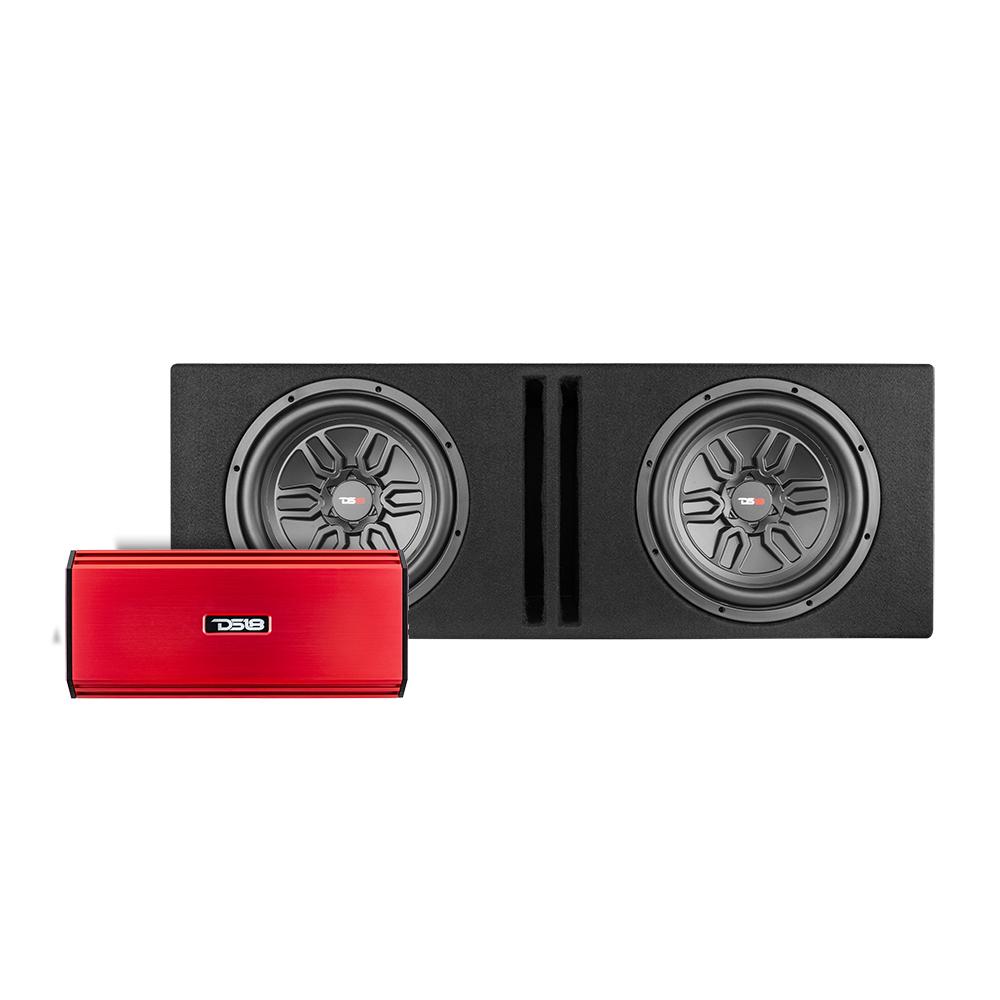

DS18 LSE-212A Bass Package 2 X SLC-MD12.4 In a Ported Box with S-1500.1/RD Amplifier and 4-GA Amp Kit 1000 Watts
Looking for that perfect bass package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer box the LSE212A! This is a prefabricated box that comes with a pair of some of our best selling subwoofers. Included is a beautiful carpeted box with DS18 designs tuned to 35 hz. The box is constructed by thick 1/2 MDF for great sound and resonance. The subs included are the very popular MD12.4's that are single voice coil 4 ohm subs wired in parallel for a final nominal impedance of 2 ohms that will require 500w rms. This loaded box is a great entry level solution to hard hitting heavy bass for all to enjoy.
Highlights
- The box is constructed of 1/2 inch MDF for great strength, resonance, and tuned to 35hz for low hitting bass.
- Two SLC 12 inch subs will give you the cone area to push out great sounding bass without a lot of power requirements.

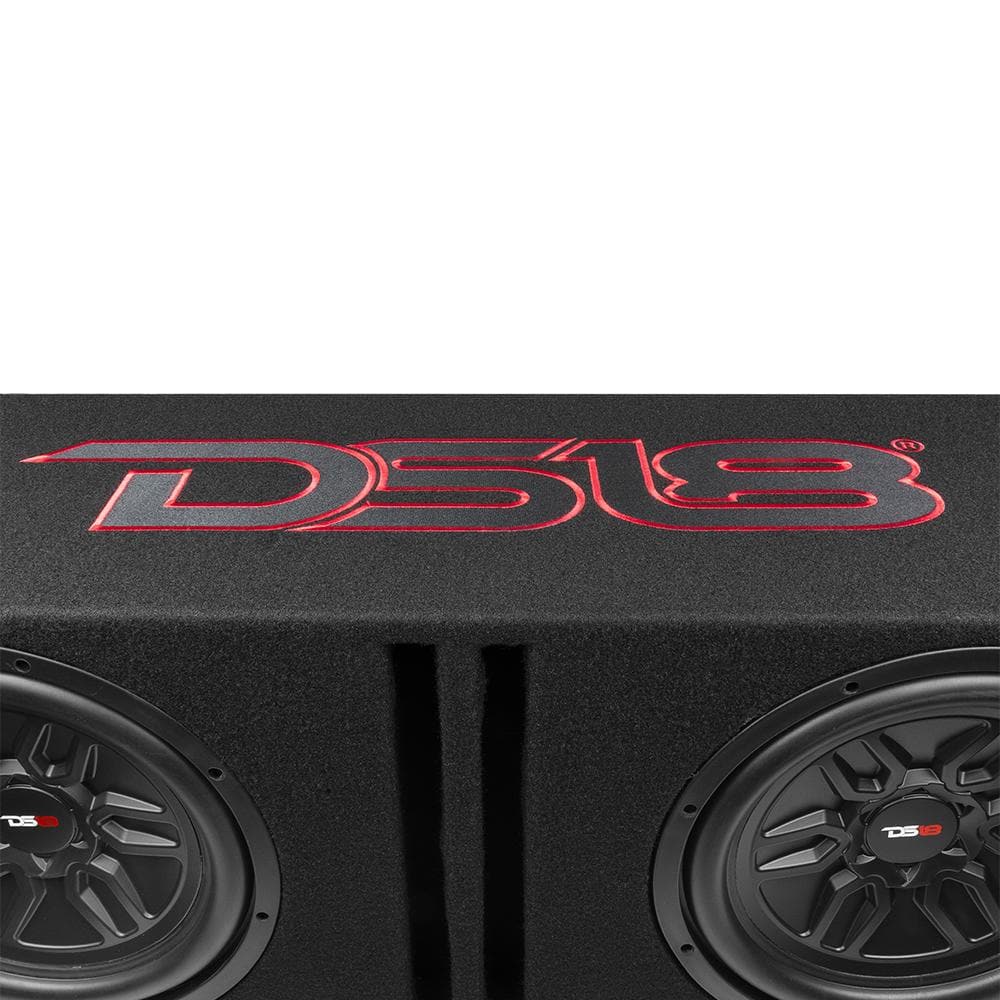

- Great design and carpeting with DS18 logos to give your system the flair it deserves and also brings a show quality look.

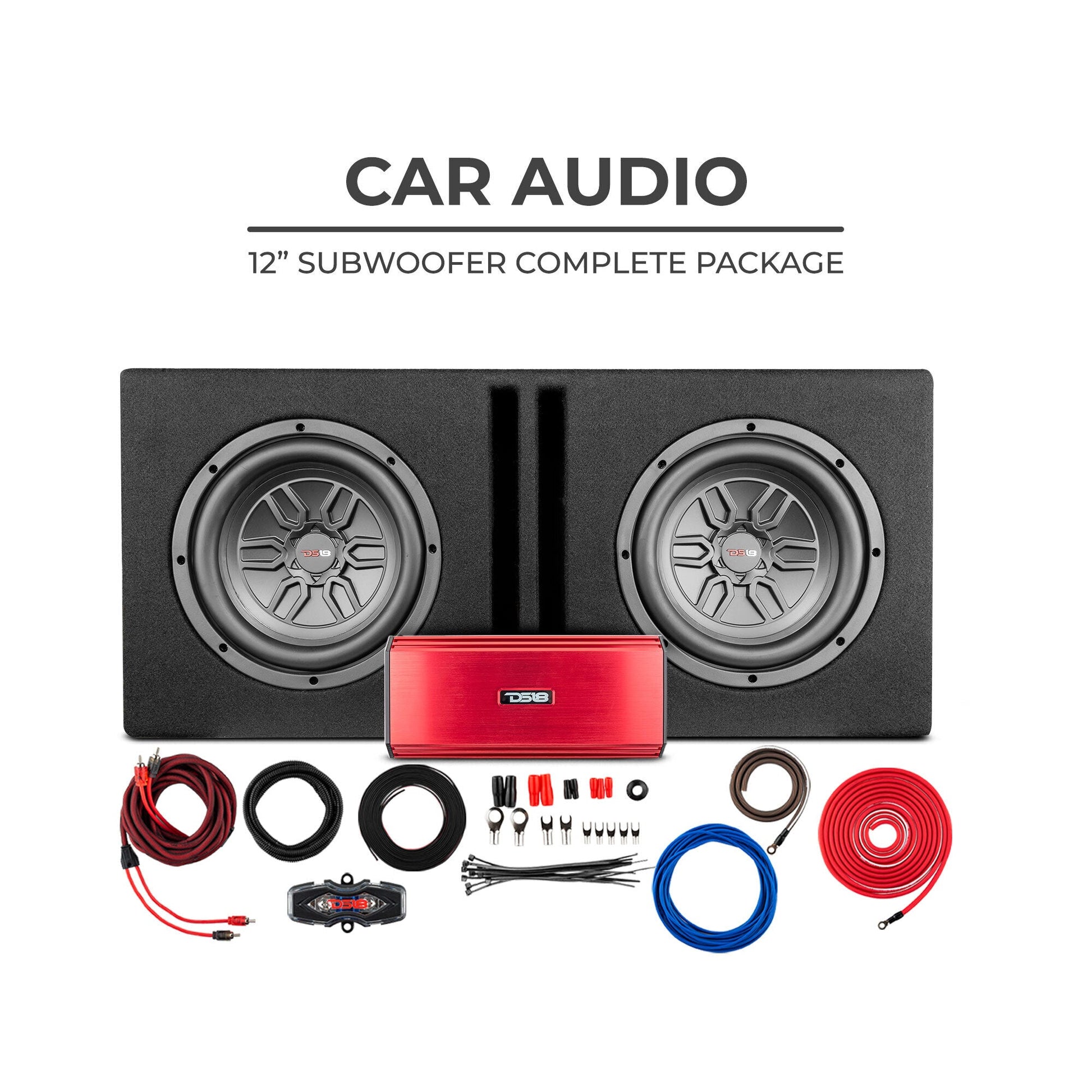

What's in the package?
-
S-1500.1 AMPLIFIER
| Amplifier | |
| Circuit Topology | Class AB Monoblock Amplifier |
| RMS Power Output @ 2 OHMS | 350 watts |
| RMS Power Output @ 4 OHMS | 220 watts |
| Total Harmonic Distortion | < 3% |
| S/N Ratio Ref 1w @ 4 OHMS | >90db |
| Gain Range | 0.2-6V |
| Crossover Range | 50-250hz |
| Frequency Range | 20Hz-500 Hz |
| Dimensions | 13.7/348mm x 5.8/148mm x 1.8 / 47.5mm |
- 4-GA AMP KIT - 500 WATTS
- AGU Fuse Holder With AGU-100A
- 6ft. 4GA Loom Tube
- Rubber Grommet
- 17ft. Red Power Cable: 21mm² OD: 10mm
- 3ft. Black Ground Cable: 21mm² OD: 10mm
- 17ft. Red/Black Twisted RCA Cable
- 17ft. Turn-On Cable: 20*0.15mm
- 17ft. Red/Black Speaker Cable: 1.31mm² x 2 wires OD 3.2 x 6.4mm

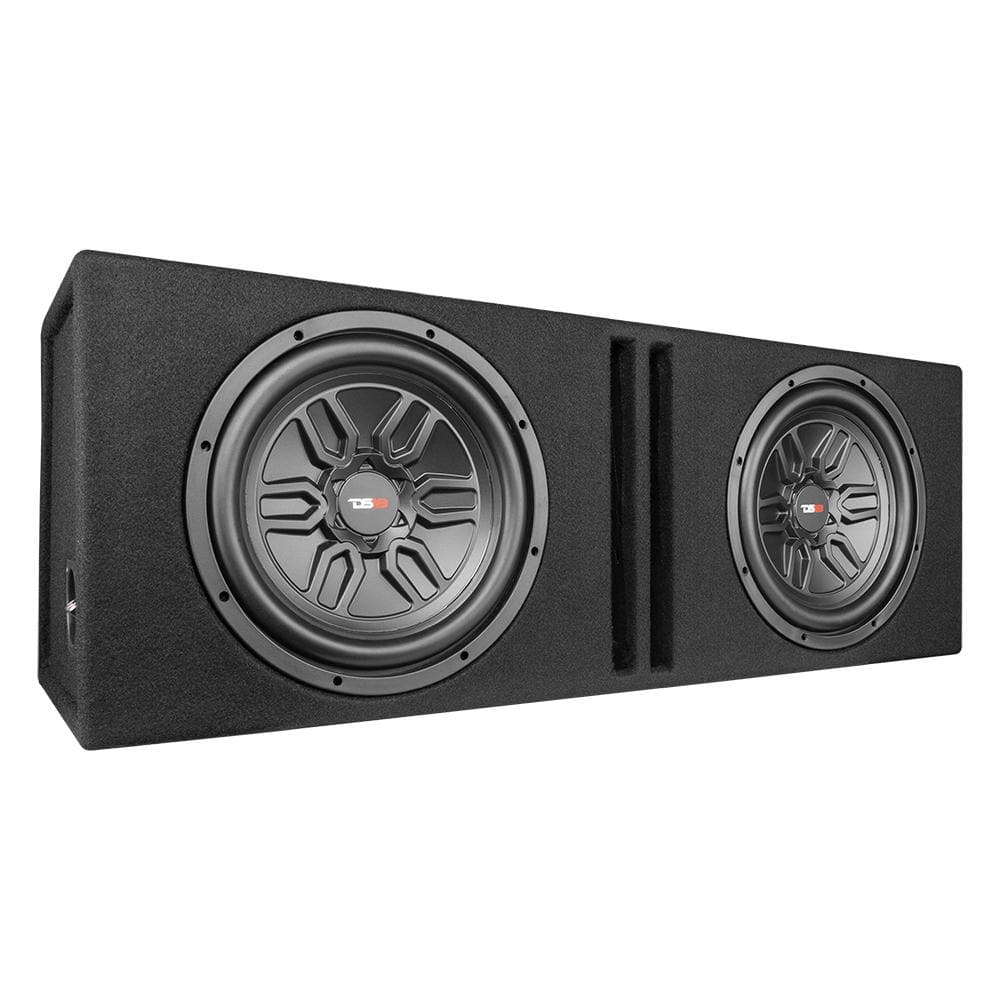

- SLC-MD12 IN A PORTED BOX
| Model: | SLC-MD12 |
| Type: | Subwoofer |
| Size: | 12" |
| RMS Power: | 250W |
| MAX Power: | 500W |
| Impedance: | 4 |
| Voice Coil Size: | 2" |
| Magnet: | Ferrite |
| Magnet Size: | 42oz |
Technical Details
| General | |
| Speaker Size | 2 x 12" |
| Total Impedance | 2 ohms |
| Total RMS Power Handling | 500 watts |
| Total MAX Power Handling | 1000 watts |
| Sensitivity (1w/1m) | 96db |
| Frequency Response | 29-250hz |
| Recommended Lo Pass Crossover | 80 Hz |
| Subwoofer | |
| Voice Coil Diameter | 50.8mm (2) |
| Voice Coil Former Material | Aluminum |
| Winding Material | ACCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 42oz |
| Box Specifications | |
| Port Tune | 35hz |
| Dust Cap Material | 45.3L |
| Load Configuration | Front Ported |
| Box Material | 1/2" MDF |
| Finish Material | Vinyl |
| Measurements | |
| Height | 13.78 / 350mm |
| Width | 38.58" / 980mm |
| Depth 1 | 11 / 280mm |
| Depth2 | 14 / 356mm |
Setup Tips From Audio Sellerz
- Check the included parts list so you know what else you need, like speaker adapters, harnesses or a signal source.
- The amplifier needs a signal. An aftermarket radio with RCA outputs, or a line output converter or DSP on the factory radio, are the usual ways to get it.
- Set the gains and crossovers before playing the system hard.
