DS18

2" Throat Bolt on Driver 320 Watts 2" Phenolic Vc 8-Ohm

Name: 2" Throat Bolt on Driver 320 Watts 2" Phenolic Vc 8-Ohm
Brand: DS18
SKU: PRO-D1F
Price: 83.95 USD
Availability: OutOfStock

$83.95 USD

Sale Sold out

Shipping calculated at checkout.

2" Throat Bolt on Driver 320 Watts 2" Phenolic Vc 8-Ohm – PRO-D1F Model

Sold by AudioSellerz.com

This listing is specifically for the PRO-D1F Model, exact SKU PRO-D1F. DS18 uses more than one model under this broad product name, so the model number on this page is the key identifier for the exact compression driver.

The related listings in this product family are identified as PRO-DPL1PH Model, PRO-D1F Model. Use the exact SKU, included parts, specifications, fitment, and connection requirements below to choose the correct version for your build.

Product Details and Specifications

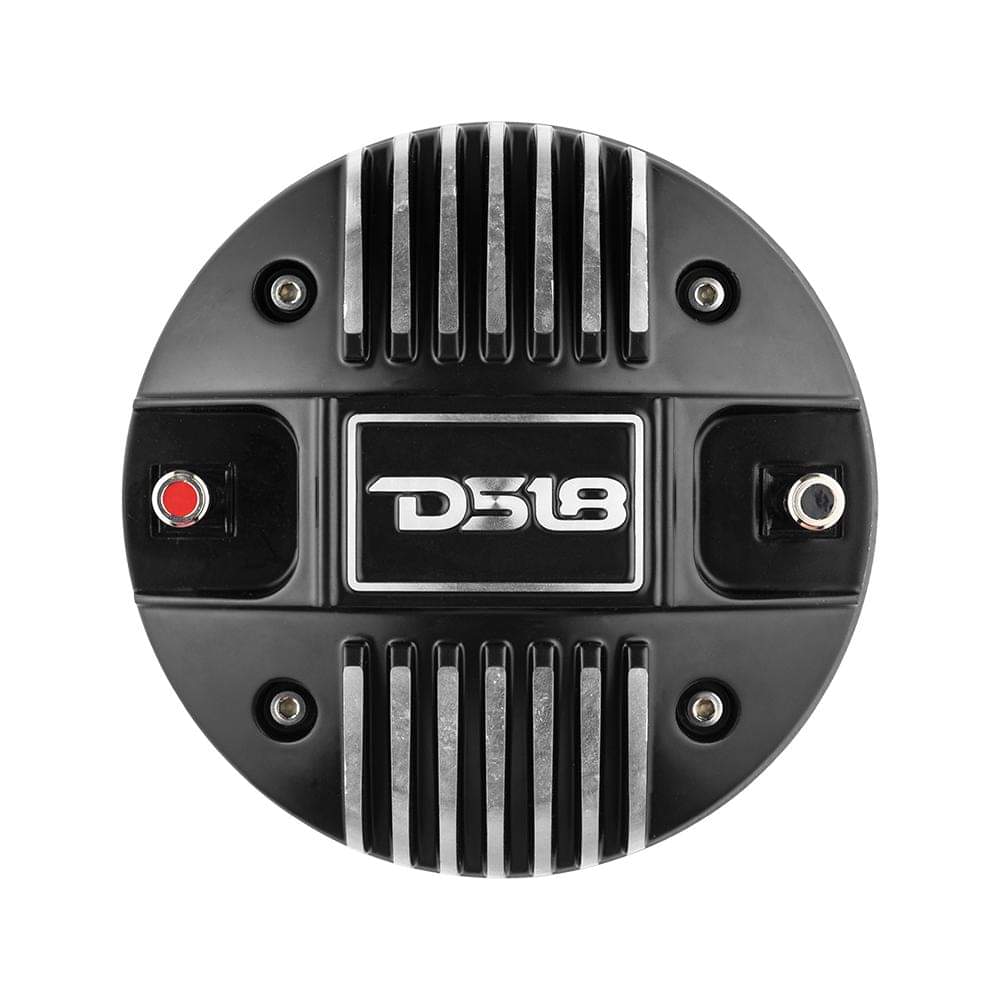

DS18 PRO-D1F 2" Throat Bolt On Compression Driver 2" Throat Phenolic VC 450 Watts 8 ohm

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch phenolic voice coil that takes 150 Watts RMS and 450 Watts Peak power for extreme decibel production backed with a high efficiency motor.

Highlights

Ferrite motor structure that provides great motor force and loudness.
High strength phenolic voice coil taking 150 Watts RMS and 450 Watts peak.
Intense high frequency volume without sacrificing sound quality.
Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.

Technical Details

Download PRO-D1F Product Manual

Nominal Impedance: 8 Ohms
Throat Diameter: 2"
RMS Power Handling: 150 Watts
MAX Power handling: 450 Watts
Sensitivity (1w/1m): 110dB
frequency response: 500Hz-18KHz
Recommended Hi Pass Crossover: 800Hz
Voice Coil Diameter: 2.03"
Diaphragm Material: Phenolic
Magnet Material: Ferrite
Magnet Wight: 35oz
Bolt Type: Bolt-on
Measurements
Overall Diameter: 5.27"
Overall Depth: 2.4"
