ZXi 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm
ZXi 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm
Couldn't load pickup availability
ZXi 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm
Sold by AudioSellerz.com
The DS18 ZXI-694 is a 6x9" coaxial speaker set from the DS18 ZXI line rated at 120W RMS with a 4 ohm design. It is built for clean, loud midrange and highs that cut through road noise.
DS18 Product Details
DS18 ZXI-694 Glass Fiber Cone 6x9" 2-Way Coaxial Car Speaker 360 Watts 4-Ohm
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6x9", 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2-way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
- The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
- 6x9" inch 2 way 4 ohm speaker requiring 120w RMS and 360w max power handling that gives amazing sound from low to extremely high volume.
- 2-way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6X9” / 162*235mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120W |
| MAX Power Handing | 360W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 31.5Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 2-Way |
| MIDRANGE | |
| Voice Coil Diameter | 1.2” / 30.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 550g |
| TWEETER | |
| Nominal Diameter | 1" (25.4mm) |
| Voice Coil Diameter | 0.8"(ø20.4mm) |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 8.5g |
| MEASUREMENT | |

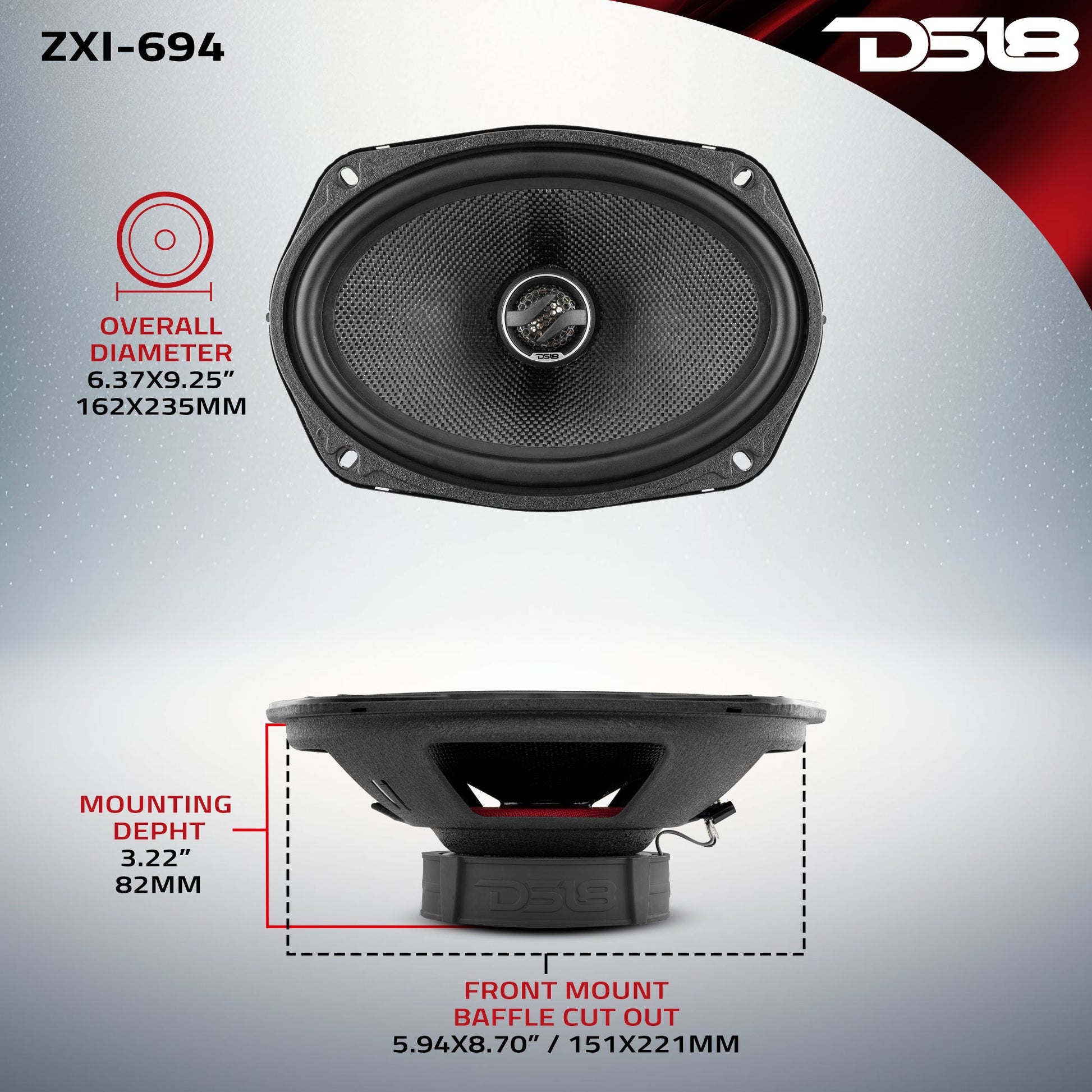

| Overall Diameter | 6.37x9.25” /162*235mm |
| Overall Depth | 3.66” / 93mm |
| Front Mount Baffle Cutout | 5.94x8.70” / 151*221mm |
| Mouting Depth | 3.22” / 82mm |
| Motor Diameter | 4.09” / 104mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 120W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Check the size and mounting depth against your vehicle before ordering. Some vehicles need speaker adapters or harnesses.
