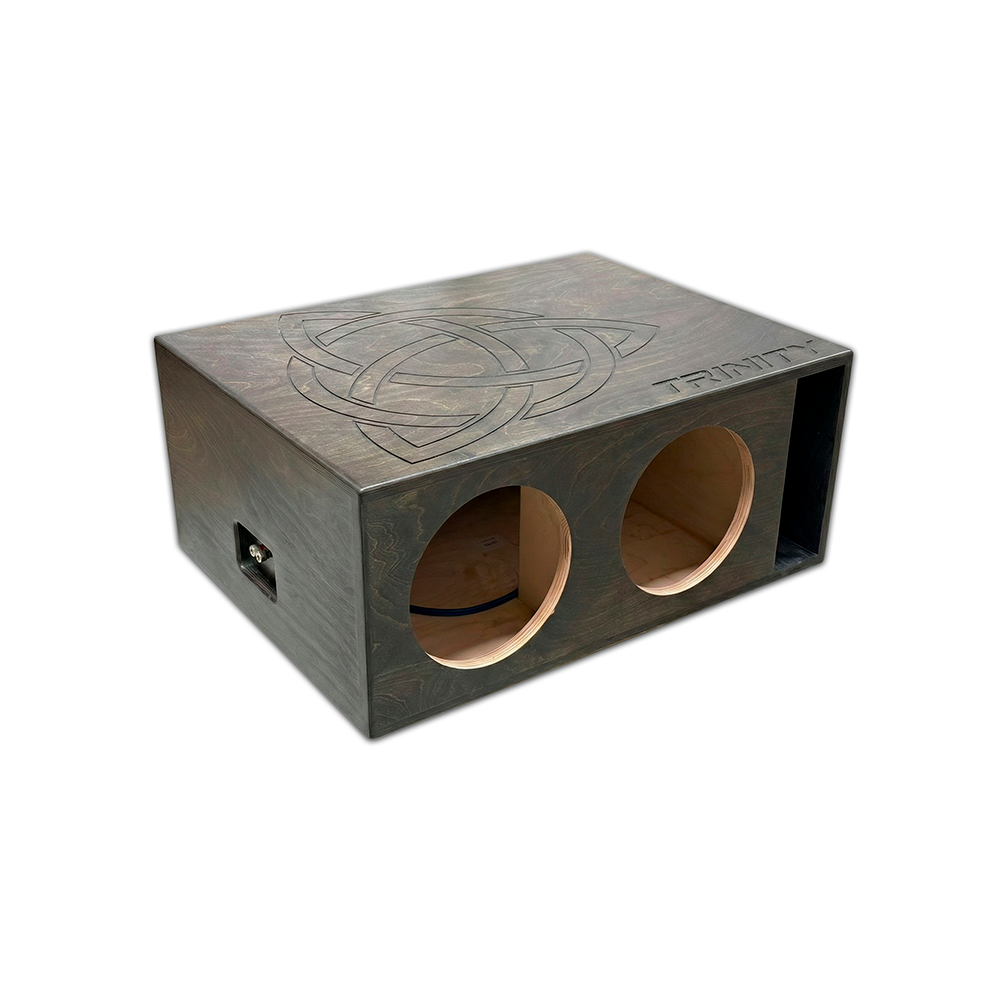

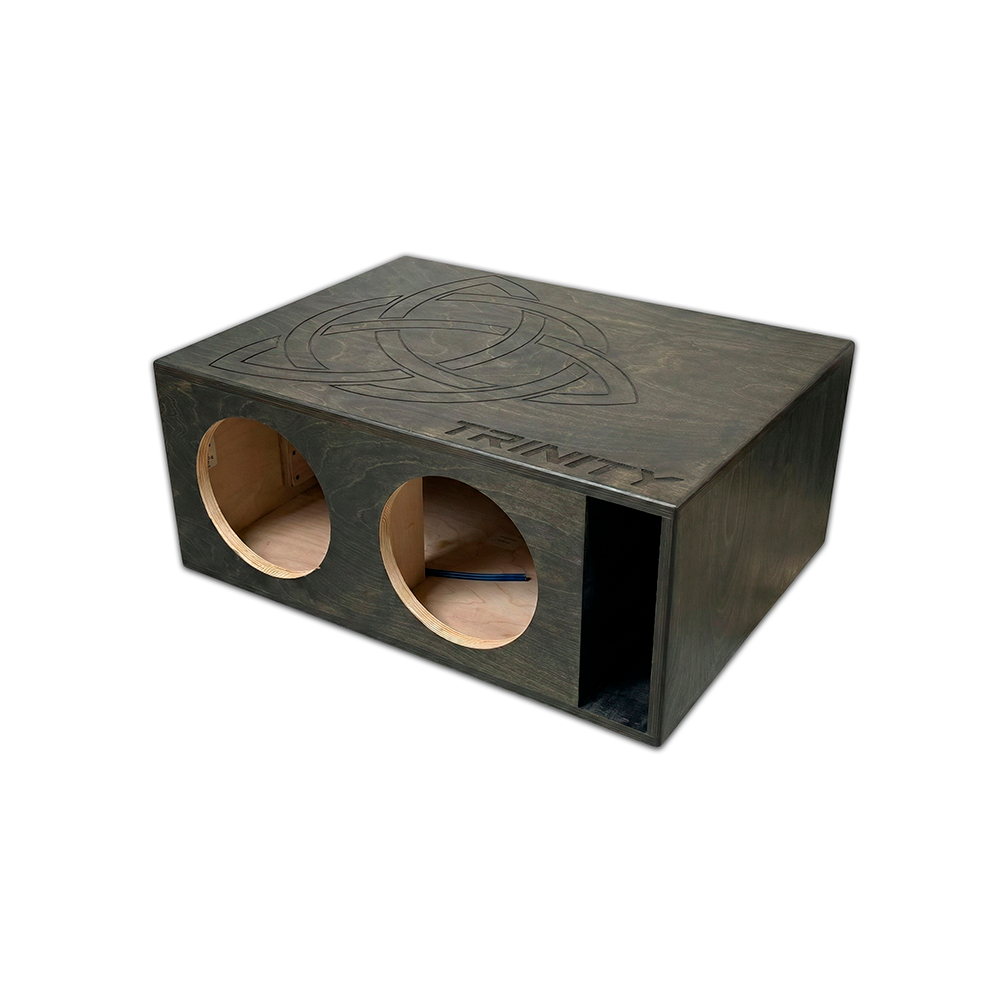

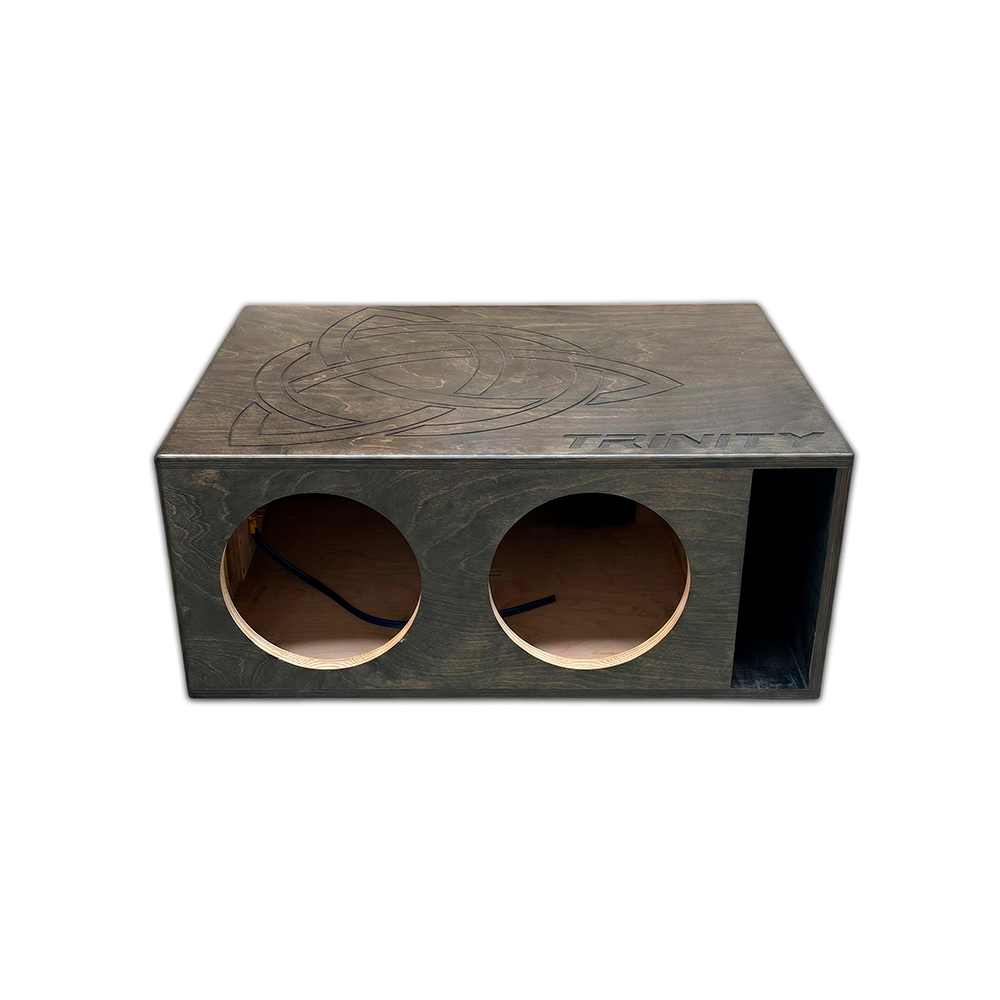

Trinity Audio Dual 12" H Series Ported Enclosure

Trinity Audio Dual H Series 12" Ported Enclosure - 4.8 Cu Ft @ 32Hz

Engineered specifically for the Trinity Audio H Series 12" subwoofer, this enclosure delivers optimal airspace and tuning for deep, controlled bass response.

Enclosure Specifications:

• Net Volume: 4.8 cubic feet
• Tuning: 32 Hz
• Port Area: 61.6 sq in
• Port Size: 16.0" x 3.85"
• Cutout: 11.22"
• Construction: 1" (24mm) Russian Baltic Birch - 17 ply
• Baffle: 1" (24mm) front baffle
• Bracing: 1" (24mm) center baffle brace
• Finish: Carbon gray stain with polyurethane topcoat

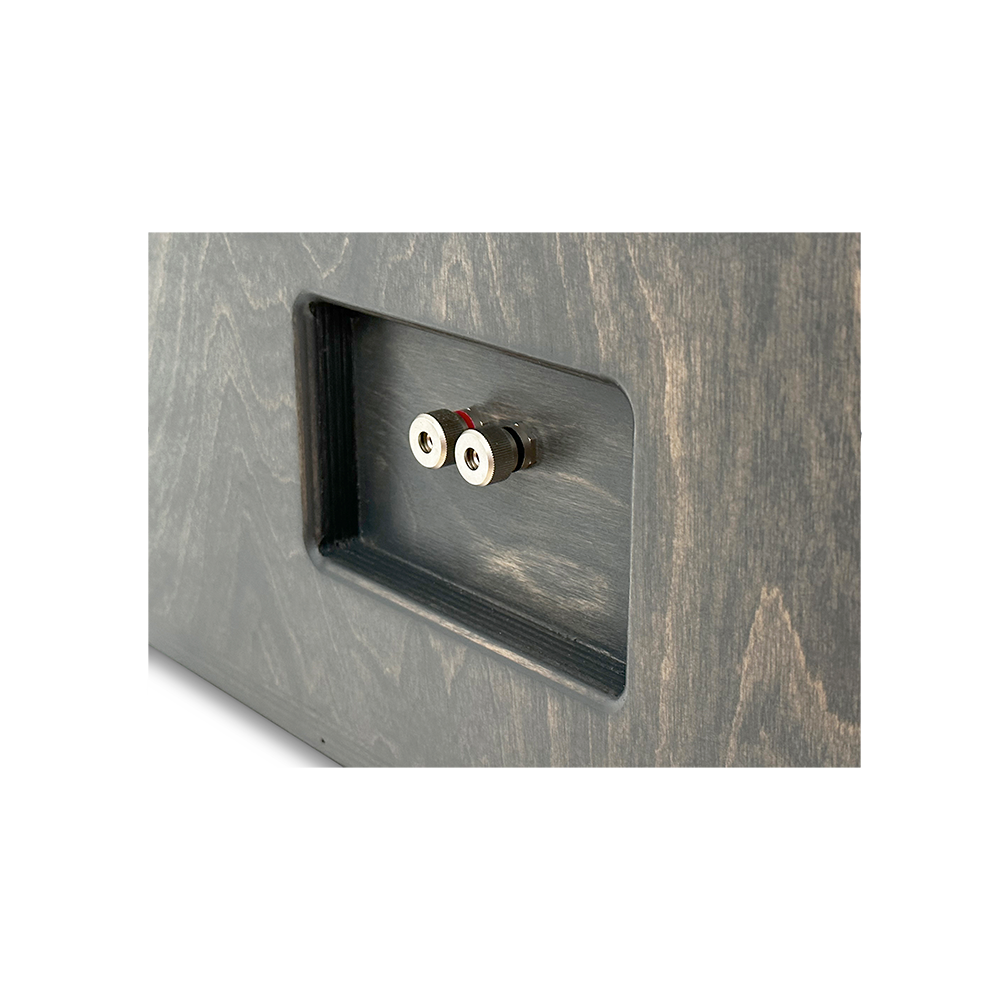

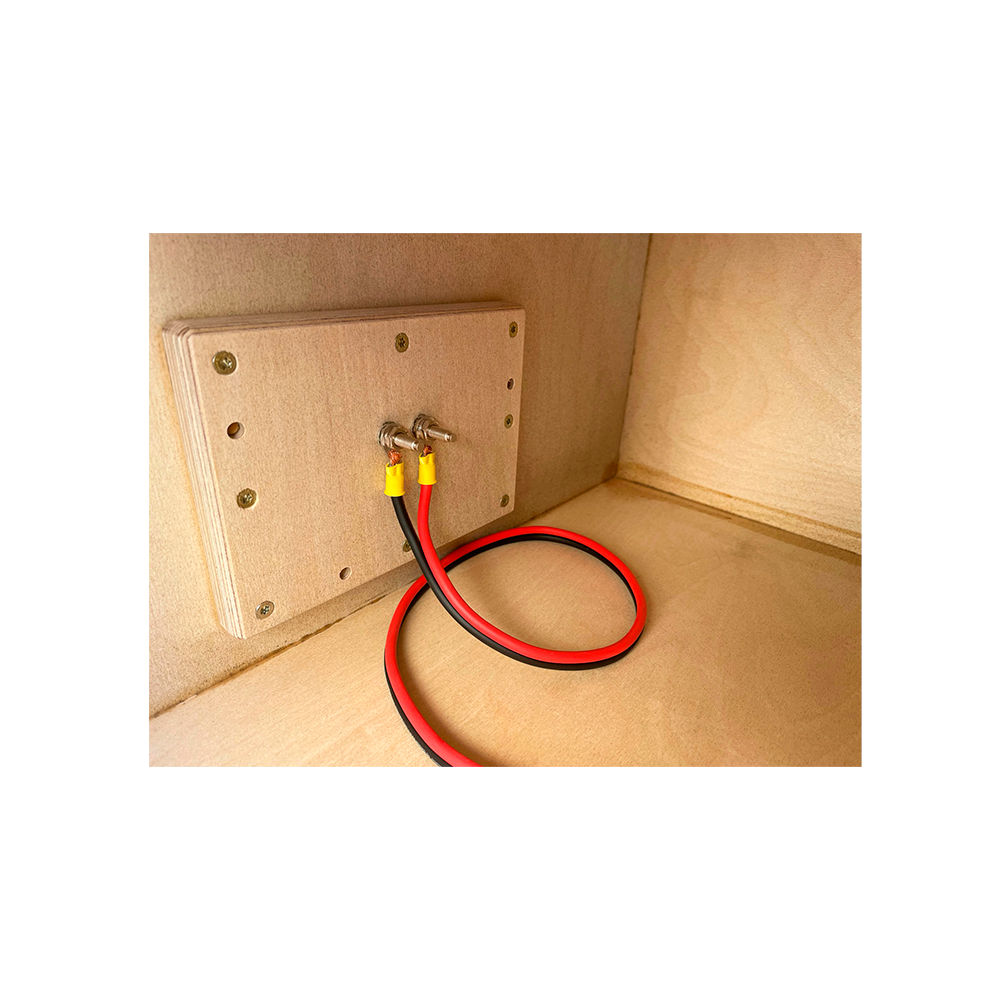

• Wiring: Pre-wired 10ga OFC with metal binding post
• Power Rating: High power systems

Dimensions:

• Height: 18.0"
• Width: 36.0"
• Depth: 22.125"

Handcrafted in the USA:

Every enclosure is built with love, by hand, right here in the United States. Our refined assembly process produces enclosures with zero visible screw holes anywhere on the exterior - a clean, show-quality look that sets them apart from generic prefabs. Each box is fully glued with Titebond III for airtight integrity and long-term durability. Your enclosure arrives ready to install - just wire up your subwoofers and enjoy.

Lead Time:

Built to order. Ships in 2-3 weeks. All sales final.
