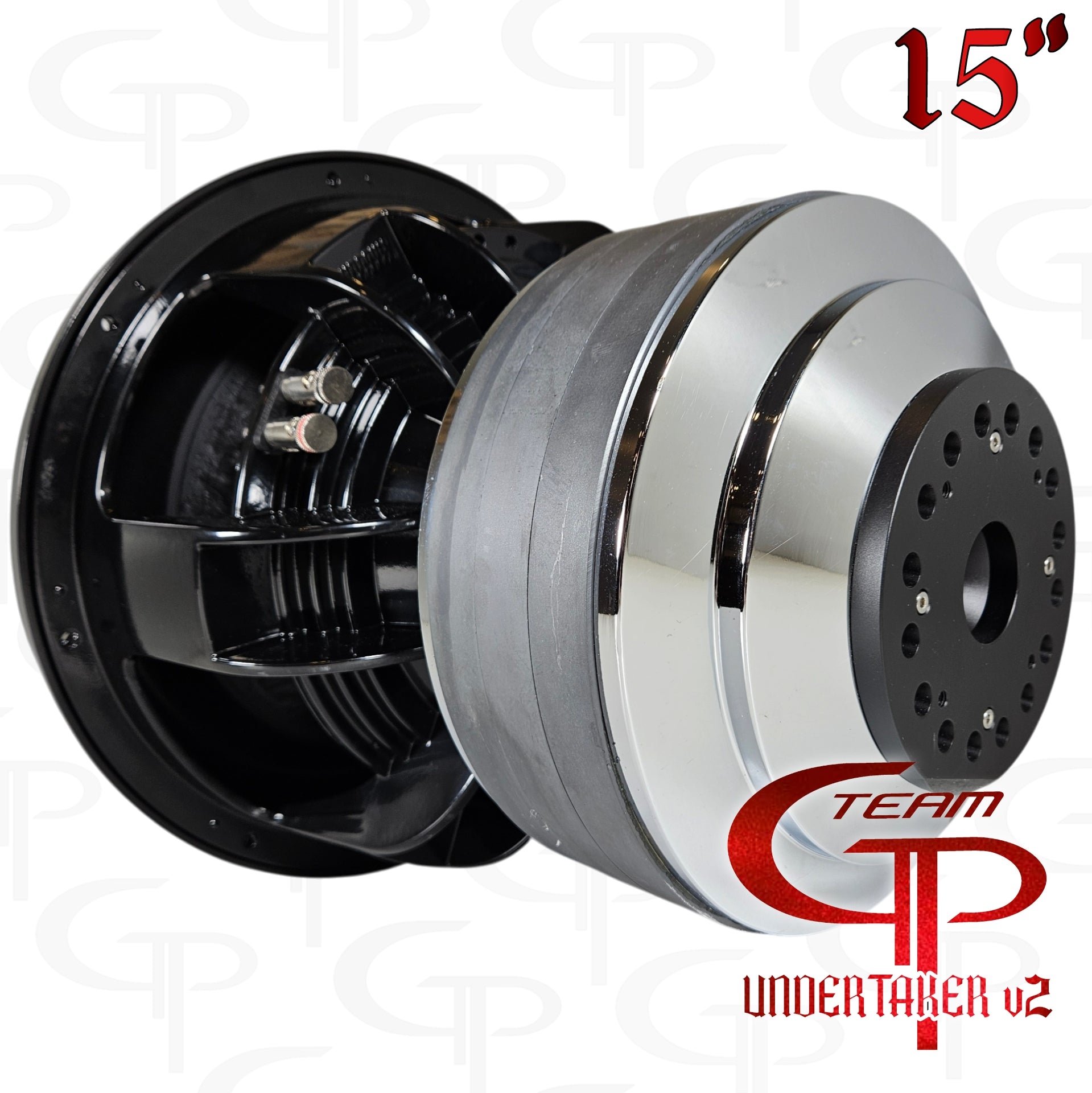

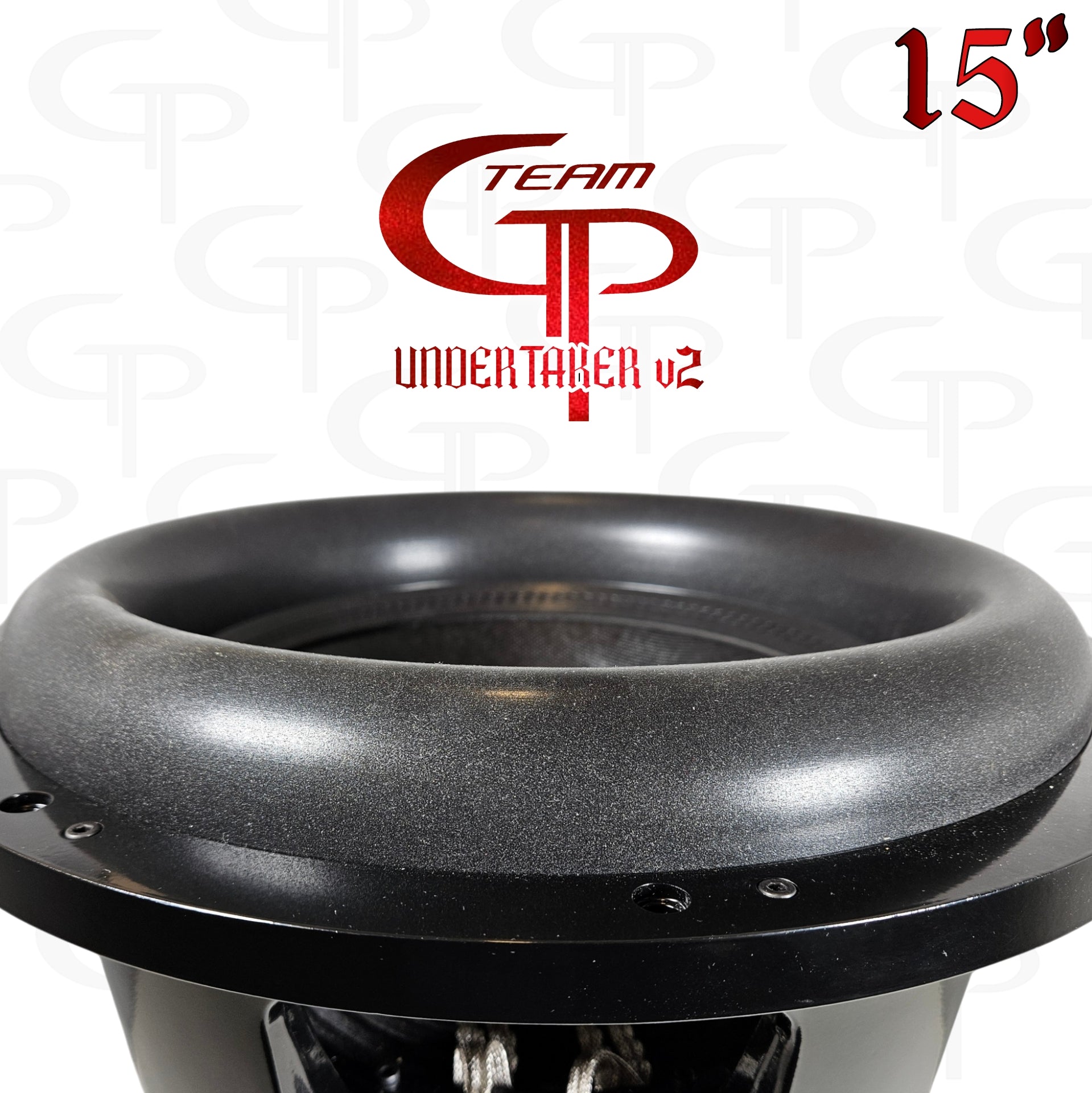

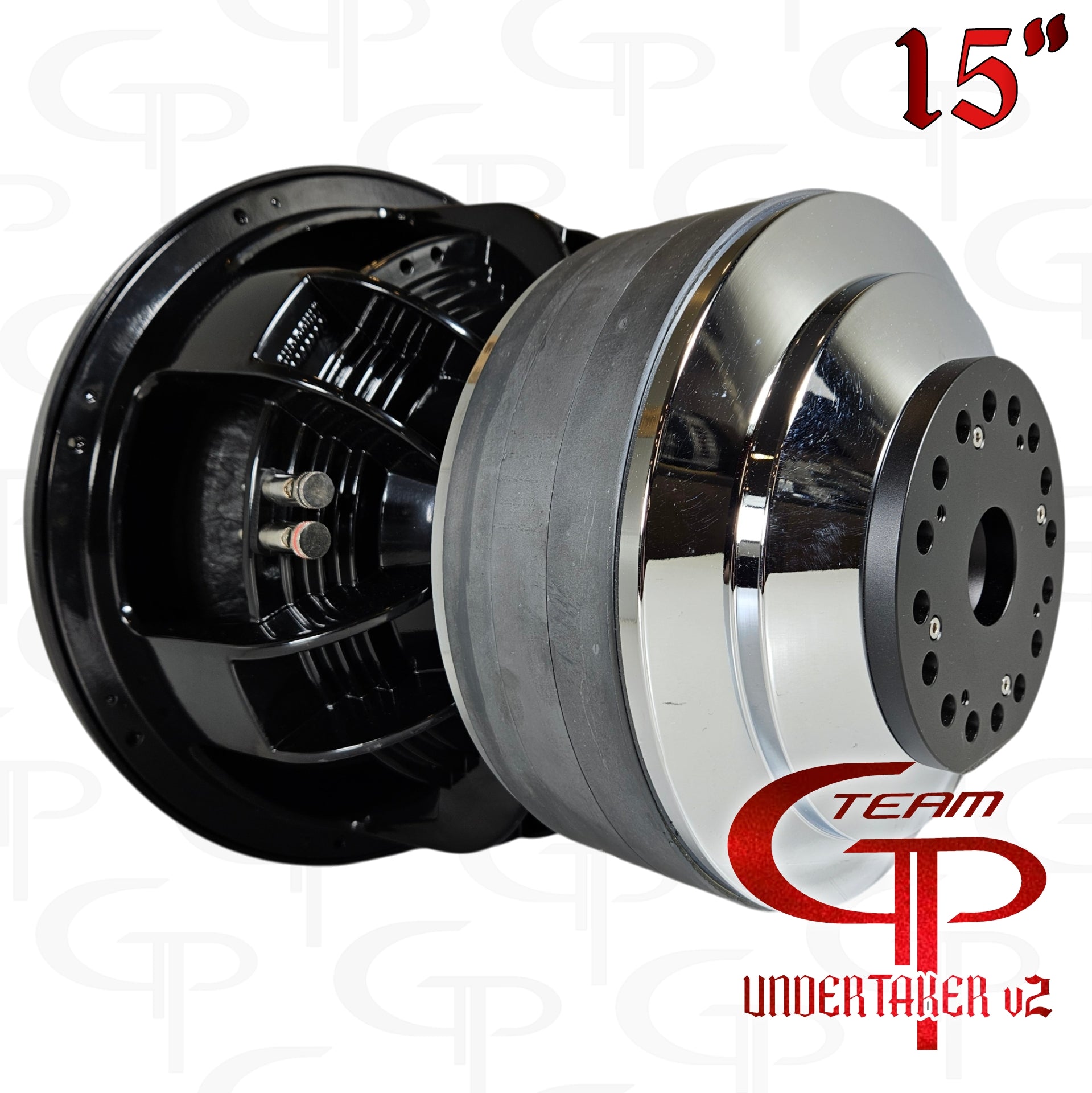

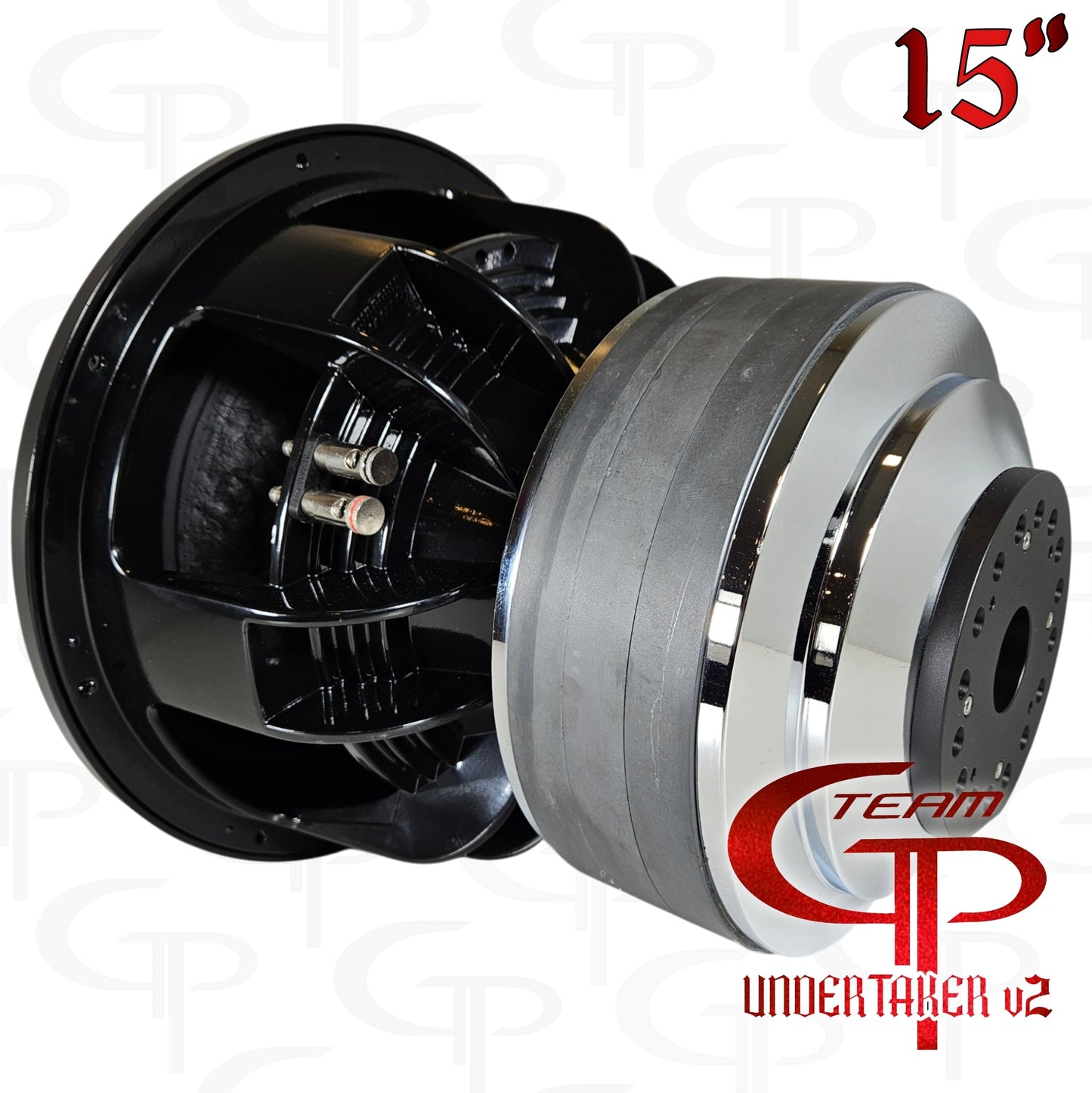

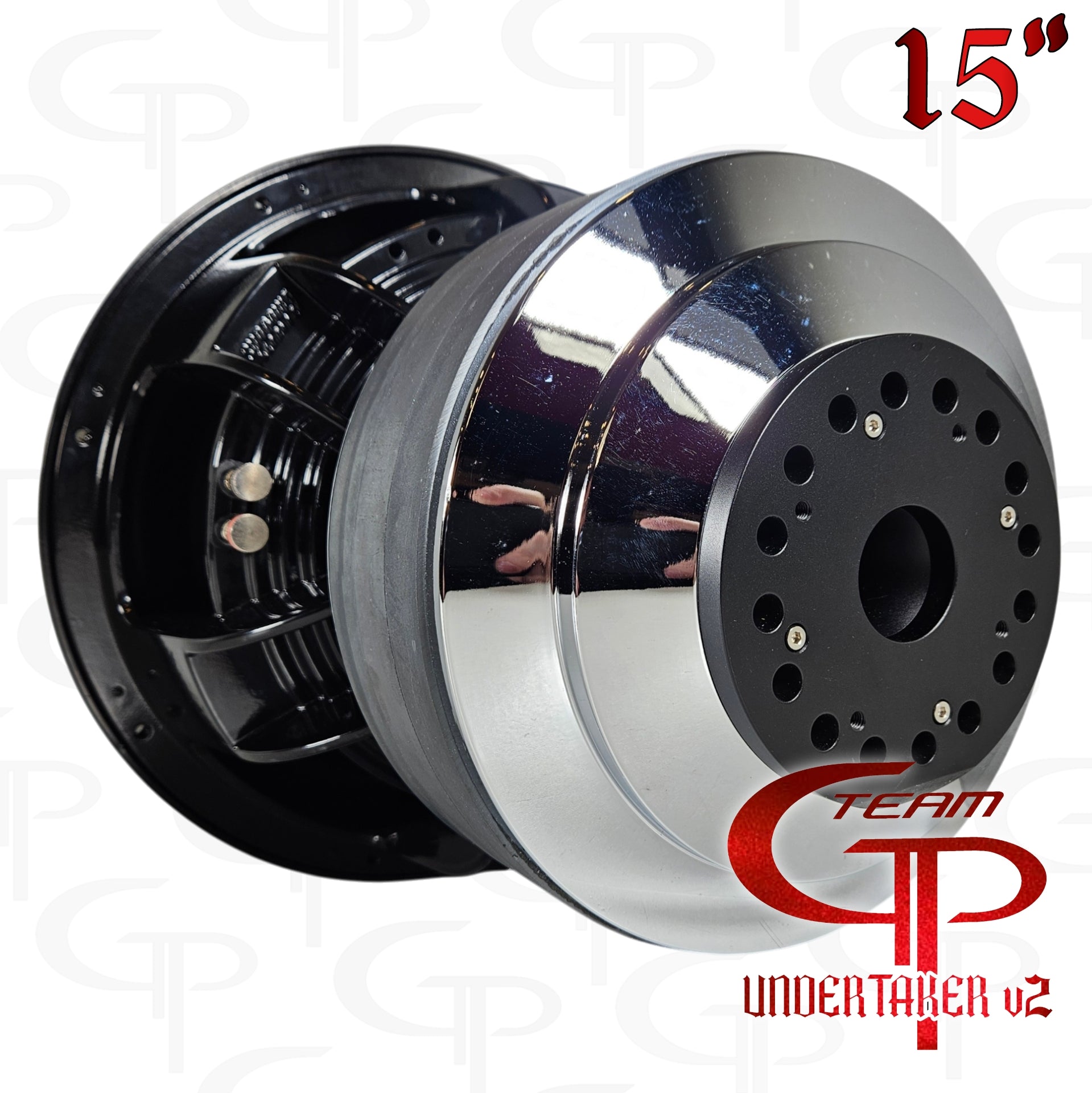

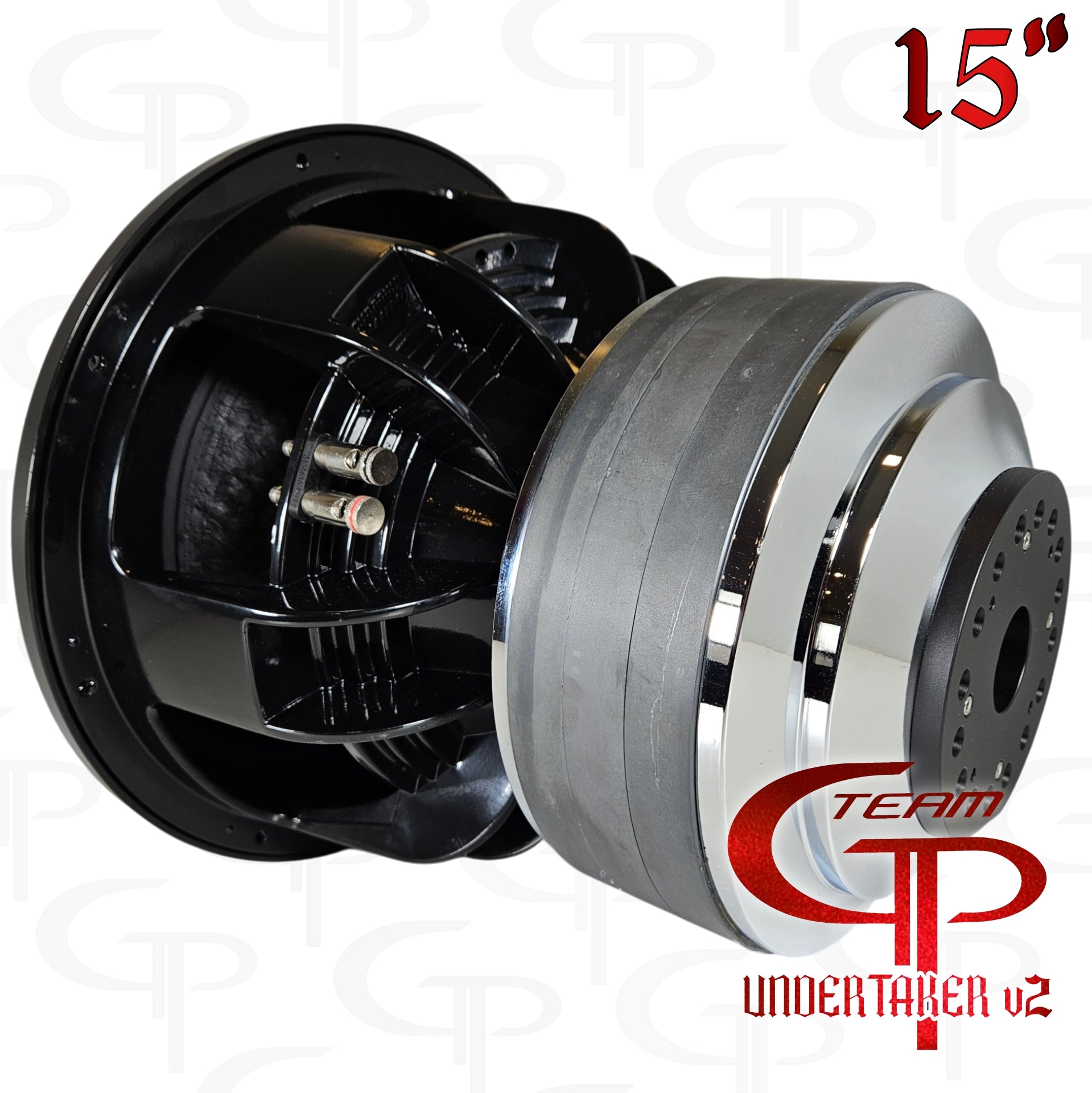

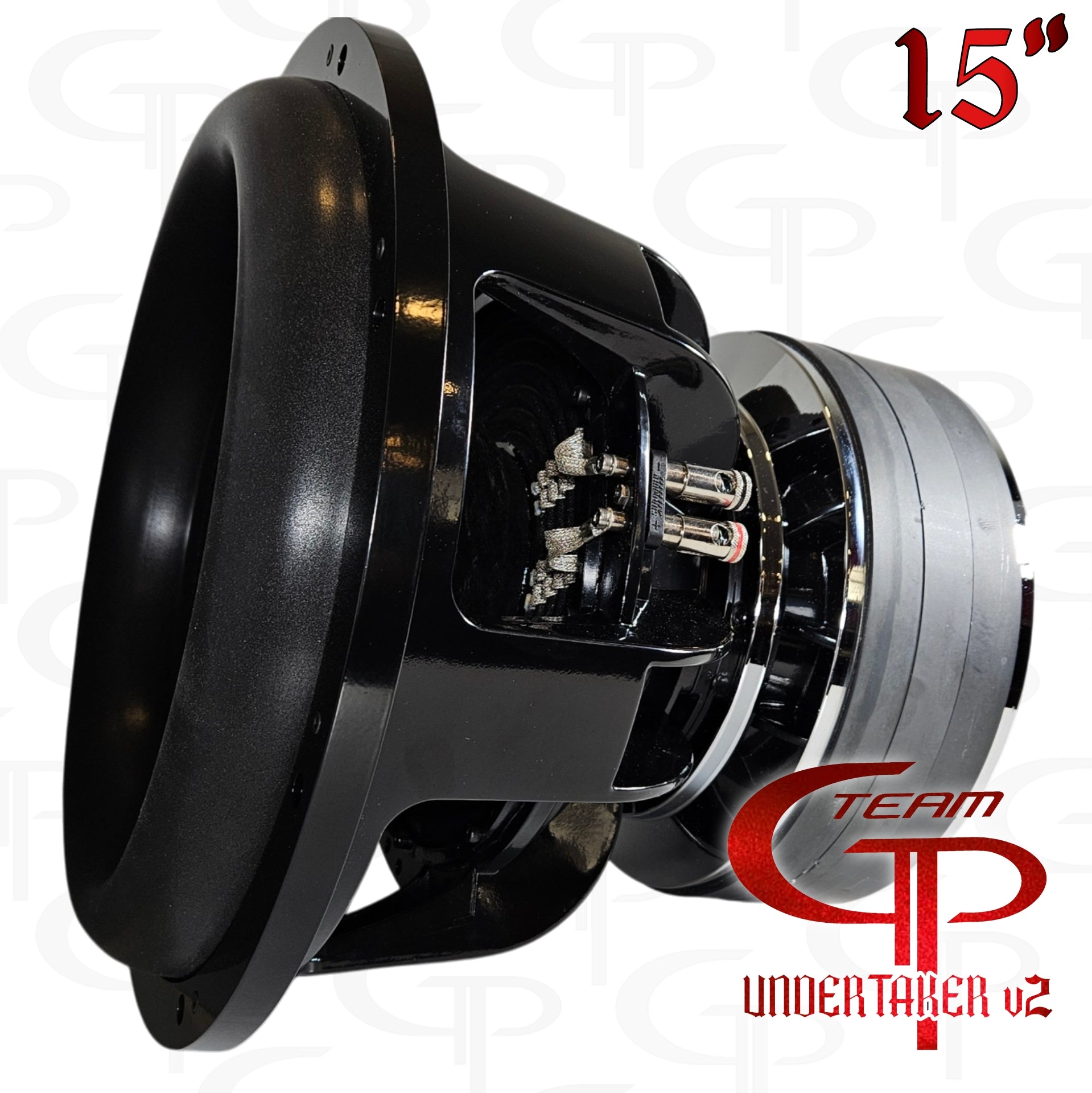

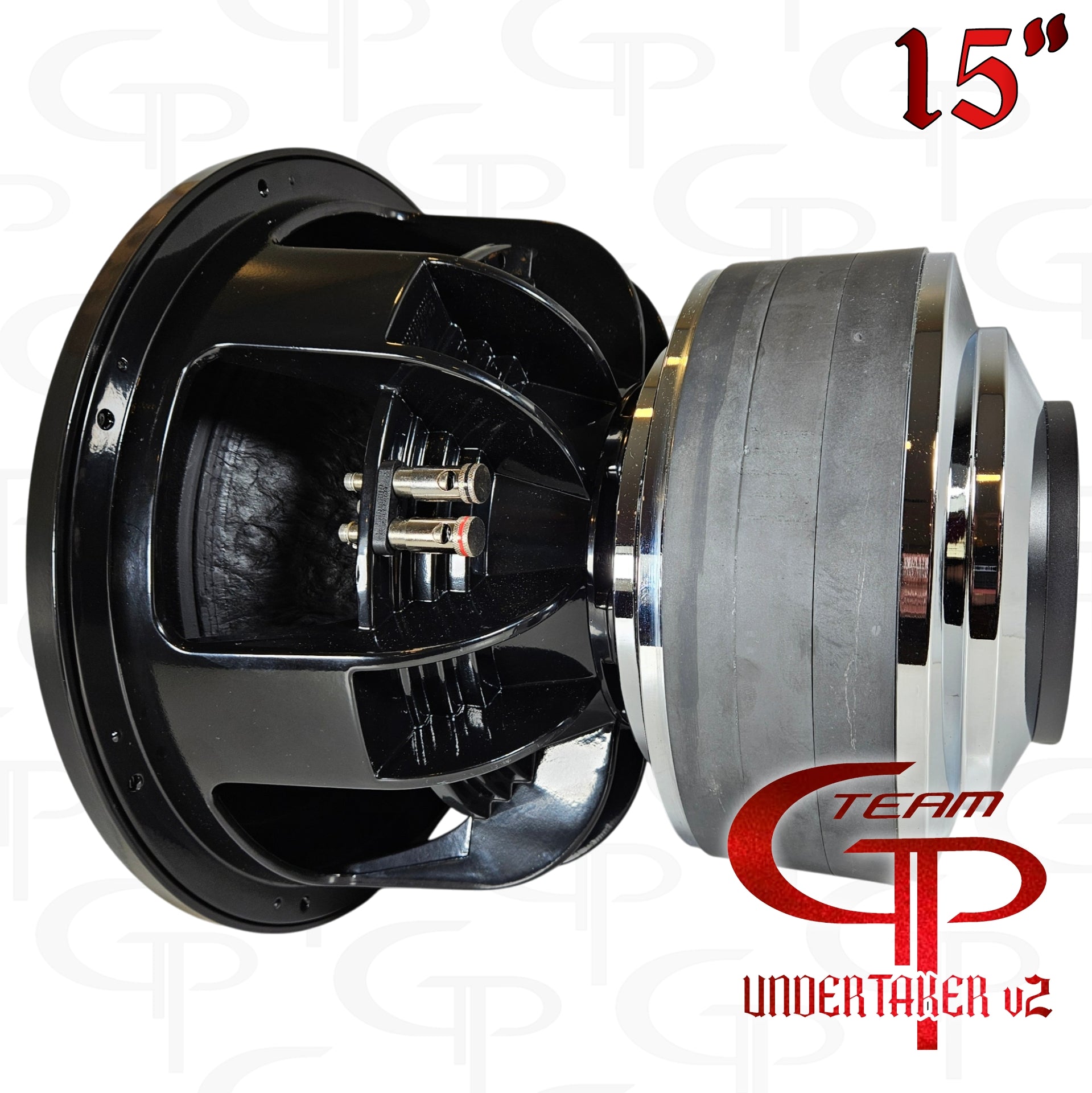

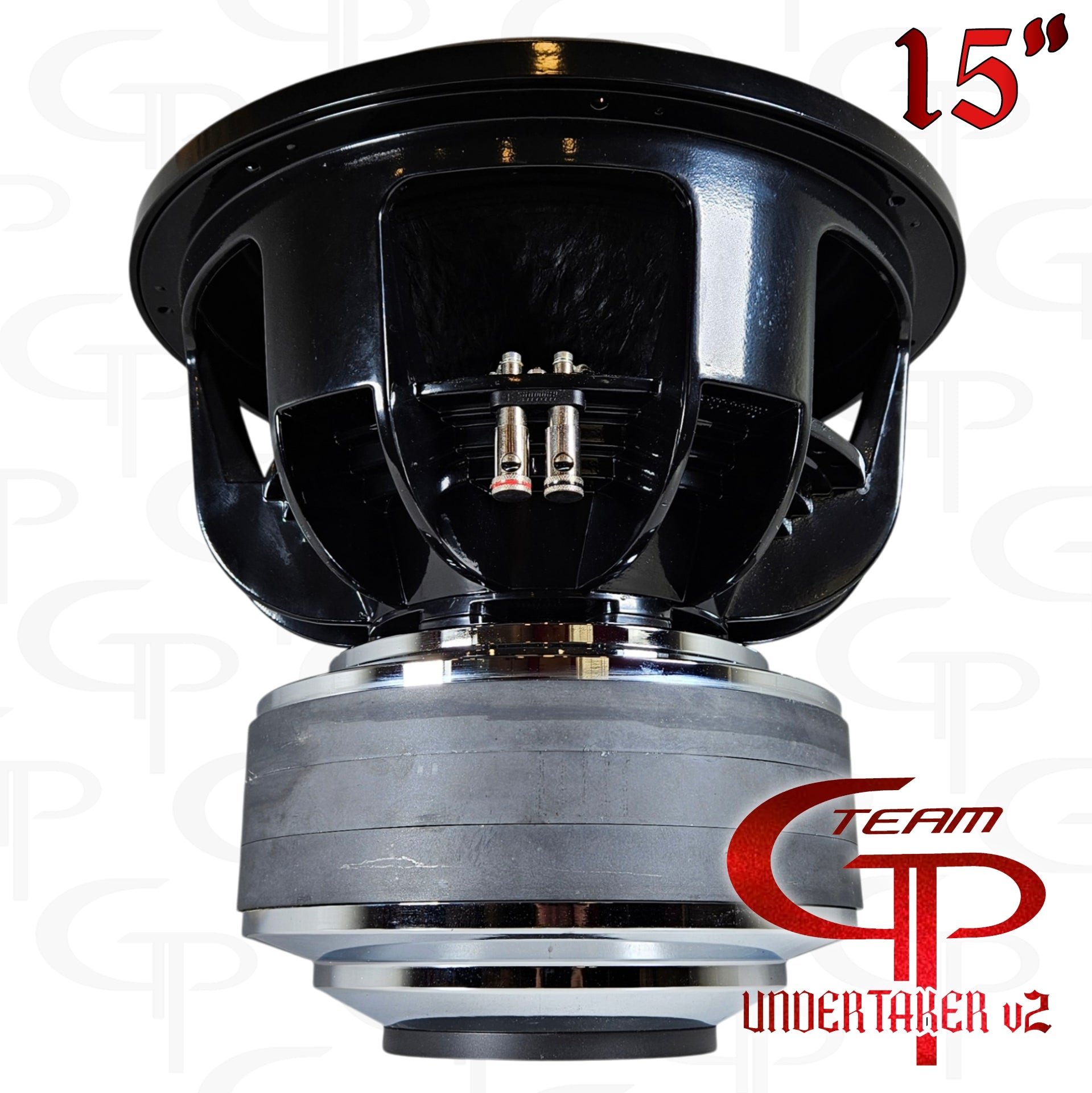

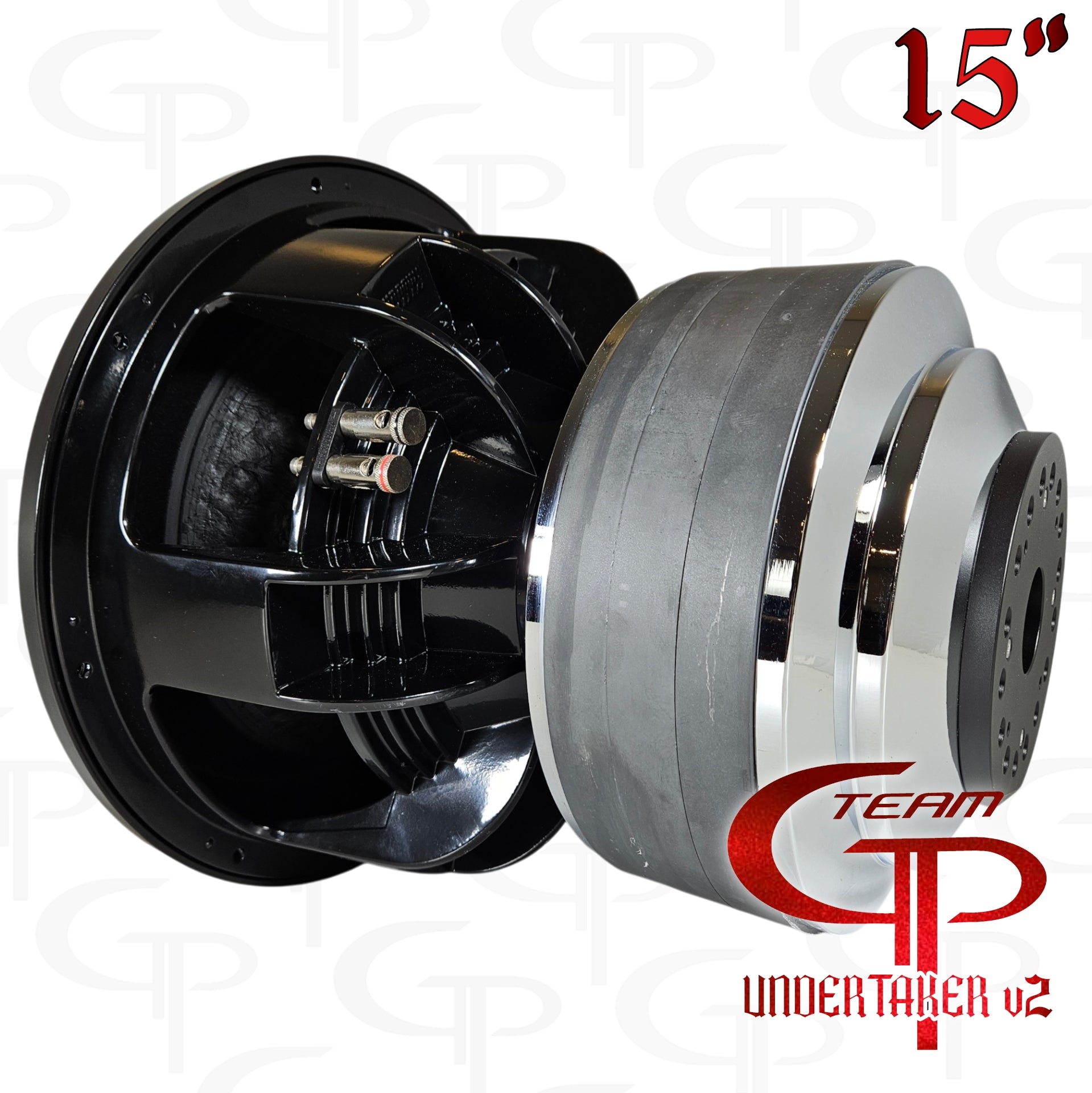

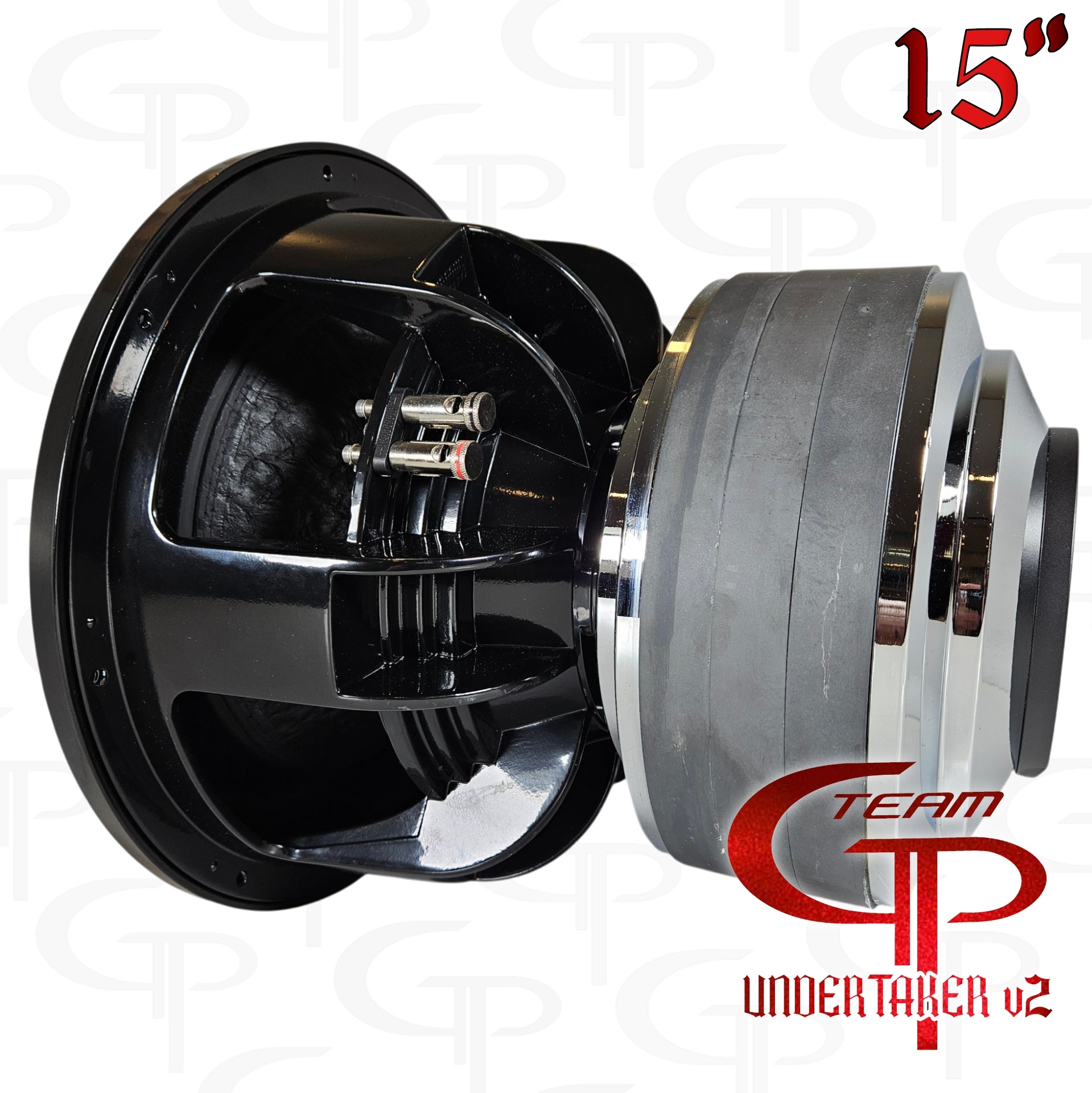

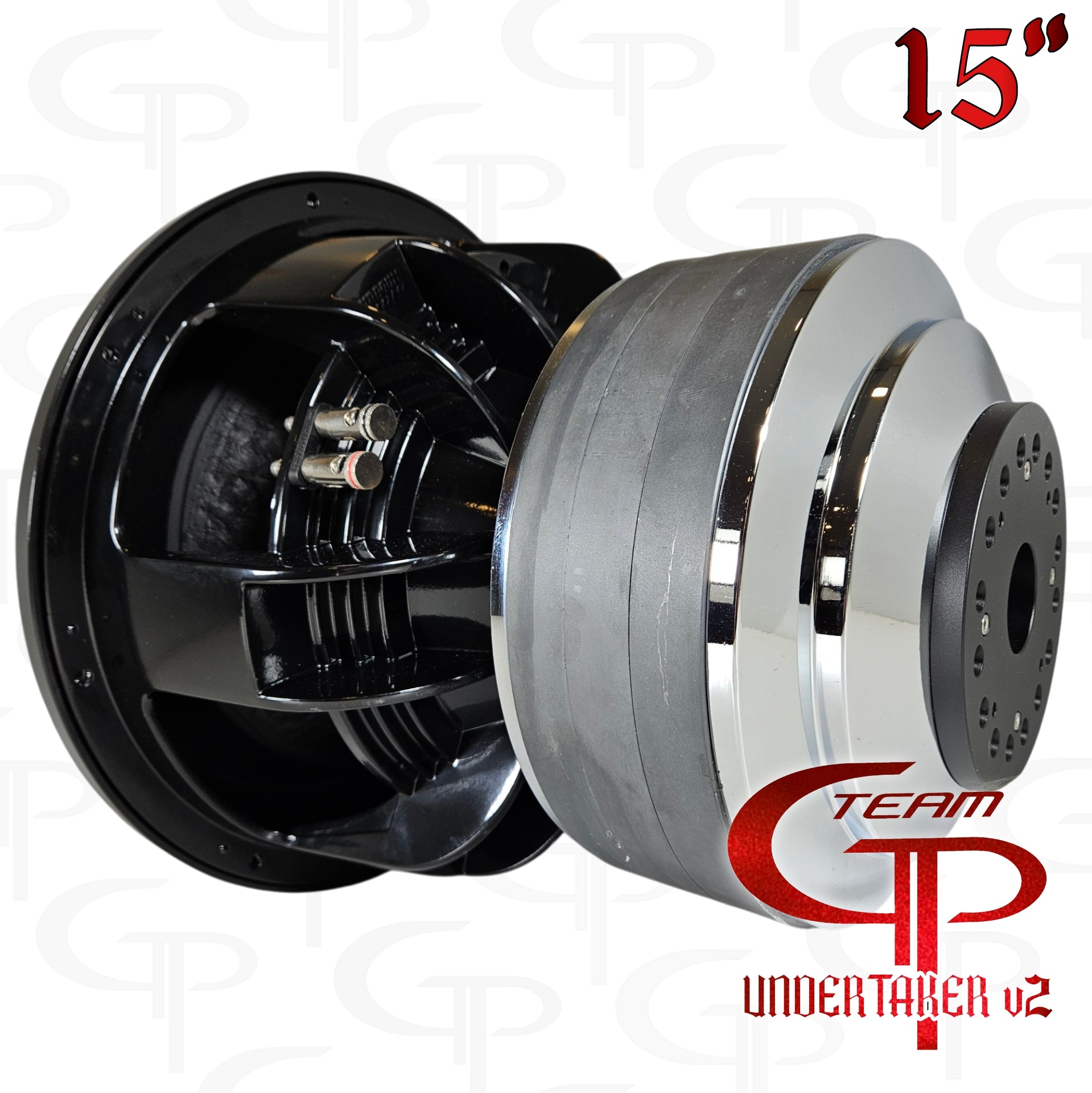

Team GP Undertaker v2 15" Subwoofer UT15 5,000 RMS

$1,399.99 USD

Sale Sold out

Shipping calculated at checkout.

CHOOSE COIL CONFIGURATION DUAL 1 OHM DUAL 2 OHM

Introducing the Team GP Car Audio Undertaker V2 15” Subwoofer

This exciting project is the culmination of a long-term collaboration with Jacob Fuller of Sundown Audio, who has also granted GP Car Audio the use of the renowned Mega platform, now enhanced with unique, custom modifications for the 12” and 15” models (releasing shortly).

At the heart of the Undertaker V2 is its motor, weighing approximately 100 lbs. To extract heat as fast as possible, the V2 motor is equipped with an extensive aluminum heat sink from the pole to the back plate, ensuring the fastest cooling for extreme power handling capabilities. The back plate is also threaded and tapped, allowing for the addition of an expandable heat sink for even more advanced cooling capabilities (this part is currently in development). With this motor, you can even add bracing directly from the subwoofer motor to your enclosure.

Central to this powerhouse is a 4-inch, 8-layer voice coil with a 4-inch winding height, designed for unparalleled durability and peak performance. With an impressive rating of 5,000 watts RMS, the Undertaker V2 is engineered for continuous, full-tilt operation, excelling in musical average classes and delivering extraordinarily low frequencies.

All Team GP Undertaker V2 Subwoofers are assembled in-house at Sundown Audio in North Carolina, ensuring the highest standards of quality control.

The Team GP Undertaker V2 is engineered to deliver incredibly low frequency musical reproduction with extreme sound pressure level capabilities. This subwoofer is not just a piece of equipment; it is a statement for those who demand the absolute best in car audio. Crafted for audiophiles who value purity and depth of sound as much as power, the Undertaker V2 elevates what a subwoofer can achieve. Enhance your car audio experience with the Undertaker V2 – where every beat and note resonate with unrivaled clarity and impact.

100 Undertaker V2 Motors available on round 1.

SUGGESTED ENCLOSURE: PORTED: 3.50 TO 4.00 CUBIC FEET

PORT AREA: 16-18 sq. in. OF PORT PER CUBIC FT

SUGGESTED TUNING RANGE: 25-32hz

CUTOUT: 13.82"

OUTSIDE DIAMETER: 15.51"

MOUNTING DEPTH: 13.20"

DISPLACEMENT: 0.29 cu. ft.

Key Features

● 93 lbs (1,488oz) motor weight

● 5,000 Watts RMS

● 4" thick round wire coil x 100mm (3.93") Winding Height (this is HUGE)

● Novel heat-extraction through the pole to the back plate

● High velocity pole vent and gap vents

● Extremely high motor force factor (will post readings shortly)

● Full magnet ID shorting ring (pole cap doubles as a 2nd shorting ring)

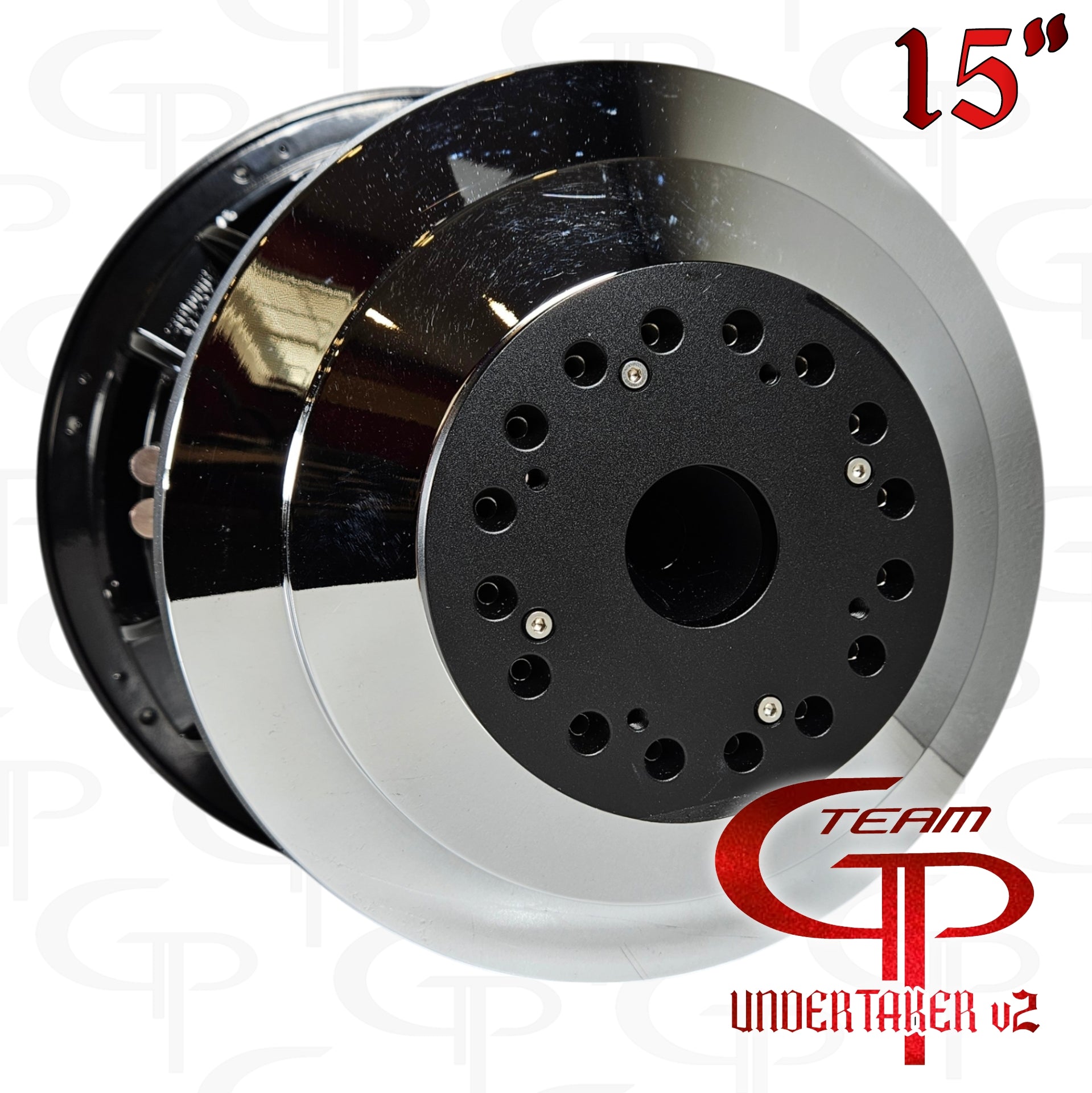

● Special back-plate feature; allows you to add an additional heat-sink (expandable heat sink currently in R&D) OR use it to bolt the motor to a support inside the enclosure

● Fully custom tooled triple stack 270mm magnets (10.63" Diameter)

● Fully bolted motor / interlocked shorting ring
