DS18
SRW Shallow-Mount 10" Subwoofer 200 Watts Rms SVC 4-Ohm
SRW Shallow-Mount 10" Subwoofer 200 Watts Rms SVC 4-Ohm
Couldn't load pickup availability
SRW Shallow-Mount 10" Subwoofer 200 Watts Rms SVC 4-Ohm
Sold by AudioSellerz.com
The DS18 SRW10.4 is a 10" subwoofer from DS18 rated at 200W RMS with a 4 ohm single voice coil design. Pick the sub to match your amp and box, and it will deliver the low end your speakers can't.
DS18 Product Details
DS18 SRW10.4 10" Car Subwoofer 400 Watts 4-Ohm SVC Shallow Mount
It's easy to get great bass when there's very little room with our new line of shallow mount subwoofers. The SRW10.4D (DVC) and SRW10.4 (SVC) mounts in little as 2.95 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area. This sub handles 200 watts RMS and 400 watts Peak power with a 86 db sensitivity which is very high for a shallow mount sub raising this model high above the bar. This sub comes in both dual voice coil 4 ohms (SRW10.4D) and single voice coil 4 ohms (SRW10.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!
Highlights
- SRW bass series was made to produce great bass within a shallow sub frame exceeding most other subs volume while also coming in at an amazing price point.
- Large surround with flexible spider packs will help the CCA voice coil teach maximum xmax producing full and deep bass with a up to spec box.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs, its size giving you many options in which to place it.
Technical Details
| Nominal Diameter | 10" |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 200 Watts |
| Maximum Power Handling | 400 Watts |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 23-250Hz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 50.8mm / 2" |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 45 oz |

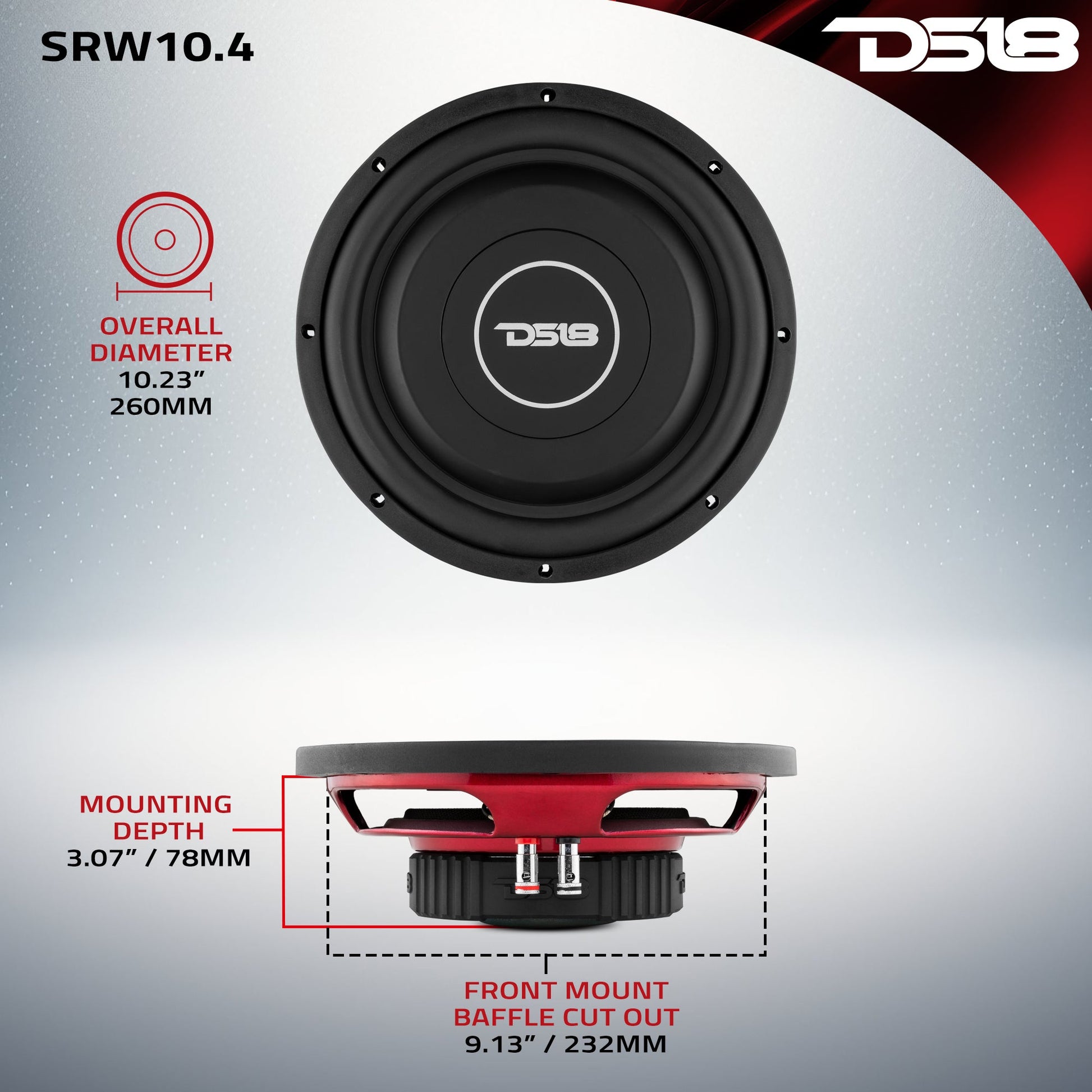

| Measurements | |
| Overall Diameter | 260mm / 10.23" |
| Front Mount Baffle Cutout | 232mm / 9.13" |
| Overall Depth | 92mm / 3.62" |
| Mounting Depth | 78mm / 3.07" |
Box Info
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 4 ohm.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
