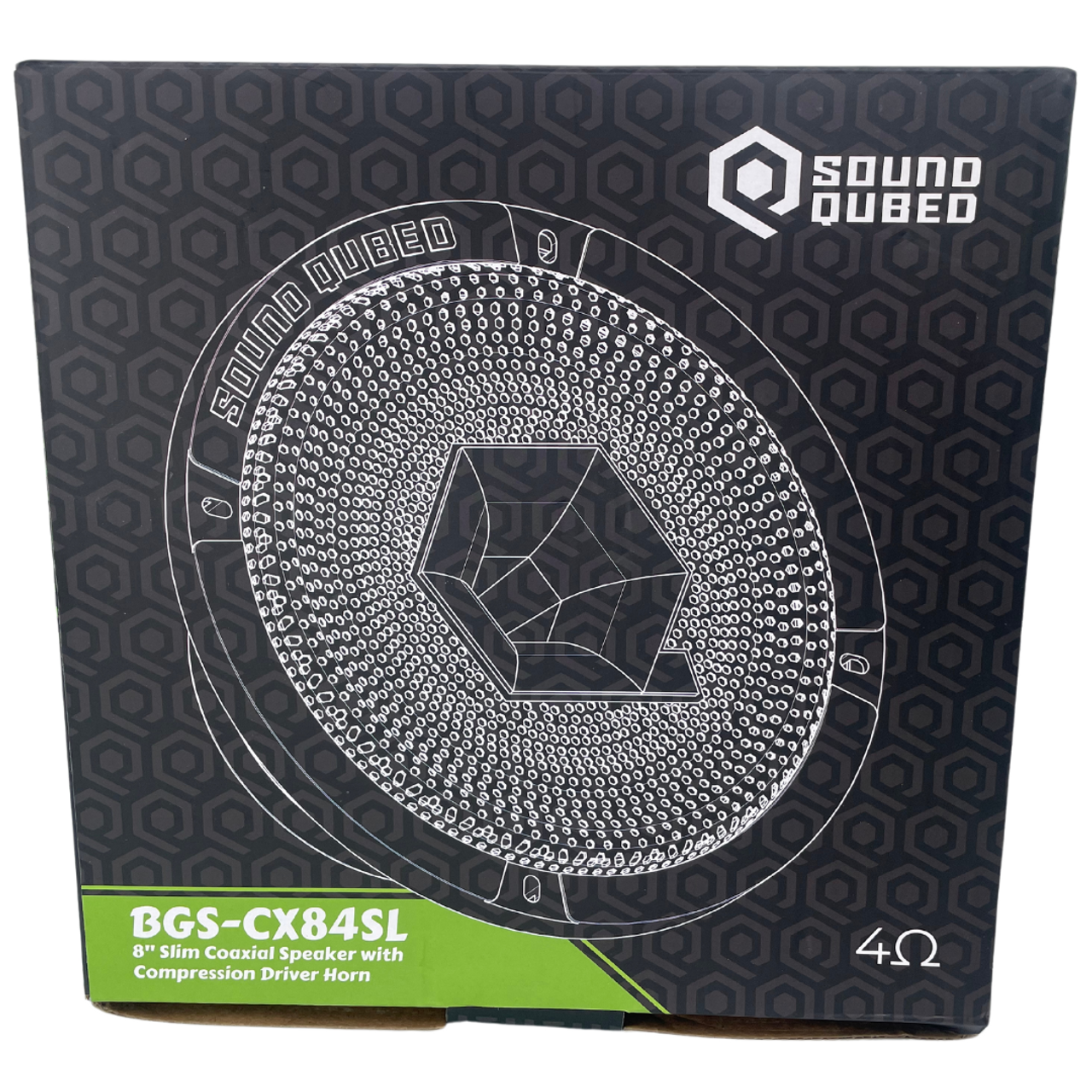

SoundQubed BGS-CX84SL 8" Coaxial Slim Loudspeaker with 1" Compression Driver 4 Ohm 150W RMS
SoundQubed BGS-CX84SL 8" Coaxial Slim Loudspeaker with 1" Compression Driver 4 Ohm 150W RMS
Couldn't load pickup availability
SoundQubed BGS-CX84SL 8" Coaxial Slim Loudspeaker with 1" Compression Driver 4 Ohm 150W RMS
Sold by AudioSellerz.com.

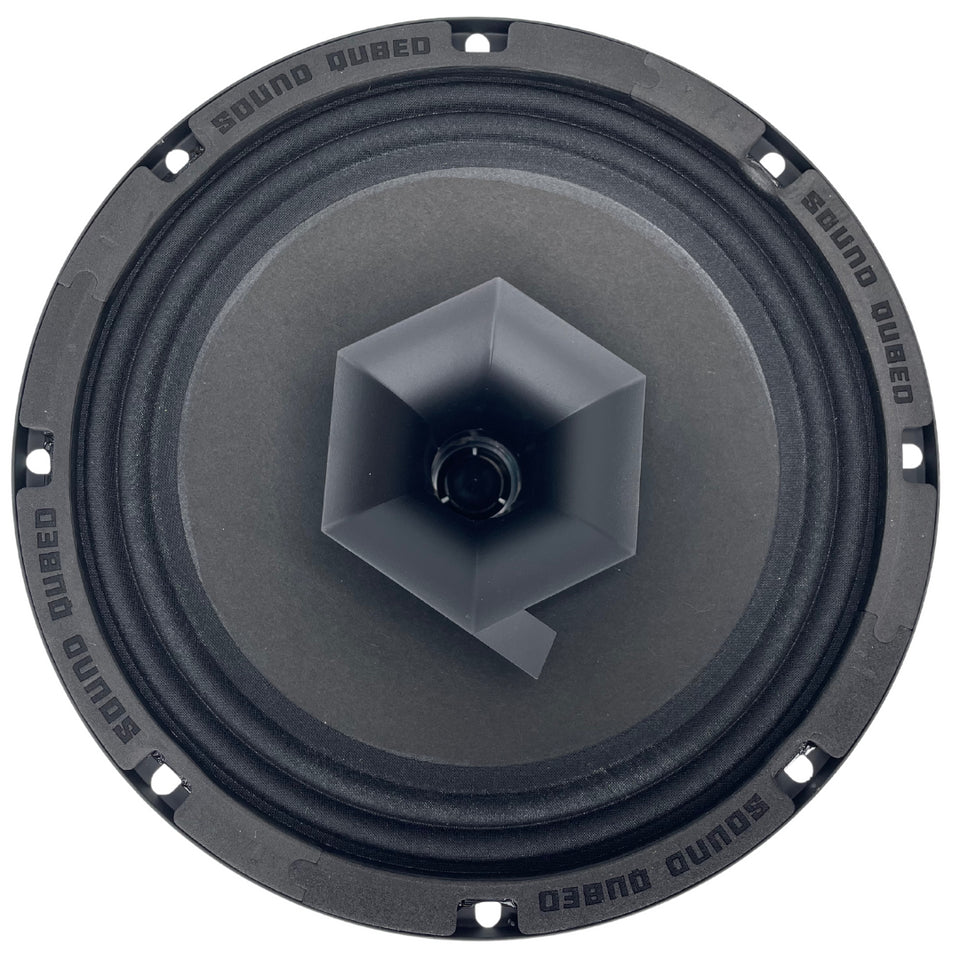

If you want strong sound from a slim speaker that fits tighter installs, the SoundQubed BGS-CX84SL is built for that kind of setup. This 8" coaxial slim loudspeaker is a great fit for cars, UTVs, motorcycles, and bagger audio systems where mounting depth matters but you still want clear output and strong overall presence. It combines an 8" woofer with a built-in 1" compression driver, giving you a practical all-in-one speaker option for builds that need good output, strong vocals, and cleaner high-frequency detail.

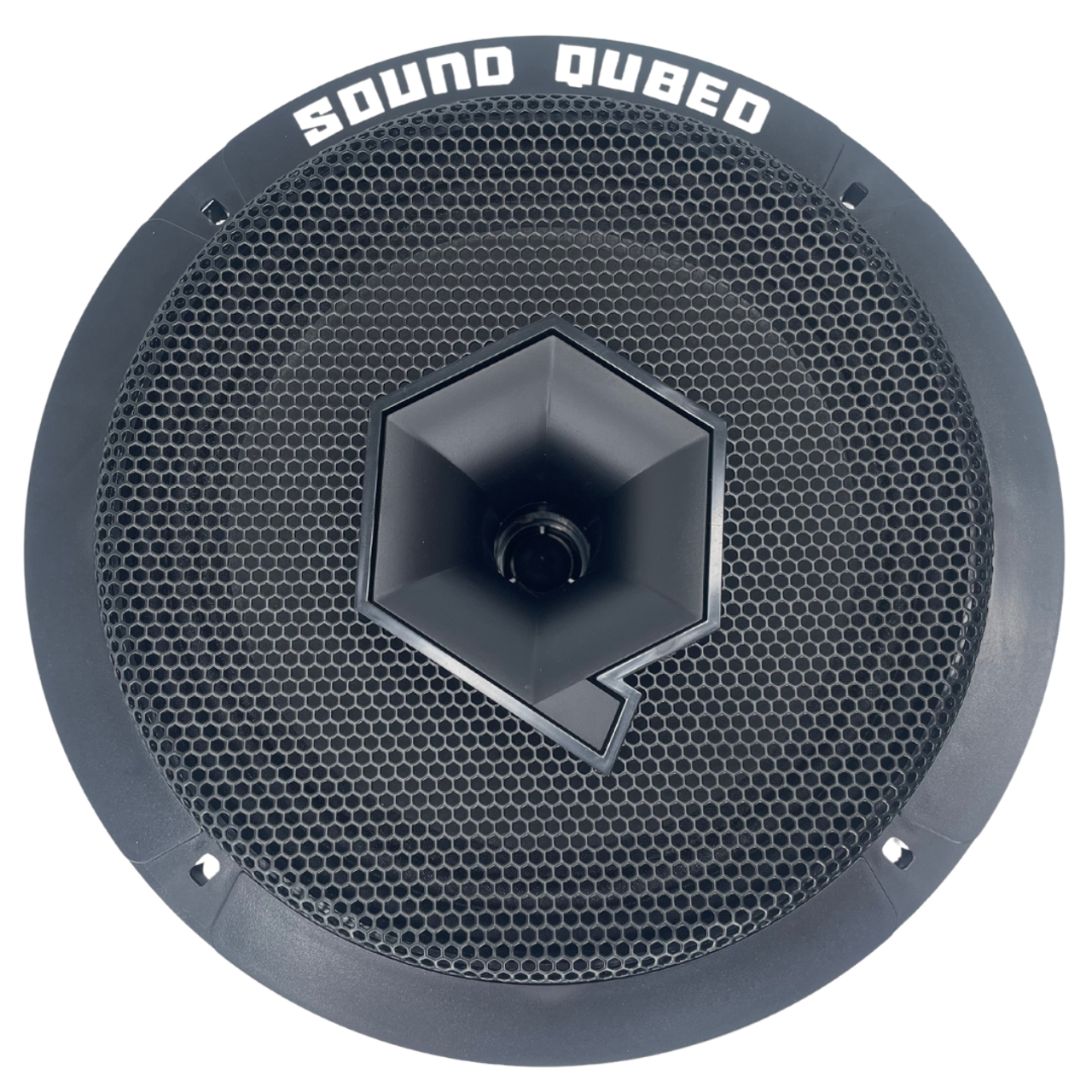

This speaker uses a 4 ohm design and is rated at 150 watts RMS with 300 watts max power, making it a solid choice for customers looking for an 8" coaxial car speaker, slim loudspeaker, motorcycle speaker, or UTV speaker that can play loud without needing a huge amount of space. SoundQubed also highlights the unique horn setup that carries over the eye-catching Q logo design, with a horn diameter of 3" overall.

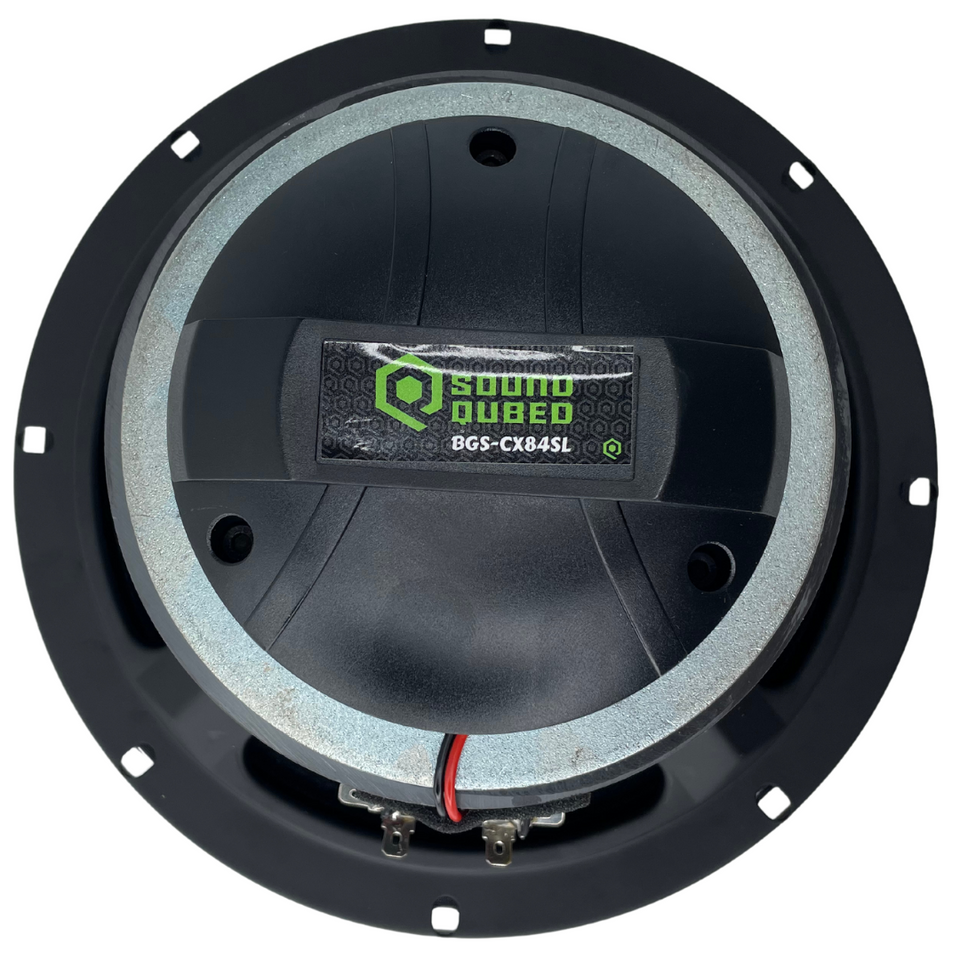

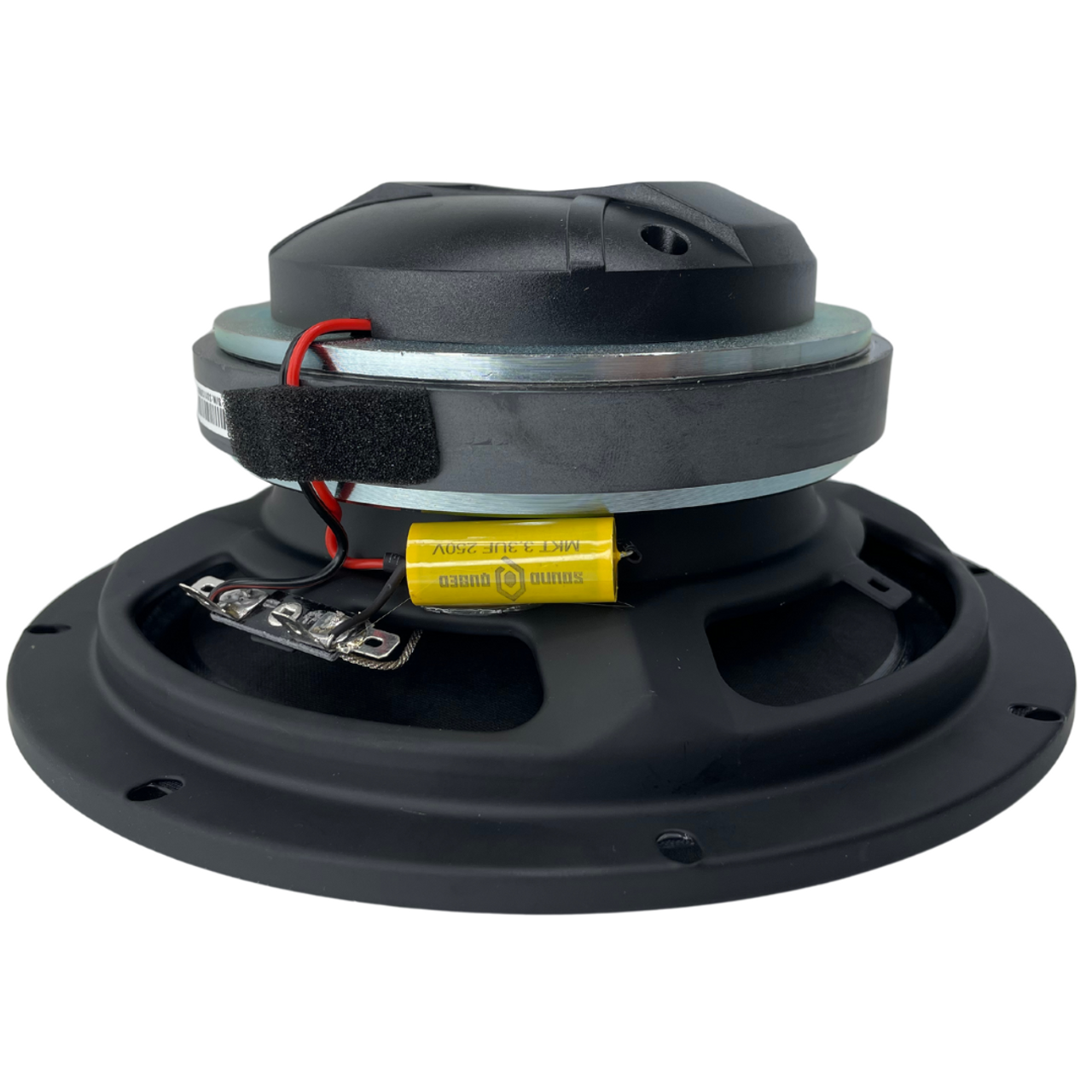

The BGS-CX84SL is built with a 1.5" woofer coil, a 29.5 oz ferrite motor, and a steel basket for durability and stability. For the high end, it uses a 1" tweeter voice coil and neodymium tweeter material to help deliver crisp highs and clear vocals. Frequency response is listed at 100Hz to 20kHz, giving you useful range for full, detailed playback in compact systems.

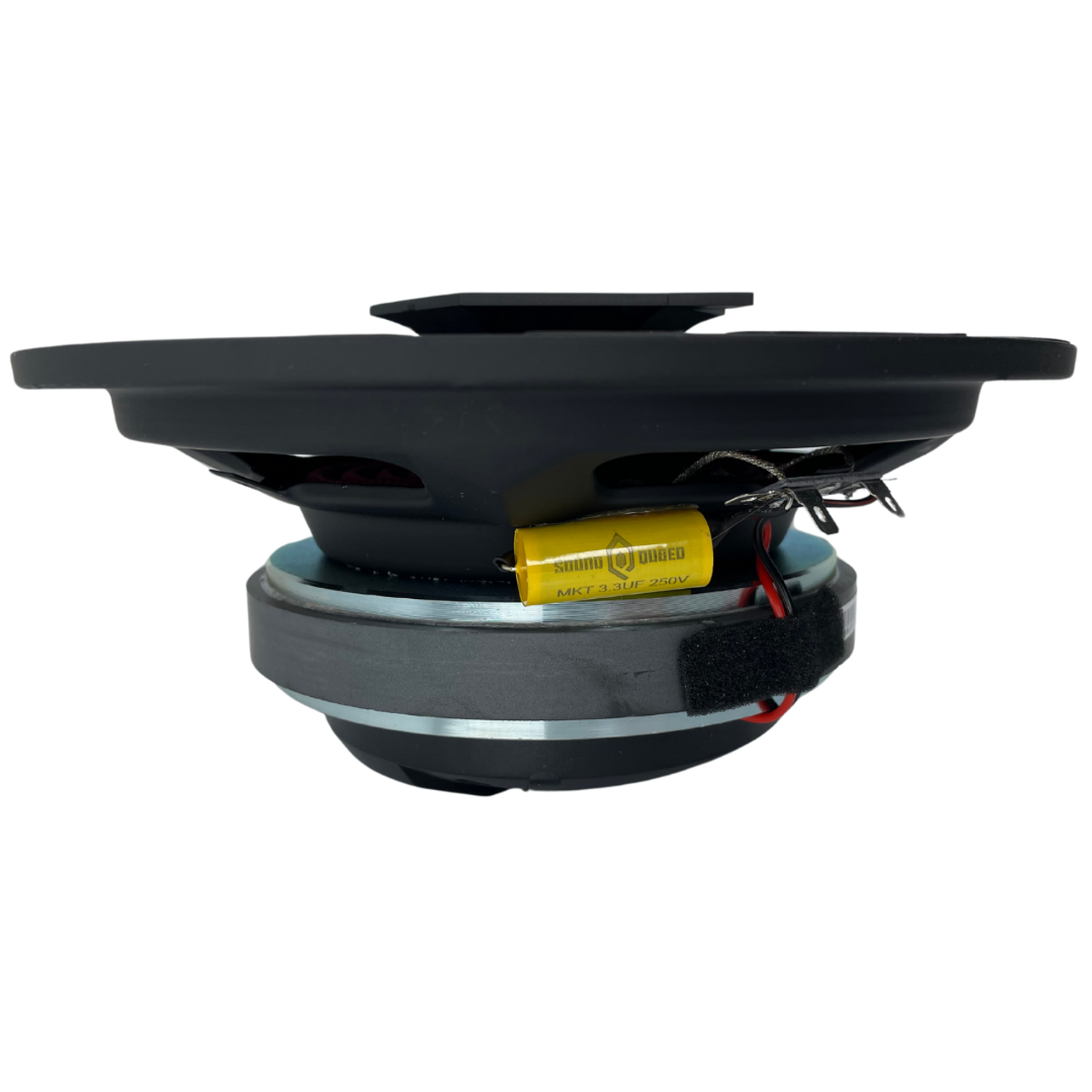

Fitment is one of the biggest selling points here. This slim coaxial speaker has a 3.33" overall depth and a 4.27" depth with grille, making it easier to install in tighter locations where traditional speakers may not work as well. If you are building a system where space is limited but you still want strong, clean sound, the SoundQubed BGS-CX84SL gives you a compact solution with real output and a clean finished look.
Specifications
| Specification | Details |
|---|---|
| Brand | SoundQubed |
| Model | BGS-CX84SL |
| Speaker Size | 8" |
| Speaker Type | Coaxial slim loudspeaker |
| Impedance | 4 ohm |
| RMS Power Handling | 150 watts |
| Max Power Handling | 300 watts |
| Woofer Coil Size | 1.5" |
| Tweeter Type | 1" compression driver |
| Tweeter Voice Coil | 1" |
| Tweeter Material | Neodymium |
| Horn Diameter | 3" overall |
| Motor | 29.5 oz ferrite |
| Basket Material | Steel |
| Frequency Response | 100Hz to 20kHz |
| Overall Depth | 3.33" |
| Depth with Grille | 4.27" |
| Mounting Depth | 3.33" |
