PS3000x1 - Mini Full Range Mono Block Amplifier
PS3000x1 - Mini Full Range Mono Block Amplifier
Couldn't load pickup availability
PS3000x1 - Mini Full Range Mono Block Amplifier
Sold by AudioSellerz.com
Customers comparing DC Audio power for a bass build can use the DC Audio PS3000x1 - Mini Full Range Mono Block Amplifier as a dedicated mono amplifier option. Review the complete specifications below before matching it with subwoofers, because final ohm load, electrical support, power and ground wire, fuse protection, and enclosure choice all affect the finished system.
The right subwoofer amplifier is only one part of the bass system. Plan the amp with the subwoofers, final ohm load, box, signal source, wiring, battery support, charging system, and tuning so every part of the build supports the same goal.
Original Product Details
Amplifier Description

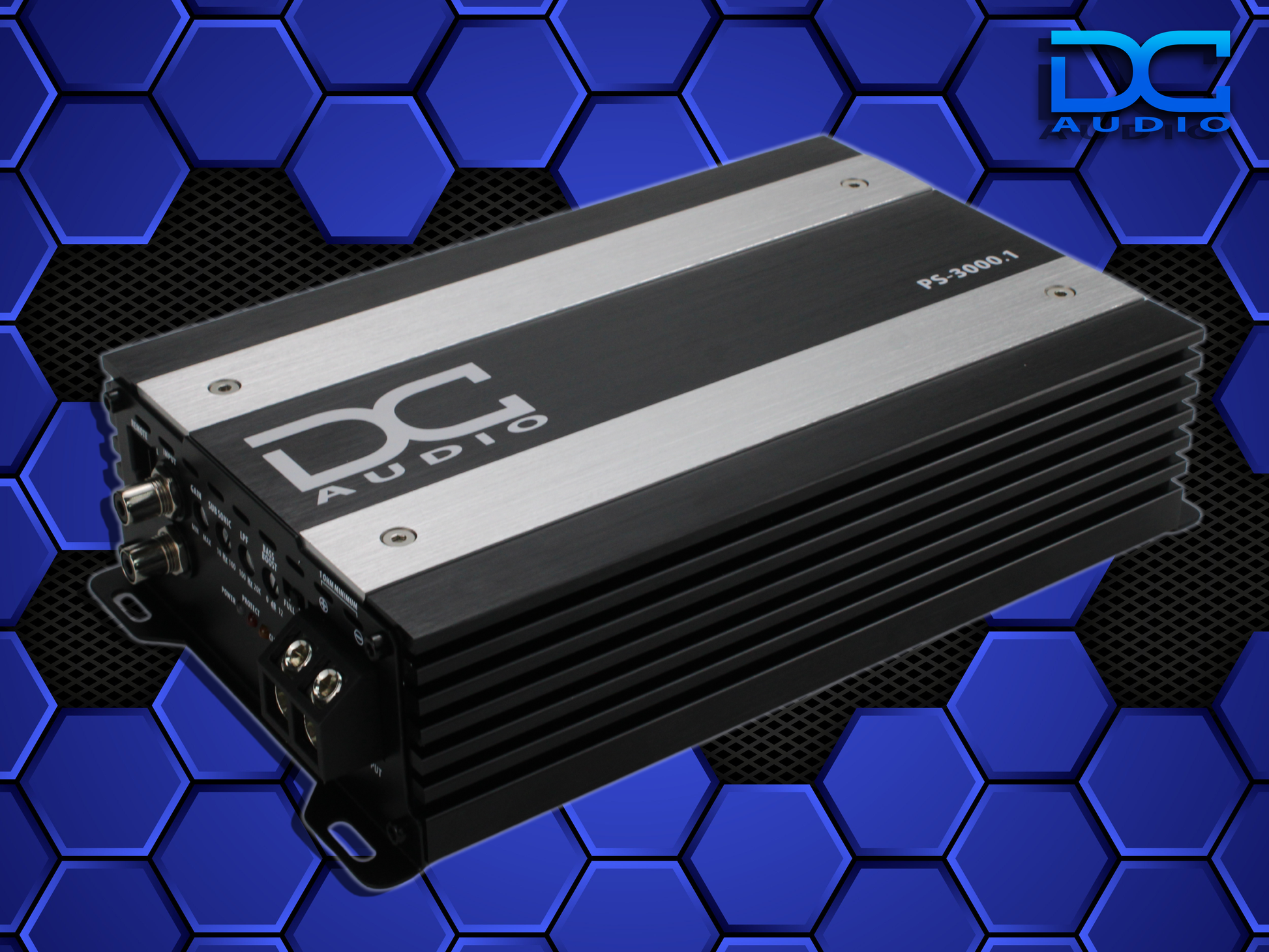

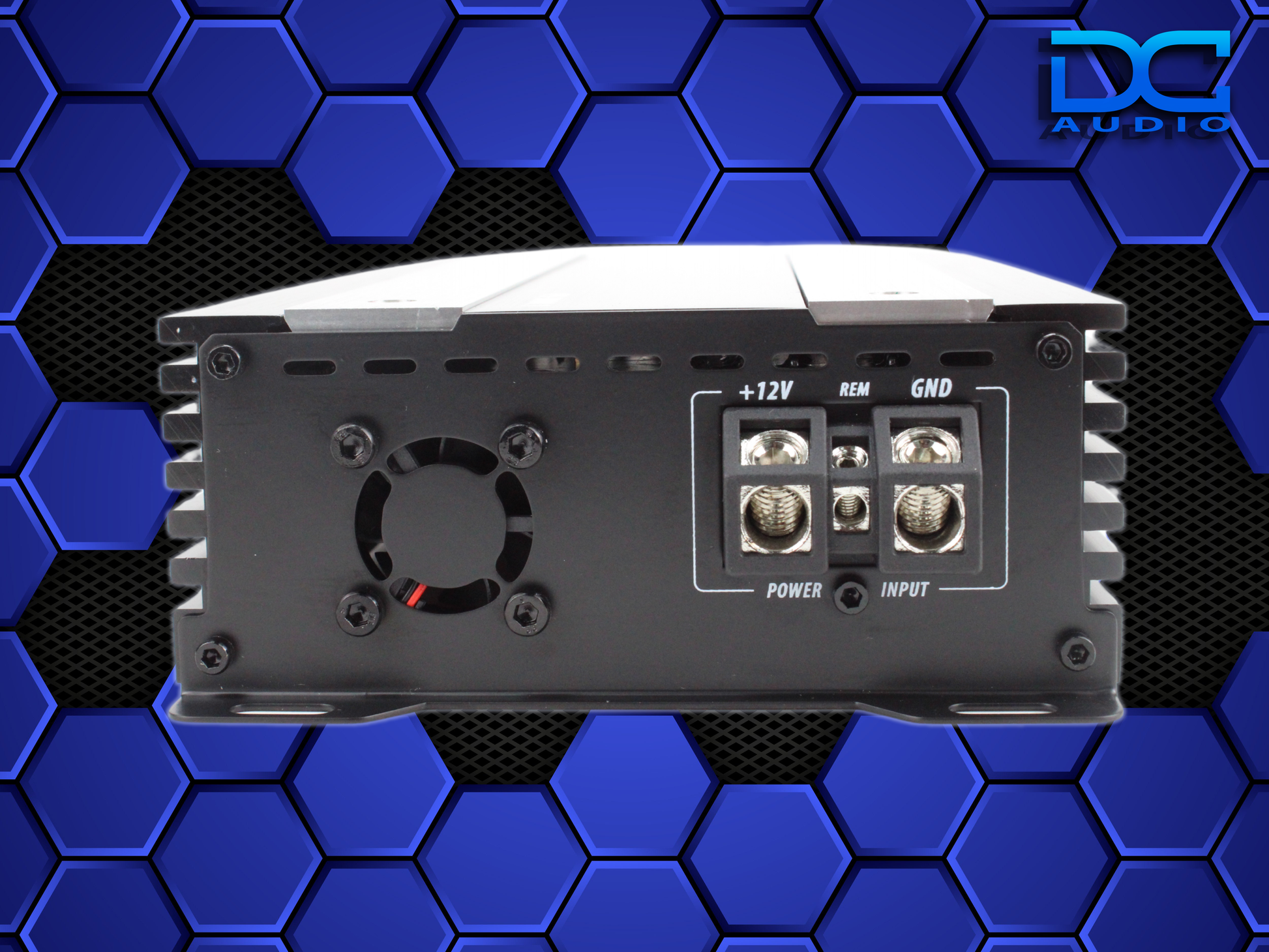

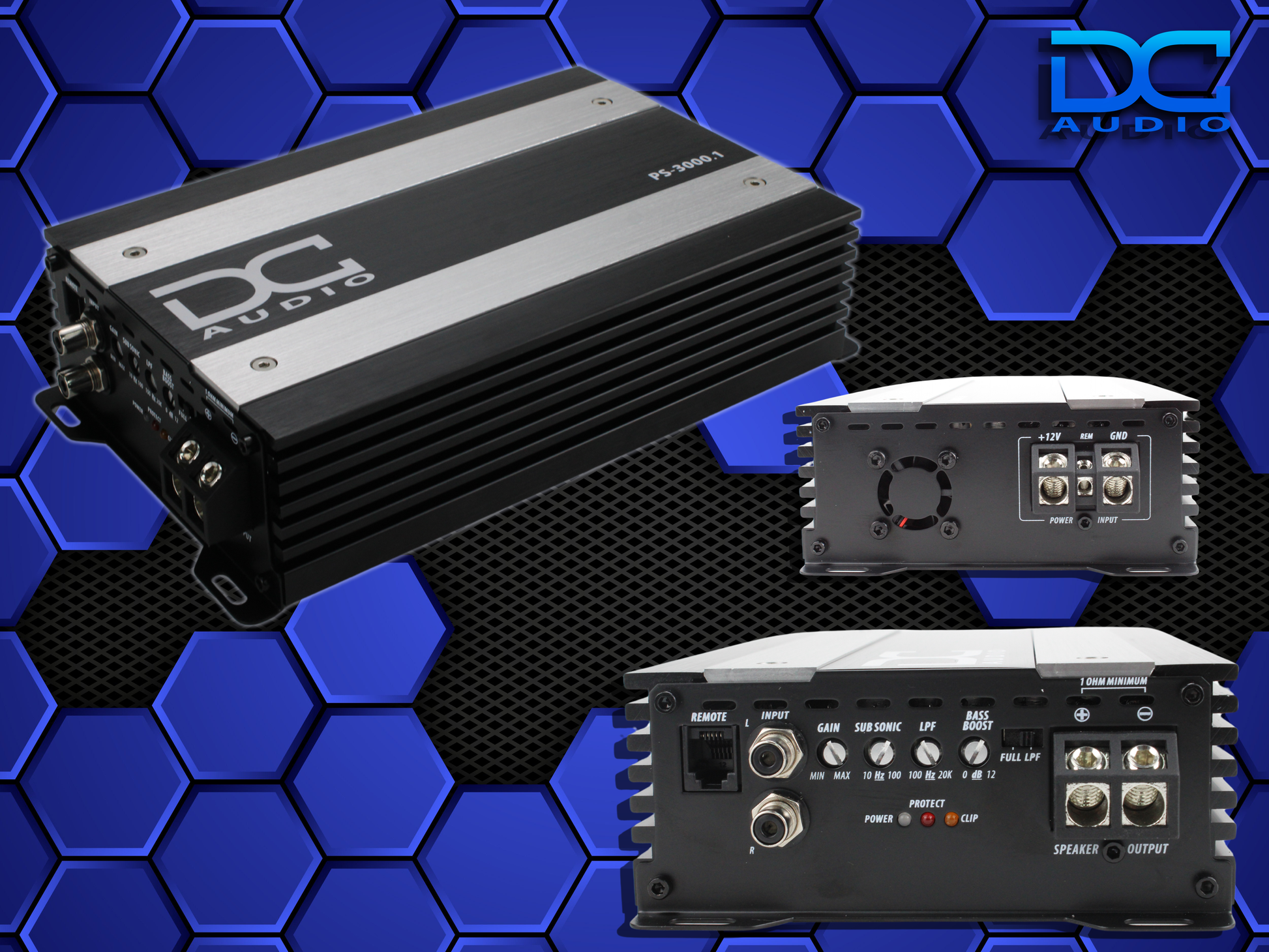

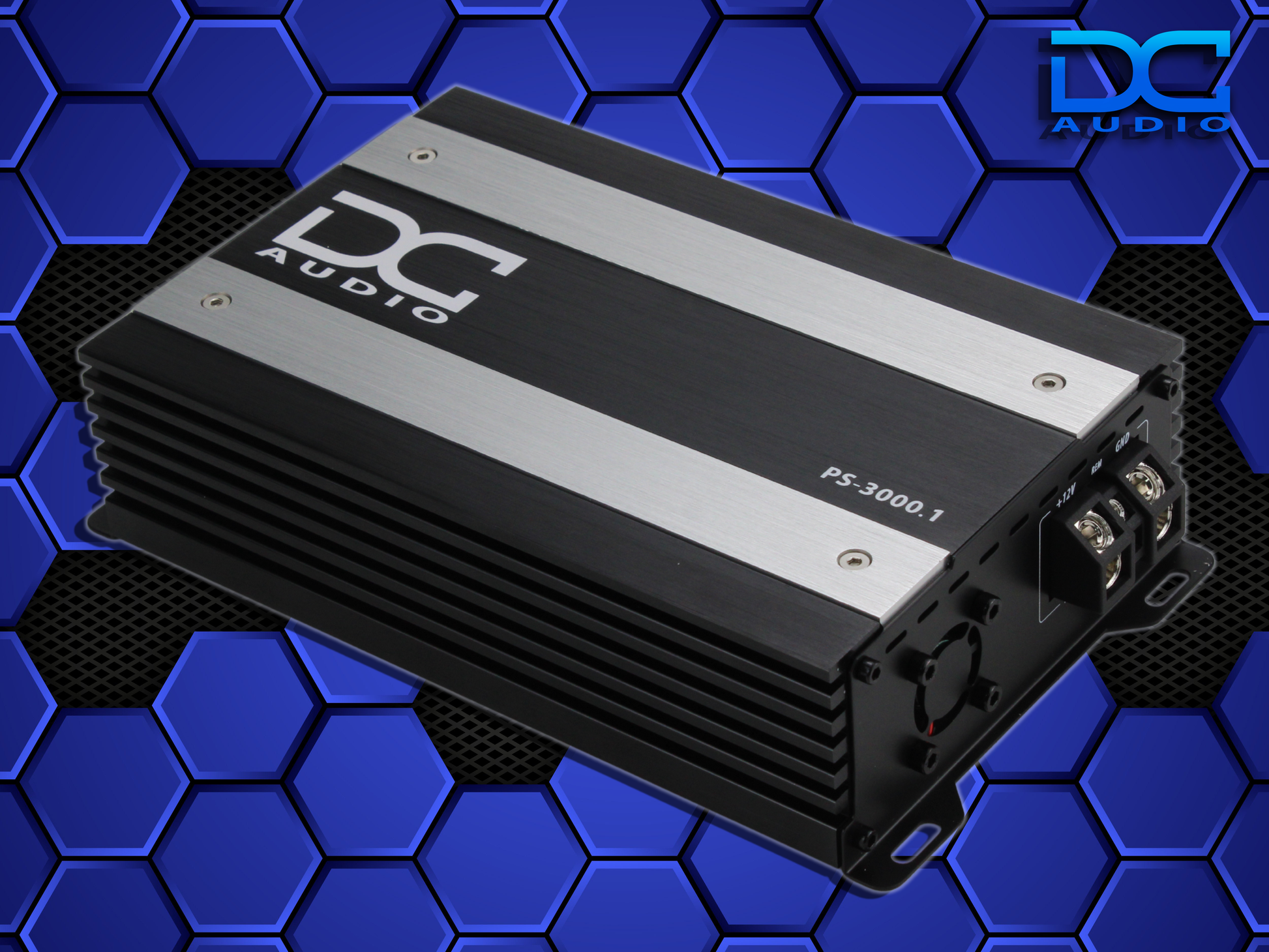

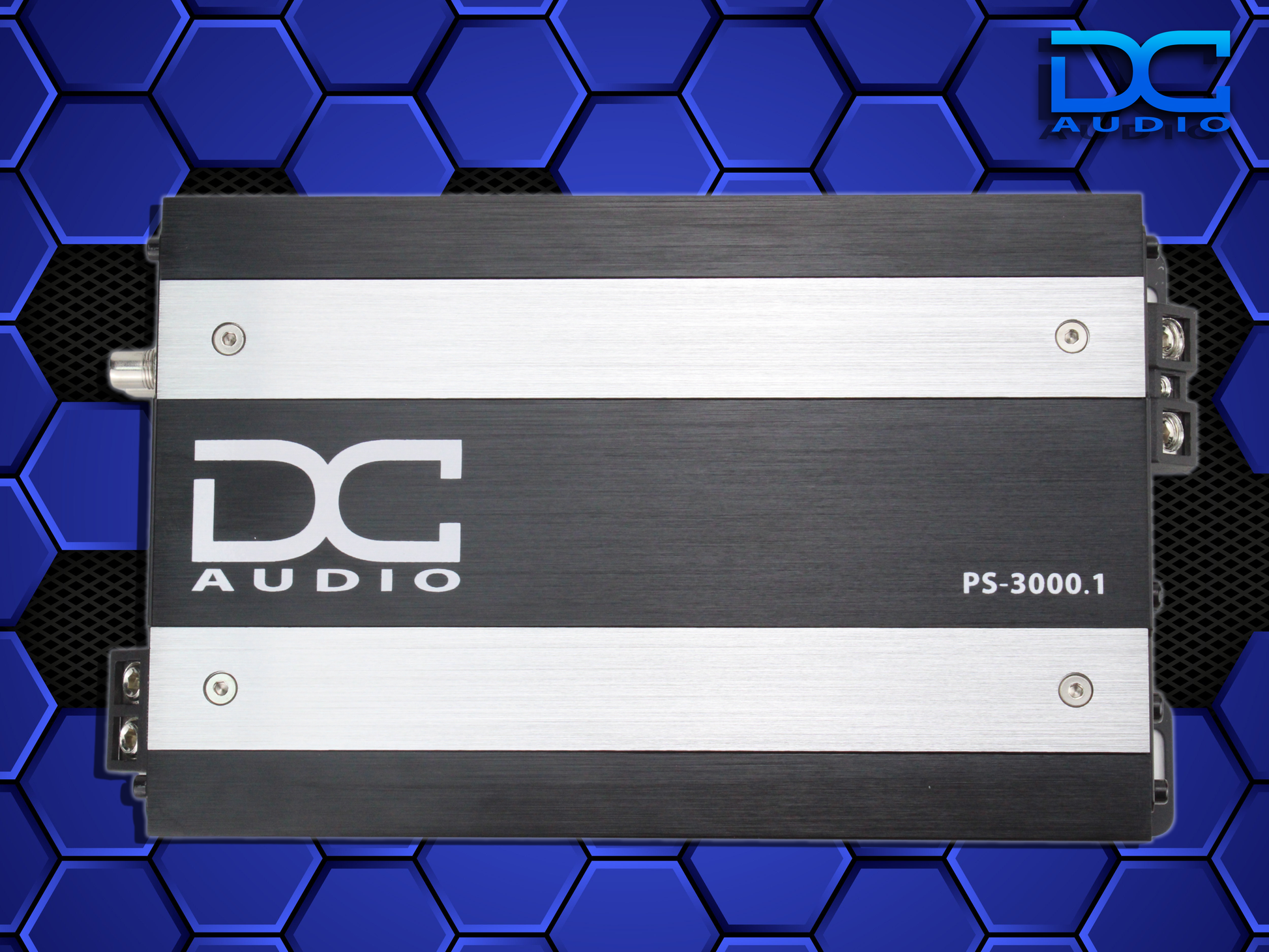

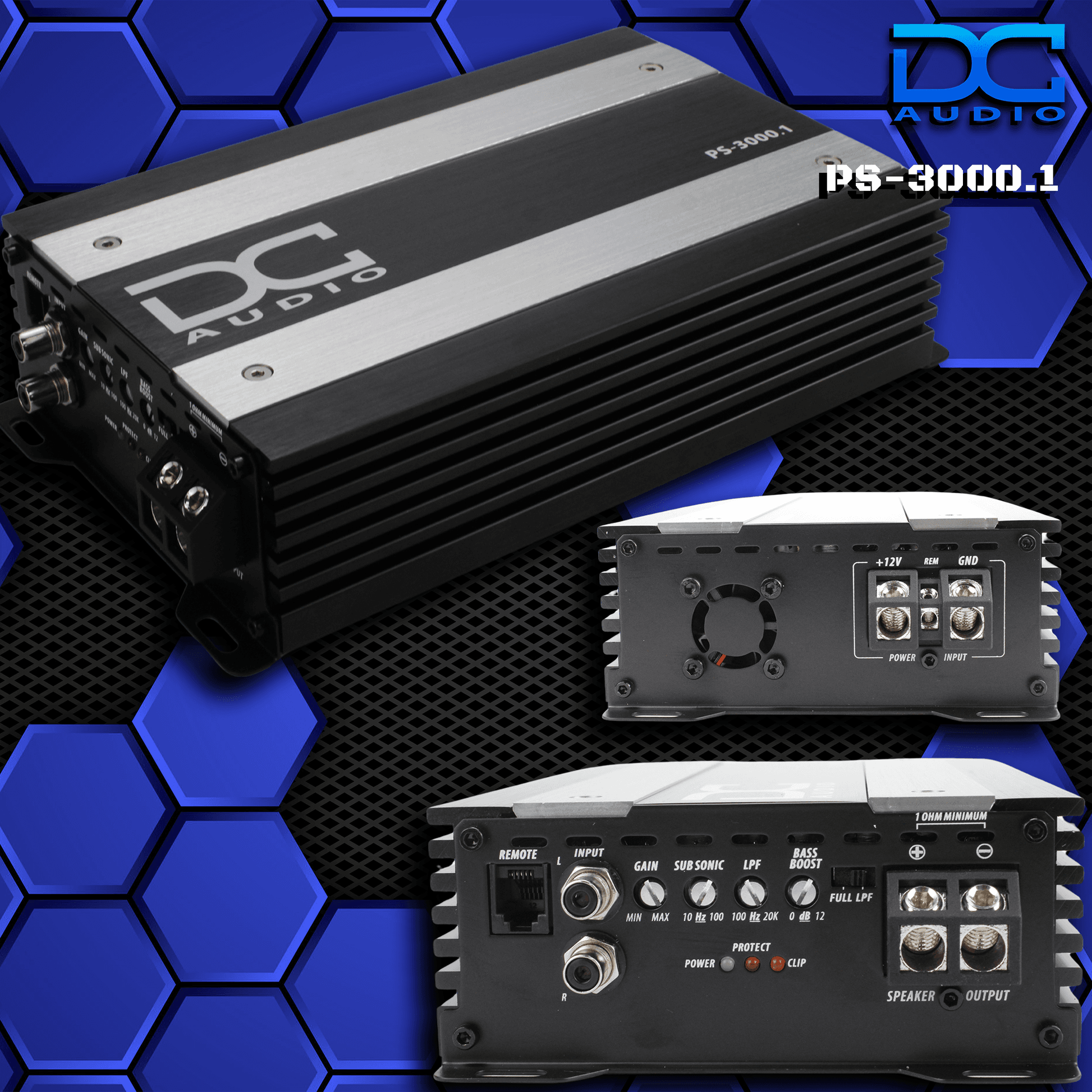

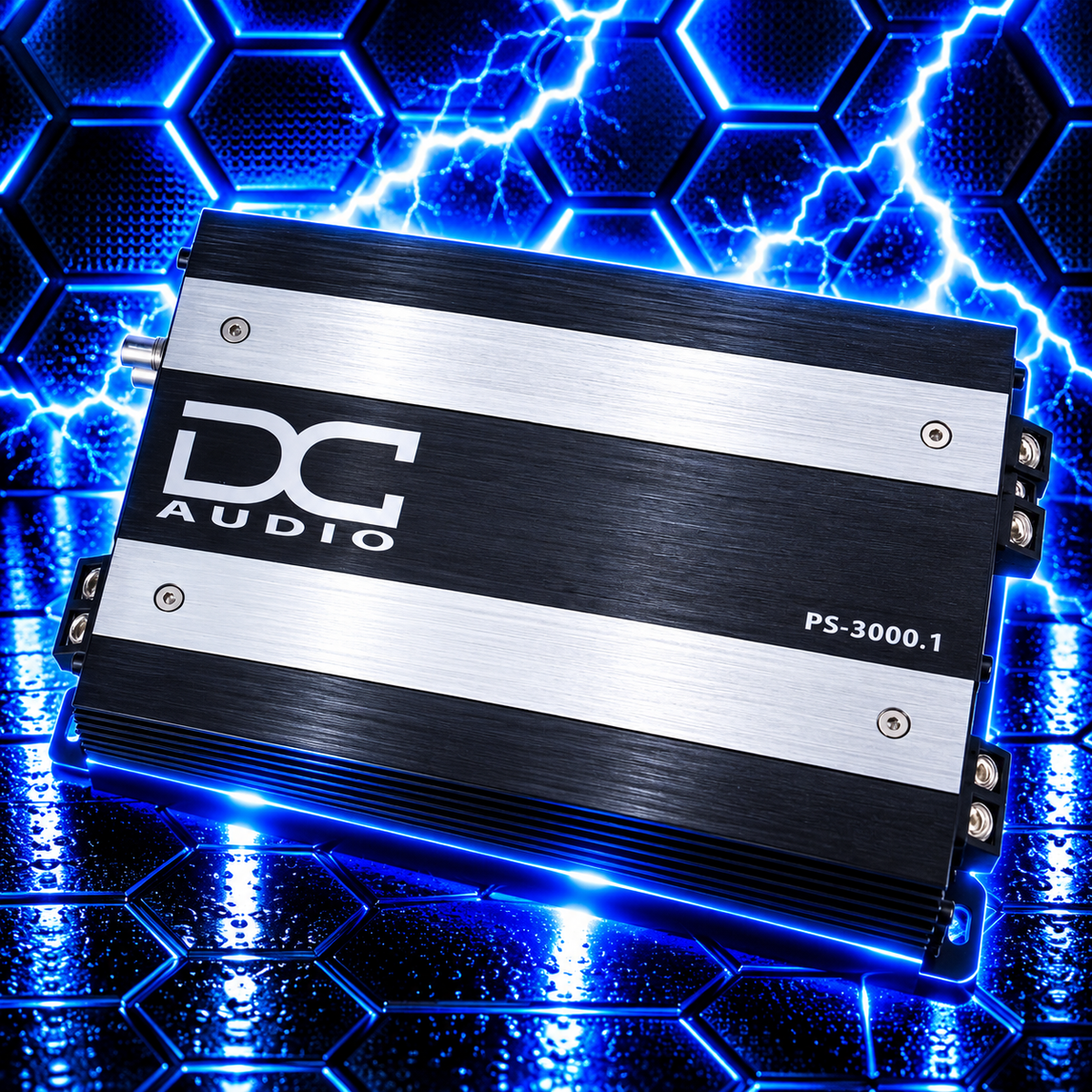

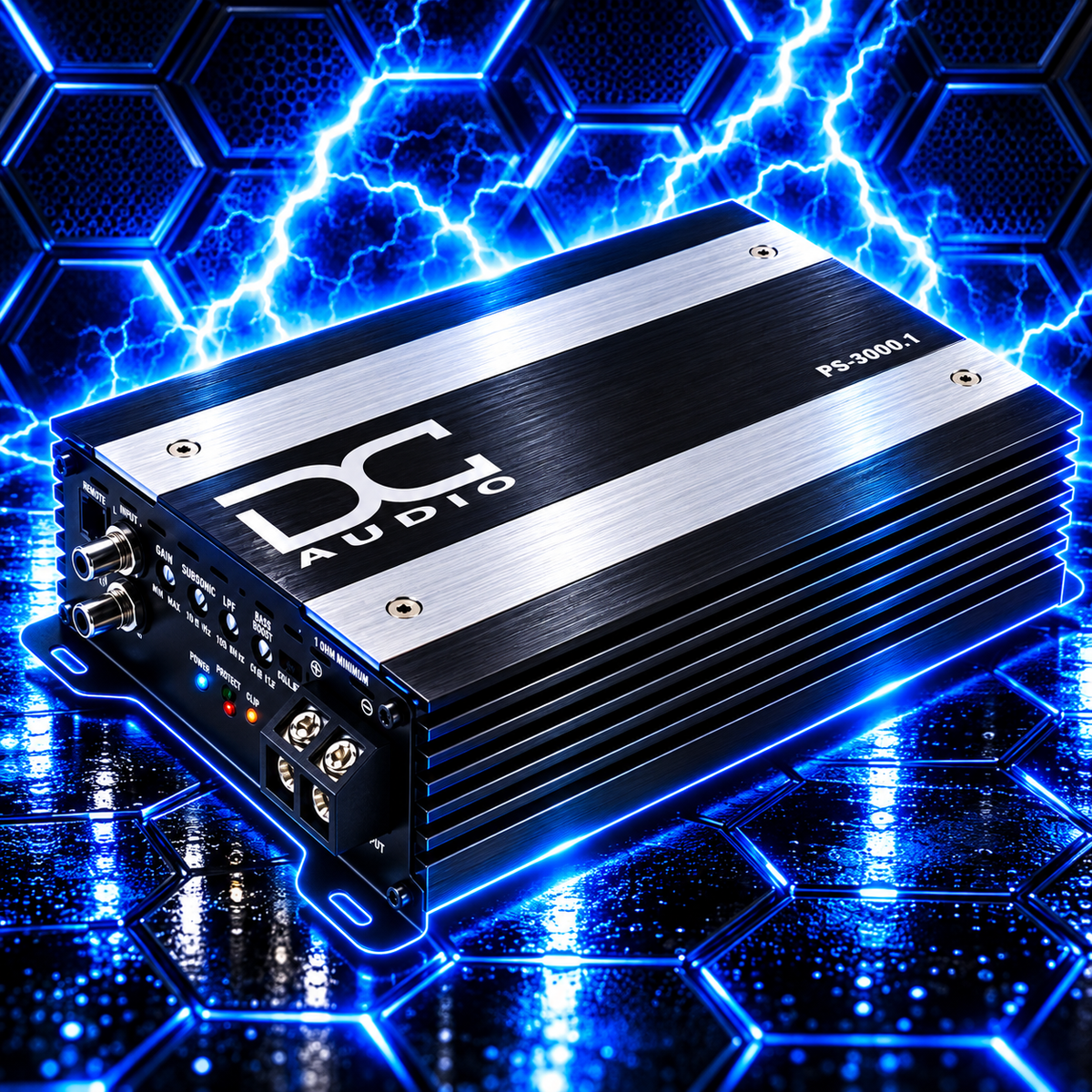

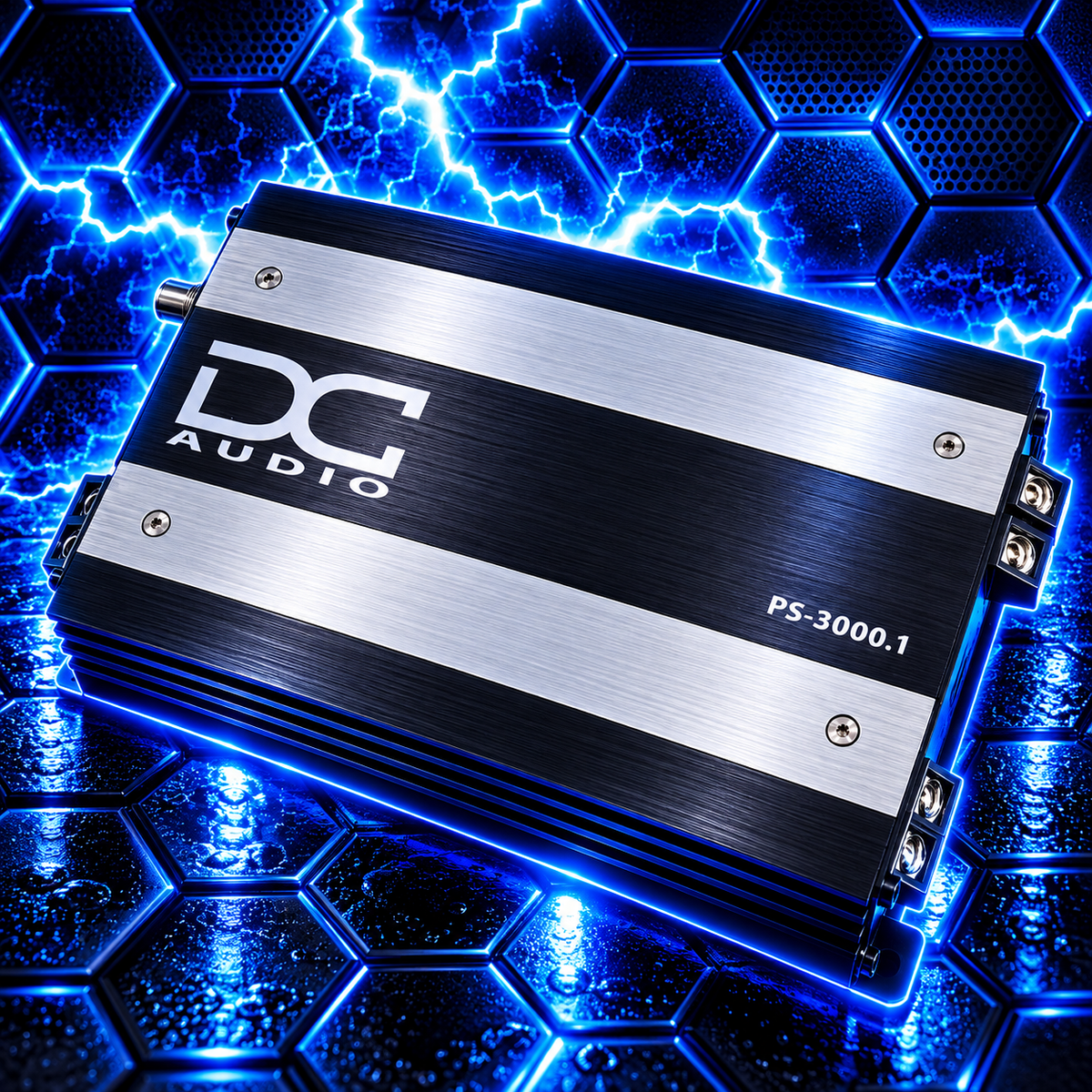

The DC-PS3000x1 is a Full Bridge compact series amplifier capable of making 3,000 watts. Its High power mono block. It has 4awg inputs and onboard clipping lights. It also comes with a bass knob. Designed to make more power in less space.
Output Power (RMS)
4 ohm 900Wx1 @ 14.4 Volts
2 ohm 1800Wx1 @ 14.4 Volts
1 ohm mono 3000x1 @ 14.4 Volts

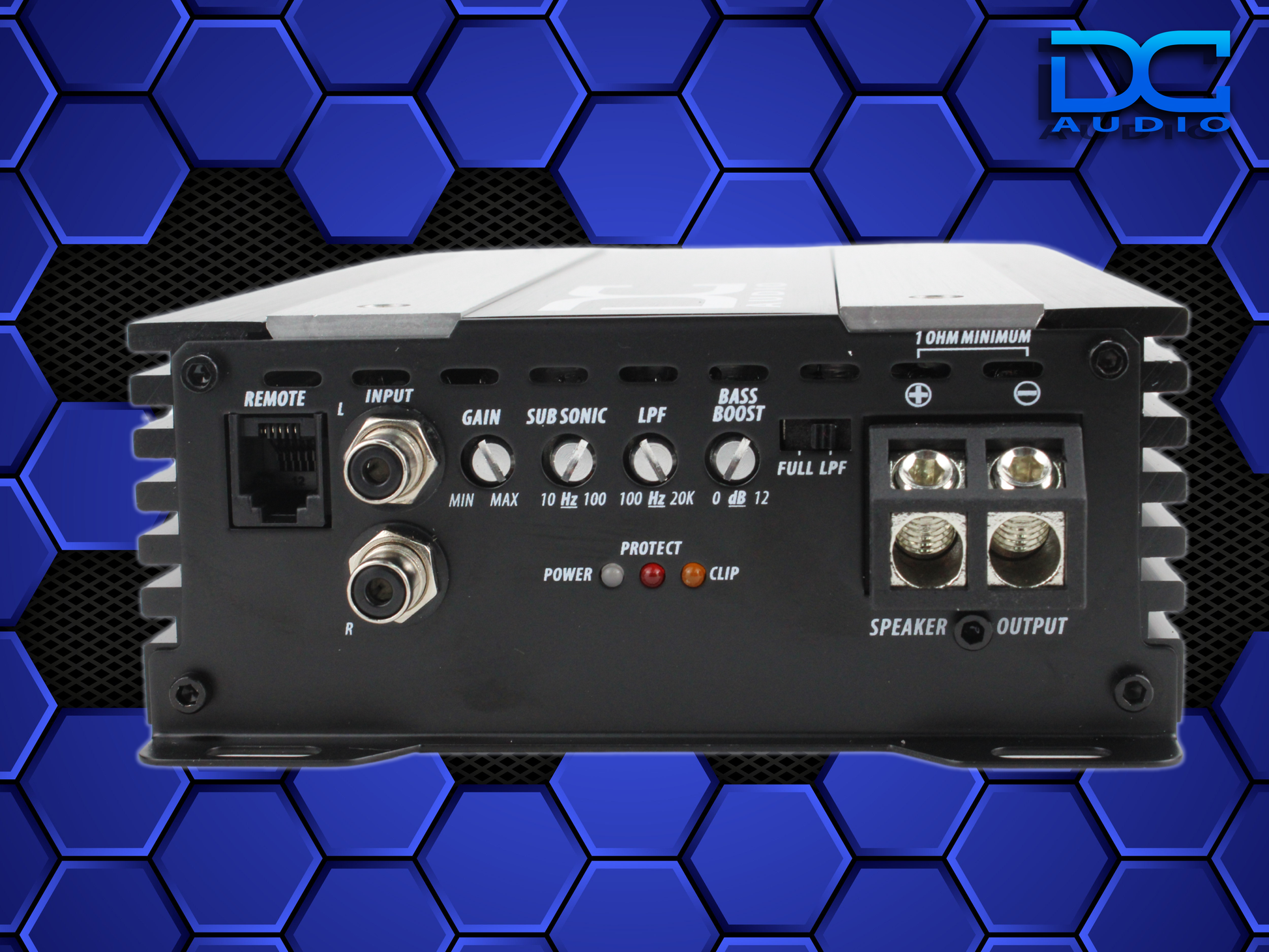

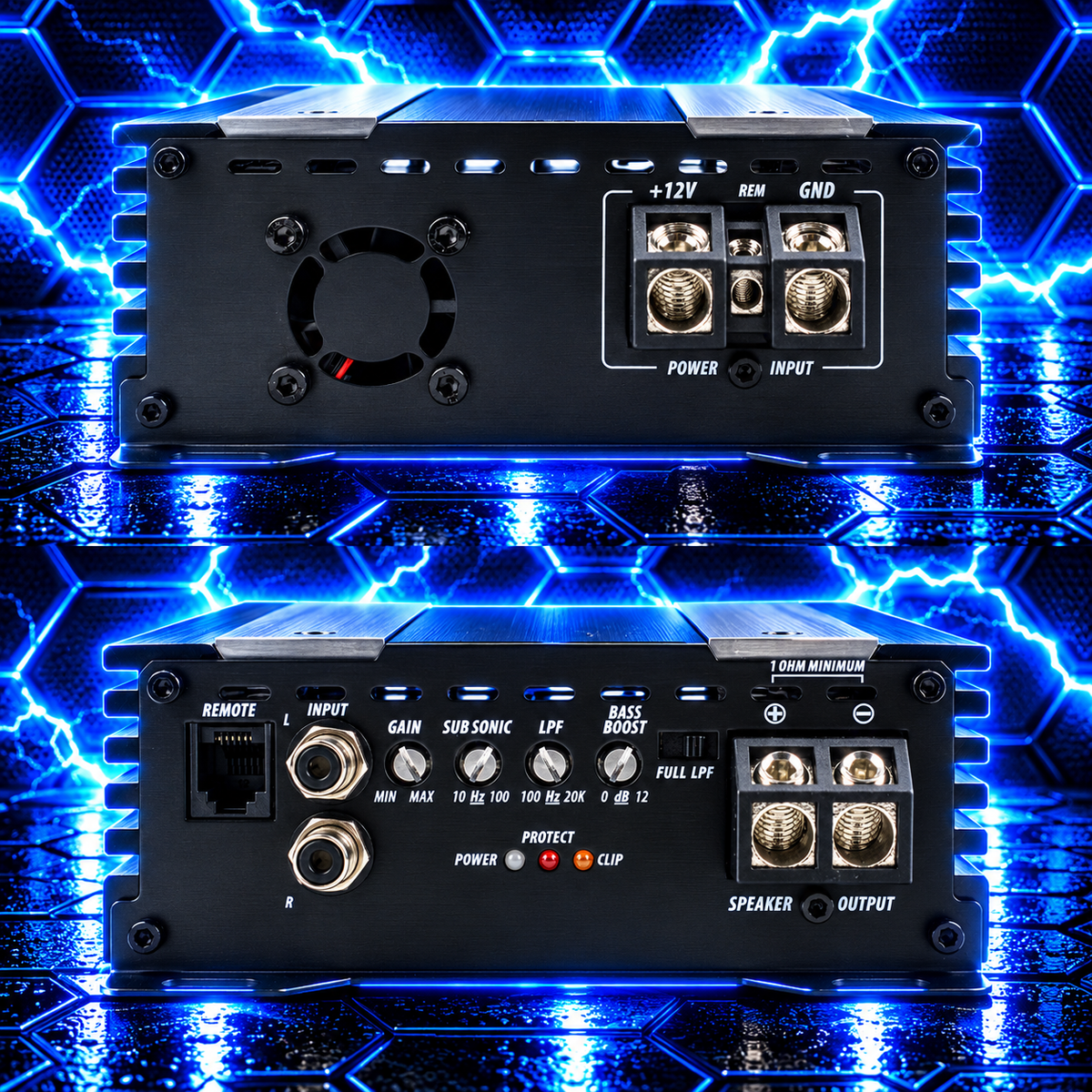

Key Features
1 ohm stable
Operating Voltage 9-16.5v
Variable low pass filter
Variable subsonic filter
Full Range Switch

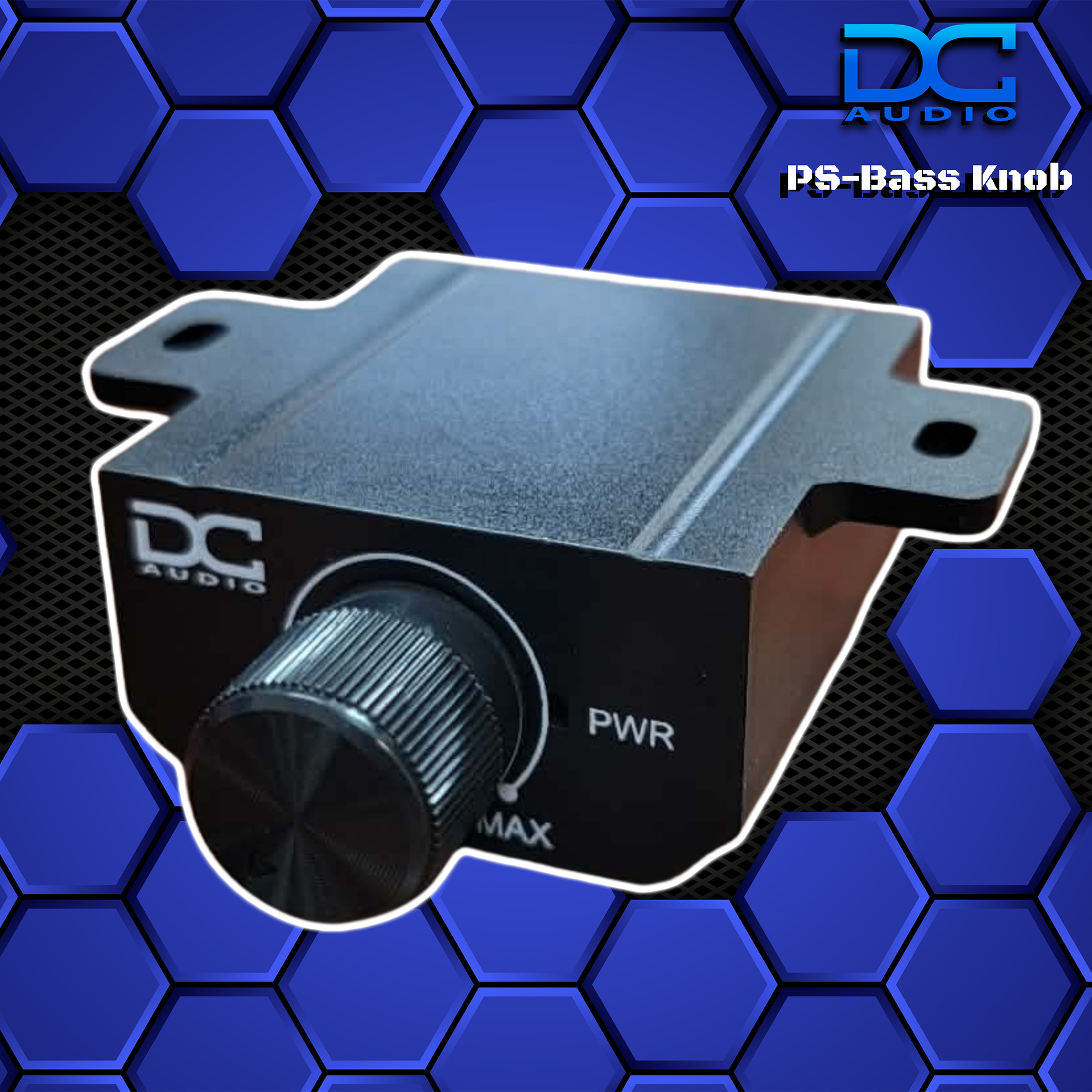

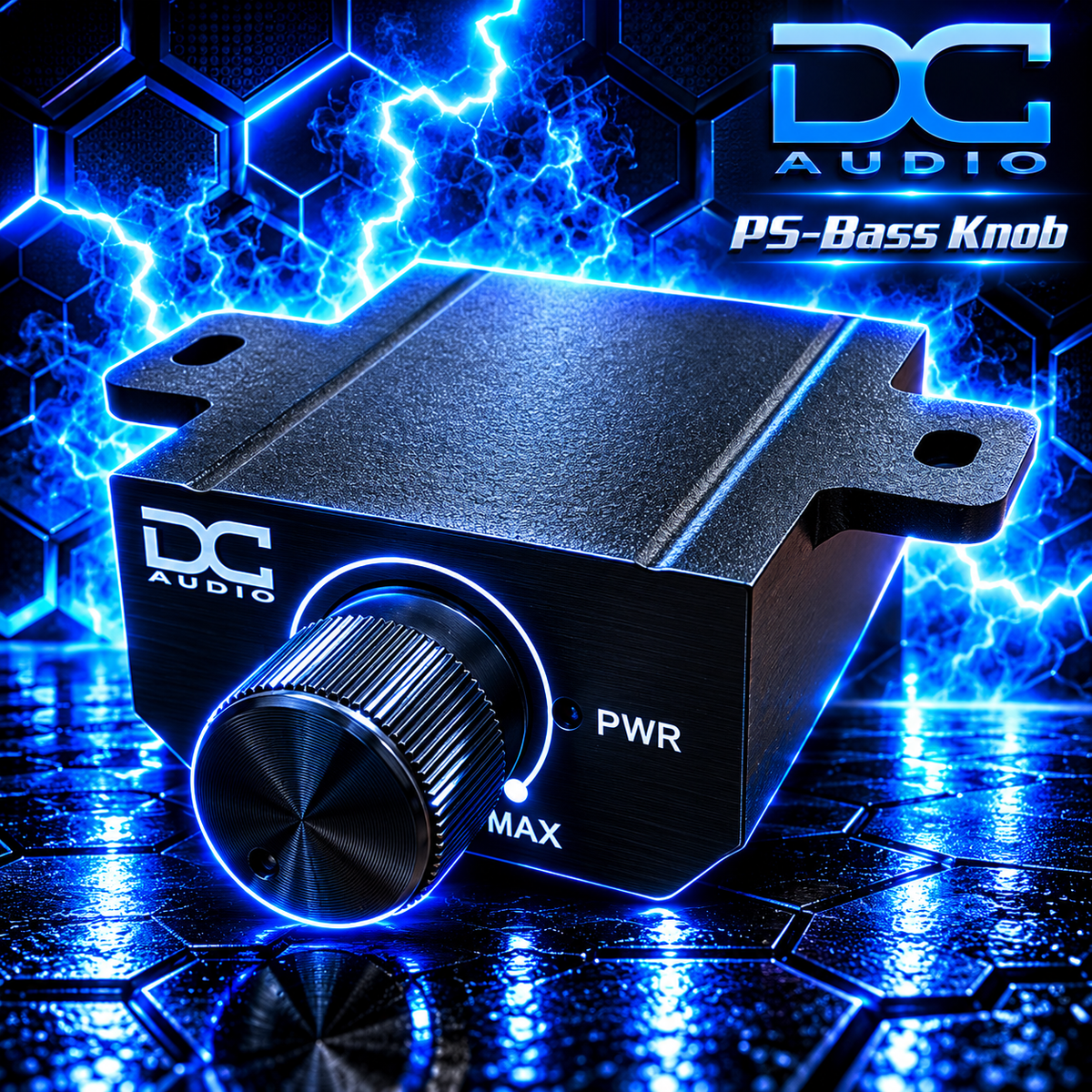

Wired Bass Knob remote control
Bass Boost
Onboard Power / Protect / Clip light
Tiffany Style RCA Jacks
Super Compact Design
AMP SPECS:
| DC Amp Model: | PS 3000.1 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20kHz |
| 12dB / Octave Crossover | YES |
| Low Pass | 50Hz ~ 15kHz |
| Subsonic Filter | Yes |
| Bass Boost | Yes |
| Phase Shift | NO |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB90 |
| Full Range Switch | Yes< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 200 amp |
| LED Status Lights | Power/Protect/Clip |
| Master/Slave | NO |

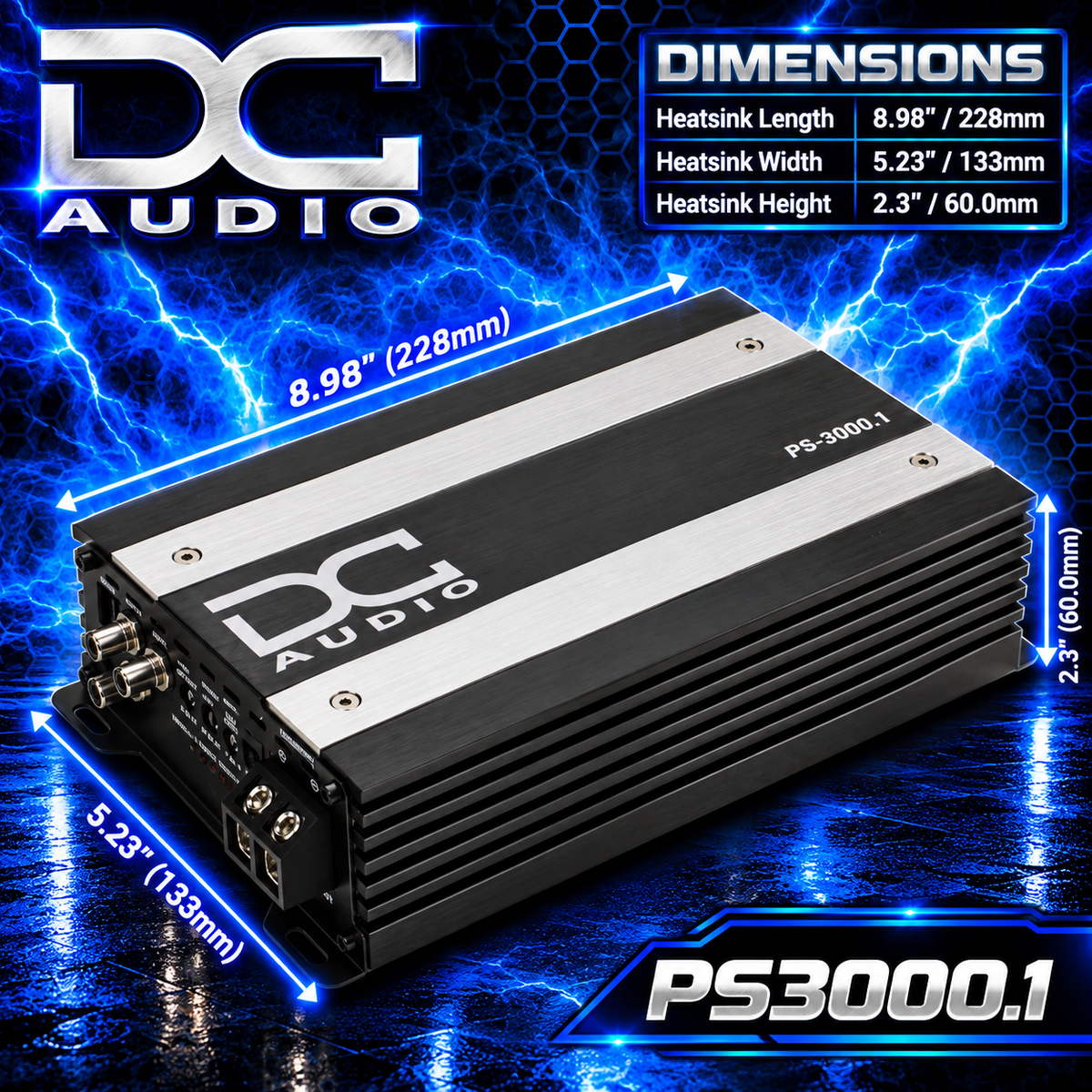

| Heatsink Length | 8.98"/228mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
