PS1000x1 - Mini Full Range Mono Block Amplifier
PS1000x1 - Mini Full Range Mono Block Amplifier
Couldn't load pickup availability
PS1000x1 - Mini Full Range Mono Block Amplifier
Sold by AudioSellerz.com
The DC Audio PS1000x1 - Mini Full Range Mono Block Amplifier belongs in the conversation when searching for a DC Audio amp, DC Audio monoblock amplifier, or car audio subwoofer amplifier. Its exact ratings and requirements are preserved below so the amplifier can be chosen around the real subwoofer system instead of relying on wattage in the product name alone.
The right subwoofer amplifier is only one part of the bass system. Plan the amp with the subwoofers, final ohm load, box, signal source, wiring, battery support, charging system, and tuning so every part of the build supports the same goal.
Original Product Details
Amplifier Description

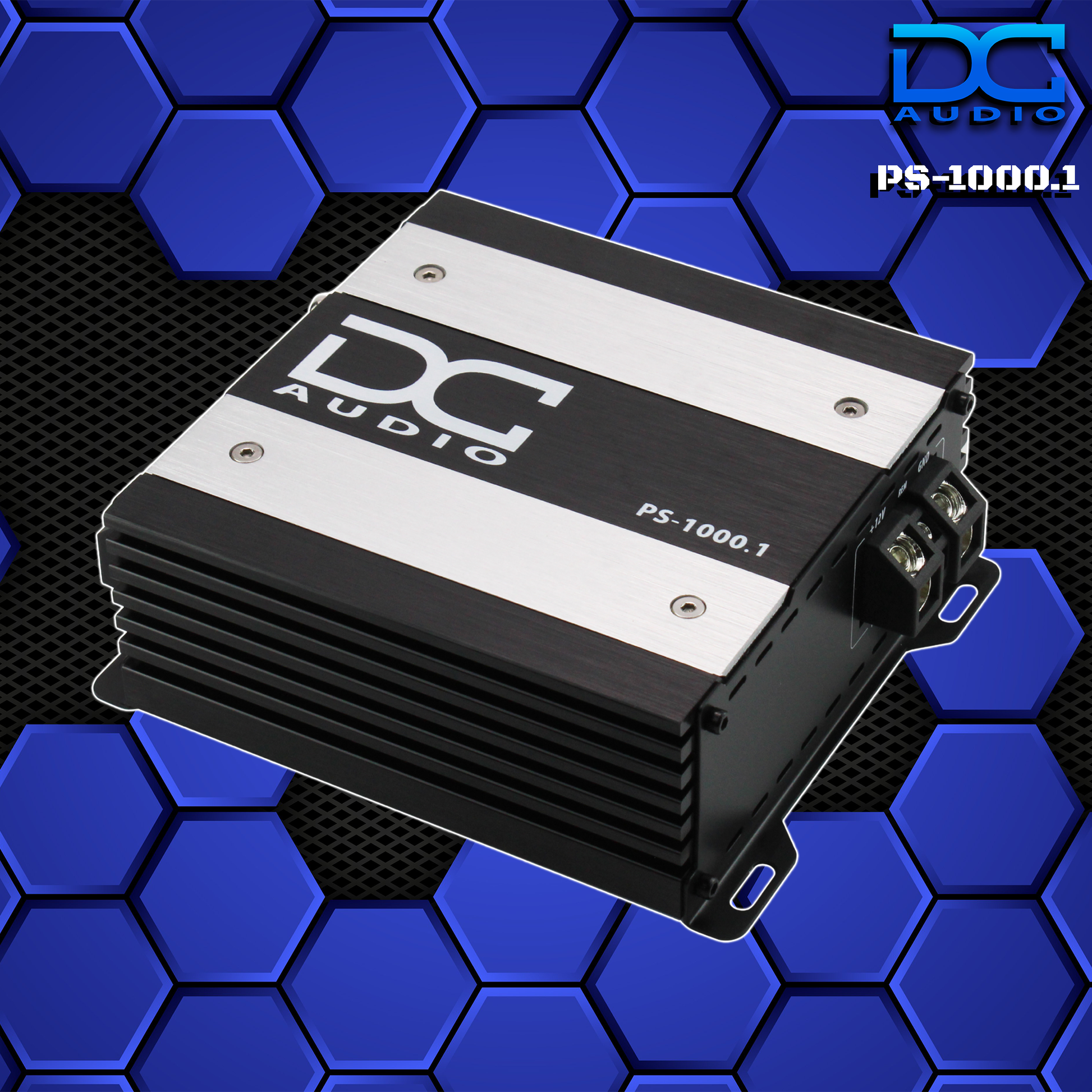

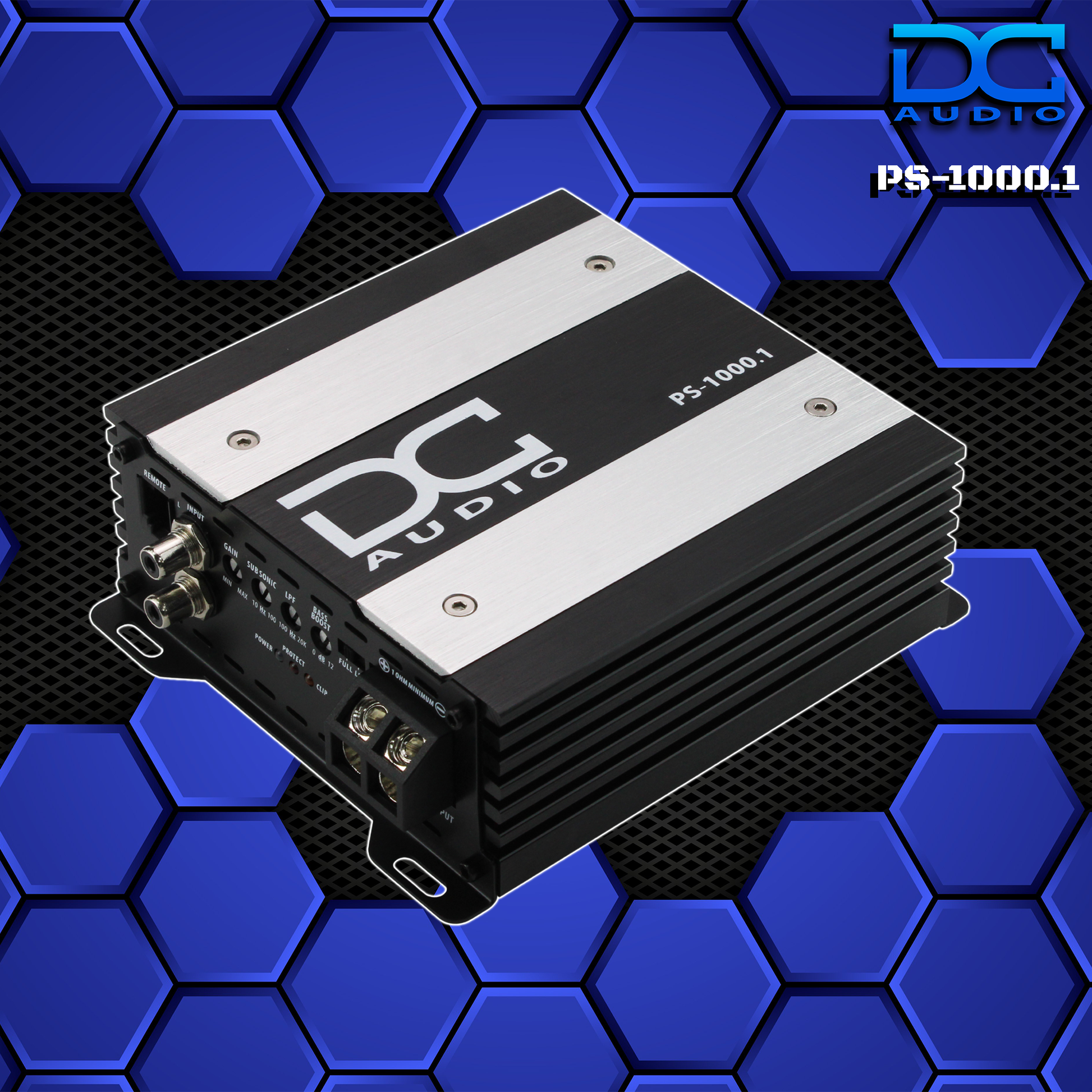

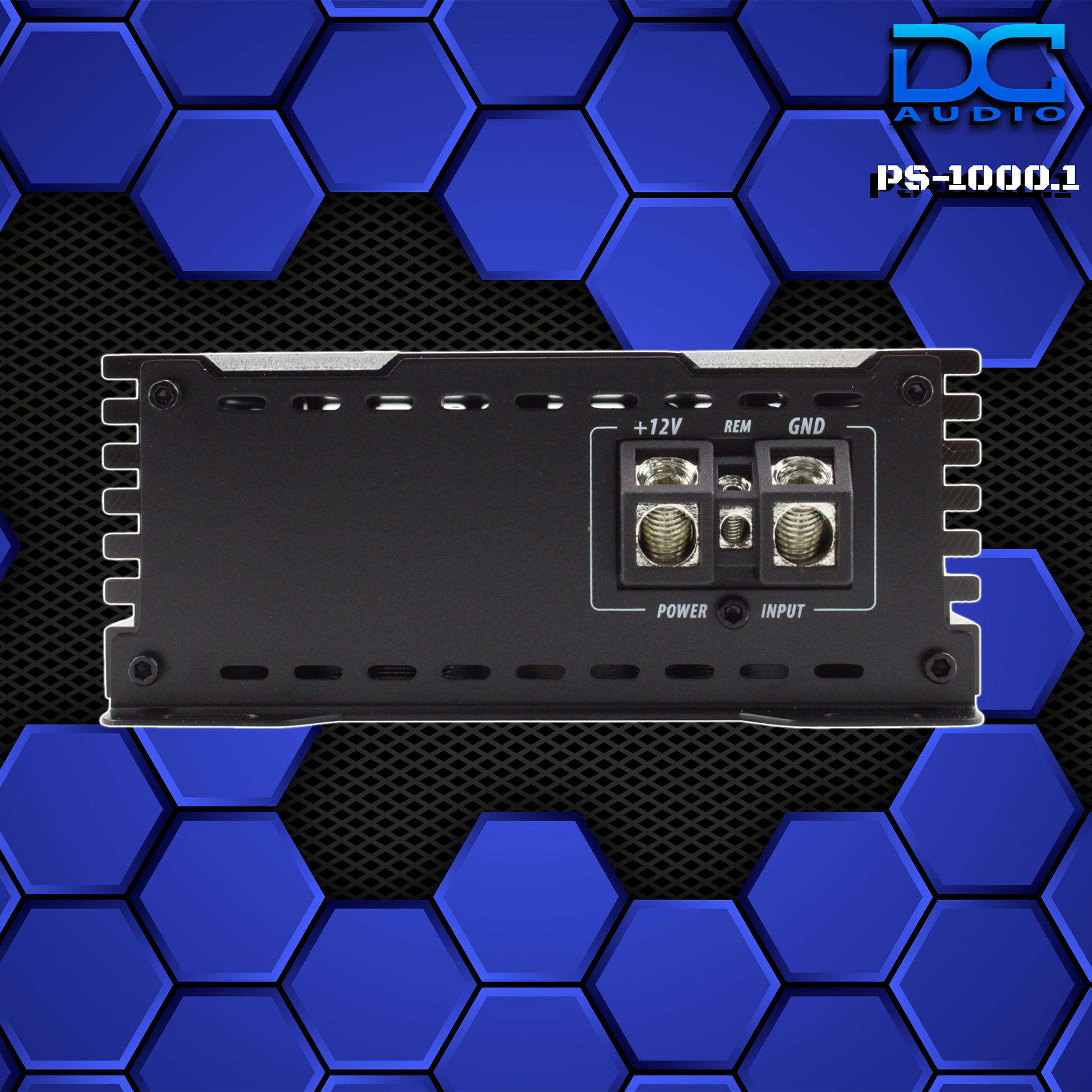

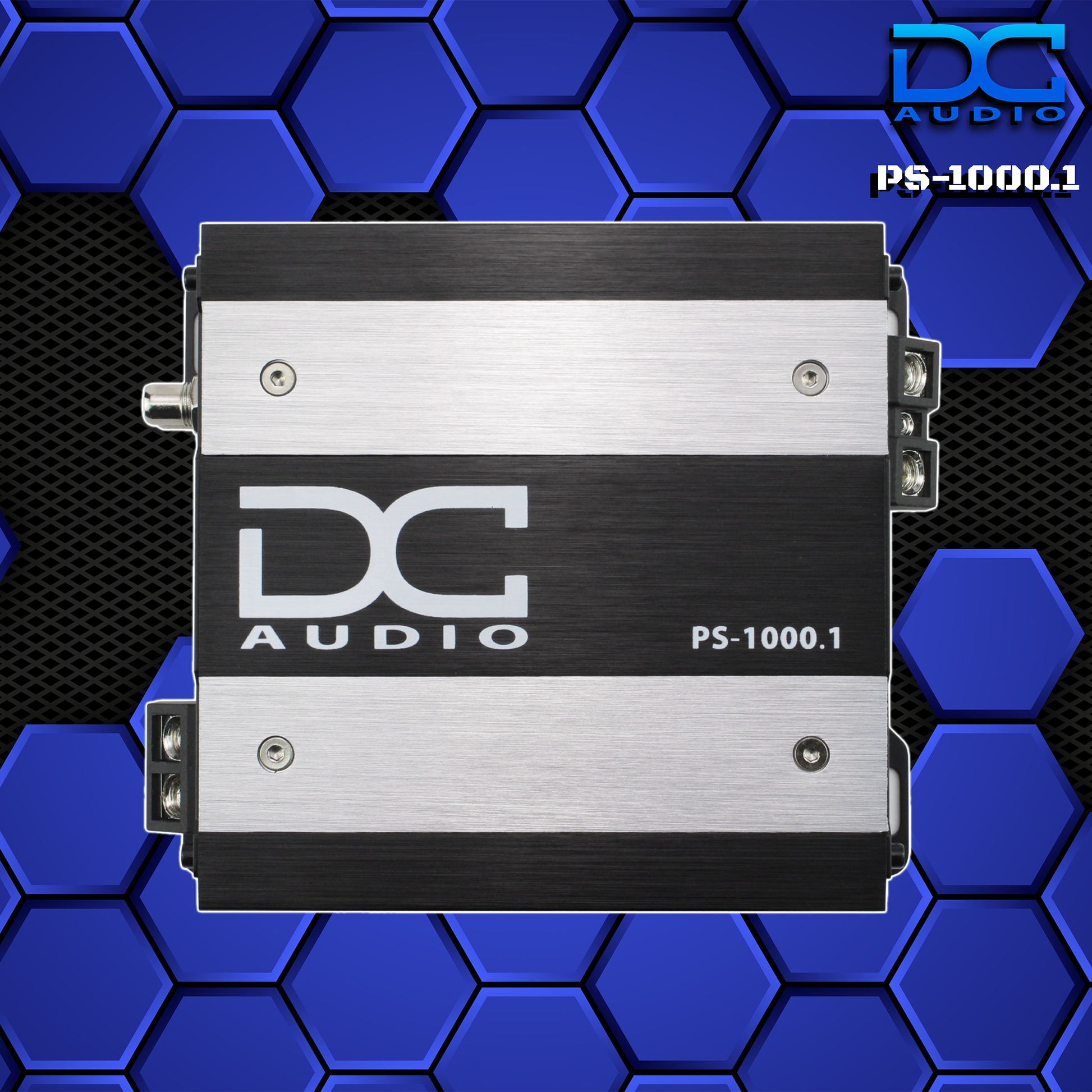

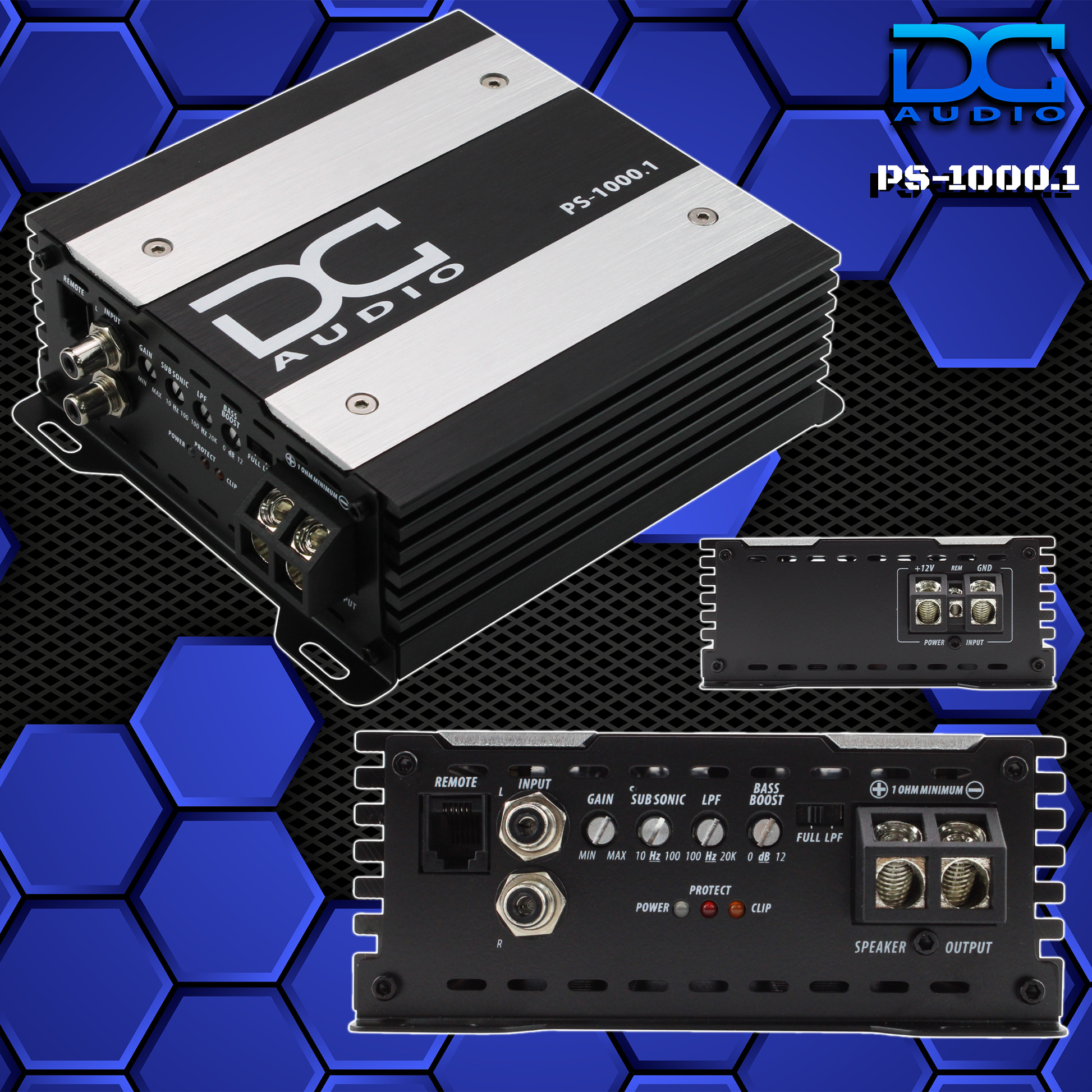

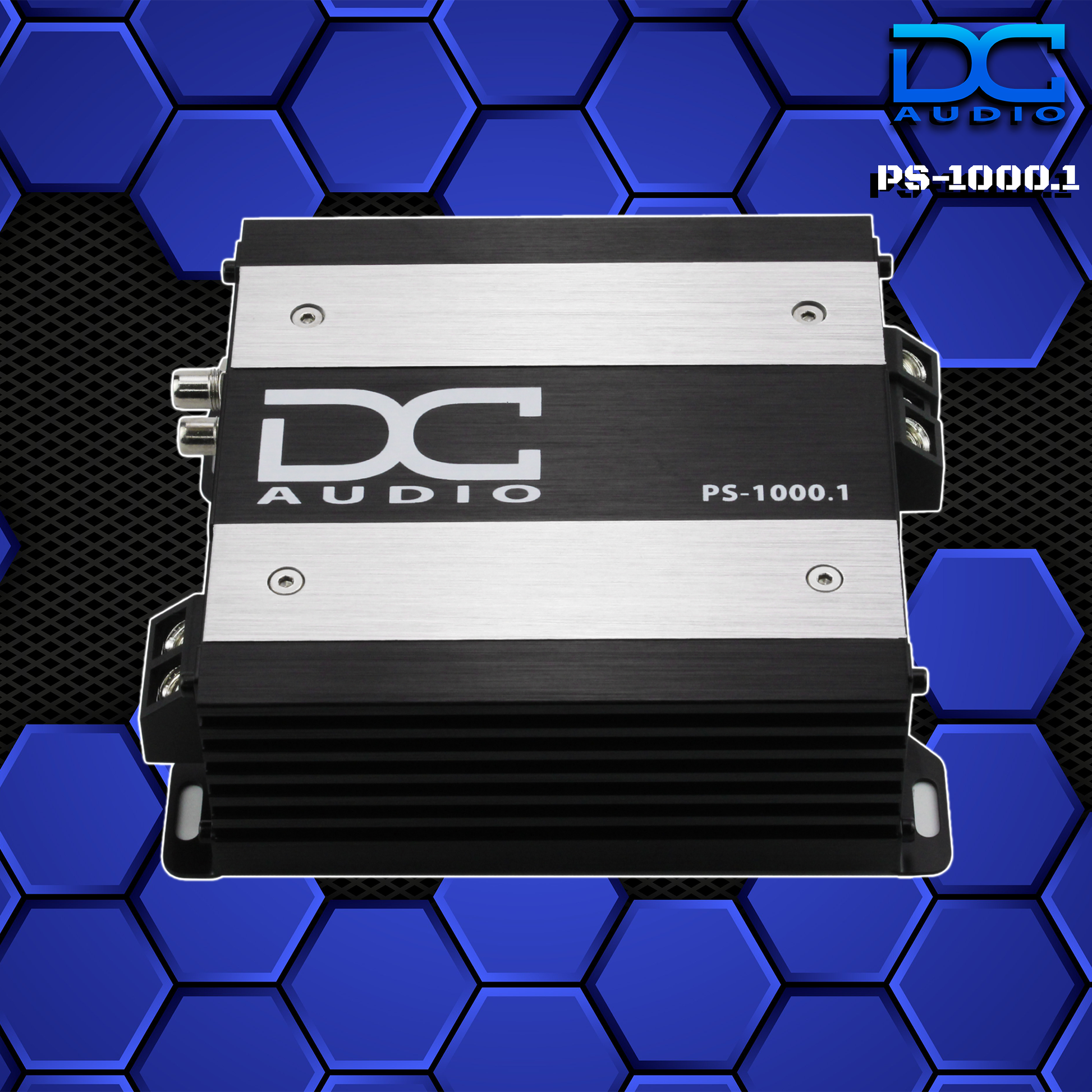

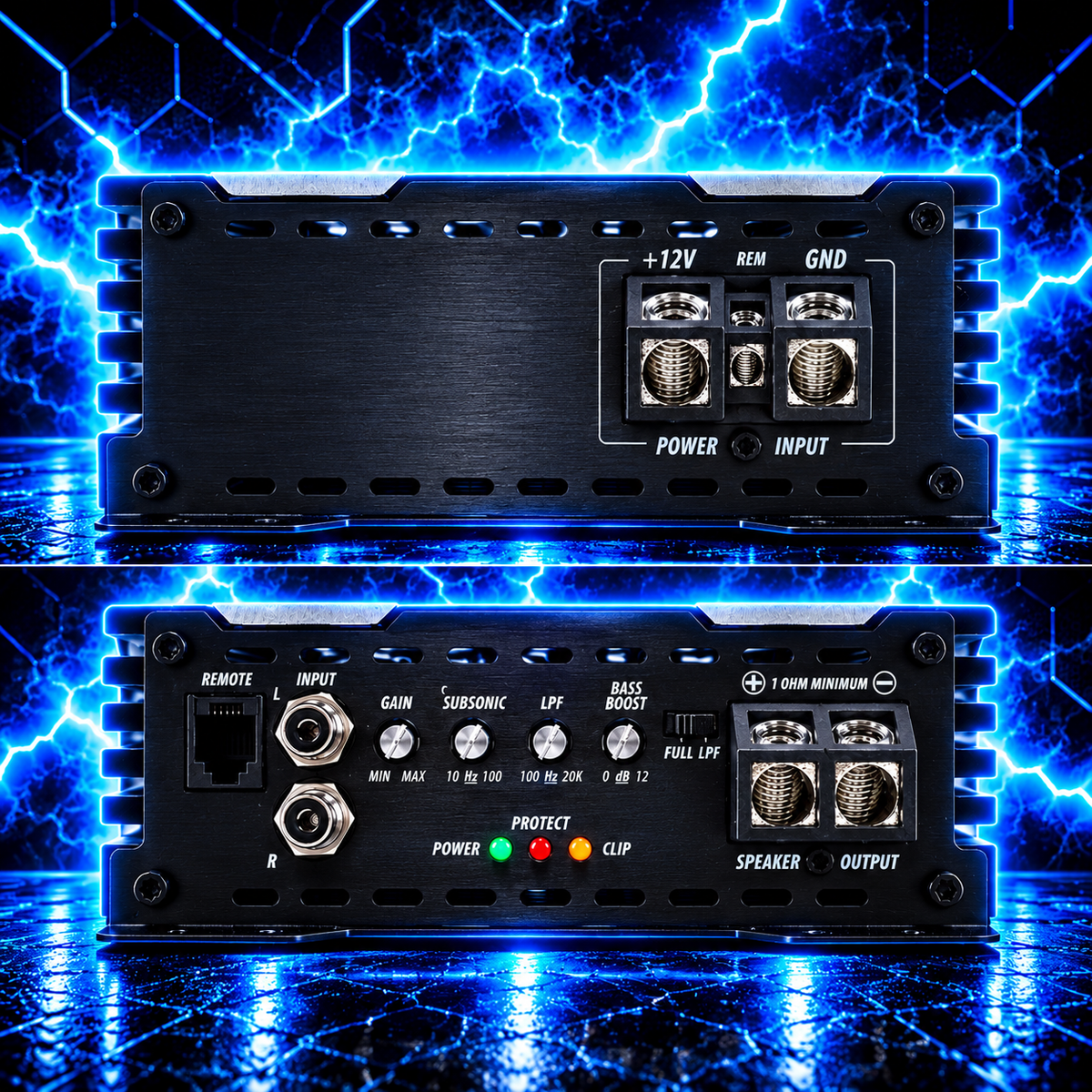

The DC-PS1000x1 is a Full Bridge compact series amplifier capable of making 1,000 watts. It can be used as a Subwoofer amp or to power stunt walls and doors. It has 4awg inputs and onboard clipping lights. It also comes with a bass knob. Designed to make more power in less space.
Output Power (RMS)
4 ohm 400Wx1 @ 14.4 Volts
2 ohm 700Wx1 @ 14.4 Volts
1 ohm mono 1000x1 @ 14.4 Volts
Key Features
1 ohm stable
Operating Voltage 9-16.5v

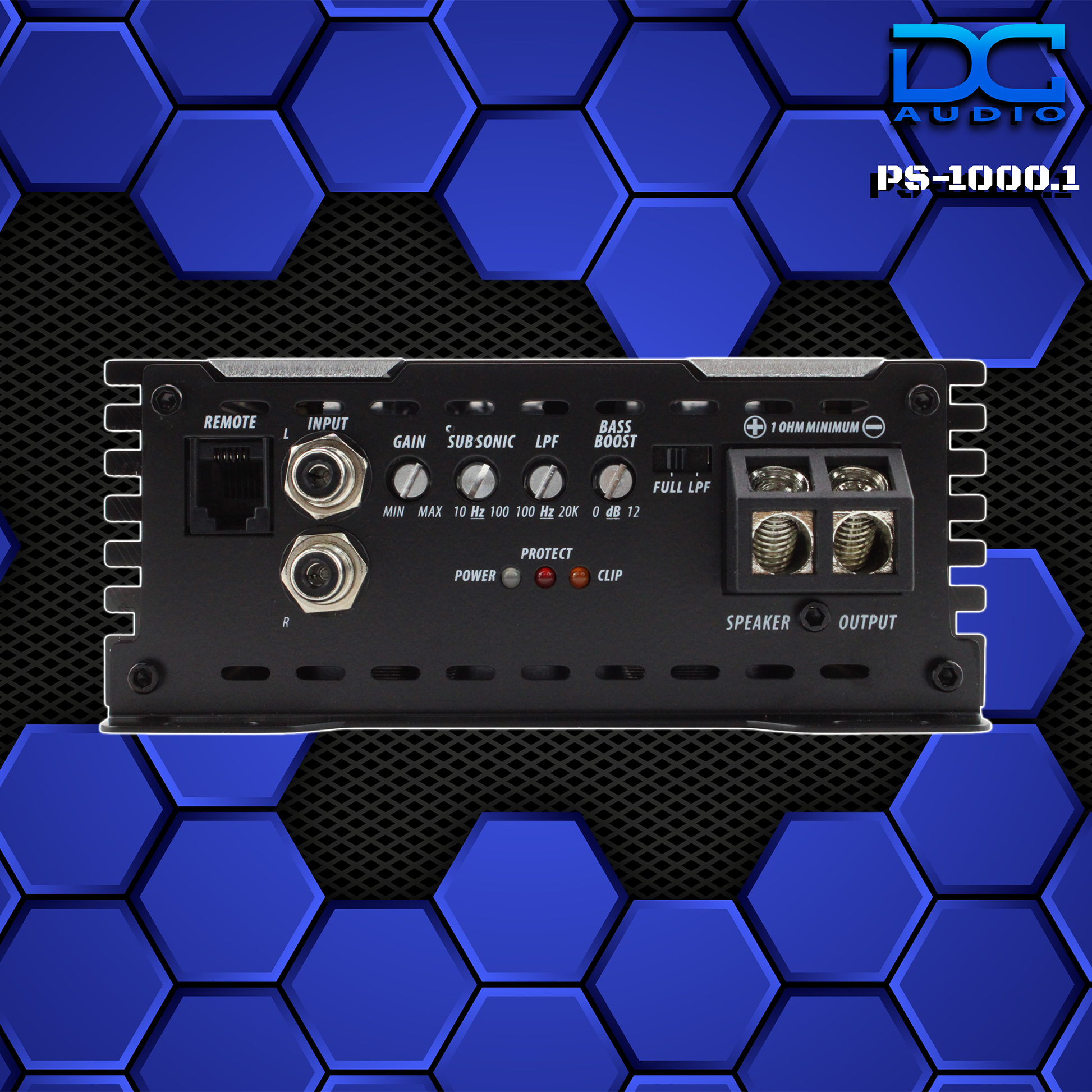

Variable low pass filter
Variable subsonic filter
Full Range Switch

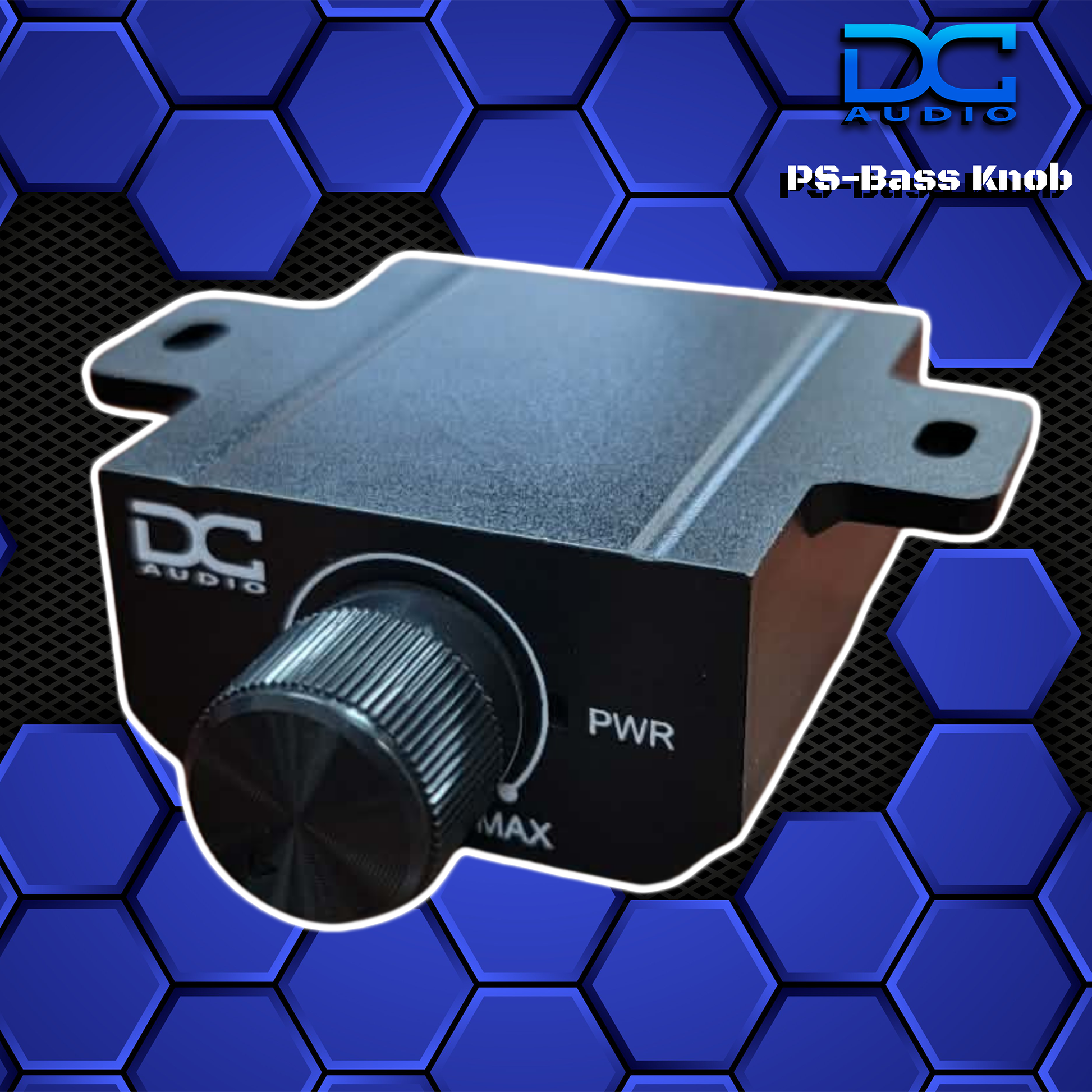

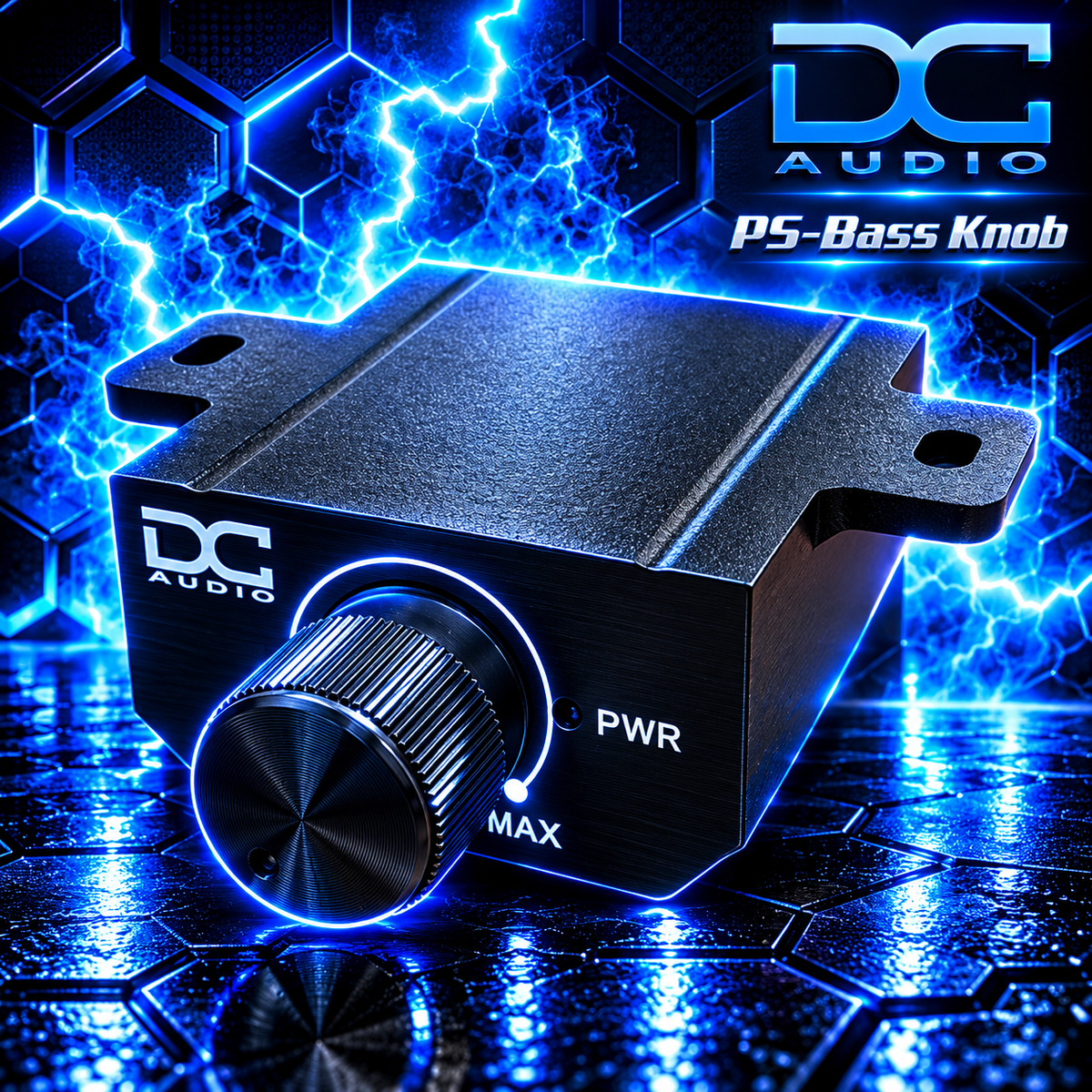

Wired Bass Knob remote control
Bass Boost
Onboard Power / Protect / Clip light
Tiffany Style RCA Jacks
Super Compact Design
AMP SPECS:
| DC Amp Model: | PS 1000.1 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20kHz |
| 12dB / Octave Crossover | YES |
| Low Pass | 50Hz ~ 15kHz |
| Subsonic Filter | Yes |
| Bass Boost | Yes |
| Phase Shift | No |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB90 |
| Full Range Switch | Yes< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 100 amp |
| LED Status Lights | Power/Protect/Clip |
| Master/Slave | No |

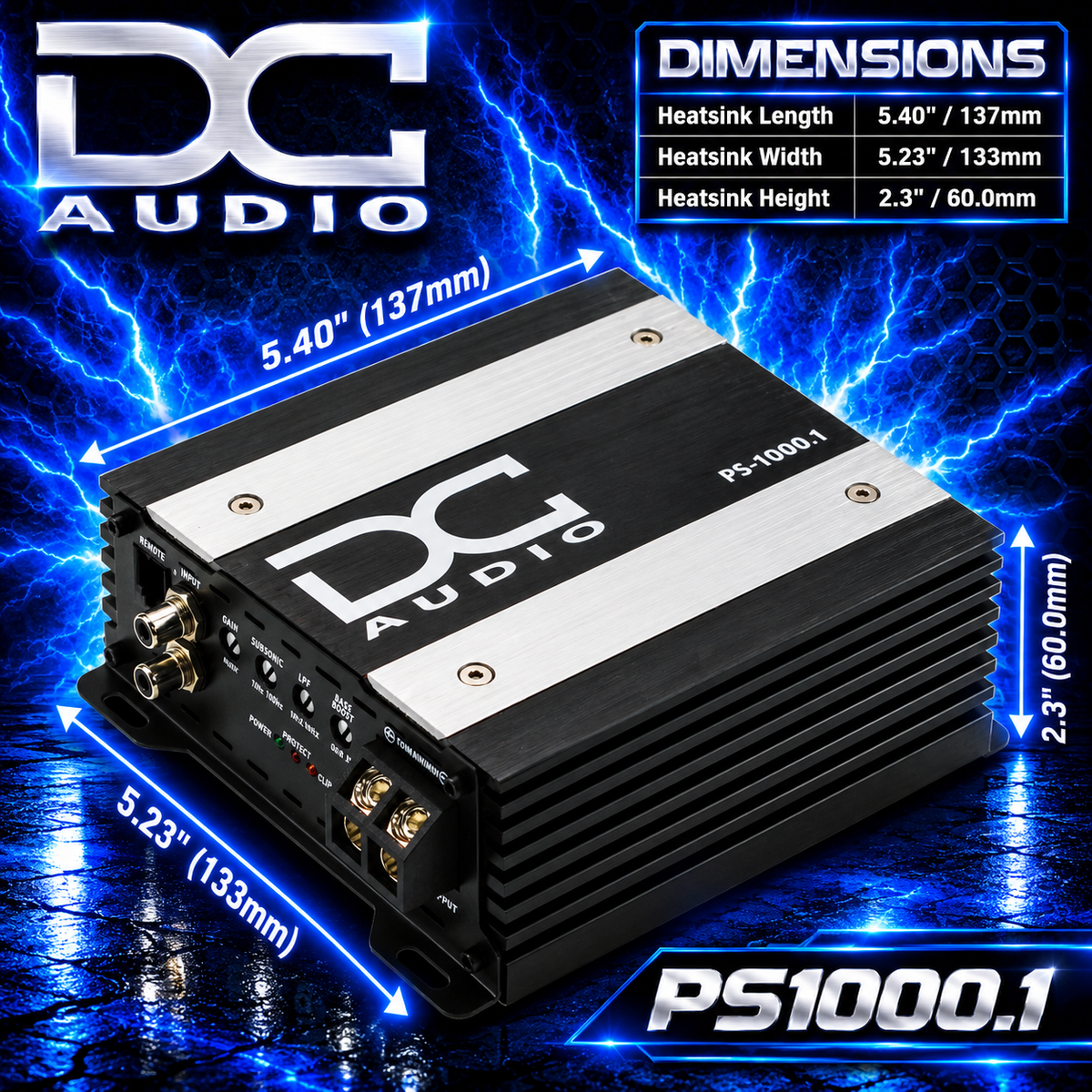

| Heatsink Length | 5.4"/137mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
Match the DC Audio Amplifier to the Complete Bass Build
Compare this model with more DC Audio amplifiers and browse the complete DC Audio collection at Audio Sellerz. You can also shop DC Audio subwoofers and monoblock car audio amplifiers while planning the power and bass stages together.
Use the subwoofer wiring and final ohm-load guide before selecting voice-coil wiring, then review the amplifier gain-setting guide and car audio electrical-upgrade guide before putting a larger amplifier into service.
Confirm the Exact Product Before Ordering
Use the product title and selected variant as the starting point, then review every original specification, compatibility note, dimension, quantity, build-time notice, shipping limitation, and other condition provided above. Confirm the equipment and installation requirements before placing the order.
