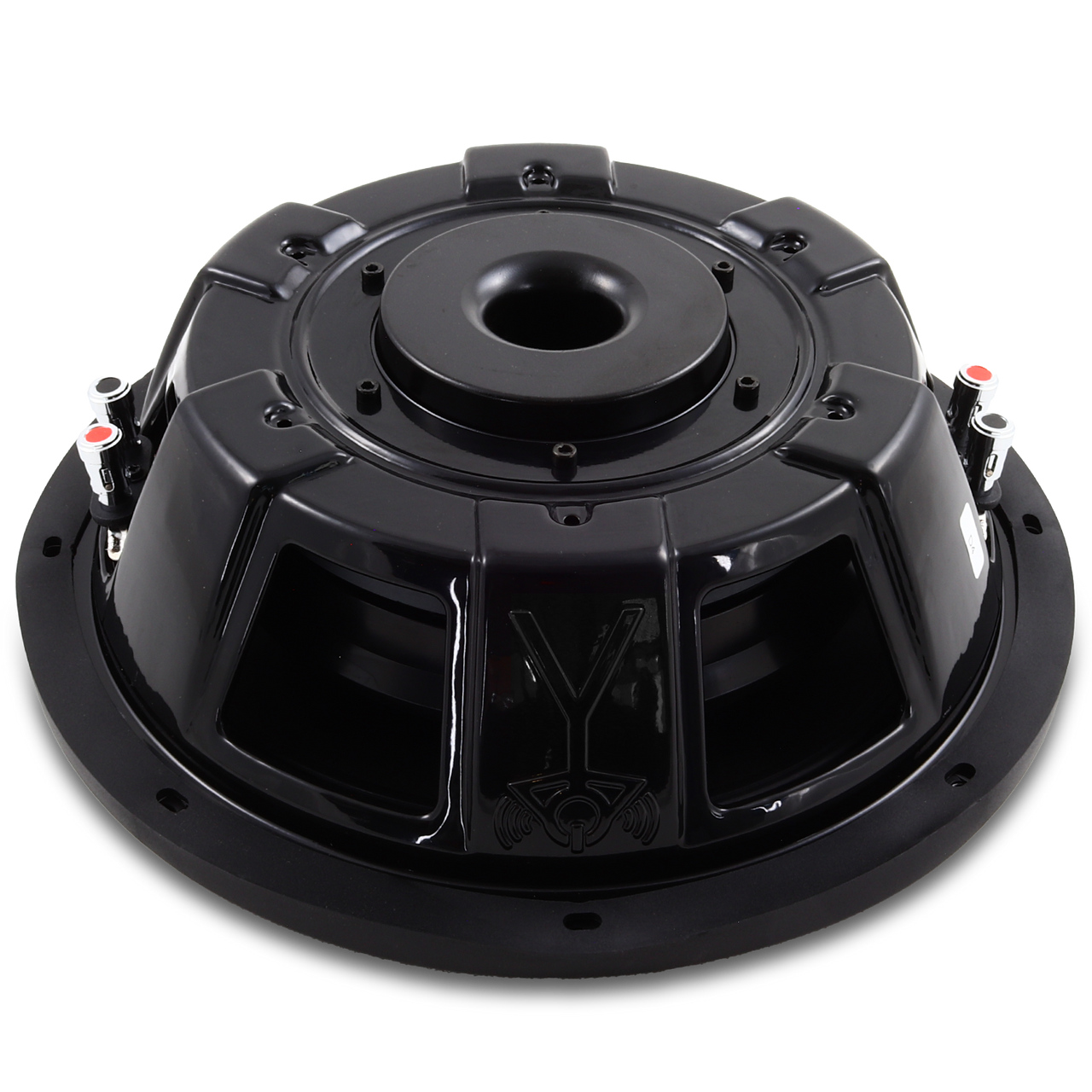

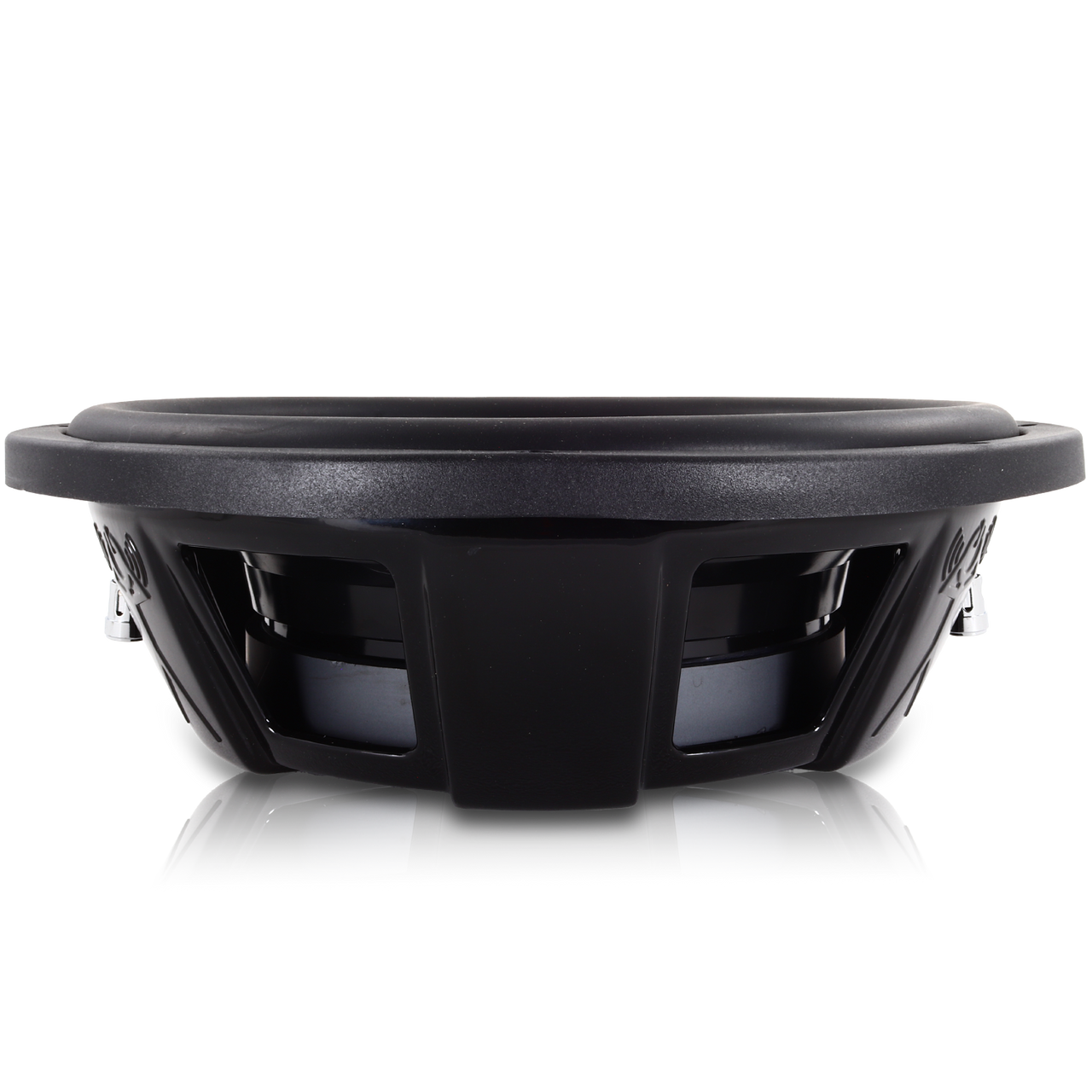

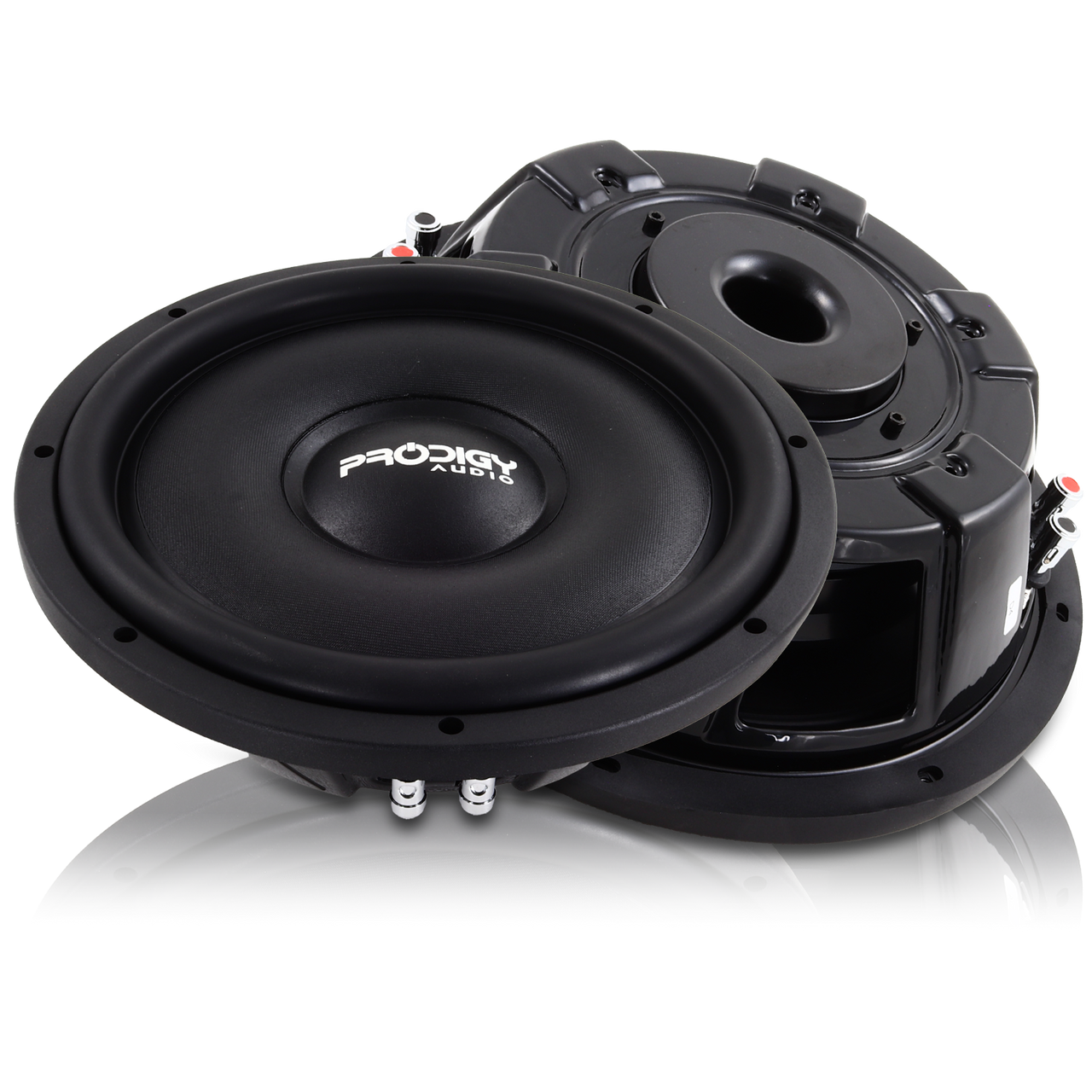

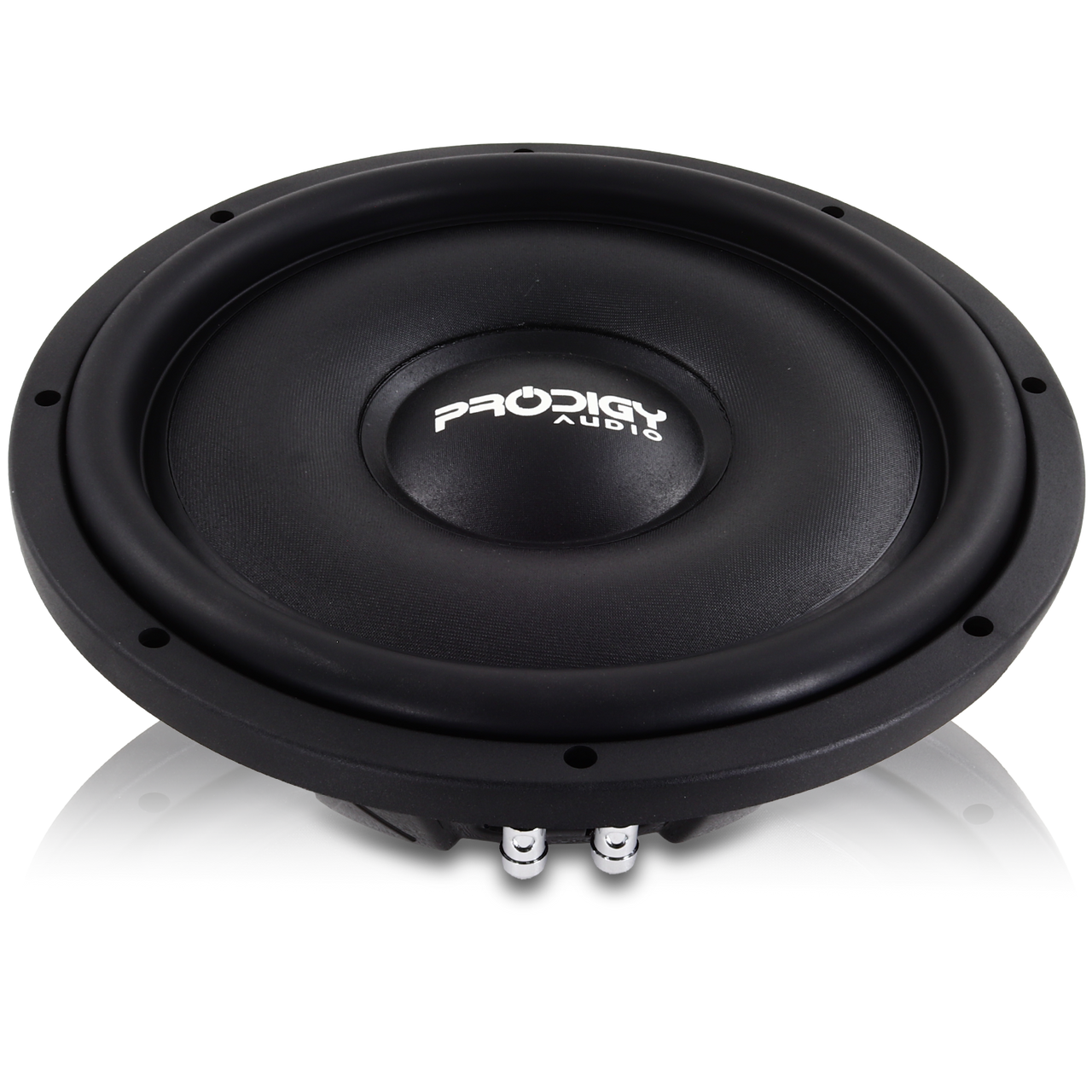

Prodigy Audio NB3-12D4 12" 800 Watt RMS Dual 4 Ohm Shallow Mount Subwoofer

Name: Prodigy Audio NB3-12D4 12" 800 Watt RMS Dual 4 Ohm Shallow Mount Subwoofer
Brand: Prodigy Audio
SKU: NB3-12D4
Price: 171.99 USD
Availability: OutOfStock

$171.99 USD

~~$206.99 USD~~ $171.99 USD

Sale Sold out

Shipping calculated at checkout.

Prodigy Audio NB3-12D4 12" 800 Watt RMS Dual 4 Ohm Shallow Mount Subwoofer

Sold by AudioSellerz.com

The Prodigy Audio NB3-12D4 12" 800 Watt RMS Dual 4 Ohm Shallow Mount Subwoofer is a NB3 shallow-mount car audio subwoofer rated at 800 watts RMS with a dual 4 ohm voice-coil configuration. It is designed for truck systems and compact builds that need 12-inch cone area with far less mounting depth than a traditional full-depth subwoofer.

This page includes the published fitment and T/S information needed to plan the amplifier, final ohm load, enclosure, speaker wire, and electrical support. Match the subwoofer from continuous power and real impedance—not from peak wattage alone.

Key Prodigy Audio Subwoofer Specifications

Series: NB3 shallow-mount
Size: 12-inch
Continuous power handling: 800 watts RMS
Voice-coil configuration: dual 4 ohm
One-way Xmax: 11 mm
Mounting depth: 3.375 inches
Cutout diameter: 10.875 inches
Overall diameter: 12.25 inches
Driver displacement: 0.13 cubic feet
Published sealed enclosure range: 1.0 to 1.2 cubic feet sealed

Motor, Cooling, Cone, and Suspension Features

3-inch high-temperature 4-layer copper voice coil
Black aluminum voice-coil former
80-ounce ferrite magnet
FEA-designed center pole vent

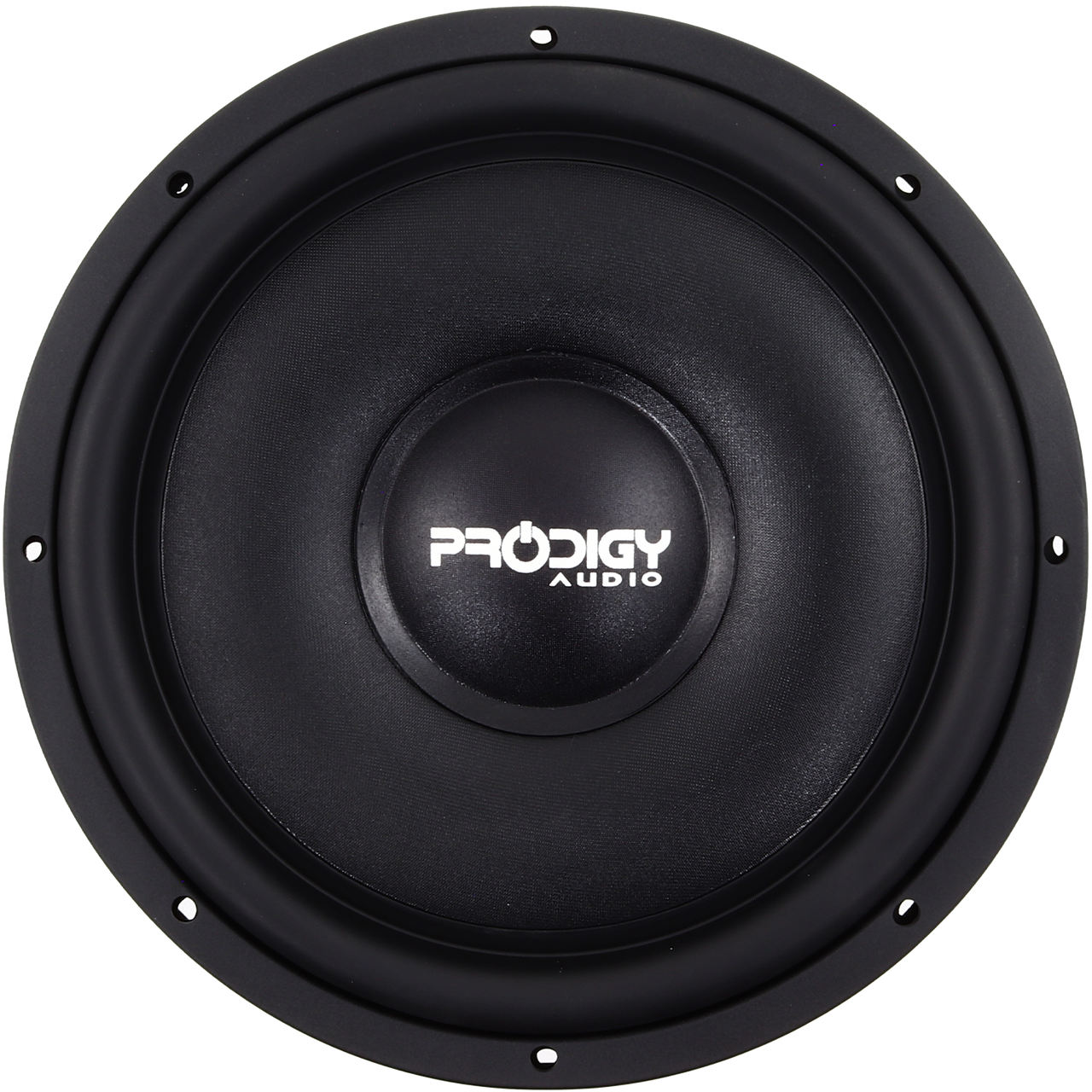

Treated paper cone with rubber surround
Strong steel frame
Chrome push terminals and flat stitched tinsel leads

Published T/S Parameters

Re: 6.7
Fs: 36.200
Vas: 29.665
Qes: 0.618
Qms: 2.266
Qts: 0.485
BL: 23.96
Mms: 189.22 g
Sensitivity: 88.9 dB
Xmax: 11 mm

Match the Subwoofer, Amplifier, and Enclosure

The amplifier must provide appropriate RMS output at the final wired load. The enclosure must fit the exact subwoofer's air-space, mounting-depth, cutout, displacement, excursion, and intended response requirements. A random box can limit output or control even when the subwoofer and amplifier are good.

Shop more Prodigy Audio subwoofers, compare all car audio subwoofers, browse Prodigy Audio amplifiers, or choose from subwoofer boxes and enclosures.

Helpful Subwoofer System Guides

Use the subwoofer wiring diagrams and ohm-load guide to calculate the final load, the subwoofer box guide to plan the enclosure, and the subwoofer specifications guide to understand the T/S data listed on this page.

The complete car audio bass setup guide explains how the subwoofer, amplifier, box, wiring, grounding, fusing, battery, and alternator work together.

Shop Prodigy Audio at Audio Sellerz

Browse the complete Prodigy Audio collection at Audio Sellerz or learn more about the brand in why Audio Sellerz partnered with Prodigy Audio.

Frequently Asked Questions

What amplifier should be used with this subwoofer?

Match amplifier RMS output to the subwoofer's continuous rating at the final wired impedance. Leave room for clean tuning and set gain correctly instead of relying on maximum-power numbers.

Why does voice-coil configuration matter?

The voice coils and wiring method create the final impedance seen by the amplifier. The final load must remain within the amplifier's rated operating range.

Can this subwoofer use any box?

No. Verify mounting depth, cutout, driver displacement, recommended air space, enclosure type, port requirements when applicable, and vehicle space before building or ordering an enclosure.
