DS18
PRO-ZXI 6.5" Mid-Range Loudspeaker With Neodymium/Ferrite Magnets 300 Watts Rms 8-Ohm
PRO-ZXI 6.5" Mid-Range Loudspeaker With Neodymium/Ferrite Magnets 300 Watts Rms 8-Ohm
Couldn't load pickup availability
PRO-ZXI 6.5" Mid-Range Loudspeaker With Neodymium/Ferrite Magnets 300 Watts Rms 8-Ohm
Sold by AudioSellerz.com
The DS18 PRO-ZXi6M is a 6.5" mid-range loudspeaker from the DS18 PRO line rated at 300W RMS with an 8 ohm design. It is built for clean, loud midrange and highs that cut through road noise.
DS18 Product Details
DS18 PRO-ZXI6M 6.5" Mid-Range Pro Audio Loudspeaker 600 Watts 8-Ohm
The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

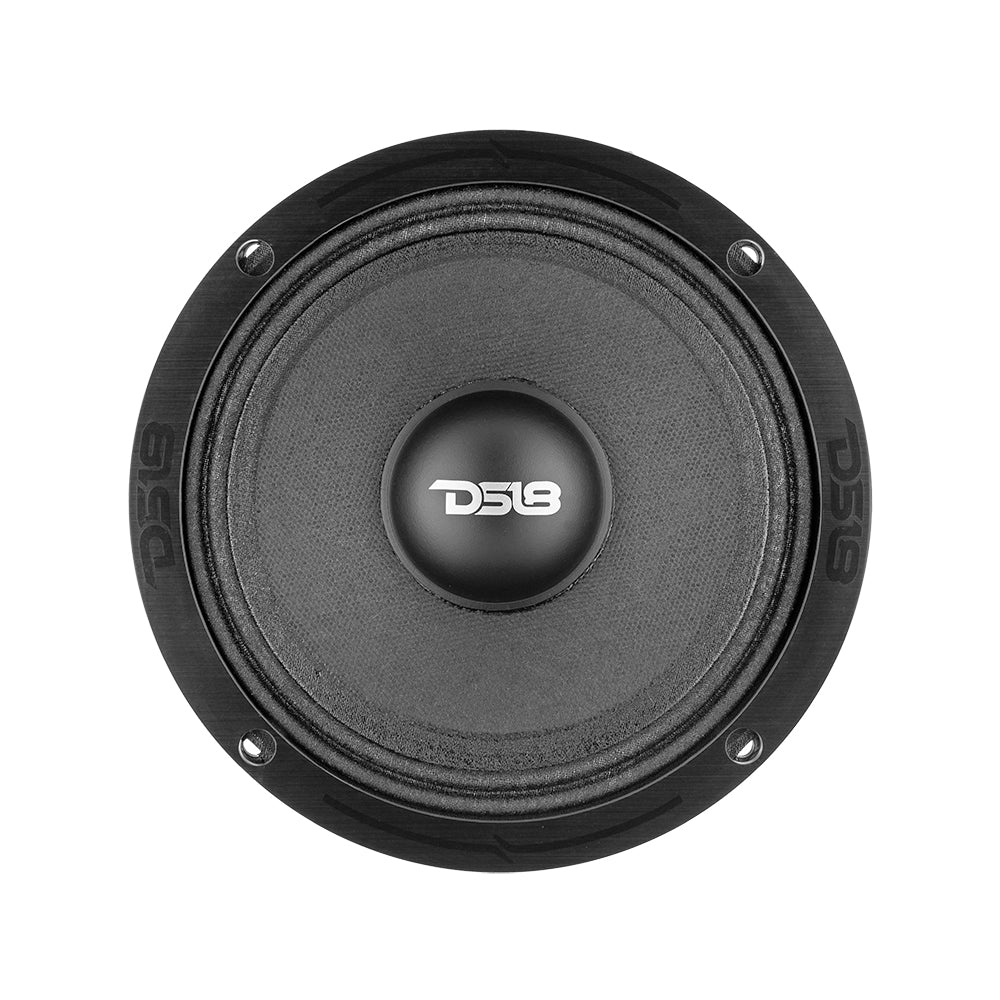

The PRO-ZXi6M has a beautiful gloss black basket face with strong black on black bullet dust cap.
This 8-ohm 6.5 inch speaker handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 6.5 inch black on black Pro-Audio Loudspeaker.
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 100Hz-8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: CCAW
- Impedance: 8-Ohm
- Sensitivity: 97dB
- Magnet Weight: 30 + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 2.83"
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 8 ohm |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 100Hz - 8KHz |
| Recommended HI Pass Crossover | 160Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 30 + 3 Oz |
| Displacement Volume | 0.36L / 0.012ft3 |
| MEASUREMENT | |
| Overall Diameter | 6.5" / 166mm |
| Overall Depth | 3.16" / 80.5mm |
| Front Mount Baffle Cutout | 5.78" / 147mm |
| Mounting Depth | 2.83" / 72mm |
| Motor Diameter | 4.72" / 120mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 300W RMS at 8 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
